2009 Peugeot 407 Owner's Manual

1010PRACTICAL INFORMATION
112
CHANGING A WHEEL
Tools available
The following tools are located in
the holder in the centre of the spare
wheel:

1. Wheelbrace.
Permits removal of the wheel trim and removal of the wheel securing
bolts.

2. Jack with integrated handle.
Permits raising of the vehicle.

3. Removable towing eye.
See corresponding section.

4. Bolt cover tool.
Permits removal of the bolt protectors (covers) on alloy wheels. Removal

 For vehicles with steel wheels,
detach the trim using the wheel-
brace 1 pulling at the valve pas-
sage hole.

 For vehicles with alloy wheels,
remove the covers using tool 4 .

 Loosen the wheel bolts.

 Take the jack from the tool kit.

 Place the jack 2 in one of the four
locations underneath the vehicle
(the nearest one to the wheel to be
changed).

 Extend the jack 2 until its base is in
contact with the ground.

 Unscrew the bolts and remove the
wheel.
Access to the spare wheel and the
jack in the boot

 Lift the fl oor using the lifting handle.
Secure the handle behind the boot
seal. Never go underneath a vehicle
which is supported only by a
jack.

 Park the vehicle on level, stable
and non-slippery ground.

 Apply the handbrake, switch off the
ignition and engage fi rst or reverse
gear (position P for the automatic
gearbox).

1010PRACTICAL INFORMATION
113
Fitting a wheel

 Position the wheel.

 Tighten the bolts by hand.

 Partly tighten the bolts using the
wheelbrace.

 Fold the jack 2 and remove it.

 Fully tighten the bolts using the
wheelbrace 1 .

 For vehicles with steel wheels,
refi t the wheel trim starting by plac-
ing its notch facing the valve and
press with the palm of the hand.

 For vehicles with alloy wheels, refi t
the covers.

 Put the tool holder back in position.
This helps to keep the boot fl oor in
its correct position, to prevent any
deformation of the fl oor when loaded.

 Tighten the spare wheel securing
strap to prevent noise and for your
safety in the event of impact. Punctured tyre warning
light
Information on the instrument
panel:

Reminder: for your safety, always
change a wheel:
- on level, stable, non-slippery ground,
- with the handbrake applied,
-
with fi rst or reverse gear engaged (po-
sition P for the automatic gearbox),
- never go underneath a vehicle
which is supported only by a jack. Tyre under-infl ation detection
system warning light
These original wheels are fi tted with a
pressure sensor (see paragraph "Tyre
under-infl ation detection"). The alarm
which detects the removal or absence
of a wheel fi tted with the indicator
sensor signals the anomaly. Have
the wheel repaired and checked by a
PEUGEOT dealer.
After changing the wheel:
- have the tightening of the bolts and
the tyre pressure of the spare wheel
checked as soon as possible.
- have the punctured wheel repaired and refi t it to the vehicle as soon as
possible.
- have the spare wheel checked and replace it in its boot recess.
Recommendations when using the
temporary spare wheel *
Your vehicle may be equipped with a
spare wheel with a different rim to that
of the standard wheel.
After use, replace it as soon as possible.
Follow the recommendations below
to avoid any alteration in vehicle han-
dling:
-
do not drive above 50 mph (80 km/h) ,

- do not fi t a wheel trim,
- drive carefully,
- check the infl ation pressure indi- cated on the label.
* According to version and country.

1010PRACTICAL INFORMATION
114
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts. Fitting the spare wheel
If your vehicle is fi tted with a steel spare
wheel, when fi tting it, it is
normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a partial
removable cover which is clipped onto
the air intake grille to prevent the accu-
mulation of snow due to direct splashes.
Once it has been fi tted on your vehi-
cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10 °C again.
Consult a PEUGEOT dealer.
Tyres of size 215/55 R17 can-
not be fi tted with standard snow
chains, contact a PEUGEOT
dealer.
* According to country.
Special features of alloy
wheels Anti-theft bolts
Your wheels are fi tted with anti-theft
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the anti-theft
socket and the wheel brace 1 .
Fitting snow tyres
If you fi t snow tyres mounted on steel
wheels onto your vehicle, it is
essen-
tial to use special bolts available from
your PEUGEOT dealer.
This anti-theft socket was
given to you on delivery of
your vehicle with the duplicate
keys. Make a careful note of
the code number engraved on the
head of the anti-theft socket. This will
enable you to obtain a duplicate anti-
theft socket from a PEUGEOT dealer.
You are advised to do the same for the
duplicate keys.

1010PRACTICAL INFORMATION
114
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts. Fitting the spare wheel
If your vehicle is fi tted with a steel spare
wheel, when fi tting it, it is
normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a partial
removable cover which is clipped onto
the air intake grille to prevent the accu-
mulation of snow due to direct splashes.
Once it has been fi tted on your vehi-
cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10 °C again.
Consult a PEUGEOT dealer.
Tyres of size 215/55 R17 can-
not be fi tted with standard snow
chains, contact a PEUGEOT
dealer.
* According to country.
Special features of alloy
wheels Anti-theft bolts
Your wheels are fi tted with anti-theft
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the anti-theft
socket and the wheel brace 1 .
Fitting snow tyres
If you fi t snow tyres mounted on steel
wheels onto your vehicle, it is
essen-
tial to use special bolts available from
your PEUGEOT dealer.
This anti-theft socket was
given to you on delivery of
your vehicle with the duplicate
keys. Make a careful note of
the code number engraved on the
head of the anti-theft socket. This will
enable you to obtain a duplicate anti-
theft socket from a PEUGEOT dealer.
You are advised to do the same for the
duplicate keys.

1010PRACTICAL INFORMATION
115

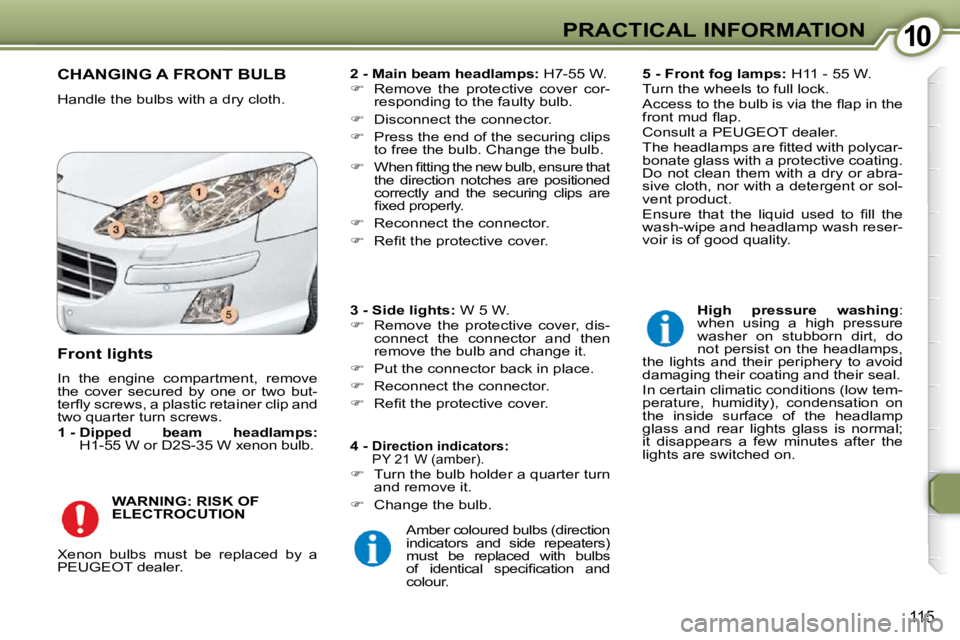

CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
2 - Main beam headlamps: H7-55 W.

 Remove the protective cover cor-
responding to the faulty bulb.

 Disconnect the connector.

 Press the end of the securing clips
to free the bulb. Change the bulb.

 When fi tting the new bulb, ensure that
the direction notches are positioned
correctly and the securing clips are
fi xed properly.

 Reconnect the connector.

 Refi t the protective cover.

4 -
Direction indicators:
PY 21 W (amber).

 Turn the bulb holder a quarter turn
and remove it.

 Change the bulb.

WARNING: RISK OF
ELECTROCUTION
Front lights
In the engine compartment, remove
the cover secured by one or two but-
terfl y screws, a plastic retainer clip and
two quarter turn screws.

1 - Dipped beam headlamps:
H1-55 W or D2S-35 W xenon bulb.
Xenon bulbs must be replaced by a
PEUGEOT dealer. Amber coloured bulbs (direction
indicators and side repeaters)
must be replaced with bulbs
of identical specifi cation and
colour.
5 - Front fog lamps: H11 - 55 W.
Turn the wheels to full lock.
Access to the bulb is via the fl ap in the
front mud fl ap.
Consult a PEUGEOT dealer.
The headlamps are fi tted with polycar-
bonate glass with a protective coating.
Do not clean them with a dry or abra-
sive cloth, nor with a detergent or sol-
vent product.
Ensure that the liquid used to fi ll the
wash-wipe and headlamp wash reser-
voir is of good quality.

High pressure washing :
when using a high pressure
washer on stubborn dirt, do
not persist on the headlamps,
the lights and their periphery to avoid
damaging their coating and their seal.
In certain climatic conditions (low tem-
perature, humidity), condensation on
the inside surface of the headlamp
glass and rear lights glass is normal;
it disappears a few minutes after the
lights are switched on.

3 - Side lights: W 5 W.

 Remove the protective cover, dis-
connect the connector and then
remove the bulb and change it.

 Put the connector back in place.

 Reconnect the connector.

 Refi t the protective cover.

1010PRACTICAL INFORMATION
116
Integrated direction indicator side
repeaters CHANGING A REAR BULB (SALOON)
Third brake light:
Five W 5 W bulbs.

 Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.

 Press on the two tabs located at
the rear, near the rear screen.

 Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.

 Change the faulty bulb.

 When refi tting, ensure that the
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.

 Screw on the light fi xing nuts in-
side the boot using the towing eye,
if necessary. When refi tting, en-
sure that the light is positioned and
fi xed correctly.

 Reconnect the connector.

Number plate lights:
W 5 W.

 Remove the transparent cover using
a screwdriver blade.

 Change the faulty bulb.

 Push the repeater forwards or
backwards and release it.

 Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi cation and colour.
1. Direction indicators:
PY 21 W (amber).

2. Reversing lights: P21 W.

3. Fog lamps/side lights:
P21/4 W.

4. Side lights: P21/4 W.

5. Brake lights/side lights: P21/4 W.

 Disconnect the connector.

 Unscrew the light fi xing nuts in-
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.

 Remove the seal.

 Unclip the bulb holder moving
aside the 5 tabs.

 Unscrew the bulb and change it.

 Lock the bulb holder in place.

 Reposition the seal.

1010PRACTICAL INFORMATION
116
Integrated direction indicator side
repeaters CHANGING A REAR BULB (SALOON)
Third brake light:
Five W 5 W bulbs.

 Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.

 Press on the two tabs located at
the rear, near the rear screen.

 Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.

 Change the faulty bulb.

 When refi tting, ensure that the
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.

 Screw on the light fi xing nuts in-
side the boot using the towing eye,
if necessary. When refi tting, en-
sure that the light is positioned and
fi xed correctly.

 Reconnect the connector.

Number plate lights:
W 5 W.

 Remove the transparent cover using
a screwdriver blade.

 Change the faulty bulb.

 Push the repeater forwards or
backwards and release it.

 Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi cation and colour.
1. Direction indicators:
PY 21 W (amber).

2. Reversing lights: P21 W.

3. Fog lamps/side lights:
P21/4 W.

4. Side lights: P21/4 W.

5. Brake lights/side lights: P21/4 W.

 Disconnect the connector.

 Unscrew the light fi xing nuts in-
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.

 Remove the seal.

 Unclip the bulb holder moving
aside the 5 tabs.

 Unscrew the bulb and change it.

 Lock the bulb holder in place.

 Reposition the seal.

1010PRACTICAL INFORMATION
117

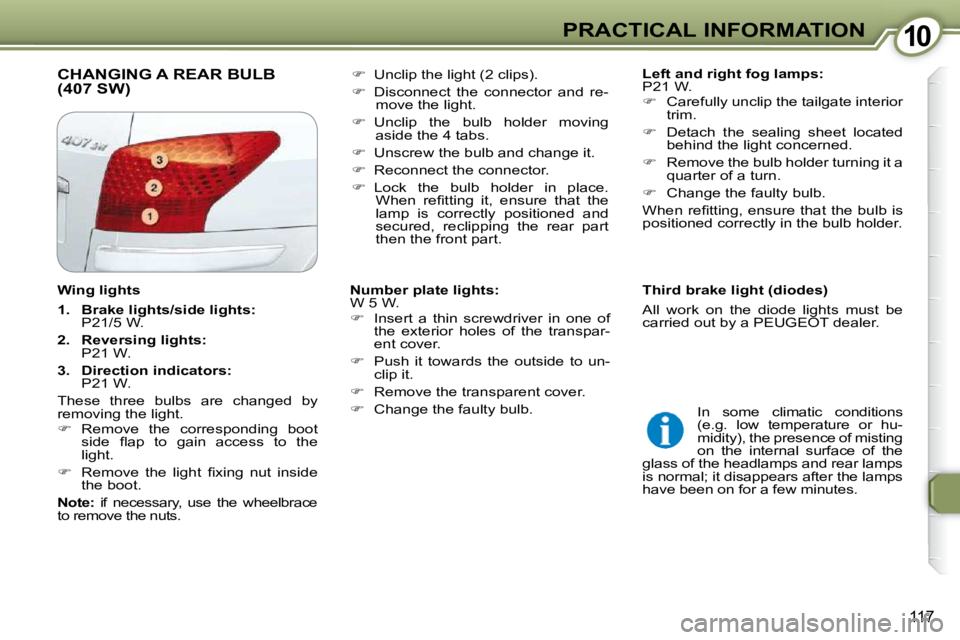

CHANGING A REAR BULB (407 SW)
Left and right fog lamps:
P21 W.

 Carefully unclip the tailgate interior
trim.

 Detach the sealing sheet located
behind the light concerned.

 Remove the bulb holder turning it a
quarter of a turn.

 Change the faulty bulb.
When refi tting, ensure that the bulb is
positioned correctly in the bulb holder.

 Unclip the light (2 clips).

 Disconnect the connector and re-
move the light.

 Unclip the bulb holder moving
aside the 4 tabs.

 Unscrew the bulb and change it.

 Reconnect the connector.

 Lock the bulb holder in place.
When refi tting it, ensure that the
lamp is correctly positioned and
secured, reclipping the rear part
then the front part.

Number plate lights:
W 5 W.

 Insert a thin screwdriver in one of
the exterior holes of the transpar-
ent cover.

 Push it towards the outside to un-
clip it.

 Remove the transparent cover.

 Change the faulty bulb. Third brake light (diodes)
All work on the diode lights must be
carried out by a PEUGEOT dealer.
Wing lights

1. Brake lights/side lights:
P21/5 W.

2. Reversing lights:
P21 W.

3. Direction indicators:
P21 W.
These three bulbs are changed by
removing the light.

 Remove the corresponding boot
side fl ap to gain access to the
light.

 Remove the light fi xing nut inside
the boot.

Note: if necessary, use the wheelbrace
to remove the nuts. In some climatic conditions
(e.g. low temperature or hu-
midity), the presence of misting
on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
