2009 Peugeot 407 Owner's Manual

7SAFETY
88
The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained be-
fore setting off.
Wherever you are seated in the vehi-
cle, always fasten your seat belt, even
for short journeys.
Do not invert the seat belt buckles as
they will not fulfi l their role fully.
If the seats have armrests * , the lap
part of the seat belt must always pass
under the armrest.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an
automatic locking device which comes
into operation in the event of a collision,
on emergency braking or if the vehicle
rolls over. You can release the device
by pulling rapidly on the strap and
releasing it. Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years
old or shorter than one metre fi fty,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.

Depending on the nature and serious-
ness of the impacts , the pre-tensioning
device may be triggered before and in-
dependently of the air bags. Triggering of
the pre-tensioners is accompanied by a
slight emission of harmless smoke and
a noise, due to the activation of the py-
rotechnic cartridge incorporated in the
system.
In all cases, the air bag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if necessary
replaced, by a PEUGEOT dealer.
* According to model.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking that
it does not twist,
- must not be transformed or modifi ed to avoid altering its performance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regularly
by a PEUGEOT dealer and particularly
if the straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and rolled up correctly.

7SAFETY
89
AIR BAGS
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the rear centre
passenger) in the event of violent col-
lisions. They supplement the action of
the force-limiting seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:
- in the event of a serious impact, the air bags are deployed instantane-
ously and protect the occupants of
the vehicle (with the exception of the
rear centre passenger); immediately
after the impact, the air bags defl ate
rapidly so that they do not hinder
the visibility of the occupants or their
possible exit from the vehicle,
- in the event of a minor impact or rear impact and in certain roll-over
conditions, the air bags will not be
deployed; the seat belt alone is
suffi cient to provide maximum pro-
tection in these situations. Front air bags
The front air bags protect the driver
and front passenger in the event of a
serious front impact in order to limit the
risks of injury to the head and chest.
They are folded in the centre of the
steering wheel for the driver and in the
fascia for the front passenger.
Impact detection zones

A. Front impact zone.

B. Side impact zone.
The deployment of one or
more air bags is accompanied
by a slight discharge of harm-
less smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensi-
tive individuals may experience some
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time. Activation
They are deployed simultaneously, ex-
cept in cases where the passenger's
front air bag is disarmed, in the event
of a serious front impact applied to all
or part of the front impact zone
A , in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
front to the rear of the vehicle.
The front air bag infl ates between the
front occupant of the vehicle and the
fascia to cushion his forward movement.
The air bags do not operate
when the ignition is off.
This equipment only operates
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not operate.

7SAFETY
90
Disarming the front
passenger's front air bag * Reactivation

As soon as the child seat is removed,
turn the air bag slot to the
"ON" position
to re-activate the air bag and thus ensure
its safety function.

To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-facing
child seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.

 With the ignition switched off
,
insert the key into the passenger air
bag disarming switch, turn it to the

"OFF" position, then remove the key
keeping the slot in this position. The steering column air bag protects
the driver's knees in the event of a
serious front impact.
It is incorporated in the fascia below
the steering column.
In the event of a malfunction
* According to country. Activation
It is deployed at the same time as the
front air bags.
Instrument panel warning light.
If this warning light comes on, accompa-
nied by an audible signal and a message
on the multifunction display, contact a
PEUGEOT dealer to have the system
checked. The air bags may no longer
be deployed in the event of a serious
impact. Steering column air bag
When the ignition is on, this
warning light remains lit on the
instrument panel for the duration
of disarming.
In the "OFF" position, the passenger
air bag will not be triggered in the event
of an impact.

7SAFETY
91
Front/rear * side air bags
The side air bags protect the driver and
passengers (with the exception of the
rear centre passenger) in the event of
a serious side impact in order to limit
the risks of injury to the chest.
Each side air bag is incorporated into
the front seat back and in the rear door
armrest * .
Activation
The side air bags are deployed inde-
pendently of each other in the event
of a serious side impact applied to all
or part of the side impact zone B , per-
pendicular to the longitudinal centre-
line of the vehicle on a horizontal plane
directed from the outside to the inside
of the vehicle.
The side air bag infl ates between the
front or rear occupant of the vehicle
and the corresponding door trim pad.
* According to country.

A. Front impact zone.

B. Side impact zone. Activation
It is deployed at the same time as the
corresponding side air bags in the event
of a serious side impact applied to all
or part of the side impact zone
B , per-
pendicular to the longitudinal centre-
line of the vehicle on a horizontal plane
directed from the outside to the inside
of the vehicle.
The curtain air bag infl ates between
the front or rear occupant of the vehicle
and the windows.
Impact detection zones
Curtain air bags
The curtain air bags protect the driver
and passengers (with the exception
of the rear centre passenger) in the
event of a serious side impact in order
to limit the risks of injury to the head.
Each curtain air bag is incorporated
into the door pillars and the upper part
of the passenger compartment.
In the event of a malfunction
Instrument panel warning light.
If this warning light comes on, accompa-
nied by an audible signal and a message
on the multifunction display, contact a
PEUGEOT dealer to have the system
checked. The air bags may no longer
be deployed in the event of a serious
impact. In the event of a minor impact
or bump to the side of the
vehicle or if the vehicle rolls
over, the air bag may not be
deployed.
In the event of a rear or front collision,
the air bag is not deployed.

7SAFETY
92
Curtain air bags

7SAFETY
90
Disarming the front
passenger's front air bag * Reactivation

As soon as the child seat is removed,
turn the air bag slot to the
"ON" position
to re-activate the air bag and thus ensure
its safety function.

To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-facing
child seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.

 With the ignition switched off
,
insert the key into the passenger air
bag disarming switch, turn it to the

"OFF" position, then remove the key
keeping the slot in this position. The steering column air bag protects
the driver's knees in the event of a
serious front impact.
It is incorporated in the fascia below
the steering column.
In the event of a malfunction
* According to country. Activation
It is deployed at the same time as the
front air bags.
Instrument panel warning light.
If this warning light comes on, accompa-
nied by an audible signal and a message
on the multifunction display, contact a
PEUGEOT dealer to have the system
checked. The air bags may no longer
be deployed in the event of a serious
impact. Steering column air bag
When the ignition is on, this
warning light remains lit on the
instrument panel for the duration
of disarming.
In the "OFF" position, the passenger
air bag will not be triggered in the event
of an impact.

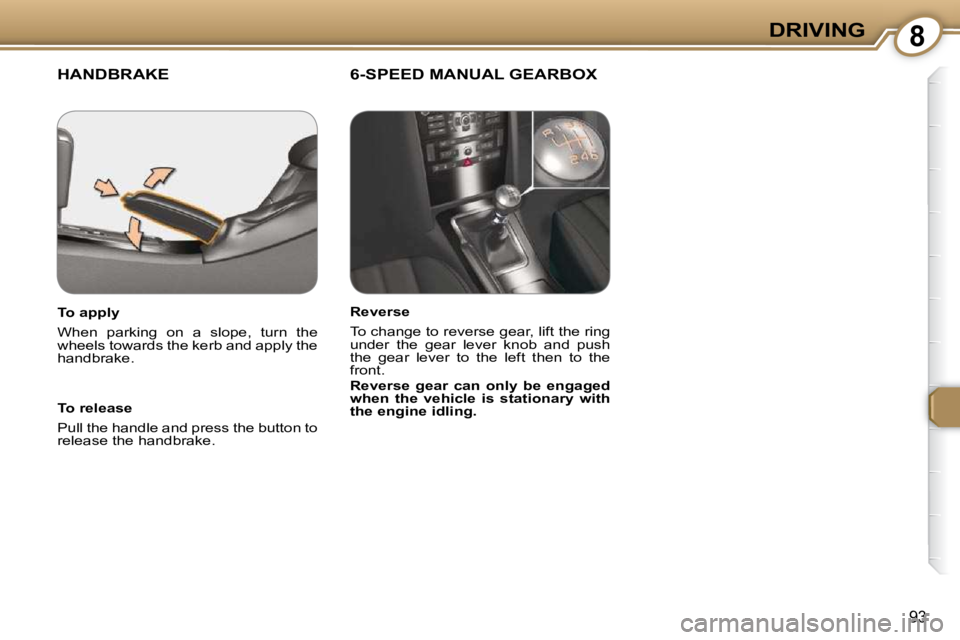

8DRIVING
93
HANDBRAKE 6-SPEED MANUAL GEARBOX
To release
Pull the handle and press the button to
release the handbrake.
To apply
When parking on a slope, turn the
wheels towards the kerb and apply the
handbrake.
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push
the gear lever to the left then to the
front.

Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.

8DRIVING
94
Gear selection gate

 Move the lever in the gate to select
a position.
The indicator light corresponding to the position selected appears on
the instrument panel screen.

P ark: to immobilise the vehicle and to
start the engine, with the handbrake on.

R everse: to reverse (select this position
with the vehicle stationary, engine at idle).

N eutral: to start the engine and to park,
with the handbrake on.

Note: if position N is inadvertently
engaged while driving, allow the engine to
return to idle before engaging position D
then accelerate.

D rive: to drive in automatic mode.

M anual: to drive selecting the gears.

S: sport programme.

 : snow programme.
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
The four or six speed automatic gearbox
offers, as required, the comfort of the
auto-adaptive programme enhanced
by a selection suited to dynamic driving
conditions: sport, or to driving on a
slippery road: snow.
However, manual selection is still possible
using the gear lever.
Moving Off
With the engine running, move off from
position P :

 to exit position P, it is essential
to press the brake pedal,

 select position R , D or M , then
gradually release the pressure on
the brake pedal; the vehicle moves
off immediately.
To move off from position N :

 with your foot on the brake, release
the handbrake,

 select position R , D or M , then
gradually release the pressure on
the brake pedal; the vehicle moves
off immediately.
Starting the engine


with the handbrake on, select position

P or N in the gate,

 turn the ignition key. When the engine is at idle,
brakes not applied, if position

R , D or M is selected, the
vehicle moves even without the
accelerator being pressed.

Do not leave children unsupervised
inside the vehicle, with position
R, D or M selected, with the engine
running, as the vehicle moves
even without the accelerator being
pressed.
With the ignition off, if the
lever is not in position P , an
audible signal is heard when
the driver's door is opened, or
after approximately 45 seconds. Move
the lever to position P . The audible
signal ceases.
When maintenance operations need to
be carried out with the engine running,
apply the handbrake and select the

P ark position.
