1111TECHNICAL DATA
139
DIMENSIONS (IN MM)
407 saloon 407 SW

1111TECHNICAL DATA
140

A. Manufacturer's plate.

B. Serial number on the bodywork.

C. Serial number on the fascia (visible
at the bottom of the windscreen).

D. Tyre pressure and paint colour
reference label. The label
D on the pillar near to the door
hinges on the driver's side indicates:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the pressure
must be checked cold , at least
once a month ),
- the paint colour reference.
E. Front number plate.
IDENTIFICATION FEATURES OF YOUR 407
In the event of replacement, a
front number plate of a height
less than or equal to 110 mm
must be fi tted provided that
this size conforms to current
regulations.
Otherwise, contact a PEUGEOT dealer.

141
PC Com
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The PC Com is coded in such a way that it will only operate in your vehicle, contact a PEUGEOT dealer f or confi guration of the system.
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention wh ile the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the PC Com switches off after a few minutes.
CONTENTS

142
11
2020
88
99
55
44
3322
1919
16161111
10101818
1212
6677
1313
1515
1414
1717
01

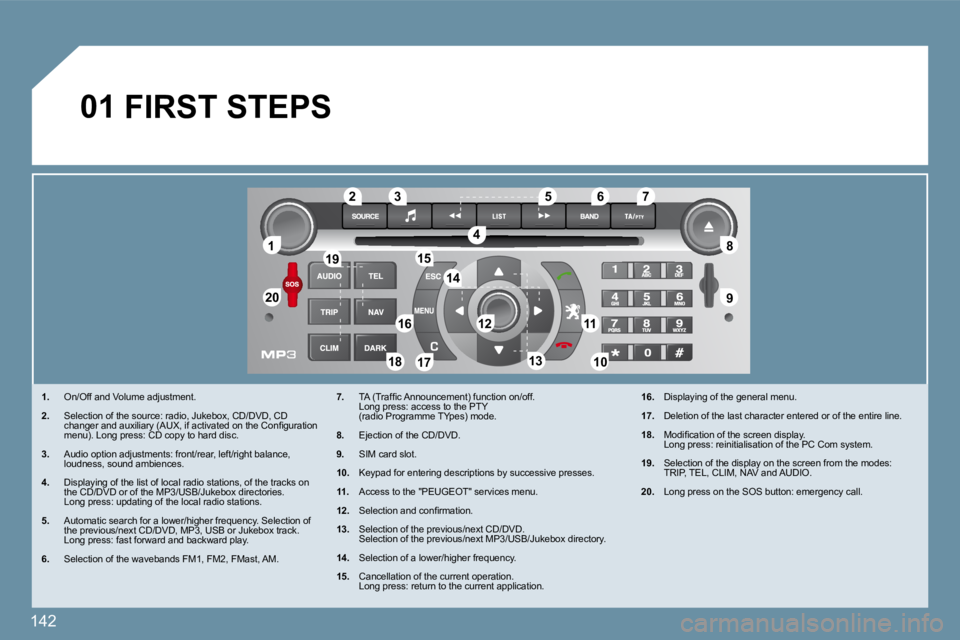

1. On/Off and Volume adjustment.
2. Selection of the source: radio, Jukebox, CD/DVD, CD changer and auxiliary (AUX, if activated on the Confi guration menu). Long press: CD copy to hard disc.
3. Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
4. Displaying of the list of local radio stations, of the tracks on the CD/DVD or of the MP3/USB/Jukebox directories. Long press: updating of the local radio stations.
5. Automatic search for a lower/higher frequency. Sel ection of the previous/next CD/DVD, MP3, USB or Jukebox track . Long press: fast forward and backward play.
6. Selection of the wavebands FM1, FM2, FMast, AM.
7. TA (Traffi c Announcement) function on/off. Long press: access to the PTY (radio Programme TYpes) mode.
8. Ejection of the CD/DVD.
9. SIM card slot.
10. Keypad for entering descriptions by successive presses.
11. Access to the " PEUGEOT " services menu.
12. Selection and confi rmation.
13. Selection of the previous/next CD/DVD. Selection of the previous/next MP3/USB/Jukebox dire ctory.
14. Selection of a lower/higher frequency.
15. Cancellation of the current operation. Long press: return to the current application.
16. Displaying of the general menu.
17. Deletion of the last character entered or of the entire line.
18. Modifi cation of the screen display. Long press: reinitialisation of the PC Com system.
19. Selection of the display on the screen from the mo des: TRIP, TEL, CLIM, NAV and AUDIO.
20. Long press on the SOS button: emergency call.
FIRST STEPS

143
02
°
> COLOUR SCREEN
This displays the following information, via the audio control panel: - time, - date, - ambient temperature (if there is a risk of ice, you are warned by a message), - audio source displays (radio, CD, jukebox, ... ), - telematic system displays (telephone, services , ...), - check of openings (doors, boot, ...), - warning messages (e.g.: "Fuel level low") and vehicle function status messages (e.g.: "Auto lighting activated") displaye d temporarily, - trip computer information, - GPS (Europe) satellite navigation system information.
New The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disk. There is no need to keep a mapping CD in the CD player. Updates of the maps of France and of the other European countries, offered by our partner NAVTEQ, will be available from the PEUGEOT network.
Screen confi guration: refer to the section - Screen menu map.
Telephone
Orange Time:
Date:

144
02 GENERAL MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, voice, auxiliary socket (AUX) parameters. socket (AUX) parameters.
VIDEO: activation, parameters. VEHICLE DIAGNOSTICS: warnings log.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
AIR CONDITIONING: on/off and dual zone control (according to equipment).

145
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

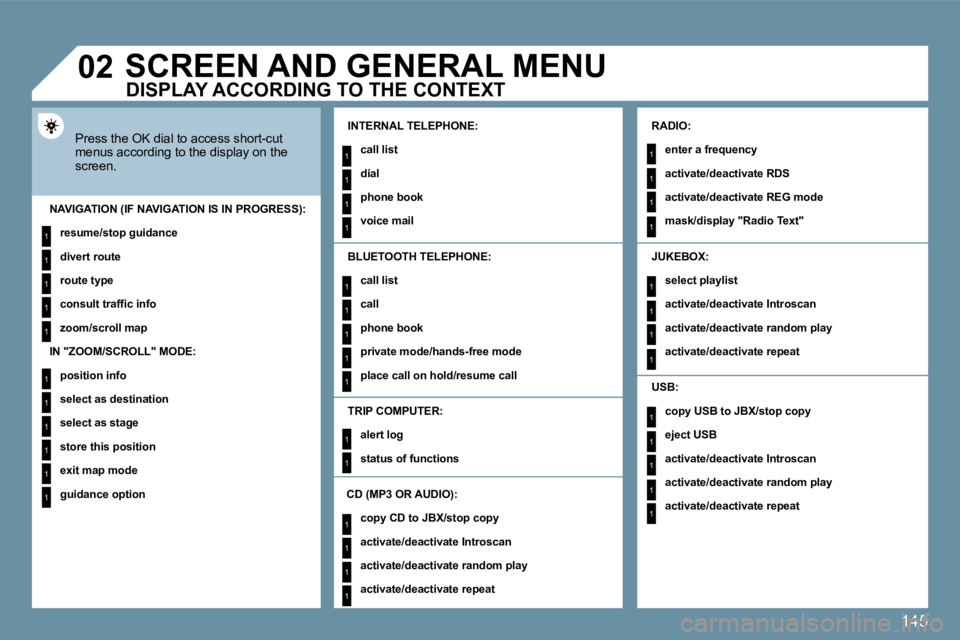

02 SCREEN AND GENERAL MENU
Press the OK dial to access short-cut menus according to the display on the screen.
INTERNAL TELEPHONE:
call list
dial
phone book
voice mail NAVIGATION (IF NAVIGATION IS IN PROGRESS):
resume/stop guidance
divert route
route type
consult traffi c info
zoom/scroll map
TRIP COMPUTER:
alert log
status of functions
BLUETOOTH TELEPHONE:
call list
call
phone book
private mode/hands-free mode
place call on hold/resume call
CD (MP3 OR AUDIO):
copy CD to JBX/stop copy
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
RADIO:
enter a frequency
activate/deactivate RDS
activate/deactivate REG mode
mask/display "Radio Text"
JUKEBOX:
select playlist
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
USB:
copy USB to JBX/stop copy
eject USB
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
DISPLAY ACCORDING TO THE CONTEXT
IN "ZOOM/SCROLL" MODE:
position info
select as destination
select as stage
store this position
exit map mode
guidance option

146
11
22
33
55
77
44
66
88
03
SELECTING A DESTINATION Tip: for a detailed global view of the menus available, refer to the "Screen menu map" part of this s ection.
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the DESTINATION CHOICE function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Turn the dial and select the ENTER AN ADDRESS function.
When the country has been selected, turn the dial and select the TOWN function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
GPS
