2009 Peugeot 407 Owner's Manual

8DRIVING
95
The auto-adaptive programme


select position D in the gate: the
gearbox operates in auto-adaptive
mode, without any action on your
part, taking into account the following
parameters:
- the style of driving,
- the profi le of the road,
- the vehicle load.
To obtain maximum acceleration
without touching the lever, press the
accelerator down fully (kick down).
The programme will change down
automatically or will stay in the gear
selected until the maximum engine
speed is reached.
When the brake is applied, the pro-
gramme will change down auto-
matically in order to provide effi cient
engine braking. Sport and Snow programmes
These are two special programmes.
The programme selected is displayed
on the instrument panel screen.
It is only possible to change
from one gear to another if
the vehicle speed and engine
speed permit. If they do not,
the vehicle will operate temporarily in
automatic mode. When the vehicle is stationary or moving
very slowly, the gearbox automatically
selects gear M1 .
Programmes S (sport) and  (snow)
do not operate in manual gear selection
mode.
Any operating abnormality is
indicated by lighting of this
warning light, accompanied
by an audible signal and a
message on the multi-function
display.
In this situation the gearbox operates in
downgrade mode (locked in 3rd gear).
You may feel a substantial knock when
changing from P to R and from N to R
(this will not cause any damage to the
gearbox).
Do not exceed 60 mph (100 km/h) or
keep within local speed limits.
Have it checked by a PEUGEOT dealer.
Operating check
Operation with manual
selection of the gears

 select position M in the gate,

 push the lever to the + sign to
change up a gear and push again
to change up another gear,

 pull the lever to the - sign to change
down a gear and pull again to
change down another gear.
You can change from position D (driving
in automatic mode) to position M (driving
in manual mode) at any time.
Releasing the accelerator
sharply does not have any
immediate effect on the speed
of the vehicle.
Never select position
N when
the vehicle is moving.
Never select positions P or R
unless the vehicle is stationary.
Never change between positions to
optimise braking on a slippery surface. Sport programme

 Press button S once the vehicle
has been started in position D , the
auto-adaptive programme favours
dynamic driving.
Snow programme
This programme improves starting and
drive when traction is poor.

 Press button  once the vehicle
has been started and position D has
been selected, the auto-adaptive
programme adjusts the perform-
ance of the vehicle to the condition
of the slippery road.
You can deactivate the Sport or Snow
programme at any time by pressing
the button selected.
If the battery is fl at and the
lever is in position P , it will
be impossible to change to
another position.
In particular, do not force the lever
or there is a risk the gearbox may be
damaged.

8DRIVING
96

 Press switch 1 , the indi-
cator light comes on and
the SPORT warning light
comes on.

 Press switch 1 again. The
indicator light is switched
off and the AUTO indicator
light comes on.
To return to automatic operation
In this position, the suspension is
maintained in the
SPORT position.
In the event of a fault , it
comes on, accompanied by an
audible signal and a message
on the multifunction display.
Select automatic operation and contact a
PEUGEOT dealer as soon as possible.
Operating check
This is confi rmed by the switch light
and the indicator lights. ELECTRONICALLY CONTROLLED SUSPENSION Manual selection of the SPORT
position
The suspension adapts automatically
and instantly to different driving styles
and road characteristics, improving
the comfort of the occupants and the
vehicle's road holding capabilities.
The suspension favours smooth shock
absorption, ensuring a comfortable
ride, but as soon as conditions demand
a change (sporty driving, tight bends,
avoidance action, etc.) it automatically
selects fi rmer shock absorption, guar-
anteeing optimum road holding.

8DRIVING
97
CRUISE CONTROL/SPEED LIMITER Selecting the function

 Place switch 1 in the CRUISE
position. The cruise control is not
yet active and no speed has been
memorised. The display indicates:
Switching the function off

 Place switch 1 in position 0 or

LIMIT to switch the system off.
Note: It is possible to acceler-
ate and drive momentarily at a
speed greater than the memo-
rised speed. The value memo-
rised fl ashes. When the accelerator
pedal is released, the vehicle will return
to the memorised speed.
Cancelling the memorised speed
If you wish to cancel the memorised
speed:

 Press button 4 or the brake or
clutch pedal. The display indicates
(e.g. at 70 mph (110 km/h)):
Activation/memorising a speed
As soon as you reach the chosen speed,
press button 2 or 3 . This memorises the
speed, which will be maintained auto-
matically. The display indicates (e.g. at
70 mph (110 km/h)): On a steep descent, the cruise
control, which does not act on
the brakes, is not able to prevent
the vehicle from exceeding the
programmed speed.
In no circumstances does the cruise
control replace the requirement to
respect speed limits, nor does it replace
the need for vigilance and responsibility
on the part of the driver.
We recommend that your feet remain
near the pedals.
Cruise control function
This enables the vehicle to maintain
a steady speed programmed by the
driver.
In order for it to be memorised, the
vehicle speed must be greater than
25 mph (40 km/h) with at least fourth
gear engaged (second gear for the
automatic gearbox),
with the engine
running .

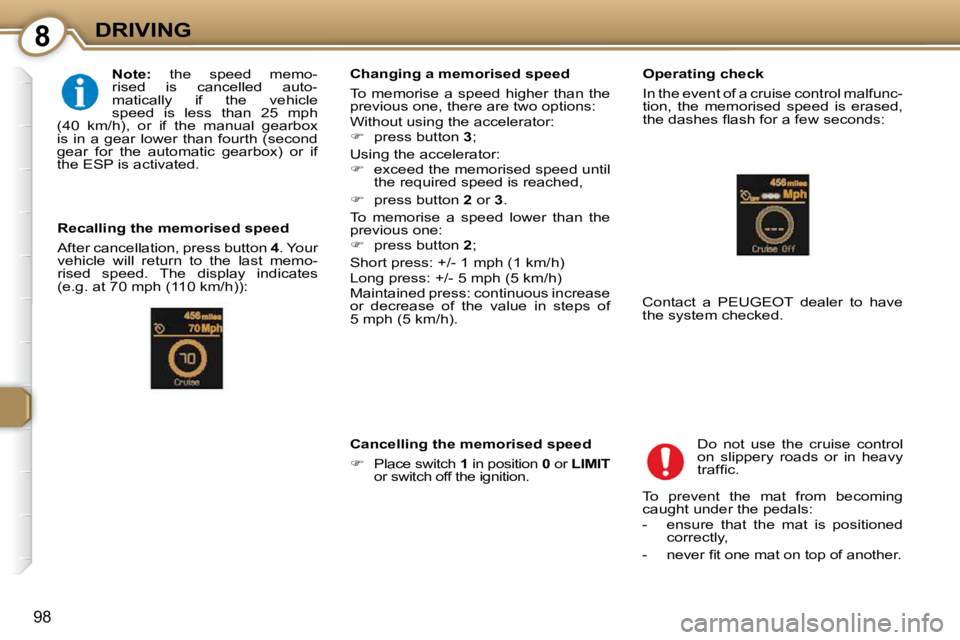

8DRIVING
98

Note: the speed memo-
rised is cancelled auto-
matically if the vehicle
speed is less than 25 mph
(40 km/h), or if the manual gearbox
is in a gear lower than fourth (second
gear for the automatic gearbox) or if
the ESP is activated. Operating check
In the event of a cruise control malfunc-
tion, the memorised speed is erased,
the dashes fl ash for a few seconds:
Contact a PEUGEOT dealer to have
the system checked. Do not use the cruise control
on slippery roads or in heavy
traffi c.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned correctly,
- never fi t one mat on top of another.
Changing a memorised speed
To memorise a speed higher than the
previous one, there are two options:
Without using the accelerator:

 press button 3 ;
Using the accelerator:

 exceed the memorised speed until
the required speed is reached,

 press button 2 or 3 .
To memorise a speed lower than the
previous one:

 press button 2 ;
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or decrease of the value in steps of
5 mph (5 km/h).
Recalling the memorised speed
After cancellation, press button
4 . Your
vehicle will return to the last memo-
rised speed. The display indicates
(e.g. at 70 mph (110 km/h)):
Cancelling the memorised speed

 Place switch 1 in position 0 or LIMIT
or switch off the ignition.

8DRIVING
99
Selecting the function

 Place switch 1 in the LIMIT position.
The limiter is not yet active. By default
the display indicates:
Switching the function off

 Place switch 1 in position 0 or

CRUISE or switch off the ignition
to switch the system off. The last
speed programmed remains in the
memory.
Memorising a speed
A speed can be memorised without
activation of the limiter.
Pressing buttons 2 and 3 decreases or
increases the speed.
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or decrease of the value in steps of
5 mph (5 km/h). Activation/deactivation of the
limiter
Pressing button
4 activates the limiter,
pressing this button again deactivates it.
When the limiter is active, the display
indicates (e.g. at 70 mph (110 km/h)):
On a steep descent or if the
driver accelerates sharply, the
speed limiter, which does not
act on the brakes, is not able
to prevent the vehicle from exceeding
the programmed speed.
In no circumstances does the speed
limiter replace the requirement to respect
speed limits, nor does it replace the
need for vigilance and responsibility on
the part of the driver.
The driver must remain vigilant and
stay in complete control of his vehicle.

The operations must be car-
ried out with the engine run-
ning.
Limiter function
This prevents the vehicle speed
exceeding the speed programmed by
the driver (minimum speed of 18 mph
(30 km/h)).

8DRIVING
100
Exceeding the programmed speed
Additional pressing of the accelera-
tor to exceed the programmed speed
will have no effect unless the pedal is
pressed fi rmly (passing the point of
resistance ).
The limiter is deactivated temporarily
and displays the programmed speed
(e.g. at 70 mph (110 km/h)):

Note: the speed also fl ashes
when the speed limiter cannot
prevent the vehicle from exce-
eding the programmed speed
(on a steep descent or in the event of
sharp acceleration).
To re-activate the limiter, release the
accelerator to slow down to a speed
below the programmed speed. Operating check
In the event of a limiter malfunction,
the memorised speed is erased, the
dashes fl ash for a few seconds:
Contact a PEUGEOT dealer to have
the system checked.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is po-
sitioned correctly,
- never fi t one mat on top of another.

8DRIVING
101
TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Flat tyre Instrument panel display
warning light.
This is accompanied by the audible signal
and the message on the multi-function
display locating the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible.
Puncture
This warning light, accompanied by
the audible signal and the message on
the multi-function display locating the
wheel concerned, is followed by illumi-
nation of the "STOP" warning light. Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
tured or very defl ated tyre), and have
the tyre pressure checked as soon as
possible.
Sensor(s) not detected or faulty
Instrument panel display
warning light. All repairs and changing of
tyres on a wheel fi tted with this
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
The tyre under-infl ation detection sys-
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate
the need to have the tyre pressure
checked regularly (see manufacturer's
label on the door pillar) to ensure that
the optimum dynamic performance
of the vehicle is maintained and pre-
vent premature wear of the tyres, par-
ticularly in arduous driving conditions
(heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remem-
ber to check the pressure of the spare
wheel.
The tyre under-infl ation detection sys-
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.

Note : this message is also
displayed when one of the
wheels is away from the ve-
hicle (being repaired) or when
one or more wheels without a
sensor are fi tted.
Instrument panel display
warning light.
This is accompanied by the audible
signal and the message on the multi-
function display which indicates that
under-infl ation detection is absent
from one (or several) wheel(s) or that
there is a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).

8DRIVING
VISUAL AND AUDIBLE FRONT AND REAR PARKING ASSISTANCE
To guarantee optimum opera-
tion, in bad weather or in winter,
ensure that the sensors are
not covered with mud, frost or
snow.
This system consists of proximity sensors: - four in the front bumper,
and
- four in the rear bumper. Detection zone
The system is deactivated if
the vehicle is stationary for
more than 3 seconds.
Detection
The system is activated when:
- reverse gear is engaged,
- the speed is below 6 mph (10 km/h)
in forward gear.
It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction display.
It detects any obstacle (person, vehi-
cle, tree, gate, etc.) in front of or be-
hind the vehicle. However, it cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other similar object may be detected
at the beginning of the manoeuvre but
may no longer be detected when the
vehicle comes close to it.
