2009 Peugeot 407 Owner's Manual

219
33
04
44
11
55
22
USB PLAYER - PLUG
USING THE USB SOCKET - PLUG
Press LIST briefl y to display the list of Folders/Genres/Artists/Playlists on the USB equipment. Navigate through the list using the left/right and up/down buttons. Confi rm the selection by pressing OK.
The lists available are Artist, Genre and Playlist (as defi ned on the iPod ® ). ®
Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disc or USB devices other than audio equipment to the USB socket. This could damage your installation.
CONNECTING AN IPOD ® CONNECTING AN IPOD CONNECTING AN IPOD VIA THE USB SOCKET ®
Press one of these buttons to gain access to the previous/next track on the classifi cation list currently being played. Press and hold one of the buttons for fast forward or rewind play.
Press one of these buttons to gain access to the previous/next Genre, Folder, Artist or Playlist on the classifi cation list currently being played.
Press and hold LIST to display the different classifi cations. Select by Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.
- by Folder: all folders containing audio fi les recognised on the peripheral device, classifi ed in alphabetical order without following the fl ow chart. - by Artist: all of the artist names defi ned in the ID3 Tags, classifi ed in alphabetical order. - by Genre: all of the genres defi ned in the ID3 Tags. - by Playlist: in accordance with the playlists recorded on the USB device.
OK

220
11
22
22
11
The controls are displayed and managed viathe portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio equipment.
The auxiliary input, JACK and RCA, permits the con nection of portable equipment (MP3 player...).
Connect the portable equipment(MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) using a suitable cable (not supplied).
Press the SOURCE button several times in succession and select AUX.
USING THE AUXILIARY INPUT (AUX)
JACK SOCKET OR RCA SOCKET (according to vehicle)
ADJUSTING THE VOLUME OF THE AUXILIARY SOURCE
Do not connect a single piece of equipment via the USB port and the JACK socket at the same time.

221
11
66
22
77
44
99
55
1010
33
88
05
Saisir code authentification01OKDel23456789_
BLUETOOTH
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free syst em of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Activate the telephone's Bluetooth function.
A window is displayed with "Searching...".
Press the MENU button.
In the menu, select: - Bluetooth telephone function - Audio - Bluetooth confi guration - Perform a Bluetooth search
The services offered depend on the network, the SI M card and the compatibility of the Bluetooth equipme nt used. Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Consult a PEUGEOT dealer.
BLUETOOTH TELEPHONE
SCREEN C
The TELEPHONE menu permits access to the following functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the screen: een: enter a code with at least 4 digits. Confi rm by pressing OK.
"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one telephone can be connected at a time.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm by pressing OK. If pairing fails, the number of attempts is not limited.
The automatic connection authorised is only active after the telephone has been confi gured. The directory and the call list can be accessed after the synchronisation period.
OK
PAIRING A TELEPHONE
The pairing can also be initiated from the telepho ne.
* if your telephone hardware is fully compatible.

222
11
22
11
11
22
33
22
YES
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering wheel control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press the end of the steering wheel control for mo re than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, wit h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.

223

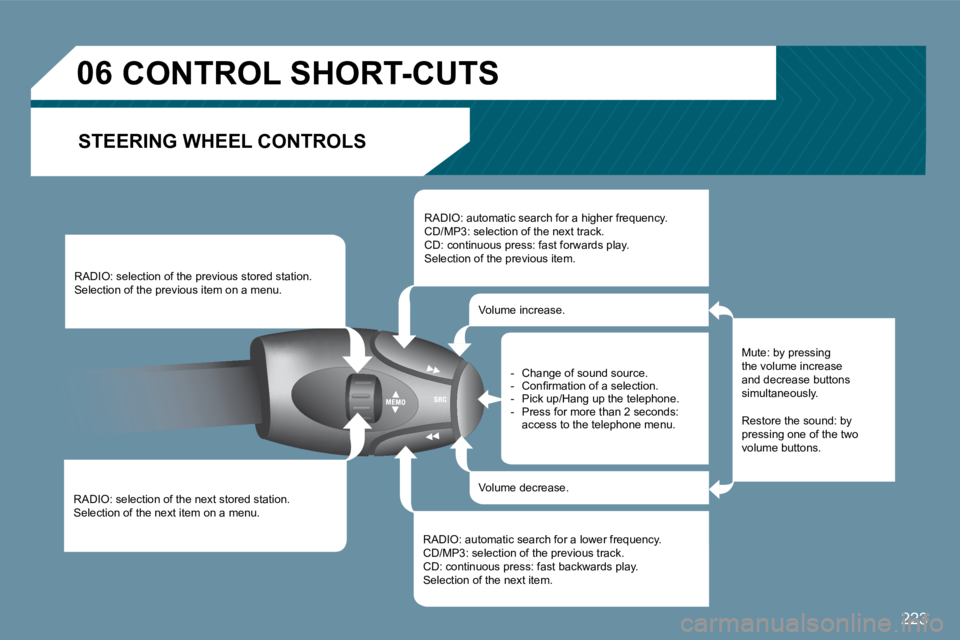

06 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
RADIO: selection of the next stored station. Selection of the next item on a menu.
RADIO: selection of the previous stored station. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3: selection of the next track. CD: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/MP3: selection of the previous track. CD: continuous press: fast backwards play. Selection of the next item.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
Restore the sound: by pressing one of the two volume buttons.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.

224
55
66
77
88
11
22
33
44
07 CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
Press to confi rm the selection.
Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the settings one by one confi rming by pressing the OK button. Next select the OK tab on the screen then confi rm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
ADJUSTING THE DATE AND TIME
SCREEN C

225
123
23
1
2
3
4
3
4
3
4
2
3
4
3
4
3
3
3
2
1
2
2
1
2
3
2
3
4
4
4
4
4
4
08
3
3
3
2
3
3
3
3
3
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

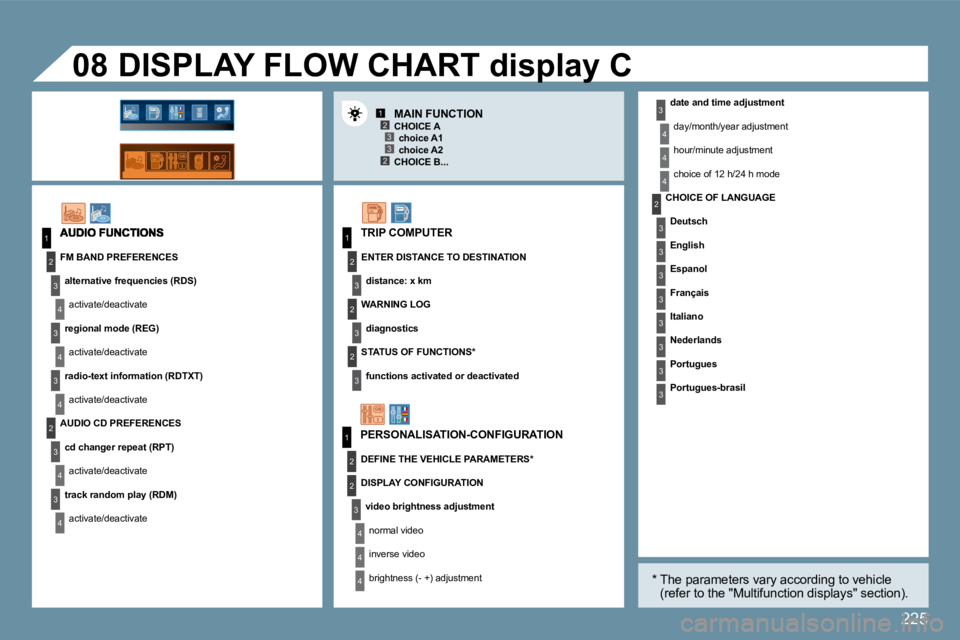

DISPLAY FLOW CHART display C DISPLAY FLOW CHART display C
TRIP COMPUTER
MAIN FUNCTION
* The parameters vary according to vehicle (refer to the "Multifunction displays" section).
CHOICE A choice A1 choice A2 CHOICE B...
track random play (RDM)
activate/deactivate
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
cd changer repeat (RPT)
activate/deactivate
ENTER DISTANCE TO DESTINATION
distance: x km
WARNING LOG
diagnostics
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
STATUS OF FUNCTIONS *
functions activated or deactivated
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *
DISPLAY CONFIGURATION
CHOICE OF LANGUAGE
Deutsch
English
Espanol
Français
Italiano
Nederlands
Portugues
Portugues-brasil

226
1
2
3
2
1
2
3
3
1
2
2
2
2
1
2
1
2
2
AIR CONDITIONING
SWITCH OFF AIR CONDITIONING (A/C OFF)
SIMULTANEOUS LH-RH CONTROL
activate/deactivate
TELEPHONE
BLUETOOTH CONFIGURATION
CONNECT/DISCONNECT AN EQUIPMENT
Telephone function
Audio Streaming function
CONSULT THE PAIRED EQUIPMENT
DELETE A PAIRED EQUIPMENT
PERFORM A BLUETOOTH SEARCH
MANAGE THE TELEPHONE CALL
TERMINATE THE CURRENT CALL
ACTIVATE SECRET MODE
CALL
CALLS LIST
DIRECTORY
