2007 VOLVO XC90 Owners Manual

2007 Volvo XC90
Battery maintenance
The battery in your vehicle is located under the floor of the cargo comp\
artment.
Driving habits and conditions, climate, the number of starts, etc. all a\
ffect the service life and function of
the battery. In order for your battery to perform satisfactorily, keep t\
he following in mind:
l Check the fluid level in each cell in the battery every 24 months or eve\
ry 15,0001 miles (24,000 km),
whichever is sooner. The fluid should be at the level shown in the illus\
tration above (A)
2. Do not
overfill.
l Use a screw driver to open the caps or cover and a flashlight to inspect\
the level.
l If necessary, add distilled water. The level should never be above the i\
ndicator (A)2.
l The fluid level should be checked if the battery has been recharged.
l After inspection, be sure the cap over each battery cell or cover is sec\
urely in place.
l Check that the battery cables are correctly connected and properly tight\
ened. Route ventilation hose
through opening in floor (see
page 192)
l Never disconnect the battery when the engine is running, for example whe\
n changing the battery.
l The battery should be disconnected from the vehicle when a battery charg\
er is used directly on the
battery.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (15 of 37)12/30/200\
6 5:53:50 PM

2007 Volvo XC90
l However, if the battery is being charged via the connecting points in th\
e engine compartment (see
page 185), the battery must be connected.
1. More frequently in warm climates.
2. The level indicator inside the battery could be designed in various w\
ays. See illustrations.
pg. 192 Maintenance
Battery

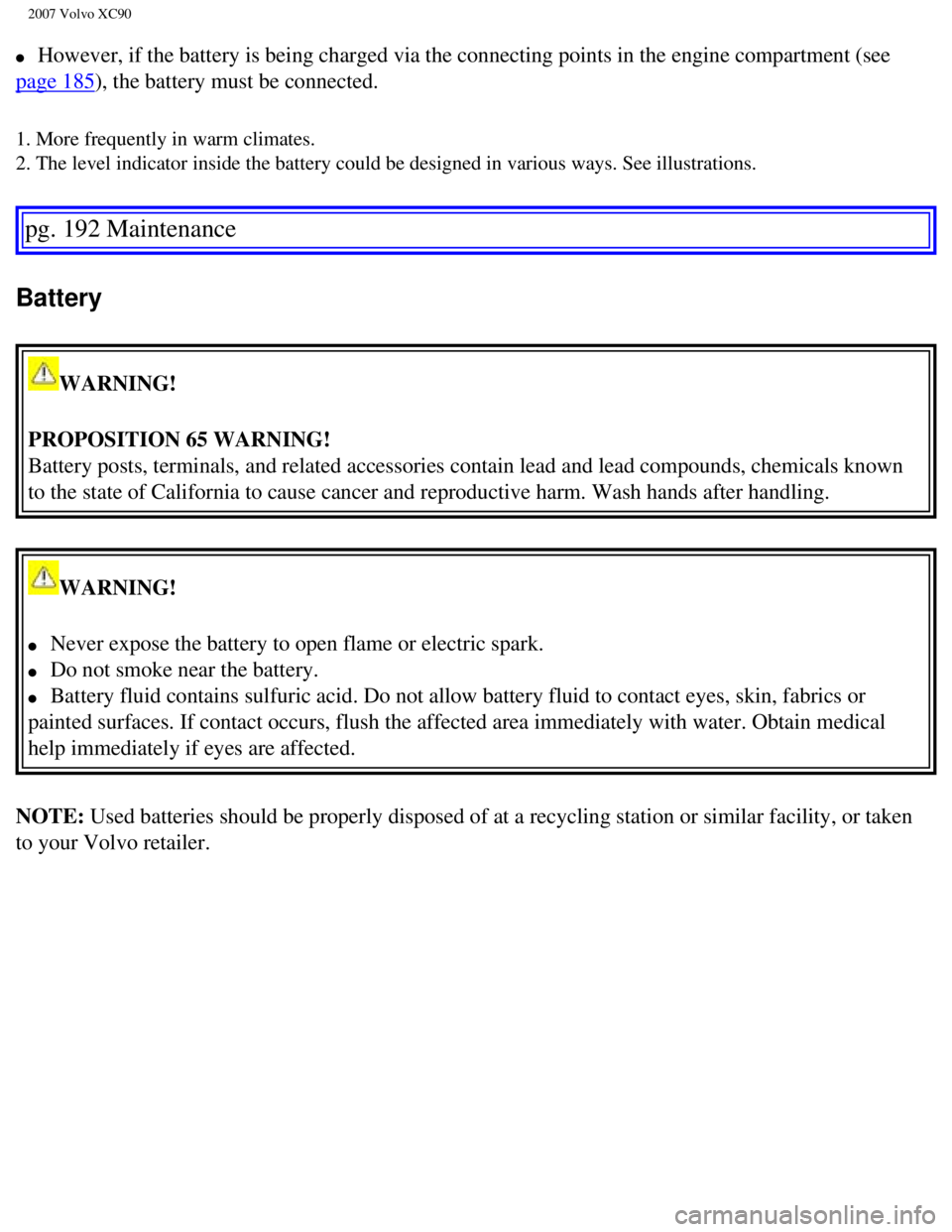

WARNING!
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead \
compounds, chemicals known
to the state of California to cause cancer and reproductive harm. Wash h\
ands after handling.
WARNING!
l Never expose the battery to open flame or electric spark.
l Do not smoke near the battery.
l Battery fluid contains sulfuric acid. Do not allow battery fluid to cont\
act eyes, skin, fabrics or
painted surfaces. If contact occurs, flush the affected area immediately\
with water. Obtain medical
help immediately if eyes are affected.
NOTE: Used batteries should be properly disposed of at a recycling station or\
similar facility, or taken
to your Volvo retailer.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (16 of 37)12/30/200\
6 5:53:50 PM

2007 Volvo XC90
Replacing the battery
- Switch off the ignition.
- Wait at least 5 minutes after switching off the ignition before disconne\
cting the battery so that all
information in the vehicle's electrical system can be stored in the cont\
rol modules.

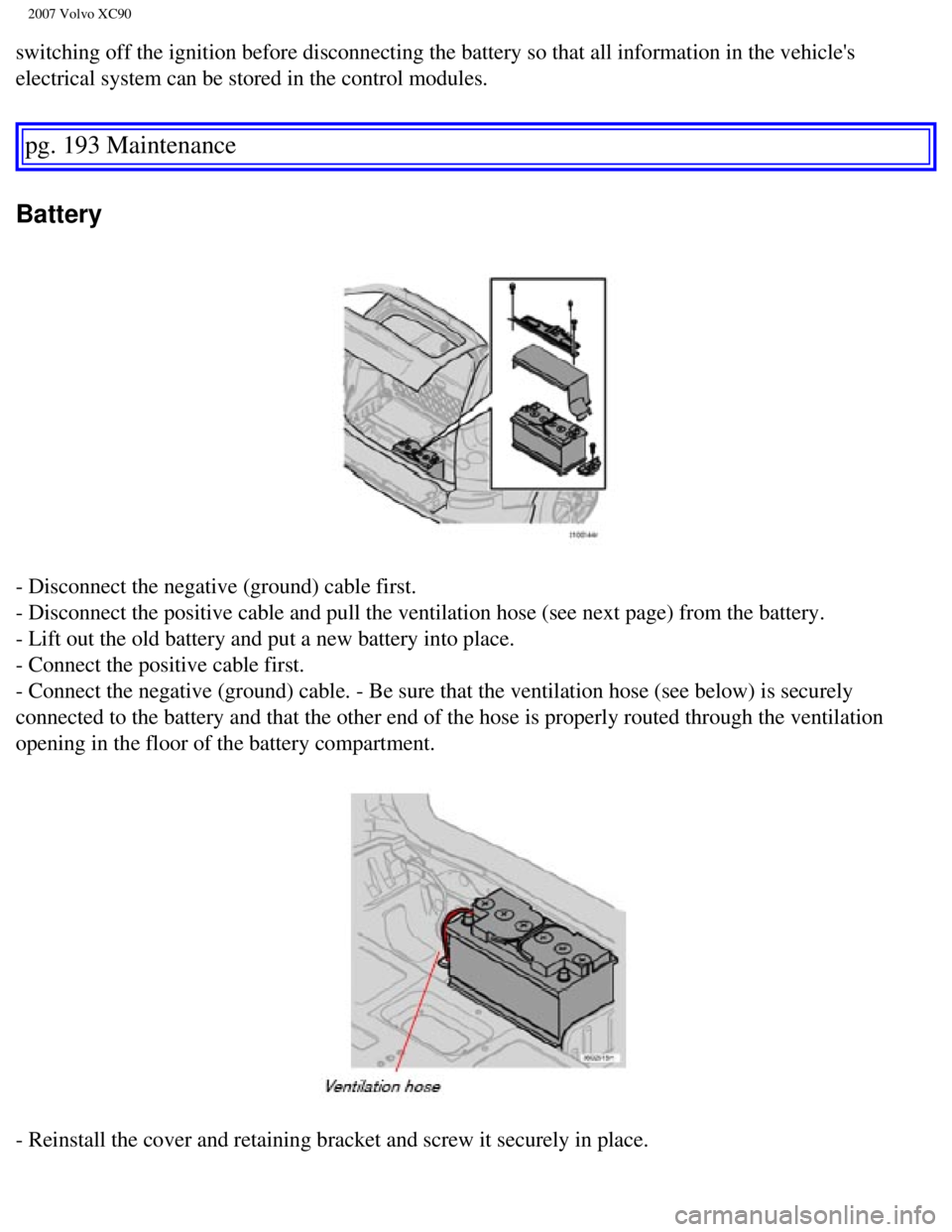

- Remove the retaining bracket and unscrew the cover over the battery. W\
ait at least 5 minutes after
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (17 of 37)12/30/200\
6 5:53:50 PM

2007 Volvo XC90
switching off the ignition before disconnecting the battery so that all \
information in the vehicle's
electrical system can be stored in the control modules.
pg. 193 Maintenance
Battery

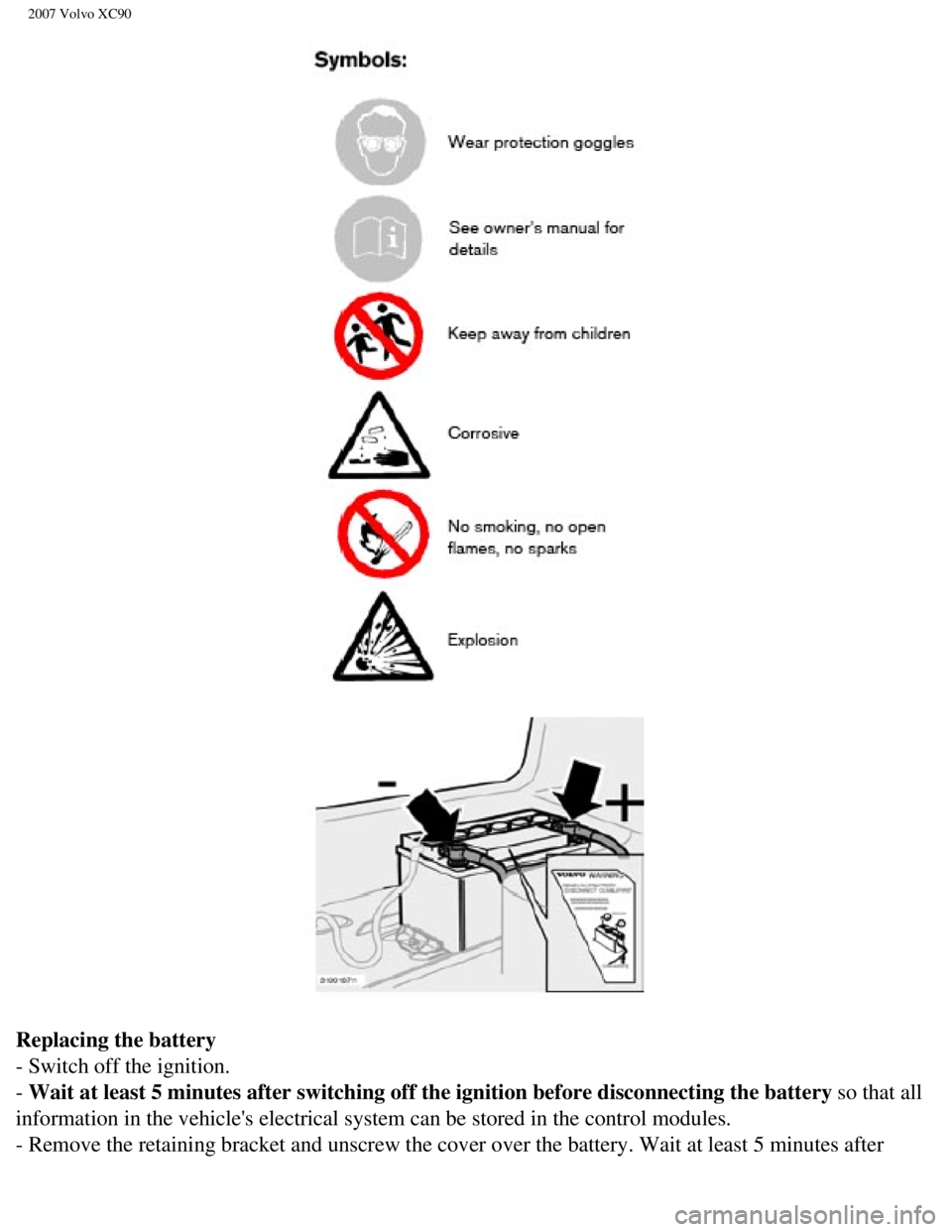

- Disconnect the negative (ground) cable first.
- Disconnect the positive cable and pull the ventilation hose (see next\
page) from the battery.
- Lift out the old battery and put a new battery into place.
- Connect the positive cable first.
- Connect the negative (ground) cable. - Be sure that the ventilation \
hose (see below) is securely
connected to the battery and that the other end of the hose is properly \
routed through the ventilation
opening in the floor of the battery compartment.
- Reinstall the cover and retaining bracket and screw it securely in pla\
ce.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (18 of 37)12/30/200\
6 5:53:50 PM

2007 Volvo XC90
NOTE: After the battery has been disconnected or replaced, lock and unlock th\
e vehicle with the central
locking system's remote control to reactivate such features as the power\
windows, moonroof, courtesy
lighting, etc.
WARNING!
Ventilation hose:
l The battery generates hydrogen gas, which is flammable and explosive. Th\
e battery is fitted with a
ventilation hose which vents hydrogen gas out of the battery compartment\
through a ventilation
opening in the bottom of this compartment. If the battery must be replac\
ed, it is essential that the
ventilation hose is properly connected to the battery and that it is rou\
ted through the ventilation
opening provided (see illustration).
l Be sure the ventilation hose is free of debris.
l Only use replacement batteries equipped with a ventilation hose. Consult\
your Volvo retailer.
pg. 194 Maintenance
Replacing bulbs
When replacing bulbs, keep the following points in mind:
l Never touch the glass of bulbs with your fingers. Grease and oils from y\
our fingers vaporize in the
heat and will leave a deposit on the reflector, which will damage it.
l The optional Active Bi-Xenon headlight bulbs contain trace amounts of me\
rcury. These bulbs should
always be disposed of by an authorized Volvo retailer.
l The following bulbs should only be replaced by a trained and qualified V\
olvo service technician:
- Active Bi-Xenon headlights,
- Courtesy (dome) lighting,
- Reading lights,
- Glove compartment lights
- Turn signals and courtesy lights in the side door mirrors
- High-mounted brake lights
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (19 of 37)12/30/200\
6 5:53:50 PM

2007 Volvo XC90
Replacing high/low beams/turn signal/parking light bulbs
The entire lamp housing must be lifted out when replacing these bulbs.
To lift out the lamp housing:
- Switch off the ignition.
- Open the hood.
- Pull up the retaining pins (see the illustration above).
- Lift out the lamp housing.
WARNING!
Active Bi-Xenon headlights (option) - due to the high voltage used by \
these headlights, these bulbs
should only be replaced by an authorized Volvo service technician.
pg. 195 Maintenance
Replacing bulbs
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (20 of 37)12/30/200\
6 5:53:50 PM

2007 Volvo XC90
Location of the bulbs in the headlight housing
- Low beam headlight/Active Bi-Xenon headlight (option)
- High beam headlight
- Turn signal
- Parking light
- Side marker light
Replacing the low beam bulb
(Halogen headlights)
- Remove the plastic cover over the bulb (1) by turning it countercloc\
kwise.
- Pull the connector from the lamp housing (2).
- Loosen the bulb's retaining spring by first moving it to the right and\
then moving it out of the way.
- Pull out the bulb from the holder.
- Insert the new bulb (without touching the glass) in the holder.
- Move the retaining spring up and push it slightly to the left until it\
seats properly.
- Press the bulb holder into place on the headlight housing.
- Reinstall the plastic cap. The letters "HAUT" on the cap must be upwar\
d.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (21 of 37)12/30/200\
6 5:53:50 PM

2007 Volvo XC90
pg. 196 Maintenance
Replacing bulbs
Replacing the high beam bulb
(Halogen headlights)
- Remove the rubber cover (1) by pulling it off.
- Pull the connector from the lamp housing (2).
- Loosen the bulb's retaining spring by first moving it to the right and\
then moving it out of the way.
- Pull out the bulb from the holder.
- Insert the new bulb (without touching the glass) in the holder.
- Move the retaining spring up and push it slightly to the left until it\
seats properly.
- Press the bulb holder into place on the headlight housing.
- Press the rubber cover into place.
Replacing the high beam bulb
(Active Bi-Xenon headlights)
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (22 of 37)12/30/200\
6 5:53:50 PM
