2007 VOLVO XC90 Owners Manual

2007 Volvo XC90
WARNING!
The undersides of accessory running boards are not intended for attachin\
g the
jack.
Changing a wheel
- Park the vehicle on a firm, level, non-slippery surface.
- Engage the parking brake and put the gear selector in the Park positio\
n.
- Loosen the wheel bolts by exerting downward pressure on the lug wrench\
.
- Remove the wheel cap (where applicable) using the lug wrench in the \
tool bag.
pg. 169 Wheels and tires
Changing wheels
- With the wheels still on the ground, use the lug wrench to loosen the \
wheel bolts 1/2 - 1 turn. Turn the
bolts counterclockwise to loosen the bolts.
CAUTION!
- The vehicle must not be driven with wheels of different dimensions or \
with a spare tire other than
the one that came with the vehicle. The use of different size wheels can\
seriously damage your
vehicle's transmission.
- Correct tightening torque on wheel bolts must be observed.
- The wheel bolts should never be greased or lubricated.
- Extended, chromed wheel bolts must not be used with steel rims, as the\
y make it impossible to fit
the hub caps.
pg. 170 Wheels and tires
Changing wheels
file:///K|/ownersdocs/2007/2007_XC90/07xc90_07.htm (21 of 23)12/30/200\
6 5:53:47 PM

2007 Volvo XC90
- Place the jack on the ground, under one of the attachment points (see\
the illustration on the previous
page) and crank while simultaneously guiding the jack's attachment brac\
ket onto the attachment point
(see illustration above) The base of the jack must be flat on a level,\
firm, non-slippery surface. Before
raising the vehicle, check that the jack is still correctly positioned i\
n the attachment.
- Raise the vehicle until the wheel to be changed is lifted off the grou\
nd.
- Unscrew the wheel bolts completely and carefully remove the wheel so a\
s not to damage the threads on
the studs.
NOTE: To avoid excessive wear and the necessity of rebalancing, mark and rein\
stall wheels in the same
location and position as before removal. To lessen the chance of imbalan\
ce, each wheel hub is equipped
with a guide stud to ensure that a removed wheel can be reinstalled in i\
ts original position (as when
changing over to winter tires/wheels).
Installing the wheel
- Clean the contact surfaces on the wheel and hub.
- Lift the wheel and place it on the hub.
- Install the wheel bolts and tighten hand-tight. Using the lug wrench, \
tighten crosswise until all bolts are
snug.
- Lower the vehicle to the ground and alternately tighten the bolts cros\
swise to 102 ft. lbs. (140 Nm).
- Install the wheel cap (where applicable).
pg. 171 Wheels and tires
Changing wheels
file:///K|/ownersdocs/2007/2007_XC90/07xc90_07.htm (22 of 23)12/30/200\
6 5:53:47 PM

2007 Volvo XC90

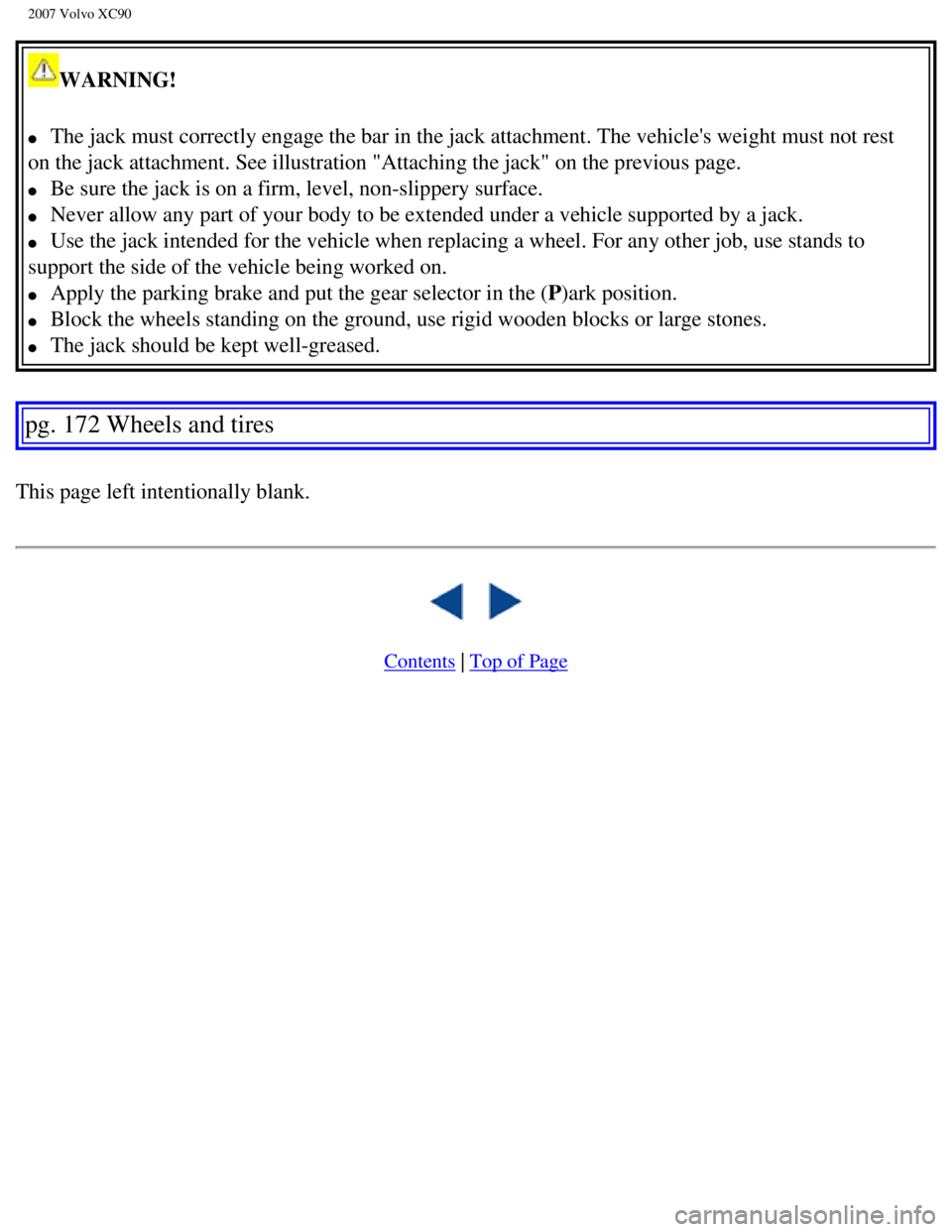

WARNING!
l The jack must correctly engage the bar in the jack attachment. The vehic\
le's weight must not rest
on the jack attachment. See illustration "Attaching the jack" on the pre\
vious page.
l Be sure the jack is on a firm, level, non-slippery surface.
l Never allow any part of your body to be extended under a vehicle support\
ed by a jack.
l Use the jack intended for the vehicle when replacing a wheel. For any ot\
her job, use stands to
support the side of the vehicle being worked on.
l Apply the parking brake and put the gear selector in the (P)ark position.
l Block the wheels standing on the ground, use rigid wooden blocks or larg\
e stones.
l The jack should be kept well-greased.
pg. 172 Wheels and tires
This page left intentionally blank.



Contents | Top of Page
file:///K|/ownersdocs/2007/2007_XC90/07xc90_07.htm (23 of 23)12/30/200\
6 5:53:47 PM

2007 Volvo XC90
2 0 0 7
VOLVO XC90
Vehicle care

pg. 173 Vehicle care
Washing and cleaning the
vehicle
174
Paint touch up
178
pg. 174 Vehicle care
Washing and cleaning the vehicle
Washing the vehicle
l The vehicle should be washed at regular intervals since dirt, dust, inse\
cts and tar spots adhere to the
paint and may cause damage. It is particularly important to wash the veh\
icle frequently in the wintertime
to prevent corrosion, when salt has been used on the roads.
l When washing the vehicle, do not expose it to direct sunlight. Use lukew\
arm water to soften the dirt
before you wash with a sponge, and plenty of water, to avoid scratching.\

l Bird droppings: Remove from paintwork as soon as possible. Otherwise the\
finish may be
permanently damaged.
l A detergent can be used to facilitate the softening of dirt and oil.
l A water-soluble grease solvent may be used in cases of sticky dirt. Howe\
ver, use a wash place
equipped with a drainage separator.
CAUTION!
Chromed wheels: Clean chrome-plated wheels using the same detergents use\
d for the body of the
vehicle. Aggressive wheel-cleaning agents can permanently stain chrome-p\
lated wheels.
l Dry the vehicle with a clean chamois and remember to clean the drain hol\
es in the doors and rocker
panels.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (1 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
l Tar spots can be removed with kerosene or tar remover after the vehicle \
has been washed.
l A stiff-bristle brush and lukewarm soapy water can be used to clean the \
wiper blades. Frequent
cleaning improves visibility considerably.
l Wash off the dirt from the underside (wheel housings, fenders, etc.). \
l In areas of high industrial fallout, more frequent washing is recommende\
d.
l After cleaning the engine, the spark plug wells should be inspected for \
water and blown dry if
necessary.
Suitable detergents
Special vehicle washing detergents should be used. A suitable mixture is\
about 2.5 fl. oz. (8.5 cl) of
detergent to 2.6 US gal. (10 liters) of warm water. After washing with\
a detergent the vehicle should be
well rinsed with clean water.
Exterior plastic components
Cleaning exterior plastic components should be done with a cleaning agen\
t specially designed for this
purpose. Solvents or stain removers should not be used. Consult your Vol\
vo retailer.
NOTE: When washing the vehicle, remember to remove dirt from the drain holes \
in the doors and sills.

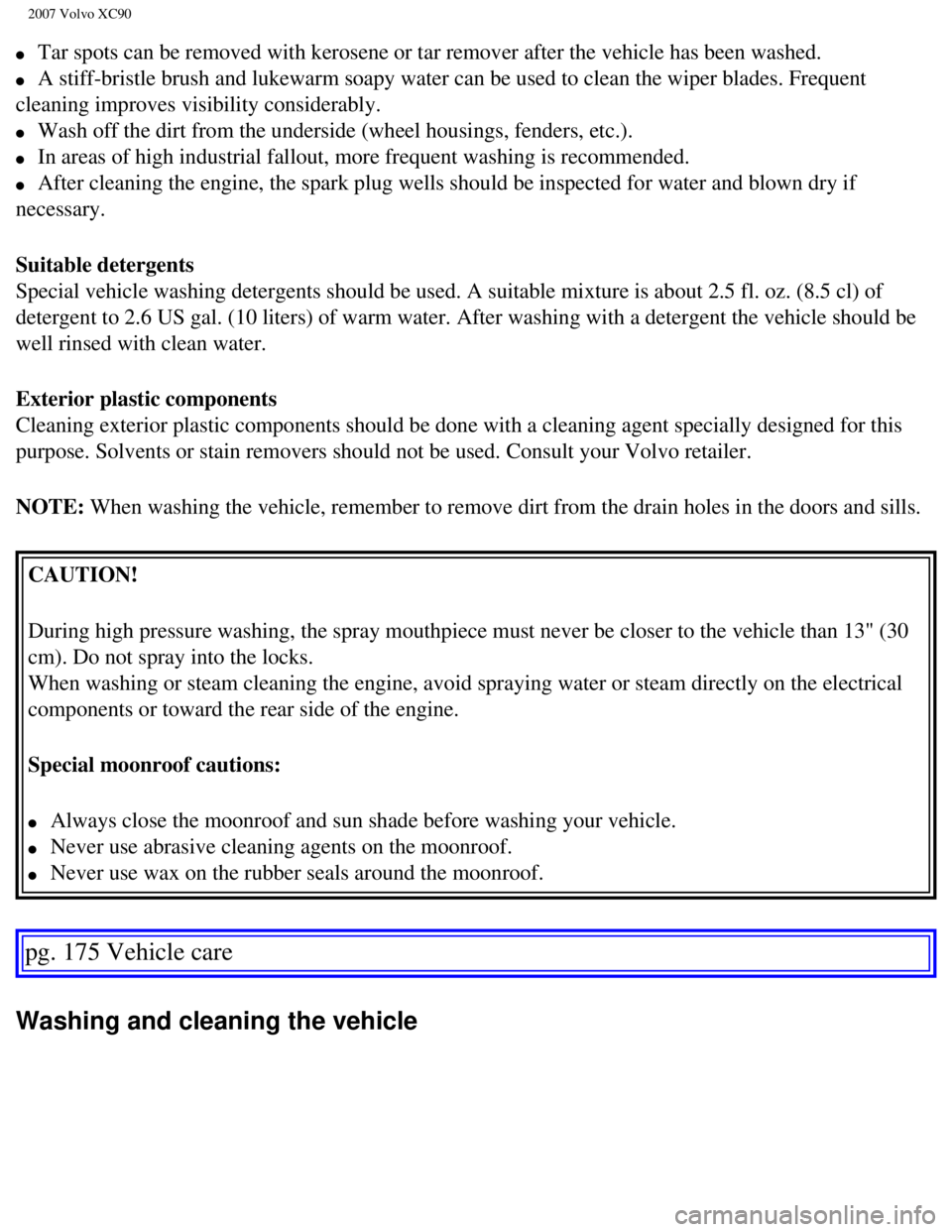

CAUTION!
During high pressure washing, the spray mouthpiece must never be closer \
to the vehicle than 13" (30
cm). Do not spray into the locks.
When washing or steam cleaning the engine, avoid spraying water or steam\
directly on the electrical
components or toward the rear side of the engine.
Special moonroof cautions:
l Always close the moonroof and sun shade before washing your vehicle.
l Never use abrasive cleaning agents on the moonroof.
l Never use wax on the rubber seals around the moonroof.
pg. 175 Vehicle care
Washing and cleaning the vehicle
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (2 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
WARNING!
l When the vehicle is driven immediately after being washed, apply the bra\
kes several times in order
to remove any moisture from the brake linings.
l Engine cleaning agents should not be used when the engine is warm. This \
constitutes a fire risk.
Automatic washing - simple and quick
l We do NOT recommend washing your vehicle in an automatic wash during the\
first six months
(because the paint will not have hardened sufficiently).
l An automatic wash is a simple and quick way to clean your vehicle, but i\
t is worth remembering that
it may not be as thorough as when you yourself go over the vehicle with \
sponge and water. Keeping the
underbody clean is most important, especially in the winter. Some automa\
tic washers do not have
facilities for washing the underbody.
l Before driving into an automatic car wash, make sure that side view mirr\
ors, auxiliary lamps, etc, are
secure, and that any antenna(s) are retracted or removed. Otherwise th\
ere is risk of the machine
dislodging them.
Exterior lighting
Condensation may form temporarily on the inside of the lenses of exterio\
r lights such as headlights, fog
lights, or tail lights. This is normal and the lights are designed to wi\
thstand moisture. Normally,
condensation will dissipate after the lights have been on for a short ti\
me.
Polishing and waxing
l Normally, polishing is not required during the first year after delivery\
, however, waxing may be
beneficial.
l Before applying polish or wax the vehicle must be washed and dried. Tar \
spots can be removed with
kerosene or tar remover. Difficult spots may require a fine rubbing comp\
ound.
l After polishing use liquid or paste wax.
l Several commercially available products contain both polish and wax.
l Waxing alone does not substitute for polishing a dull surface.
l A wide range of polymer-based car waxes can be purchased today. These wa\
xes are easy to use and
produce a long-lasting, high-gloss finish that protects the bodywork aga\
inst oxidation, road dirt and
fading.
l Do not polish or wax your vehicle in direct sunlight (the surface of th\
e vehicle should not be warmer
than 113° F (45° C).
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (3 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
CAUTION!
Volvo does not recommend the use of long-life or durable paint protectio\
n coatings, some of which
may claim to prevent pitting, fading, oxidation, etc. These coatings hav\
e not been tested by Volvo for
compatibility with your vehicle's clear coat. Some of them may cause the\
clear coat to soften, crack,
or cloud. Damage caused by application of paint protection coatings may \
not be covered under your
vehicle's paint warranty.
Side windows with the water repellent glass coating
l Do not apply wax, degreasing agents, etc to this glass. This could damag\
e the coating.
l Clean the glass surface with care to avoid scratching.
l Use only suitable plastic scrapers to remove ice or snow from the window\
s.
pg. 176 Vehicle care
Washing and cleaning the vehicle
NOTE: The water repellent coating is subject to natural wear.
l In order to maintain the coating's water repellent characteristics, it s\
hould be treated with a special
compound that is available at your Volvo retailer.
l This treatment should be carried out for the first time after three year\
s, and thereafter once a year.
pg. 177 Vehicle care
Washing and cleaning the vehicle
Cleaning the upholstery
Fabric
Clean with soapy water or a detergent. For more difficult spots caused b\
y oil, ice cream, shoe polish,
grease, etc., use a clothing/ fabric stain remover. Consult your Volvo r\
etailer.
Interior plastic components
Cleaning interior plastic components should be done with a cleaning agen\
t specially designed for this
purpose. Consult your Volvo retailer.
Alcantera™ suede-like material
Suede-like upholstery can be cleaned with a soft cloth and mild soap sol\
ution.
Leather care
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (4 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
Volvo's leather upholstery is manufactured with a protectant to repel so\
iling. Over time, sunlight, grease
and dirt can break down the protection. Staining, cracking, scuffing, an\
d fading can result.

Volvo offers an easy-to-use, non-greasy leather care kit formulated to c\
lean and beautify your vehicle's
leather, and to renew the protective qualities of its finish. The cleane\
r removes dirt and oil buildup. The
light cream protectant restores a barrier against soil and sunlight.

Volvo also offers a special leather softener that should be applied afte\
r the cleaner and protectant. It
leaves leather soft and smooth, and reduces friction between leather and\
other finishes in the vehicle.

Volvo recommends cleaning, protecting and conditioning your vehicle's le\
ather two to four times a year.
Ask your Volvo retailer about Leather Care Kit 951 0251 and Leather Soft\
ener 943 7429. CAUTION!
- Under no circumstances should gasoline, naphtha or similar cleaning ag\
ents be used on the plastic
or the leather since these can cause damage.
- Take extra care when removing stains such as ink or lipstick since the\
coloring can spread.
- Use solvents sparingly. Too much solvent can damage the seat padding. \
- Start from the outside of the stain and work toward the center.
- Sharp objects (e.g. pencils or pens in a pocket) or velcro fasteners\
on clothing may damage the
textile upholstery.
- Clothing that is not colorfast, such as new jeans or suede garments, m\
ay stain the upholstery.
Cleaning the seat belts
Clean only with lukewarm water and a mild soap solution.
Cleaning floor mats
The floor mats should be vacuumed or brushed clean regularly, especially\
during winter when they
should be taken out for drying. Spots on textile mats can be removed wit\
h a mild detergent.
pg. 178 Vehicle care
Paint touch up
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (5 of 7)12/30/2006 \
5:53:48 PM
