2007 VOLVO XC90 Owners Manual

2007 Volvo XC90
Paint damage requires immediate attention to avoid rusting. Make it a ha\
bit to check the finish regularly
- when washing the vehicle for instance. Touch-up if necessary.
Paint repairs require special equipment and skill. Contact your Volvo re\
tailer for any extensive damage.
Minor scratches can be repaired by using Volvo touch-up paint.
Color code
Make sure you have the right color. The color code number is on the mode\
l plate in the engine
compartment.
Minor stone chips and scratches
Material:
l Primer - can
l Paint - touch-up pen
l Brush
l Masking tape
l If the stone chip has not gone down to the bare metal and an undamaged c\
olor coat remains, you can
add paint immediately after removing dirt.
NOTE: When touching up the vehicle, it should be clean and dry. The surface t\
emperature should be
above 60° F (15° C).
Minor scratches on the surface
If the stone chip has not penetrated down to the metal and an undamaged \
layer of paint remains, the
touch-up paint can be applied as soon as the spot has been cleaned.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (6 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90

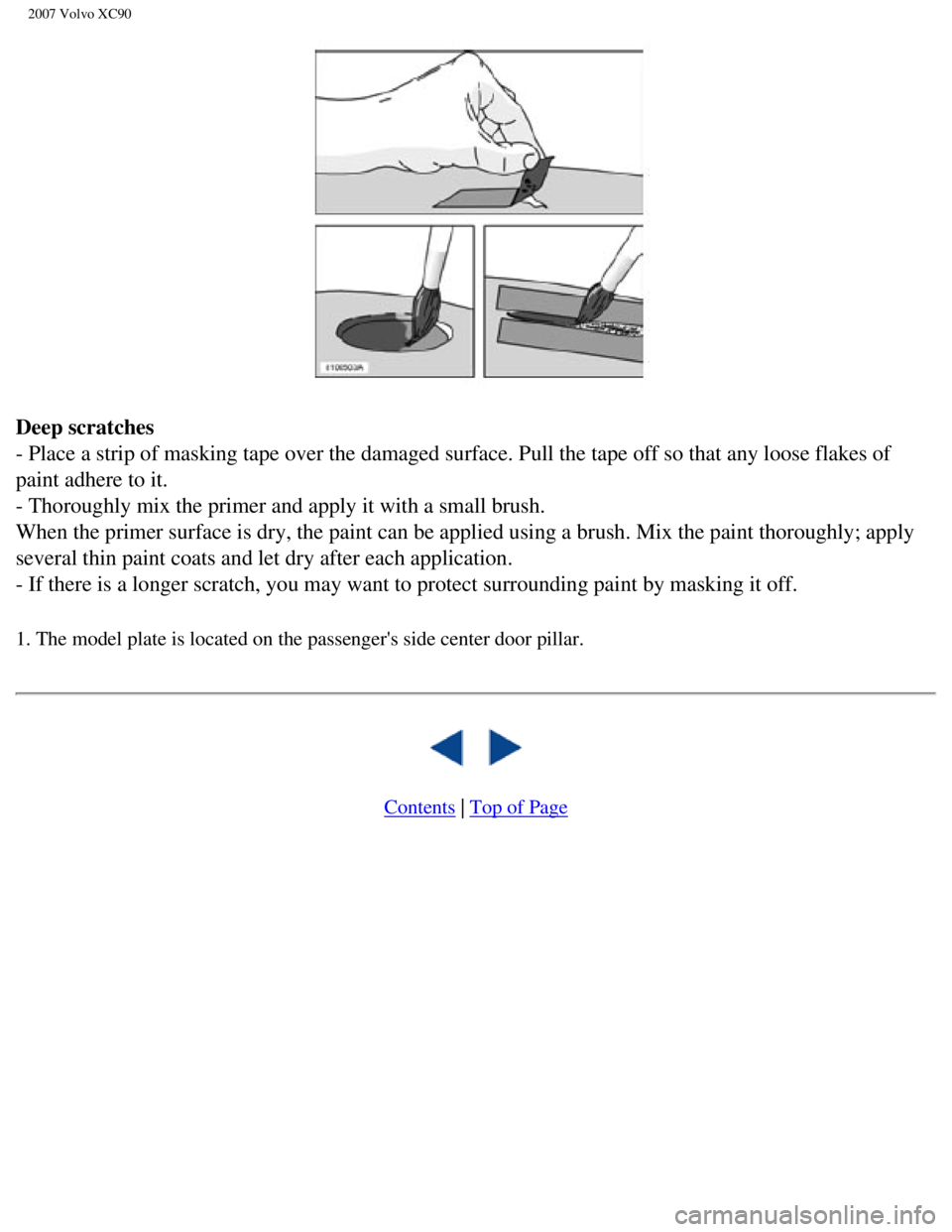

Deep scratches
- Place a strip of masking tape over the damaged surface. Pull the tape \
off so that any loose flakes of
paint adhere to it.
- Thoroughly mix the primer and apply it with a small brush.
When the primer surface is dry, the paint can be applied using a brush. \
Mix the paint thoroughly; apply
several thin paint coats and let dry after each application.
- If there is a longer scratch, you may want to protect surrounding pain\
t by masking it off.
1. The model plate is located on the passenger's side center door pillar\
.



Contents | Top of Page
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (7 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
2 0 0 7
VOLVO XC90
Maintenance
pg. 179 Maintenance
Volvo service
180
Maintaining your car
181
Emission inspection
readiness
182
Working on your vehicle
183
Engine compartment
185
Engine oil
186
Fluids
188
Wiper blades
190
Battery
191
Replacing bulbs
194
Fuses
201
pg. 180 Maintenance
Volvo service
Maintenance service
Periodic maintenance will help keep your vehicle running well. Your Warr\
anty and Service Records
Information booklet provides a comprehensive maintenance schedule up to \
150,000 miles (240,000 km)
of vehicle service. This maintenance program contains inspections and se\
rvices necessary for the proper
function of your vehicle, and includes components that affect vehicle em\
issions. The maintenance
services contain several checks that require special instruments and too\
ls and therefore must be
performed by a qualified technician. Volvo advises you to follow the ser\
vice program outlined in this
booklet. To keep your Volvo in top condition, specify time-tested and pr\
oven Genuine Volvo Parts and
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (1 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
Accessories.
The Federal Clean Air Act - U.S.
The Federal Clean Air Act requires vehicle manufacturers to furnish writ\
ten instructions to the ultimate
purchaser to assure the proper servicing and function of the components \
that control emissions. These
services, which are listed in the "Warranty and Service Records Informat\
ion booklet," are not covered
by the warranty. You will be required to pay for labor and material used\
.
Maintenance services
Your Volvo passed several major inspections before it was delivered to y\
ou, in accordance with Volvo
specifications. The maintenance services outlined in the Warranty and Se\
rvice Records Information
booklet, many of which will positively affect your vehicle's emissions, \
should be performed as
indicated. It is recommended that receipts for vehicle emission services\
be retained in case questions
arise concerning maintenance. Inspection and service should also be perf\
ormed anytime a malfunction is
observed or suspected.
Vehicle Event Data (Black Box)
Your vehicle's driving and safety systems employ computers that monitor,\
and share with each other,
information about your vehicle's operation. One or more of these compute\
rs may store what they
monitor, either during normal vehicle operation or in a crash or near-cr\
ash event. Stored information
may be read and used by:
l Volvo Car Corporation
l service and repair facilities
l law enforcement or government agencies
l others who may assert a legal right to know, or who obtain your consent \
to know such information.
Applicable warranties
In accordance with applicable U.S. and Canadian regulations, the followi\
ng list of warranties is
provided.
l New Car Limited Warranty
l Parts and Accessories Limited Warranty
l Corrosion Protection Limited Warranty
l Seat Belt and Supplemental Restraint Systems Limited Warranty
l Emission Design and Defect Warranty
l Emission Performance Warranty
These are the Federal warranties; other warranties are provided as requi\
red by state/ provincial law.
Refer to your separate Warranty and Service Records Information booklet \
for detailed information
concerning each of the warranties.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (2 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
pg. 181 Maintenance
Maintaining your car
Owner maintenance
Periodic maintenance requirements and intervals are described in your ve\
hicle's Warranty and Service
Records Information booklet.
The following points can be carried out between the normally scheduled m\
aintenance services.
Each time the vehicle is refueled:
l Check the engine oil level
l Clean the windshield, windshield wipers, headlights, and tail lights
Monthly:
l Check cold tire pressure in all tires. Inspect the tires for wear.
l Check that engine coolant and other fluid levels are between the indicat\
ed "min" and "max" markings.
l Clean interior glass surfaces with a glass cleaner and soft paper towels\
.
l Wipe driver information displays with a soft cloth.
l Visually inspect battery terminals for corrosion. Corrosion may indicate\
a loose terminal connector, or
a battery near the end of its useful service life. Consult your Volvo re\
tailer for additional information.
As needed:
l Wash the vehicle, including the undercarriage, to reduce wear that can b\
e caused by a buildup of dirt,
and corrosion that can be caused by salt residues.
l Clean leaves and twigs from air intake vents at the base of the windshie\
ld, and from other places
where they may collect.
NOTE: Complete service information for qualified technicians is available onl\
ine for purchase or
subscription at
www.volvotechinfo.com.
pg. 182 Maintenance
Emission inspection readiness
What is an Onboard Diagnostic System (OBD II)?
OBD II is part of your vehicle's computerized engine management system. \
It stores diagnostic
information about your vehicle's emission controls. It can light the Che\
ck Engine light (MIL) if it detects
an emission control "fault." A "fault" is a component or system that is \
not performing within an expected
range. A fault may be permanent or temporary. OBD II will store a messag\
e about any fault.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (3 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
How do states use OBD II for emission inspections?
Many states connect a computer directly to a vehicle's OBD II system. Th\
e inspector can then read
"faults." In some states, this type of inspection has replaced the tailp\
ipe emission test.
How can my vehicle fail OBD II emission inspection?
Your vehicle can fail OBD II emission inspection for any of the followin\
g reasons.
l If your Check Engine (MIL) light is lit, your vehicle may fail inspect\
ion.
l If your vehicle's Check Engine light was lit, but went out without any a\
ction on your part, OBD II will
still have a recorded fault. Your vehicle may pass or fail, depending on\
the inspection practices in your
area.
l If you had recent service that required disconnecting the battery, OBD I\
I diagnostic information may
be incomplete and "not ready" for inspection. A vehicle that is not read\
y may fail inspection.
How can I prepare for my next OBD II emission inspection?
l If your Check Engine (MIL) light is lit - or was lit but went out with\
out service, have your vehicle
diagnosed and, if necessary, serviced by a qualified Volvo technician.
l If you recently had service for a lit Check Engine light, or if you had \
service that required
disconnecting the battery, a period of driving is necessary to bring the\
OBD II system to "ready" for
inspection. A half-hour trip of mixed stop-and-go/ highway driving is ty\
pically needed to allow OBD II
to reach readiness. Your Volvo retailer can provide you with more inform\
ation on planning a trip.
l Maintain your vehicle in accordance with your vehicle's maintenance sche\
dule.
pg. 183 Maintenance
Working on your vehicle
Note the following before you begin working on your vehicle:
Battery (see also
page 192 for more information on handling the battery)
l Ensure that the battery cables are correctly connected and tightened.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (4 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
l Never disconnect the battery when the engine is running (e.g. when repl\
acing the battery).
l Never use a fast charger to charge the battery. The battery cables shoul\
d be disconnected when
recharging.
l The battery contains acid that is both corrosive and poisonous. It is im\
portant that the battery is
handled in an environmentally friendly way. Let your Volvo dealer assist\
you.
Hoisting the vehicle
If a garage jack is used to lift the vehicle, the two jack attachments p\
oints should be used. They are
specially reinforced to bear the weight of the vehicle (see the illustr\
ation above). A garage jack can also
be placed under the front of the engine support frame. Take care not to \
damage the splash guard under
the engine. Ensure that the jack is positioned so that the vehicle canno\
t slide off it. Always use axle
stands or similar structures. The vehicle's gross vehicle weight is betw\
een 5770 lbs (2630 kg) and 6080
lbs (2760 kg). Use a jack and stands rated for this weight.
If a two-post hoist is used to lift the vehicle, the front and rear lift\
arm pads should be centered under the
reinforced lift plates on the inboard edge of the sill rail (see illust\
ration).
pg. 184 Maintenance
Working on your vehicle
WARNING!
The ignition system has very high voltage! The voltage in the ignition s\
ystem is dangerous!
Do not touch spark plugs, ignition cables or the ignition coil when the \
engine is running or the
ignition is switched on!
The ignition should be switched off when:
l Conducting engine tests.
l Replacing parts in the ignition system, such as spark plugs, ignition co\
il, distributor, ignition
cables, etc.
WARNING!
Never try to repair any part of the SRS/ SIPS/WHIPS/IC systems yourself. Any \
interference in the
system could cause malfunction and serious injury. Any work should only \
be performed by an
authorized Volvo workshop.
Belt check
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (5 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
Check the belt regularly to make sure it is in good condition and is cle\
an. A worn or dirty belt can cause
poor cooling and low alternator output as well as impair the operation o\
f the power steering and the air
conditioning unit.
NOTE: The drive belt is equipped with a self-tensioning mechanism and require\
s no adjustment
between changes.
WARNING!
The engine must not be running when this check is
performed.
Check coolant level
The cooling system must be filled with coolant and not leak to operate a\
t maximum efficiency. Check
the coolant level regularly. The level should be between the "MAX" and "\
MIN" marks on the expansion
tank. The check should be made with particular thoroughness when the eng\
ine is new or when the
cooling system has been drained.
Do not remove the filler cap other than for topping up with coolant. Fre\
quent removal may prevent
coolant circulation between the engine and the expansion tank during eng\
ine warm up and cooling.
Changing coolant
Normally, the coolant does not need to be changed. If the system must be\
drained, consult your Volvo
retailer.
NOTE: Do not top off with water only. This reduces the rust-protective and an\
tifreeze qualities of the
coolant and has a lower boiling point. It can also cause damage to the c\
ooling system if it should freeze.
Top off with Volvo Genuine Coolant/Antifreeze only (a 50/ 50 mix of wat\
er and antifreeze). CAUTION!
The cooling system must always be kept filled to the correct level. If i\
t is not kept filled, there can be
high local temperatures in the engine which could result in damage. Diff\
erent types of antifreeze/
coolant may not be mixed.
WARNING!
Never remove the radiator cap while the engine is warm. Wait until the v\
ehicle
cools.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (6 of 37)12/30/2006\
5:53:50 PM
