2007 SUBARU TRIBECA Owners Manual

1-48 Seat, seatbelt and SRS airbags
T Components
1
2
3
4
5
21
22
9
7 10
12
20
17
13
6
18
19 24
23
8
11
14
15
16
100644
1) Airbag control module (including impact
sensors)
2) Frontal airbag module (driver’s side)
3) Frontal airbag module (front passen- ger’s side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passenger’s side)
8) Side airbag sensor (center pillar left-
hand side)
9) Side airbag sensor (center pillar right- hand side)
10) Airbag wiring (yellow)
11) Seatbelt pretensioner (driver’s side)
12) Seatbelt pretensioner (front passenger’s side)
13) Curtain airbag sensor (rear wheel house right-hand side)
14) Curtain airbag sensor (rear wheel house left-hand side)
15) Curtain airbag module (right side)
16) Curtain airbag module (left side)
17) Seatbelt buckle switch (front passen-
ger’s side)
18) Seatbelt buckle switch (driver’s side)
19) Driver’s seat position sensor
20) Front passenger’s seatbelt tension sen- sor
21) Front passenger’s occupant detection system weight sensor
22) Front passenger’s occupant detection control module
23) Front passenger’s frontal airbag ON and
OFF indicator
24) SRS airbag system warning light

Seat, seatbelt and SRS airbags 1-49
– CONTINUED –
„
Subaru advanced frontal air-
bag system
Your vehicle is equipped with a Subaru
advanced frontal airbag system that com-
plies with the new advanced frontal airbag
requirements in the amended Federal Mo-
tor Vehicle Safety Standard (FMVSS) No.
208.
The Subaru advanced frontal airbag sys-
tem automatically determines the deploy-
ment force of the driver’s SRS frontal air-
bag at the time of deployment as well as
whether or not to activate the front pas-
senger’s SRS frontal airbag and, if activat-
ed, the deployment force of the SRS fron-
tal airbag at the time of deployment.
Your vehicle has warning labels on the
driver’s and front passenger’s sun visors
beginning with the phrase “EVEN WITH
ADVANCED AIR BAGS” and a tag at-
tached to the glove box lid beginning with
the phrase “Even with Advanced Air
Bags”. Make sure that you carefully read
the instructions on the warning labels and tag.
Always wear your seatbelt. The subaru
advanced frontal airbag system is a sup-
plemental restraint system and must be
used in combination with a seatbelt. All
occupants should wear a seatbelt or be
seated in an appropriate child restraintsystem. The driver’s SRS frontal airbag is stowed
in the center portion of the steering wheel.
The front passenger’s SRS frontal airbag
is stowed near the top of the dashboard
under an “SRS AIRBAG” mark.
In a moderate to severe frontal collision,
the driver’s and front passenger’s SRS
frontal airbags deploy and supplement the
seatbelts by reducing the impact on the
driver’s and front passenger’s head and chest.
100261
NEVER INSTALL A REARWARD
FACING CHILD SAFETY SEAT IN
THE FRONT SEAT. DOING SO
RISKS SERIOUS INJURY OR DEATH
TO THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE SRS AIRBAG.
Never allow a child to stand up, or to
kneel on the front passenger’s seat.
The SRS airbag deploys with con-
siderable force and can injure or
even kill the child.
100126

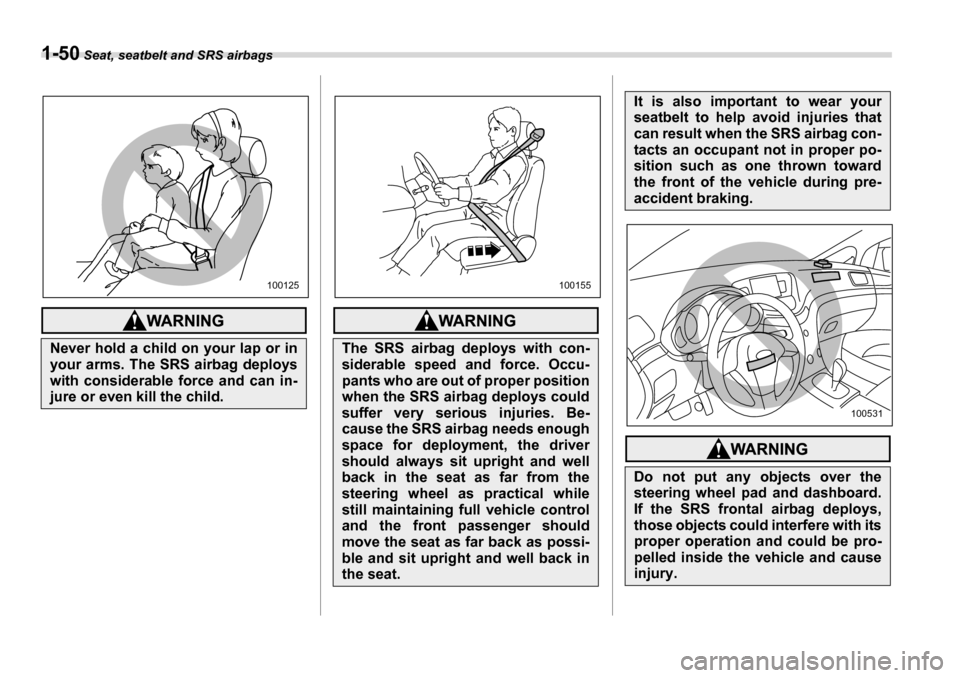

1-50 Seat, seatbelt and SRS airbags
Never hold a child on your lap or in
your arms. The SRS airbag deploys
with considerable force and can in-
jure or even kill the child.
100125
The SRS airbag deploys with con-
siderable speed and force. Occu-
pants who are out of proper position
when the SRS airbag deploys could
suffer very serious injuries. Be-
cause the SRS airbag needs enough
space for deployment, the driver
should always sit upright and well
back in the seat as far from the
steering wheel as practical while
still maintaining full vehicle control
and the front passenger should
move the seat as far back as possi-
ble and sit upright and well back in
the seat.
100155
It is also important to wear your
seatbelt to help avoid injuries that
can result when the SRS airbag con-
tacts an occupant not in proper po-
sition such as one thrown toward
the front of the vehicle during pre-
accident braking.
Do not put any objects over the
steering wheel pad and dashboard.
If the SRS frontal airbag deploys,
those objects could interfere with its
proper operation and could be pro-
pelled inside the vehicle and cause
injury.
100531

Seat, seatbelt and SRS airbags 1-51
– CONTINUED –
TDriver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a
dual stage inflator. The inflator operates in
different ways depending on the severity
of impact, backward-forward adjustment
of the driver’s seat position and whether or
not he/she is wearing the seatbelt.
The backward-forward adjustment of the
driver’s seat position is monitored by the
driver’s seat position sensor under the driver’s seat.
Whether or not the driver is wearing the
seatbelt is monitored by the seatbelt buck-le switch.
Observe the following precautions. Failure
to do so may cause the seatbelt buckle
switch and/or the seat position sensor to
malfunction, preventing the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or causing the system to fail. y
Do not place articles/metal objects or in-
stall any accessory other than a genuine
SUBARU accessory under the driver’s
seat. Do not allow the rear seat occupant
to kick the driver’s seat or push up its bot-
tom surface with his/her feet. y Do not place a magnet near the seatbelt
buckle or under the driver’s seat.
If the seatbelt buckle switch and/or the
driver’s seat position sensor have failed,
the SRS airbag system warning light will il-
luminate. Although the driver’s SRS fron-
tal airbag can deploy regardless of the
backward-forward adjustment of the driv-
er’s seat position even when the warning
light is on, have the system inspected by
your SUBARU dealer immediately if the
SRS airbag system warning light comes
on.
NOTE The driver’s SRS side airbag, SRS cur-
tain airbag and seatbelt pretensioner
are not controlled by the Subaru ad-
vanced frontal airbag system. T Front passenger’s SRS frontal air-
bag
The front passenger’s SRS frontal airbag
uses a dual stage inflator. The inflator op-
erates in different ways depending on the
severity of impact.
The total load on the seat is monitored by
the occupant detection system’s weight
sensor located under the seat.
The system has another sensor that mon-
itors the tension of the front passenger
seatbelt. Using the total seat load and
seatbelt tension data from the sensors,
the occupant detection system deter-
mines whether the front passenger’s SRS
frontal airbag should or should not be in-
flated.
The occupant detection system may not
inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal
airbag deploys. This is normal.
Observe the following precautions. Failure
to do so may prevent the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or cause the system to fail.
Do not attach accessories to the
windshield, or fit an extra-wide mir-
ror over the rear view mirror. If the
SRS airbag deploys, those objects
could become projectiles that could
seriously injure vehicle occupants.
100532

1-52 Seat, seatbelt and SRS airbags
yDo not apply any strong impact to the
front passenger’s seat such as by kicking. y Do not spill liquid on the front passen-
ger’s seat. If liquid is spilled, wipe it off im-
mediately. y Do not disassemble the front passen-
ger’s seat. y Do not install any accessory (such as
an audio amplifier) other than a genuine
SUBARU accessory under the front pas-
senger’s seat. y Do not place anything (shoes, umbrella,
etc.) under the front passenger’s seat. y The front passenger’s seat must not be
used with the head restraint removed. y Do not leave any article including a child
restraint system on the front passenger’s
seat or the seatbelt tongue and buckle en-
gaged when you leave your vehicle.y Do not place a magnet near the seatbelt
buckle and the seatbelt retractor.
If the seatbelt buckle switch and/or front
passenger’s occupant detection system
have failed, the SRS airbag system warn-
ing light will illuminate. Have the system
inspected by your SUBARU dealer imme-
diately if the SRS airbag system warning
light comes on.
If your vehicle has sustained impact, this
may affect the proper function of the
Subaru advanced frontal airbag system.
Have your vehicle inspected at your SUBARU dealer.
NOTE
The front passenger’s SRS side airbag,
SRS curtain airbag and seatbelt preten-
sioner are not controlled by the Subaru
advanced frontal airbag system. T
Passenger’s frontal airbag ON and
OFF indicators
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF indicator
The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag.
The indicators are located in the center
portion of the instrument panel. When the ignition switch is turned to the
“ON” position, both the ON and OFF indi-
cators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. After that, one of
the indicators illuminates depending on
the status of the front passenger’s SRS
frontal airbag determined by the Subaru
advanced frontal airbag system monitor-
ing.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain extinguished.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal air-
bag ON indicator will remain extinguished
while the OFF indicator will illuminate.
With the ignition switch turned to the “ON”
position, if both the ON and OFF indica-
tors remain lit or extinguished simulta-
neously even after the system check peri-
od, the system is faulty. Contact your
SUBARU dealer immediately for an in-
spection. T
Conditions in which front passen-
ger’s SRS frontal airbag is not acti-vated
The front passenger’s SRS frontal airbag
will not be activated when any of the fol-
PASS AIR BAG
100533

Seat, seatbelt and SRS airbags 1-53
– CONTINUED –
lowing conditions are met regarding the
front passenger’s seat: y
The seat is empty.
y The seat is equipped with a rearward
facing child restraint system and an infant
is restrained with it. (See WARNING thatfollows.) y The seat is equipped with a forward fac-
ing child restraint system and a small child
is restrained with it. (See WARNING that follows.) y The seat is equipped with a booster
seat and a small child is in the booster
seat. (See WARNING that follows.) y The seat is relieved of the occupant
load for a time exceeding the predeter-
mined monitoring time period. y The seat is occupied by a child who has
outgrown a child restraint system (See
WARNING that follows.) or by a small
adult. y The front passenger’s occupant detec-
tion system is faulty.
When the front passenger’s seat is occu-
pied by a child, observe the following pre-
cautions. Failure to do so may increase
the load on the front passenger’s seat, ac-
tivating the front passenger’s SRS frontal
airbag even though that seat is occupied
by a child. y
Do not place any article on the seat oth-
er than the child occupant and a child re-
straint system.y Do not place more than one child on the
seat.y Do not install any accessory such as a
table or TV onto the seatback. y Do not store a heavy load in the seat-
back pocket. y Do not allow the rear/second-row seat
occupant to place his/her hands or legs on
the front passenger’s seatback, or allow
him/her to pull the seatback. V If the front passenger’s frontal air-
bag ON indicator illuminates and the
OFF indicator extinguishes even
when an infant or a small child is in
a child restraint system (including
booster seat)
Turn the ignition switch to the “OFF” posi-
tion if the front passenger’s frontal airbag
ON indicator illuminates and the OFF indi-
cator extinguishes even when an infant or
a small child is in a child restraint system
(including booster seat). Remove the child
restraint system from the seat. By refer-
ring to the child restraint manufacturer’s
recommendations as well as the child re-
straint system installation procedures in
the “Child restraint systems” section in this
chapter, correctly install the child restraint
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT PASSENGER’S SEAT EVEN IF THE
FRONT PASSENGER’S SRS FRON-
TAL AIRBAG IS DEACTIVATED. Be
sure to install it in one of the rear
seating positions recommended in
this owner’s manual in a correct
manner. Also, it is strongly recom-
mended that any forward facing
child seat or booster seat be in-
stalled in one of the rear seating po-
sitions recommended in this own-
er’s manual, and that even children
who have outgrown a child restraint
system be also seated in a REAR
seat. This is because children sit-
ting in the front passenger’s seat
may be killed or severely injured
should the front passenger’s SRS
frontal airbag deploy. REAR seats
are the safest place for children.

1-54 Seat, seatbelt and SRS airbags
system. Turn the ignition switch to the
“ON” position and make sure that the front
passenger’s frontal airbag ON indicator
goes out and the OFF indicator comes on.
If still the ON indicator remains illuminated
while the OFF indicator extinguishes, take
the following actions. yEnsure that no article is placed on the
seat other than the child restraint system
and the child occupant. y Ensure that there is no article left in the
seatback pocket.
If the ON indicator still illuminates while
the OFF indicator extinguishes after tak-
ing relevant corrective actions described
above, relocate the child restraint system
to one of the rear seating positions recom-
mended in this owner’s manual and imme-
diately contact your SUBARU dealer for
an inspection.
NOTE
When a child who has outgrown a child
restraint system or a small adult is
seated in the front passenger’s seat,
the Subaru advanced frontal airbag
system may or may not activate the front passenger’s SRS frontal airbag
depending on the occupant’s seating
posture. If the front passenger’s SRS
frontal airbag is activated (the ON indi- cator illuminates while the OFF indica-
tor extinguishes), take the following
actions.y
Ensure that no article is placed on
the seat other than the occupant.y Ensure that there is no article left in
the seatback pocket.
If the ON indicator still illuminates
while the OFF indicator extinguishes
despite the fact that the actions noted
above have been taken, seat the child/
small adult in the rear seat and immedi-
ately contact your SUBARU dealer for
an inspection. Even if the system has
passed the dealer inspection, it is rec-
ommended that on subsequent trips
the child/small adult always take the
rear seat.
Children who have outgrown a child re-
straint system should always wear the
seatbelt irrespective of whether the airbag
is deactivated or activated. T Conditions in which front passen-
ger’s SRS frontal airbag is activated
The front passenger’s SRS frontal airbag
will be activated for deployment upon im-
pact when any of the following conditions
is met regarding the front passenger’s seat.y When the seat is occupied by an adult. y
When a heavy article is placed on the
seat.
When the front passenger’s seat is occu-
pied by an adult, observe the following
precautions. Failure to do so may lessen
the load on the front passenger’s seat, de-
activating the front passenger’s SRS fron-
tal airbag despite the fact that the seat is
occupied by an adult.y Do not allow the rear seat occupant to
lift the front passenger’s seat cushion us-
ing his/her feet.y Do not place any article under the front
passenger’s seat, or squeeze any article
from behind and under the seat. This may
lift the seat cushion.y Do not squeeze any article between the
front passenger’s seat and side trim/pillar,
door or center console box. This may lift
the seat cushion. V If the passenger’s frontal airbag
OFF indicator illuminates and the
ON indicator extinguishes even
when the front passenger’s seat is
occupied by an adult
This can be caused by the adult incorrect-
ly sitting in the front passenger’s seat.
Turn the ignition switch to the “OFF” posi-
tion. Ask the front passenger to set the
seatback to the upright position, sit up
straight in the center of the seat cushion,

Seat, seatbelt and SRS airbags 1-55
– CONTINUED –
correctly fasten the seatbelt, position his/
her legs out forward, and adjust the seat
to the rearmost position. Turn the ignition
switch to the “ON” position. If the OFF in-
dicator remains illuminated while the ON
indicator remains extinguished, take the
following actions. y
Turn the ignition switch to the “OFF” po-
sition. y Ensure that there is no article, book,
shoe, or other object trapped under the
seat, at the rear of the seat, or on the side
of the seat. y Next, turn the ignition switch to the “ON”
position and wait 6 seconds to allow the
system to complete self-checking. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. Now, the ON indi-
cator should illuminate while the OFF indi-
cator remains extinguished.
If the OFF indicator still illuminates while
the ON indicator remains extinguished,
ask the occupant to move to the rear seat
and immediately contact your SUBARU
dealer for an inspection. T Effect vehicle modifications made
for persons with disabilities may
have on Subaru advanced frontal
airbag system operation (U.S. only)
Changing or moving any parts of the front
seats, seatbelts, front bumper, front side frame, instrument panel, combination
meter, steering wheel, steering column,
tire, suspension or floor panel can affect
the operation of the Subaru advanced air-
bag system. If you have any questions,
you may contact the following Subaru dis-
tributors:
of Columbia>
Subaru of America, Inc.
Customer Dealer Services Department
P.O. Box 6000
Cherry Hill, NJ 08034-6000
1-800-SUBARU3 (1-800-782-2783)

Schuman Carriage Motors, Inc.
1234 South Beretania Street, Honolulu, HI
96814
808-592-4497

Triple J Enterprises, Inc.
P.O. Box 6066, Tamuning, Guam 96931
671-646-9126

Trebol Subaru of Puerto Rico, Inc.
P.O. Box 11204, San Juan, Puerto Rico
00910
787-793-2828
There are currently no Subaru distributors
in any other U.S. territories. If you are in
such an area, please contact the Subaru
distributor or dealer from which you
bought your vehicle.
