1-64 Seat, seatbelt and SRS airbags

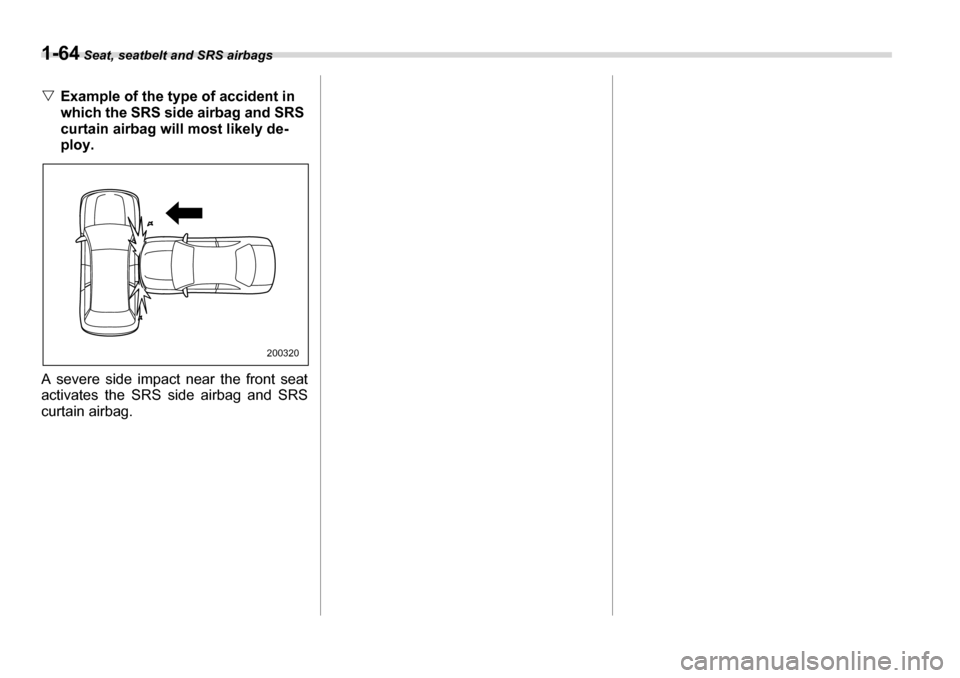

VExample of the type of accident in
which the SRS side airbag and SRS
curtain airbag will most likely de-
ploy.
A severe side impact near the front seat
activates the SRS side airbag and SRS
curtain airbag.
200320

Seat, seatbelt and SRS airbags 1-65
– CONTINUED –

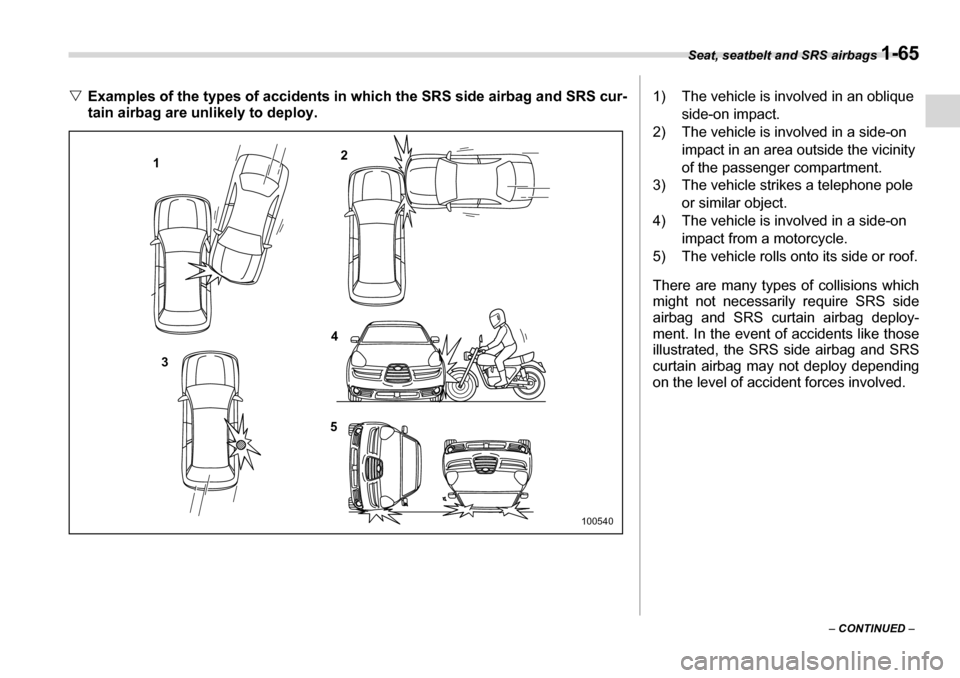

VExamples of the types of accidents in which the SRS side airbag and SRS cur-
tain airbag are unlikely to deploy.
1 2
3 4
5
100540
1) The vehicle is involved in an oblique side-on impact.
2) The vehicle is involved in a side-on
impact in an area outside the vicinity
of the passenger compartment.
3) The vehicle strikes a telephone pole
or similar object.
4) The vehicle is involved in a side-on
impact from a motorcycle.
5) The vehicle rolls onto its side or roof.
There are many types of collisions which
might not necessarily require SRS side
airbag and SRS curtain airbag deploy-
ment. In the event of accidents like those
illustrated, the SRS side airbag and SRS
curtain airbag may not deploy depending
on the level of accident forces involved.

1-66 Seat, seatbelt and SRS airbags
VExamples of the types of accidents
in which the SRS side airbag and
SRS curtain airbag will basically not
deploy.
1) The vehicle is involved in frontal collision with another vehicle (moving or station- ary).
2) The vehicle is struck from behind.
The SRS side airbag and SRS curtain air-
bag are basically not designed to deploy if
the vehicle is involved in a frontal collision
or is struck from behind. Examples of such
accidents are illustrated.
1) First impact
2) Second impact
A) SRS curtain airbag
B) SRS side airbag
In an accident where the vehicle is struck
from the side more than once, the SRS
side airbag and SRS curtain airbag deploy
only once on the first impact.
Example: In the case of a double side im-
pact collision, first with one vehicle and immediately followed by another from the
same direction, once the SRS side airbag
and SRS curtain airbag are activated on
the first impact, they will not be activated
on the second. „
SRS airbag system monitors
A diagnostic system continually monitors
the readiness of the SRS airbag system
(including front seatbelt pretensioners)
while the vehicle is being driven. The SRS
airbag system warning light “AIRBAG” will
show normal system operation by lighting
for approximately 6 seconds when the ig-
nition switch is turned to the “ON” position.
The following components are monitored
by the indicator: y Front sub sensor (Right-hand side)
1 2
100541
1
A
B
2
100563100385

Seat, seatbelt and SRS airbags 1-67
– CONTINUED –
y
Front sub sensor (Left-hand side)
y Airbag control module (including impact
sensors) y Frontal airbag module (Driver’s side)
y Frontal airbag module (Front passen-
ger’s side)y Side airbag sensor (Center pillar right-
hand side)y Side airbag sensor (Center pillar left-
hand side) y Side airbag module (Driver’s side)
y Side airbag module (Front passenger’s
side)y Curtain airbag sensor (Rear wheel
house right-hand side) y Curtain airbag sensor (Rear wheel
house left-hand side)y Curtain airbag module (Right side)
y Curtain airbag module (Left side)
y Seatbelt pretensioner (Driver’s side)
y Seatbelt pretensioner (Front passen-
ger’s side)y Seatbelt buckle switch (Driver’s side)
y Seatbelt buckle switch (Front passen-
ger’s side)y Driver’s seat position sensor
y Front passenger’s seatbelt tension sen-
sory Front passenger’s occupant detection
system weight sensory Front passenger’s occupant detection
control module y
Front passenger’s frontal airbag ON
and OFF indicatory All related wiring
„ SRS airbag system servicing
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt pre-
tensioners and/or SRS airbag sys-
tem. Immediately take your vehicle
to your nearest SUBARU dealer to
have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g.
SRS airbags may inflate in a very mi-
nor collision or not inflate in a se-
vere collision), which may increase
the risk of injury.
yFlashing or flickering of the warn-
ing light
yNo illumination of the warning
light when the ignition switch is
first turned to the “ON” position
yContinuous illumination of the
warning light
yIllumination of the warning light
while driving
yWhen discarding an airbag mod-
ule or scrapping the entire vehicle
damaged by a collision, consult
your SUBARU dealer.
yThe SRS airbag has no user-ser-
viceable parts. Do not use electri-
cal test equipment on any circuit
related to the SRS airbag system.
For required servicing of the SRS
airbag, see your nearest SUBARU
dealer. Tampering with or discon-
necting the system’s wiring could
result in accidental inflation of the
SRS airbag or could make the sys-
tem inoperative, which may result
in serious injury. The wiring har-
nesses of the SRS airbag system
are covered with yellow insulation
and system connectors are yellow
for easy identification.

1-68 Seat, seatbelt and SRS airbags
In the event that the SRS airbag is de-
ployed, replacement of the system
should be performed only by an autho-
rized SUBARU dealer. When the com-
ponents of the SRS airbag system are
replaced, use only genuine SUBARU parts.
NOTE
In the following cases, contact your
SUBARU dealer as soon as possible. y
The front part of the vehicle was in-
volved in an accident in which the only
the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS
frontal airbags did not deploy.y The pad of the steering wheel, the
cover over the front passenger’s SRS
frontal airbag, or either roof side (from
the front pillar to a point over the rear
seat) is scratched, cracked, or other-
wise damaged.y Either center pillar and rear wheel
house or a nearby area of the vehicle
was involved in an accident in which
the SRS side airbag and SRS curtain
airbag did not deploy. y The fabric or leather of either front
seatback is cut, frayed, or otherwise
damaged. „
Precautions against vehicle
modificationIf you need service or repair in areas
listed in the following, have an au-
thorized SUBARU dealer perform
the work. The SRS airbag control
module, impact sensors and airbag
modules are stored in these areas. yUnder the center console
y Inside each front fender
y Steering wheel and column and
nearby areas
y Top of the dashboard on front
passenger’s side and nearby ar- eas
y Each front seat and nearby area
y Inside each center pillar
y In each roof side (from the front
pillar to a point over the rear seat)
y Between the rear seat cushion
and rear wheel house on each
side
yTo avoid accidental activation of
the system or rendering the sys-
tem inoperative, which may result
in serious injury, no modifications
should be made to any compo-
nents or wiring of the SRS airbag
system.
This includes following modifica- tions:
yInstallation of custom steering
wheels
yAttachment of additional trim
materials to the dashboard
yInstallation of custom seats
yReplacement of seat fabric or
leather
yInstallation of additional fabric
or leather on the front seat

Seat, seatbelt and SRS airbags 1-69
Always consult your SUBARU dealer if
you want to install any accessory parts on your vehicle.
yAttachment of a hands-free mi-
crophone or any other accesso-
ry to a front pillar, a center pillar,
a rear pillar, the windshield, a
side window, an assist grip, or
any other cabin surface that
would be near a deploying SRS
curtain airbag.
yInstallation of additional electri-
cal/electronic equipment such
as a mobile two-way radio on or
near the SRS airbag system
components and/or wiring is
not advisable. This could inter-
fere with proper operation of the
SRS airbag system.
Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the SRS airbag system. y Attachment of any equipment
(bush bar, winches, snow plow,
skid plate, etc.) other than genu-
ine SUBARU accessory parts.
y Modification of the suspension
system or front end structure.
yInstallation of a tire of different
size and construction from the
tires specified on the vehicle plac-
ard attached to the driver’s door
pillar or specified for individual
vehicle models in this Owner’sManual.
y Attachment of any equipment
(side steps or side sill protectors,
etc.) other than genuine SUBARU
accessory parts to the side body.
