2007 SUBARU TRIBECA Owners Manual

12-2 Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. „Dimensions
in (mm)
„ Engine
Overall length189.8 (4,822)
Overall width73.9 (1,878)
Overall height66.4 (1,686)
Wheel base108.2 (2,749)
TreadFront62.2 (1,580)
Rear62.1 (1,578)
Ground clearance8.4 (213)
Engine modelEZ30D
(3.0-liter, DOHC, non-turbo)
Engine typeHorizontally opposed, liquid cooled 6 cylinder, 4 stroke gasoline engine
Displacement cc (cu-in)3,000 (183)
Bore × Stroke in (mm)3.51 × 3.15 (89.2 × 80.0)
Compression ratio10.7 : 1
Firing order1 – 6 – 3 – 2 – 5 – 4

Specifications 12-3
– CONTINUED –
„Electrical system
„ Capacities
„ Tires
Battery type and capacity (5HR)75D23L (12V–52AH)
Alternator12V–110A
Spark plugsILFR6B (NGK)
Fuel tank16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil5.8 US qt (5.5 liters, 4.8 Imp qt)
Transmission fluid10.4 US qt (9.8 liters, 8.6 Imp qt)
AT differential gear oil1.5 US qt (1.4 liters, 1.2 Imp qt)
Rear differential gear oil0.8 US qt (0.8 liter, 0.7 Imp qt)
Power steering fluid0.9 US qt (0.9 liter, 0.8 Imp qt)
Engine coolant7.8 US qt (7.4 liters, 6.5 Imp qt)
Tire sizeP255/55R18
Wheel size18 × 8JJ
PressureFront33 psi (230 kPa, 2.3 kgf/cm 2
)
Rear32 psi (220 kPa, 2.2 kgf/cm 2
)
Rear at trailer towing32 psi (220 kPa, 2.2 kgf/cm 2
)
Temporary spare tireSizeT165/80R17
Pressure60 psi (420 kPa, 4.2 kgf/cm 2
)

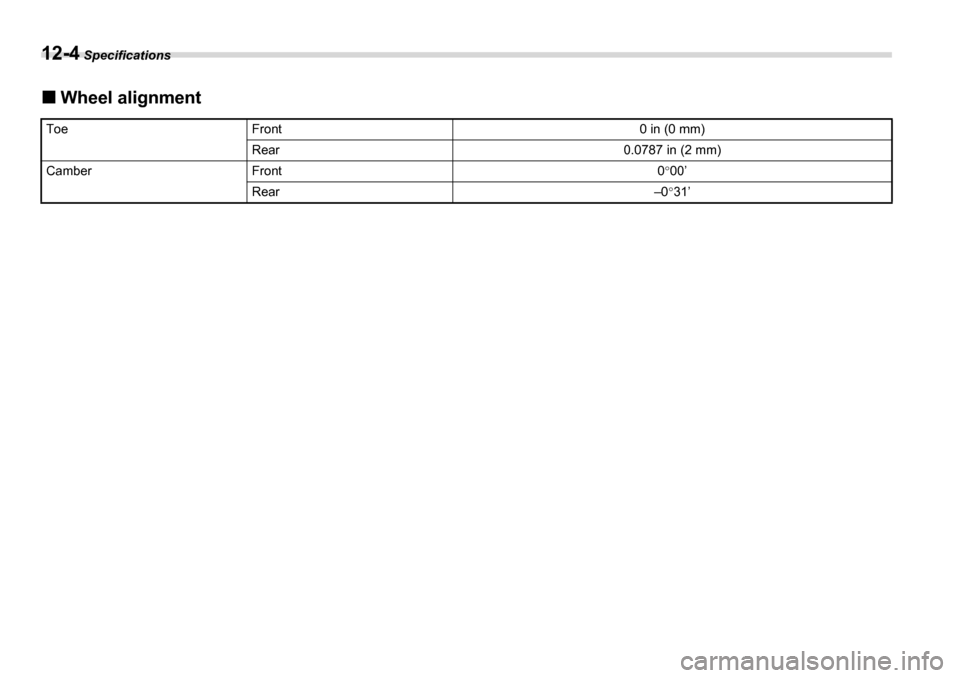

12-4 Specifications
„ Wheel alignment
ToeFront0 in (0 mm)
Rear0.0787 in (2 mm)
CamberFront0°00’
Rear–0 °31’

Specifications 12-5
– CONTINUED –
Fuses and circuits „Fuse panel located in the passenger compart- ment
27 28 29 30 31 32 33
20 21 22 23 24 25 26
13 14 15 16 17 18 19
6789101112 12345
C00004
Fuse panelFuse ratingCircuit
120Ay
Trailer hitch connector
2Empty
315AyDoor locking
47.5AyFront wiper deicer relay
y Moonroof
57.5AyCombination meter
67.5AyRemote control rear view mirrors
y Seat heater relay
715AyCombination meter
y Integrated unit
820AyStop light
920AyMirror heater
y Front wiper deicer
107.5AyPower supply (Battery)
117.5AyTurn signal unit
1215AyAutomatic transmission unit
y SRS airbag system (Sub)
y Engine control unit
y Integrated unit
1320AyCargo socket

12-6 Specifications
1415AyPosition light
y Tail light
y Rear combination light
1520AyConsole socket
1610AyIllumination
1715AySeat heaters
1810AyBackup light
197.5AyHeadlight right side relay
20Empty
217.5AyStarter relay
2215AyAir conditioner
y Rear window defogger relay coil
2315AyRear wiper
y Rear window washer
2415AyAudio unit
2515AySRS airbag system (Main)
267.5AyPower window relay
2715AyRear blower fan
2815AyRear blower fan
2915AyFog light
Fuse panelFuse ratingCircuit
3030AyFront wiper
317.5AyAuto air conditioner unit
y Integrated unit
327.5AyHeadlight left side relay
337.5AyVehicle dynamics control unit
Fuse panelFuse ratingCircuit

Specifications 12-7
„Fuse panel located in the engine compartment
A) Main fuse
21
3
A
6
78
910
1113
1214
45
C00100
Fuse panelFuse ratingCircuit
130Ay Vehicle dynamics control unit
225AyMain fan
325AyMain fan
415AyHeadlight (right side)
515AyHeadlight (left side)
620AyBackup
715AyHorn
825AyRear window defogger
915AyFuel pump
1015AyAutomatic transmission control unit
117.5AyEngine control unit
1215AyTurn and hazard warning flasher
1320AyParking switch
147.5AyAlternator

12-8 Specifications
Bulb chart
Description Wattage Bulb No.
Headlight
Low beam 12V-55W H7
High beam 12V-65W H9
Fog light 12V-55W H3
Front turn signal/Park-
ing light 12V-27/8W –
Parking/Front side marker light 12V-5W –
Rear combination light Rear turn signal
light 12V-21W (W21W)
Brake/tail 12V-21/5W (W21/5W)
Tail light 12V-3.8W 194
Backup light 12V-16W 921
License plate light 12V-5W 168
Cargo area light 12V-13W –
Dome light 12V-5W –
Map light 12V-8W –
Door step light 12V-3W –
Rear gate light 12V-5W (W5W)

Specifications 12-9
Vehicle identification
2
1
5
64 3
7
C00110
1) Vehicle identification number
2) Certification and bar code label
3) Tire inflation pressure label
4) Vehicle identification number plate
5) Model number plate
6) Emission control label
7) Fuel label
