2007 SUBARU TRIBECA Owners Manual

3-16 Instruments and controls
The ABS warning light comes on together with the brake system warning light if the
EBD system becomes faulty. For further
details of the EBD system fault warning,
refer to “Brake system warning light”.
NOTE
If the warning light behavior is as de-
scribed in the following, the ABS sys-
tem may be considered normal.yThe warning light comes on right af-
ter the engine is started but goes out
immediately, remaining off.y The warning light remains on after
the engine has been started, but it goes
out when the vehicle speed reaches
approximately 8 mph (12 km/h). y The warning light comes on during
driving, but it goes out immediately
and remains off.
When driving with an insufficient battery
voltage such as when the engine is jumpstarted, the ABS warning light may come
on. This is due to the low battery voltage
and does not indicate a malfunction.
When the battery becomes fully charged,
the light will go out. „
Brake system
warning light
This light has the following three func-
tions: TParking brake warning
The light comes on with the parking brake
applied while the ignition switch is in the
“ON” position. It goes out when the park-
ing brake is fully released. T Brake fluid level warning
This light comes on when the brake fluid
level has dropped to near the “MIN” level
of the brake fluid reservoir with the ignition
switch in the “ON” position and with the parking brake fully released. If the brake system warning light should
come on while driving (with the parking
brake fully released and with the ignition
switch positioned in “ON”), it could be an
indication of leaking of brake fluid or worn
brake pads. If this occurs, immediately
stop the vehicle at the nearest safe place
and check the brake fluid level. If the fluid
level is below the “MIN” mark in the reser-
voir, do not drive the vehicle. Have the ve-
hicle towed to the nearest SUBARU deal-
er for repair. T
Electronic Brake Force Distribution
(EBD) system warning
The brake system warning light also illu-
minates if a malfunction occurs in the EBD
system. In that event, it comes on together
with the ABS warning light.
The EBD system may be faulty if the brake
system warning light and ABS warning
light illuminate simultaneously during driv-
ing.
Even if the EBD system fails, the conven-
tional braking system will still function.
However, the rear wheels will be more
prone to locking when the brakes are ap-
plied harder than usual and the vehicle’s
motion may therefore become somewhat
harder to control. If the brake system warning light and ABS
y Driving with the brake system
warning light on is dangerous.
This indicates your brake system
may not be working properly. If
the light remains on, have the
brakes inspected by a SUBARU
dealer immediately.
yIf at all in doubt about whether the
brakes are operating properly, do
not drive the vehicle. Have your
vehicle towed to the nearest
SUBARU dealer for repair.
(U.S.) (Canada)

Instruments and controls 3-17
– CONTINUED –
warning light illuminate simultaneously,
take the following steps:
1. Stop the vehicle in the nearest safe, flat
place.
2. Shut down the engine, then restart it.
3. Release the parking brake. If both
warning lights go out, the EBD system
may be faulty.
Drive carefully to the nearest SUBARU
dealer and have the system inspected.
4. If both warning lights come on again
and stay illuminated after the engine has
been restarted, shut down the engine
again, apply the parking brake, and check
the brake fluid level.
5. If the brake fluid level is not below the
“MIN” mark, the EBD system may be
faulty. Drive carefully to the nearest
SUBARU dealer and have the system in-
spected.
6. If the brake fluid level is below the
“MIN” mark, DO NOT drive the vehicle. In-
stead, have the vehicle towed to the near-
est SUBARU dealer for repair. „
Low fuel warning light
The low fuel warning light comes on when
the tank is nearly empty approximately 2.6
US gal (10 liters, or 2.2 Imp gal). It only op-
erates when the ignition switch is in the
“ON” position.
NOTE
This light does not go out unless the
tank is replenished up to an internal
fuel quantity of approximately 4.0 US
gal (15 liters, 3.3 Imp gal). „ Door open warning light
The indicators are located in the center
portion of the dashboard.
When any of the doors or the rear gate is
not fully closed, it is indicated by the corre-
sponding part of the door warning light.
Always make sure this light is out before
you start to drive. „
Windshield washer fluid
warning light
This light comes on when the fluid level in
the windshield washer fluid tank falls to
the lower limit (approximately 0.6 US qt,
0.6 liter, 0.5 Imp qt). „ All-Wheel Drive warn-
ing light
The All-Wheel Drive warning light comes
on when the ignition switch is turned to the
“ON” position and goes out after the en-
gine has started.
This light flashes if the vehicle is driven
with tires of different diameters fitted on its
wheels or with the air pressure excessive-
ly low in any of its tires.
300505
Continued driving with the AWD
warning light flashing can lead to
powertrain damage. If the AWD
warning light flashes, promptly park
in a safe place then check whether
all four tires are the same diameter
and whether any of the tires has a
puncture or has lost air pressure for
some other reason.

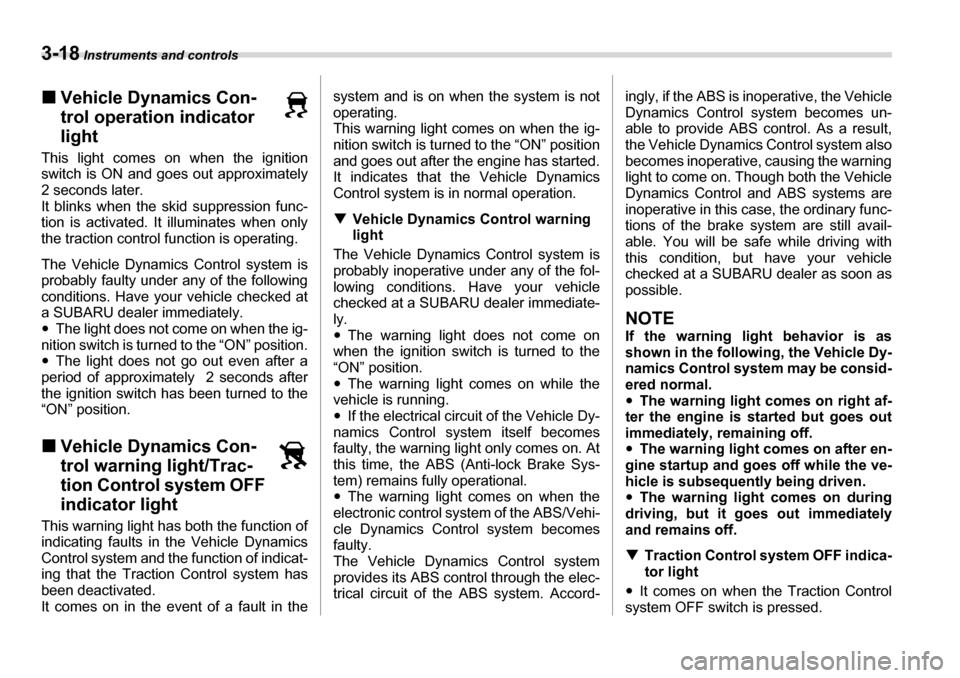

3-18 Instruments and controls
„Vehicle Dynamics Con-
trol operation indicator light
This light comes on when the ignition
switch is ON and goes out approximately
2 seconds later.
It blinks when the skid suppression func-
tion is activated. It illuminates when only
the traction control function is operating.
The Vehicle Dynamics Control system is
probably faulty under any of the following
conditions. Have your vehicle checked at
a SUBARU dealer immediately.y The light does not come on when the ig-
nition switch is turned to the “ON” position.y The light does not go out even after a
period of approximately 2 seconds after
the ignition switch has been turned to the
“ON” position. „ Vehicle Dynamics Con-
trol warning light/Trac-
tion Control system OFF
indicator light
This warning light has both the function of
indicating faults in the Vehicle Dynamics
Control system and the function of indicat-
ing that the Traction Control system has
been deactivated.
It comes on in the event of a fault in the system and is on when the system is not
operating.
This warning light comes on when the ig-
nition switch is turned to the “ON” position
and goes out after the engine has started.
It indicates that the Vehicle Dynamics
Control system is in normal operation. T
Vehicle Dynamics Control warning
light
The Vehicle Dynamics Control system is
probably inoperative under any of the fol-
lowing conditions. Have your vehicle
checked at a SUBARU dealer immediate-ly. y The warning light does not come on
when the ignition switch is turned to the
“ON” position.y The warning light comes on while the
vehicle is running.y If the electrical circuit of the Vehicle Dy-
namics Control system itself becomes
faulty, the warning light only comes on. At
this time, the ABS (Anti-lock Brake Sys-
tem) remains fully operational. y The warning light comes on when the
electronic control system of the ABS/Vehi-
cle Dynamics Control system becomes
faulty. The Vehicle Dynamics Control system
provides its ABS control through the elec-
trical circuit of the ABS system. Accord- ingly, if the ABS is inoperative, the Vehicle
Dynamics Control system becomes un- able to provide ABS control. As a result,
the Vehicle Dynamics Control system also
becomes inoperative, causing the warning
light to come on. Though both the Vehicle
Dynamics Control and ABS systems are
inoperative in this case, the ordinary func-
tions of the brake system are still avail-
able. You will be safe while driving with
this condition, but have your vehicle
checked at a SUBARU dealer as soon as
possible.
NOTE
If the warning light behavior is as
shown in the following, the Vehicle Dy-
namics Control system may be consid-
ered normal. y
The warning light comes on right af-
ter the engine is started but goes out
immediately, remaining off. y The warning light comes on after en-
gine startup and goes off while the ve-
hicle is subsequently being driven. y The warning light comes on during
driving, but it goes out immediately
and remains off. T Traction Control system OFF indica- tor light
y It comes on when the Traction Control
system OFF switch is pressed.

Instruments and controls 3-19
– CONTINUED –
y
It also comes on when the Traction
Control system is deactivated.
NOTE y The light may stay on for a while after
the engine has been started, especially
in cold weather. This does not indicate
the existence of a problem. The light
should go out as soon as the engine
has warmed up.y The indicator light comes on when
the engine has developed a problem
and the Malfunction indicator light is
on.
The Vehicle Dynamics Control system is
probably faulty under the following condi-
tion. Have your vehicle checked at a
SUBARU dealer as soon as possible. y The light does not go out even after the
lapse of several minutes (the engine has
warmed up) after the engine has started. „
Security indicator light
The indicators are located in the center
portion of the dashboard.
This indicator light shows the status of the
alarm system. It also indicates operation
of the immobilizer system. T Alarm system
It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to the “Alarm system”
section in chapter 2. T Immobilizer system
This light blinks approximately 60 seconds
after the ignition switch is turned from
“ON” position to the “ACC” or “LOCK” po-
sition or immediately after the key is pulled
out. (Refer to the “Door locks” section in chapter 2.)
If the indicator light does not flash, it may
indicate that immobilizer system may be
faulty. Contact your nearest SUBARU
dealer immediately.
In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light comes
on. „
SPORT mode indicator light
This light comes on when the ignition
switch is turned to the “ON” position and
goes out after the engine has started.
When the selector lever is moved to the
manual gate, the SPORT mode is select-
ed and the indicator light comes on. (Refer
to the “Automatic transmission” section in
chapter 7.) T Automatic transmission control
system warning
If the light flashes after the engine starts,
it may indicate that the automatic trans-
mission control system is not working
properly. Contact your nearest SUBARU
dealer for service immediately.
200702

3-20 Instruments and controls
„Selector lever/Gear position
indicator
The selector lever/gear position indicator
shows the position of the selector lever.
When manual mode is selected, the gear
position indicator shows the current gear
position and the upshift/downshift indica-
tor illuminates. (Refer to the “Automatic
transmission” section in chapter 7.) „ Turn signal indicator lights
These lights show the operation of the
turn signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be
burned out. Replace the bulb as soon as possible. Refer to the “Replacing bulbs”
section in chapter 11. „
High beam indicator
light
This light shows that the headlights are in
the high beam mode.
This indicator light also comes on when
the headlight flasher is operated. „ Cruise control indica-
tor light
The cruise control indicator light comes on
when the ignition switch is turned to the
“ON” position and goes out after approxi-
mately three seconds.
This light comes on when the “CRUISE” main switch is pressed.
NOTE
If you move the cruise control lever or
press the main switch button while
turning the ignition switch “ON”, the
cruise control function is deactivatedand the “CRUISE” indicator light flash-
es. To reactivate the cruise control
function, turn the ignition switch backto the “ACC” or “LOCK” position, and
then turn it again to the “ON” position. „
Cruise control set indica-
tor light
The cruise control set indicator light
comes on when the ignition switch is
turned to the “ON” position and goes out
after approximately three seconds.
This light comes on when vehicle speed
has been set. „ Headlight indicator
light
This indicator light comes on when the
light switch is turned to the “ ” posi-
tion (to turn on the parking lights) or to the
“ ” position (to turn on the headlights). „ Front fog light indicator
light
This indicator light is on while the front fog
lights are on.
300266

Instruments and controls 3-21
– CONTINUED –

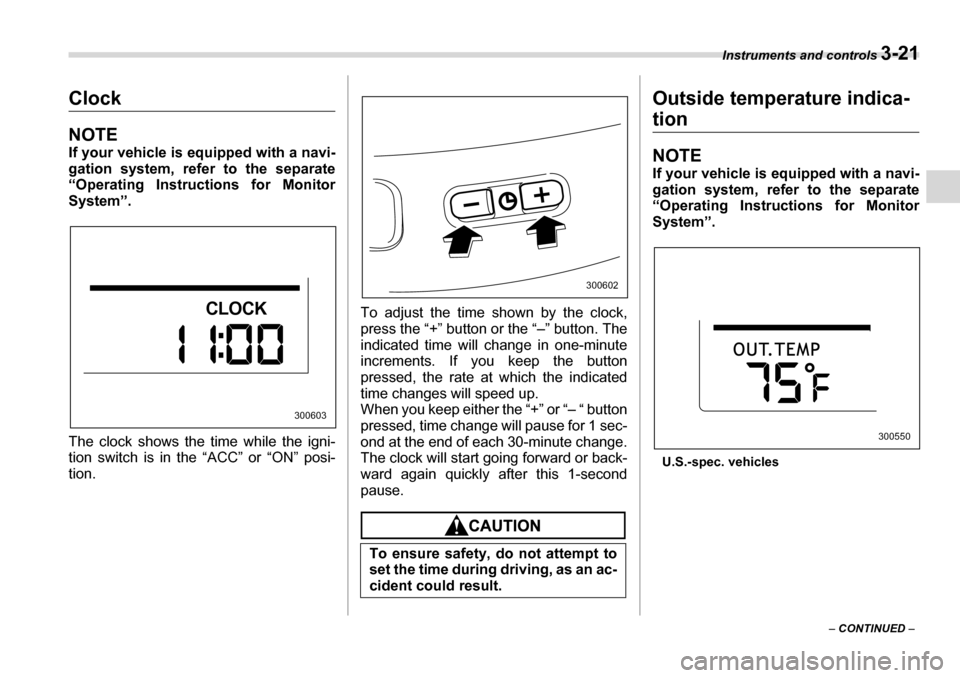

Clock
NOTE
If your vehicle is equipped with a navi-
gation system, refer to the separate
“Operating Instructions for Monitor
System”.
The clock shows the time while the igni-
tion switch is in the “ACC” or “ON” posi-tion. To adjust the time shown by the clock,
press the “+” button or the “–” button. The
indicated time will change in one-minute
increments. If you keep the button
pressed, the rate at which the indicated
time changes will speed up.
When you keep either the “+” or “– “ button
pressed, time change will pause for 1 sec-
ond at the end of each 30-minute change.
The clock will start going forward or back-
ward again quickly after this 1-second
pause.
Outside temperature indica-
tion
NOTE
If your vehicle is equipped with a navi-
gation system, refer to the separate
“Operating Instructions for Monitor System”.
U.S.-spec. vehicles
CLOCK
300603
To ensure safety, do not attempt to
set the time during driving, as an ac-
cident could result.
300602
300550

3-22 Instruments and controls

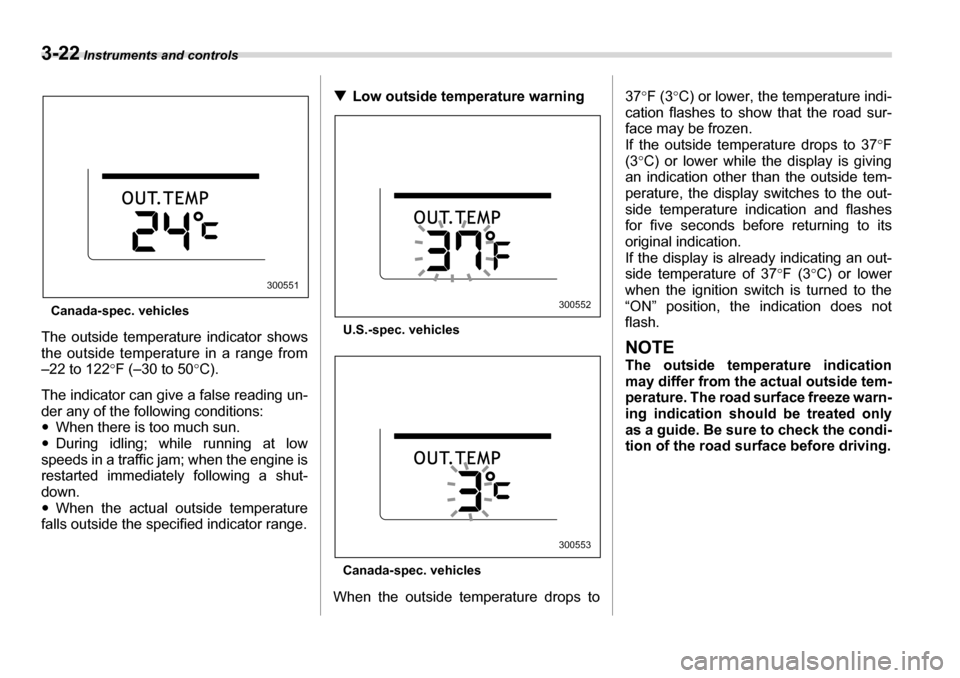

Canada-spec. vehicles
The outside temperature indicator shows
the outside temperature in a range from
–22 to 122 °F (–30 to 50 °C).
The indicator can give a false reading un-
der any of the following conditions:y When there is too much sun.
y During idling; while running at low
speeds in a traffic jam; when the engine is
restarted immediately following a shut-
down. y When the actual outside temperature
falls outside the specified indicator range. T
Low outside temperature warning
U.S.-spec. vehicles
Canada-spec. vehicles
When the outside temperature drops to 37
°F (3 °C) or lower, the temperature indi-
cation flashes to show that the road sur-
face may be frozen.
If the outside temperature drops to 37 °F
(3 °C) or lower while the display is giving
an indication other than the outside tem-
perature, the display switches to the out-
side temperature indication and flashes
for five seconds before returning to its
original indication.
If the display is already indicating an out-
side temperature of 37 °F (3 °C) or lower
when the ignition switch is turned to the
“ON” position, the indication does not
flash.
NOTE
The outside temperature indication
may differ from the actual outside tem-
perature. The road surface freeze warn-
ing indication should be treated only
as a guide. Be sure to check the condi-
tion of the road surface before driving.
300551
300552
300553

Instruments and controls 3-23
– CONTINUED –

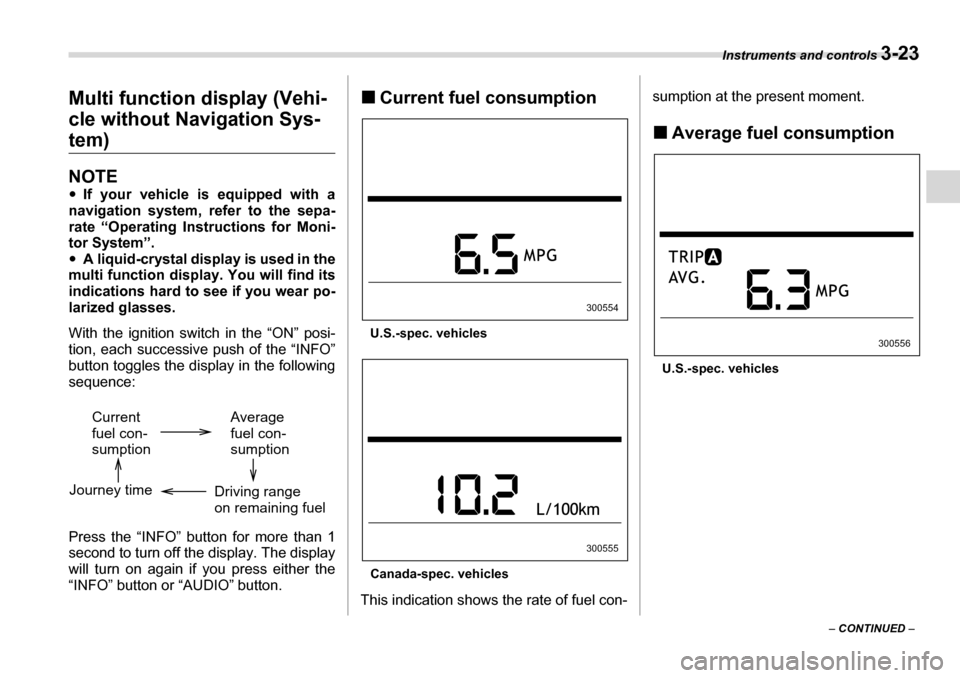

Multi function display (Vehi- cle without Navigation Sys-
tem)
NOTE y
If your vehicle is equipped with a
navigation system, refer to the sepa- rate “Operating Instructions for Moni-
tor System”.y A liquid-crystal display is used in the
multi function display. You will find its
indications hard to see if you wear po-
larized glasses.
With the ignition switch in the “ON” posi-
tion, each successive push of the “INFO”
button toggles the display in the following
sequence:
Press the “INFO” button for more than 1
second to turn off the display. The display
will turn on again if you press either the
“INFO” button or “AUDIO” button. „
Current fuel consumption
U.S.-spec. vehicles
Canada-spec. vehicles
This indication shows the rate of fuel con- sumption at the present moment. „
Average fuel consumption
U.S.-spec. vehicles
Current fuel con-sumption Average fuel con-sumption
Driving rangeon remaining fuel
Journey time
300554
300555
300556
