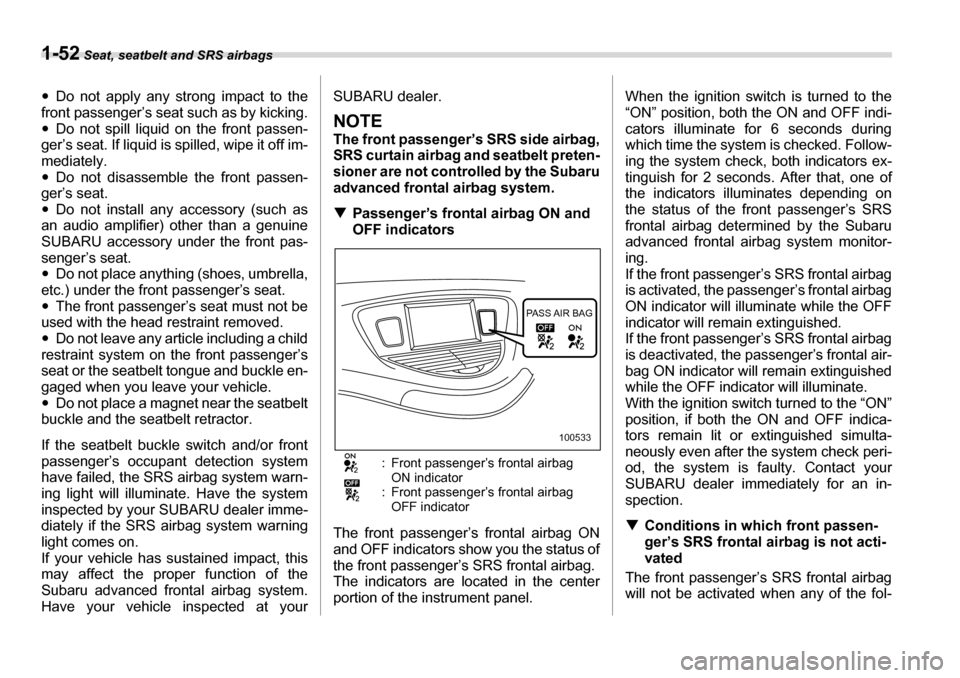

1-52 Seat, seatbelt and SRS airbags
yDo not apply any strong impact to the
front passenger’s seat such as by kicking. y Do not spill liquid on the front passen-
ger’s seat. If liquid is spilled, wipe it off im-
mediately. y Do not disassemble the front passen-
ger’s seat. y Do not install any accessory (such as
an audio amplifier) other than a genuine
SUBARU accessory under the front pas-
senger’s seat. y Do not place anything (shoes, umbrella,
etc.) under the front passenger’s seat. y The front passenger’s seat must not be
used with the head restraint removed. y Do not leave any article including a child
restraint system on the front passenger’s
seat or the seatbelt tongue and buckle en-
gaged when you leave your vehicle.y Do not place a magnet near the seatbelt
buckle and the seatbelt retractor.
If the seatbelt buckle switch and/or front
passenger’s occupant detection system
have failed, the SRS airbag system warn-
ing light will illuminate. Have the system
inspected by your SUBARU dealer imme-
diately if the SRS airbag system warning
light comes on.
If your vehicle has sustained impact, this
may affect the proper function of the
Subaru advanced frontal airbag system.
Have your vehicle inspected at your SUBARU dealer.
NOTE
The front passenger’s SRS side airbag,
SRS curtain airbag and seatbelt preten-
sioner are not controlled by the Subaru
advanced frontal airbag system. T
Passenger’s frontal airbag ON and
OFF indicators
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF indicator
The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag.
The indicators are located in the center
portion of the instrument panel. When the ignition switch is turned to the
“ON” position, both the ON and OFF indi-
cators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. After that, one of
the indicators illuminates depending on
the status of the front passenger’s SRS
frontal airbag determined by the Subaru
advanced frontal airbag system monitor-
ing.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain extinguished.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal air-
bag ON indicator will remain extinguished
while the OFF indicator will illuminate.
With the ignition switch turned to the “ON”
position, if both the ON and OFF indica-
tors remain lit or extinguished simulta-
neously even after the system check peri-
od, the system is faulty. Contact your
SUBARU dealer immediately for an in-
spection. T
Conditions in which front passen-
ger’s SRS frontal airbag is not acti-vated
The front passenger’s SRS frontal airbag
will not be activated when any of the fol-
PASS AIR BAG
100533

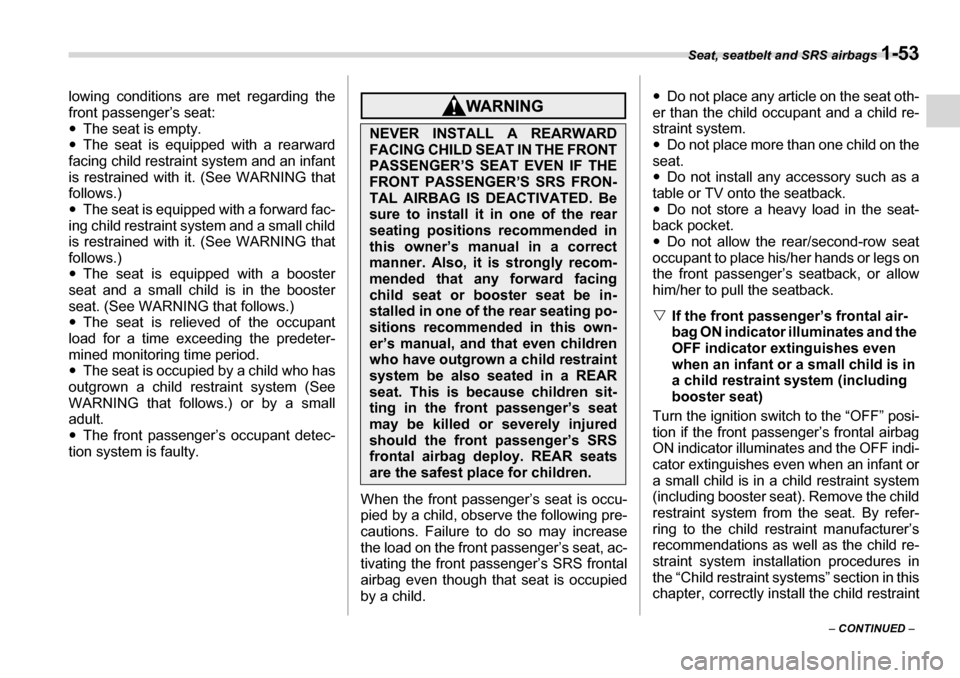

Seat, seatbelt and SRS airbags 1-53
– CONTINUED –
lowing conditions are met regarding the
front passenger’s seat: y
The seat is empty.
y The seat is equipped with a rearward
facing child restraint system and an infant
is restrained with it. (See WARNING thatfollows.) y The seat is equipped with a forward fac-
ing child restraint system and a small child
is restrained with it. (See WARNING that follows.) y The seat is equipped with a booster
seat and a small child is in the booster
seat. (See WARNING that follows.) y The seat is relieved of the occupant
load for a time exceeding the predeter-
mined monitoring time period. y The seat is occupied by a child who has
outgrown a child restraint system (See
WARNING that follows.) or by a small
adult. y The front passenger’s occupant detec-
tion system is faulty.
When the front passenger’s seat is occu-
pied by a child, observe the following pre-
cautions. Failure to do so may increase
the load on the front passenger’s seat, ac-
tivating the front passenger’s SRS frontal
airbag even though that seat is occupied
by a child. y
Do not place any article on the seat oth-
er than the child occupant and a child re-
straint system.y Do not place more than one child on the
seat.y Do not install any accessory such as a
table or TV onto the seatback. y Do not store a heavy load in the seat-
back pocket. y Do not allow the rear/second-row seat
occupant to place his/her hands or legs on
the front passenger’s seatback, or allow
him/her to pull the seatback. V If the front passenger’s frontal air-
bag ON indicator illuminates and the
OFF indicator extinguishes even
when an infant or a small child is in
a child restraint system (including
booster seat)
Turn the ignition switch to the “OFF” posi-
tion if the front passenger’s frontal airbag
ON indicator illuminates and the OFF indi-
cator extinguishes even when an infant or
a small child is in a child restraint system
(including booster seat). Remove the child
restraint system from the seat. By refer-
ring to the child restraint manufacturer’s
recommendations as well as the child re-
straint system installation procedures in
the “Child restraint systems” section in this
chapter, correctly install the child restraint
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT PASSENGER’S SEAT EVEN IF THE
FRONT PASSENGER’S SRS FRON-
TAL AIRBAG IS DEACTIVATED. Be
sure to install it in one of the rear
seating positions recommended in
this owner’s manual in a correct
manner. Also, it is strongly recom-
mended that any forward facing
child seat or booster seat be in-
stalled in one of the rear seating po-
sitions recommended in this own-
er’s manual, and that even children
who have outgrown a child restraint
system be also seated in a REAR
seat. This is because children sit-
ting in the front passenger’s seat
may be killed or severely injured
should the front passenger’s SRS
frontal airbag deploy. REAR seats
are the safest place for children.

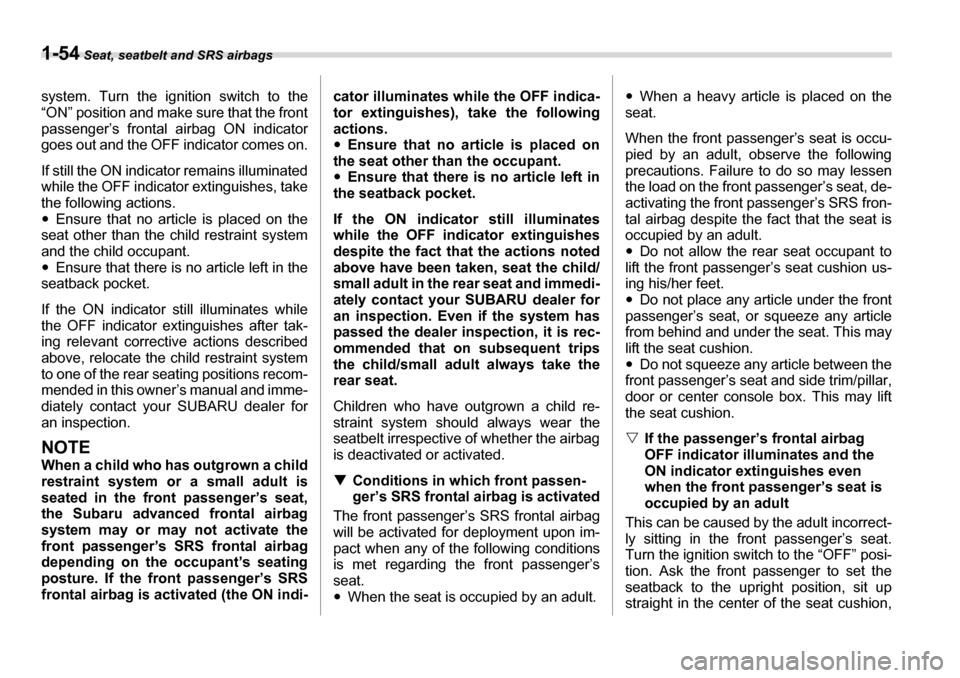

1-54 Seat, seatbelt and SRS airbags
system. Turn the ignition switch to the
“ON” position and make sure that the front
passenger’s frontal airbag ON indicator
goes out and the OFF indicator comes on.
If still the ON indicator remains illuminated
while the OFF indicator extinguishes, take
the following actions. yEnsure that no article is placed on the
seat other than the child restraint system
and the child occupant. y Ensure that there is no article left in the
seatback pocket.
If the ON indicator still illuminates while
the OFF indicator extinguishes after tak-
ing relevant corrective actions described
above, relocate the child restraint system
to one of the rear seating positions recom-
mended in this owner’s manual and imme-
diately contact your SUBARU dealer for
an inspection.
NOTE
When a child who has outgrown a child
restraint system or a small adult is
seated in the front passenger’s seat,
the Subaru advanced frontal airbag
system may or may not activate the front passenger’s SRS frontal airbag
depending on the occupant’s seating
posture. If the front passenger’s SRS
frontal airbag is activated (the ON indi- cator illuminates while the OFF indica-
tor extinguishes), take the following
actions.y
Ensure that no article is placed on
the seat other than the occupant.y Ensure that there is no article left in
the seatback pocket.
If the ON indicator still illuminates
while the OFF indicator extinguishes
despite the fact that the actions noted
above have been taken, seat the child/
small adult in the rear seat and immedi-
ately contact your SUBARU dealer for
an inspection. Even if the system has
passed the dealer inspection, it is rec-
ommended that on subsequent trips
the child/small adult always take the
rear seat.
Children who have outgrown a child re-
straint system should always wear the
seatbelt irrespective of whether the airbag
is deactivated or activated. T Conditions in which front passen-
ger’s SRS frontal airbag is activated
The front passenger’s SRS frontal airbag
will be activated for deployment upon im-
pact when any of the following conditions
is met regarding the front passenger’s seat.y When the seat is occupied by an adult. y
When a heavy article is placed on the
seat.
When the front passenger’s seat is occu-
pied by an adult, observe the following
precautions. Failure to do so may lessen
the load on the front passenger’s seat, de-
activating the front passenger’s SRS fron-
tal airbag despite the fact that the seat is
occupied by an adult.y Do not allow the rear seat occupant to
lift the front passenger’s seat cushion us-
ing his/her feet.y Do not place any article under the front
passenger’s seat, or squeeze any article
from behind and under the seat. This may
lift the seat cushion.y Do not squeeze any article between the
front passenger’s seat and side trim/pillar,
door or center console box. This may lift
the seat cushion. V If the passenger’s frontal airbag
OFF indicator illuminates and the
ON indicator extinguishes even
when the front passenger’s seat is
occupied by an adult
This can be caused by the adult incorrect-
ly sitting in the front passenger’s seat.
Turn the ignition switch to the “OFF” posi-
tion. Ask the front passenger to set the
seatback to the upright position, sit up
straight in the center of the seat cushion,

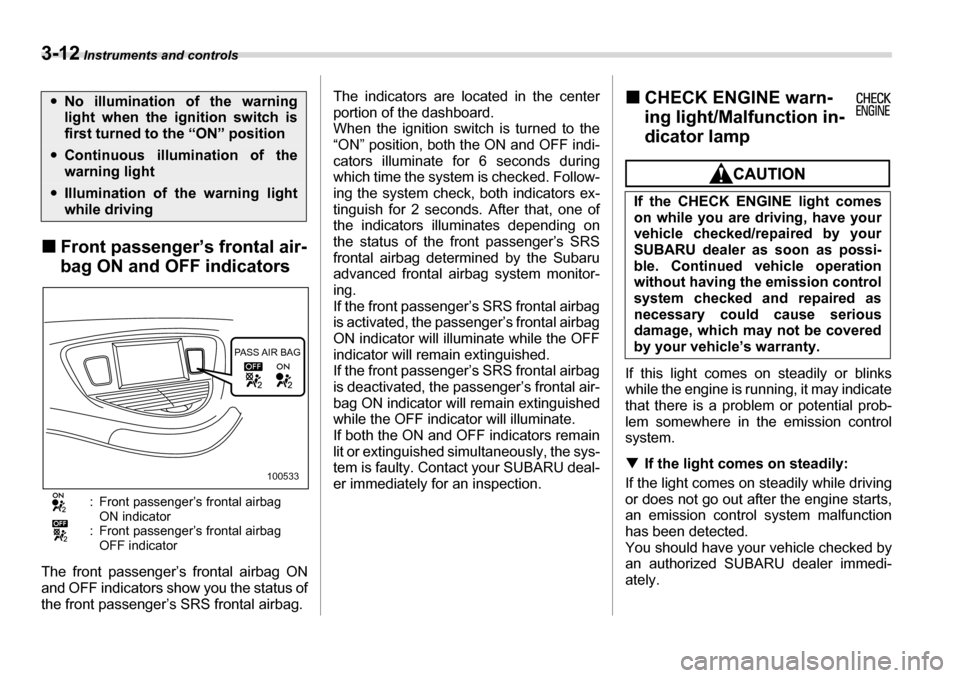

3-12 Instruments and controls
„Front passenger’s frontal air-
bag ON and OFF indicators
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF indicator
The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag. The indicators are located in the center
portion of the dashboard.
When the ignition switch is turned to the
“ON” position, both the ON and OFF indi-
cators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. After that, one of
the indicators illuminates depending on
the status of the front passenger’s SRS
frontal airbag determined by the Subaru
advanced frontal airbag system monitor-
ing.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain extinguished.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal air-
bag ON indicator will remain extinguished
while the OFF indicator will illuminate.
If both the ON and OFF indicators remain
lit or extinguished simultaneously, the sys-
tem is faulty. Contact your SUBARU deal-
er immediately for an inspection.
„
CHECK ENGINE warn-
ing light/Malfunction in-
dicator lamp
If this light comes on steadily or blinks
while the engine is running, it may indicate
that there is a problem or potential prob-
lem somewhere in the emission control
system. TIf the light comes on steadily:
If the light comes on steadily while driving
or does not go out after the engine starts,
an emission control system malfunction
has been detected.
You should have your vehicle checked by
an authorized SUBARU dealer immedi-ately.
y No illumination of the warning
light when the ignition switch is
first turned to the “ON” position
yContinuous illumination of the
warning light
yIllumination of the warning light
while driving
PASS AIR BAG
100533
If the CHECK ENGINE light comes
on while you are driving, have your
vehicle checked/repaired by your
SUBARU dealer as soon as possi-
ble. Continued vehicle operation
without having the emission control
system checked and repaired as
necessary could cause serious
damage, which may not be covered
by your vehicle’s warranty.
