2007 SUBARU TRIBECA Owners Manual

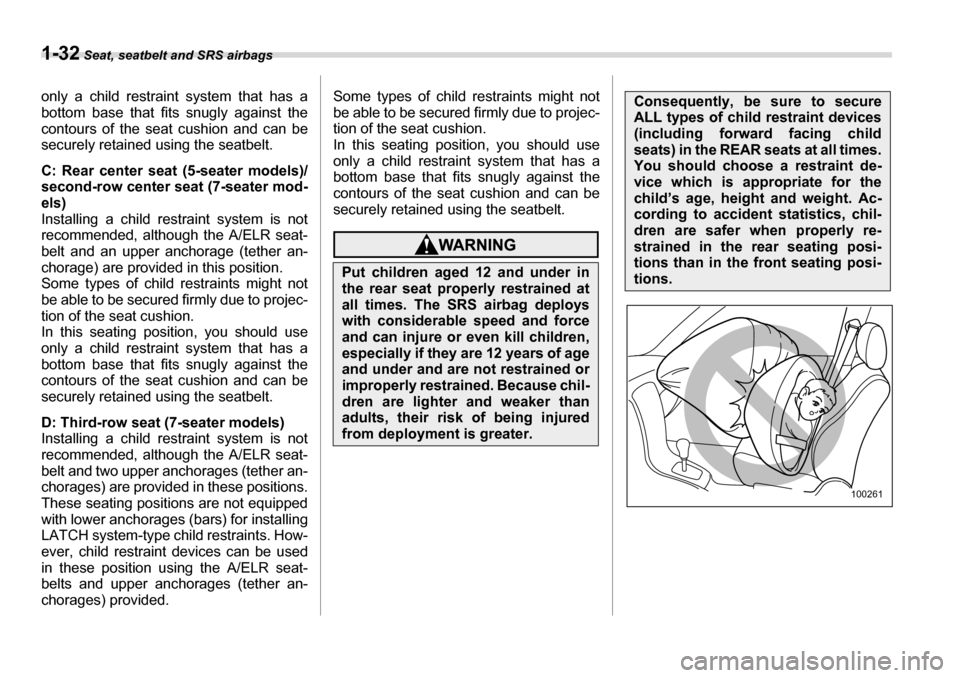

1-32 Seat, seatbelt and SRS airbags
only a child restraint system that has a
bottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt.
C: Rear center seat (5-seater models)/
second-row center seat (7-seater mod-els)
Installing a child restraint system is not
recommended, although the A/ELR seat-
belt and an upper anchorage (tether an-
chorage) are provided in this position.
Some types of child restraints might not
be able to be secured firmly due to projec-
tion of the seat cushion.
In this seating position, you should use
only a child restraint system that has a
bottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt.
D: Third-row seat (7-seater models)
Installing a child restraint system is not
recommended, although the A/ELR seat-
belt and two upper anchorages (tether an-
chorages) are provided in these positions.
These seating positions are not equipped
with lower anchorages (bars) for installing
LATCH system-type child restraints. How-
ever, child restraint devices can be used
in these position using the A/ELR seat-
belts and upper anchorages (tether an-
chorages) provided. Some types of child restraints might not
be able to be secured firmly due to projec-
tion of the seat cushion.
In this seating position, you should use
only a child restraint system that has a
bottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt.
Put children aged 12 and under in
the rear seat properly restrained at
all times. The SRS airbag deploys
with considerable speed and force
and can injure or even kill children,
especially if they are 12 years of age
and under and are not restrained or
improperly restrained. Because chil-
dren are lighter and weaker than
adults, their risk of being injured
from deployment is greater.
Consequently, be sure to secure
ALL types of child restraint devices
(including forward facing child
seats) in the REAR seats at all times.
You should choose a restraint de-
vice which is appropriate for the
child’s age, height and weight. Ac-
cording to accident statistics, chil-
dren are safer when properly re-
strained in the rear seating posi-
tions than in the front seating posi- tions.
100261

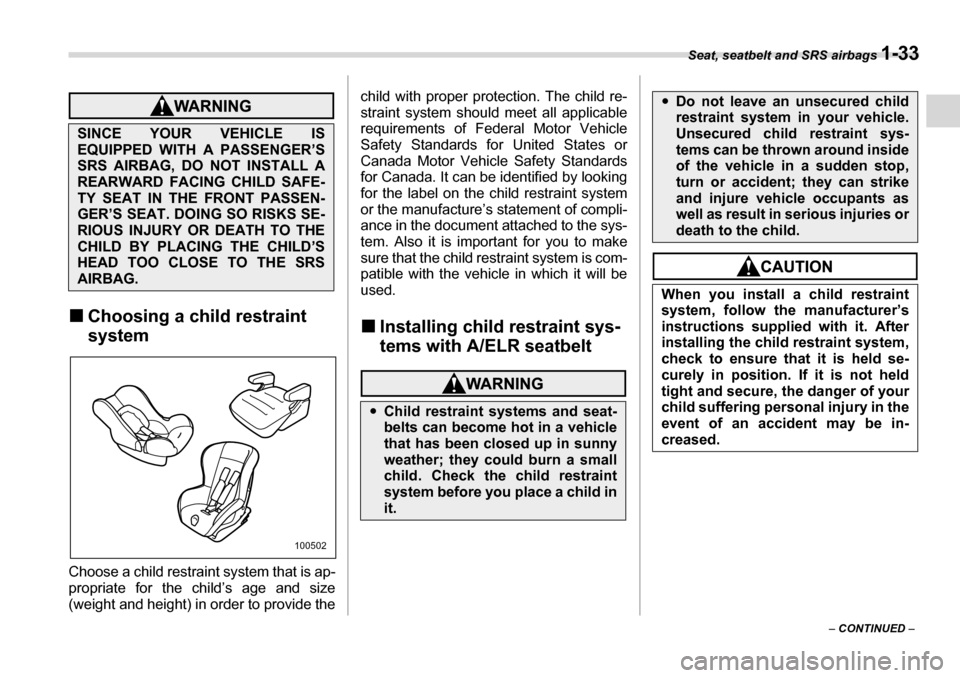

Seat, seatbelt and SRS airbags 1-33
– CONTINUED –
„Choosing a child restraint system
Choose a child restraint system that is ap-
propriate for the child’s age and size
(weight and height) in order to provide the child with proper protection. The child re-
straint system should meet all applicable
requirements of Federal Motor Vehicle
Safety Standards for United States or
Canada Motor Vehicle Safety Standards
for Canada. It can be identified by looking
for the label on the child restraint system
or the manufacture’s statement of compli-
ance in the document attached to the sys-
tem. Also it is important for you to make
sure that the child restraint system is com-
patible with the vehicle in which it will be
used. „
Installing child restraint sys-
tems with A/ELR seatbelt
SINCE YOUR VEHICLE IS
EQUIPPED WITH A PASSENGER’S
SRS AIRBAG, DO NOT INSTALL A
REARWARD FACING CHILD SAFE-
TY SEAT IN THE FRONT PASSEN-
GER’S SEAT. DOING SO RISKS SE-
RIOUS INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S
HEAD TOO CLOSE TO THE SRS AIRBAG.
100502
yChild restraint systems and seat-
belts can become hot in a vehicle
that has been closed up in sunny
weather; they could burn a small
child. Check the child restraint
system before you place a child in
it.
yDo not leave an unsecured child
restraint system in your vehicle.
Unsecured child restraint sys-
tems can be thrown around inside
of the vehicle in a sudden stop,
turn or accident; they can strike
and injure vehicle occupants as
well as result in serious injuries or
death to the child.
When you install a child restraint
system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held se-
curely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in the
event of an accident may be in-
creased.

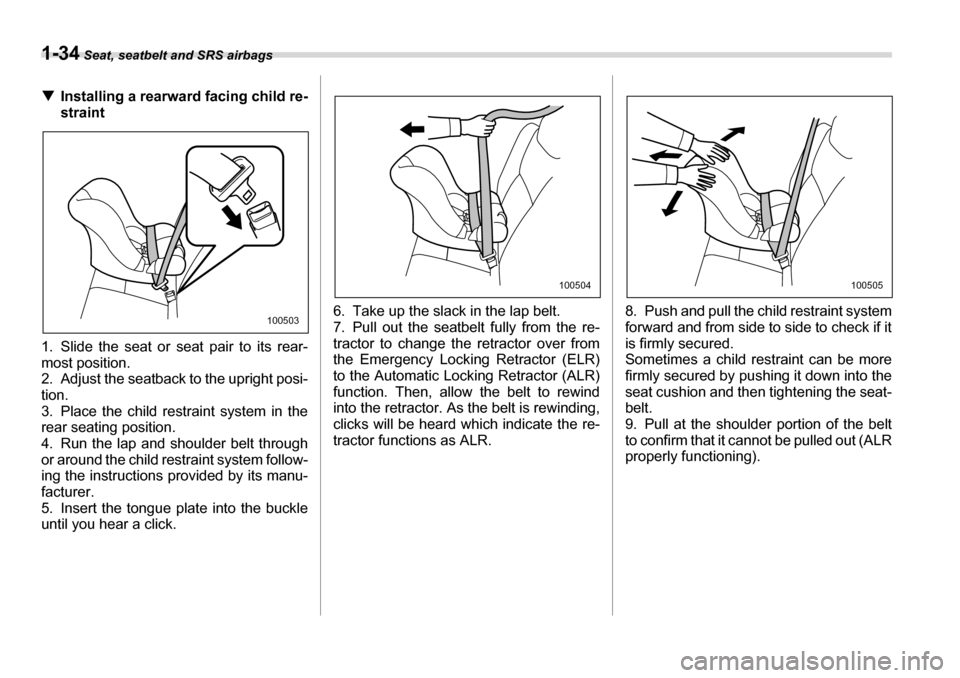

1-34 Seat, seatbelt and SRS airbags
TInstalling a rearward facing child re-
straint
1. Slide the seat or seat pair to its rear- most position.
2. Adjust the seatback to the upright posi- tion.
3. Place the child restraint system in the
rear seating position.
4. Run the lap and shoulder belt through
or around the child restraint system follow-
ing the instructions provided by its manu- facturer.
5. Insert the tongue plate into the buckle
until you hear a click. 6. Take up the slack in the lap belt.
7. Pull out the seatbelt fully from the re-
tractor to change the retractor over from
the Emergency Locking Retractor (ELR)
to the Automatic Locking Retractor (ALR)
function. Then, allow the belt to rewind
into the retractor. As the belt is rewinding,
clicks will be heard which indicate the re-
tractor functions as ALR.
8. Push and pull the child restraint system
forward and from side to side to check if it
is firmly secured.
Sometimes a child restraint can be more
firmly secured by pushing it down into the
seat cushion and then tightening the seat-
belt.
9. Pull at the shoulder portion of the belt
to confirm that it cannot be pulled out (ALR
properly functioning).
100503
100504100505

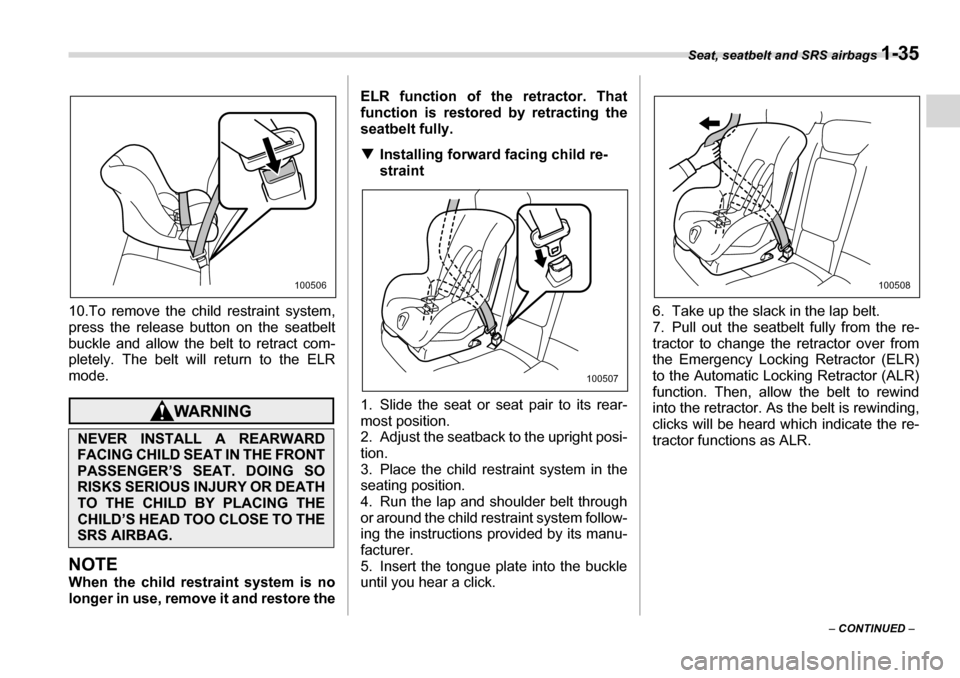

Seat, seatbelt and SRS airbags 1-35
– CONTINUED –
10.To remove the child restraint system,
press the release button on the seatbelt
buckle and allow the belt to retract com-
pletely. The belt will return to the ELR
mode.
NOTE
When the child restraint system is no
longer in use, remove it and restore the ELR function of the retractor. That
function is restored by retracting the
seatbelt fully. T
Installing forward facing child re-
straint
1. Slide the seat or seat pair to its rear-
most position.
2. Adjust the seatback to the upright posi- tion.
3. Place the child restraint system in the
seating position.
4. Run the lap and shoulder belt through
or around the child restraint system follow-
ing the instructions provided by its manu- facturer.
5. Insert the tongue plate into the buckle
until you hear a click. 6. Take up the slack in the lap belt.
7. Pull out the seatbelt fully from the re-
tractor to change the retractor over from
the Emergency Locking Retractor (ELR)
to the Automatic Locking Retractor (ALR)
function. Then, allow the belt to rewind
into the retractor. As the belt is rewinding,
clicks will be heard which indicate the re-
tractor functions as ALR.
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT
PASSENGER’S SEAT. DOING SO
RISKS SERIOUS INJURY OR DEATH
TO THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE
SRS AIRBAG.
100506
100507
100508

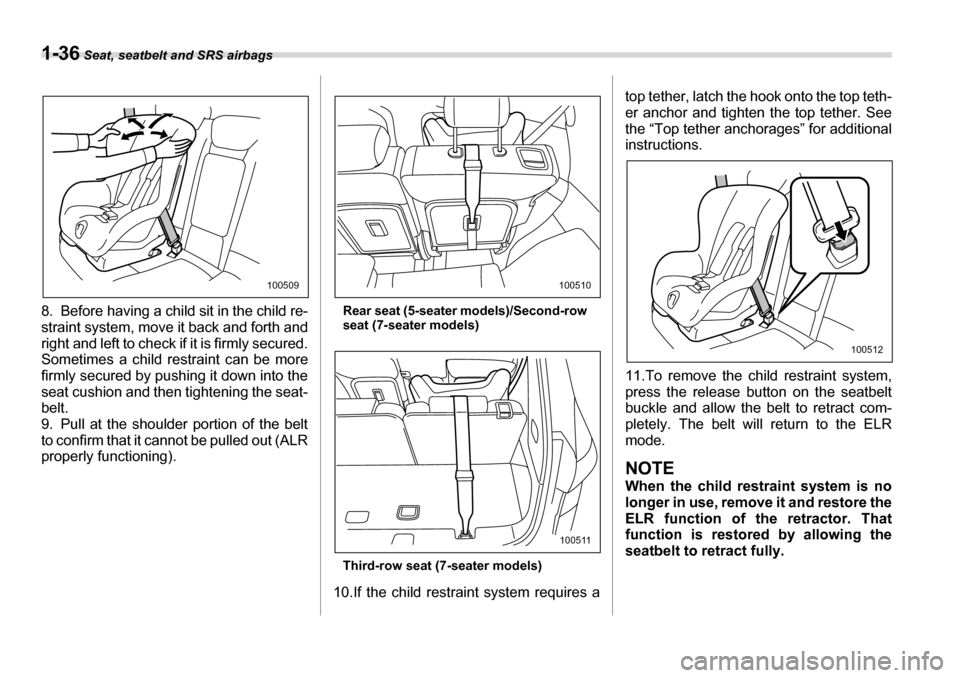

1-36 Seat, seatbelt and SRS airbags
8. Before having a child sit in the child re-
straint system, move it back and forth and
right and left to check if it is firmly secured.Sometimes a child restraint can be more
firmly secured by pushing it down into the
seat cushion and then tightening the seat-
belt.
9. Pull at the shoulder portion of the belt
to confirm that it cannot be pulled out (ALR
properly functioning). Rear seat (5-seater models)/Second-row
seat (7-seater models)
Third-row seat (7-seater models)
10.If the child restraint system requires a top tether, latch the hook onto the top teth-
er anchor and tighten the top tether. See
the “Top tether anchorages” for additionalinstructions.
11.To remove the child restraint system,
press the release button on the seatbelt
buckle and allow the belt to retract com-
pletely. The belt will return to the ELR
mode.
NOTE
When the child restraint system is no
longer in use, remove it and restore theELR function of the retractor. That
function is restored by allowing the
seatbelt to retract fully.
100509100510
100511
100512

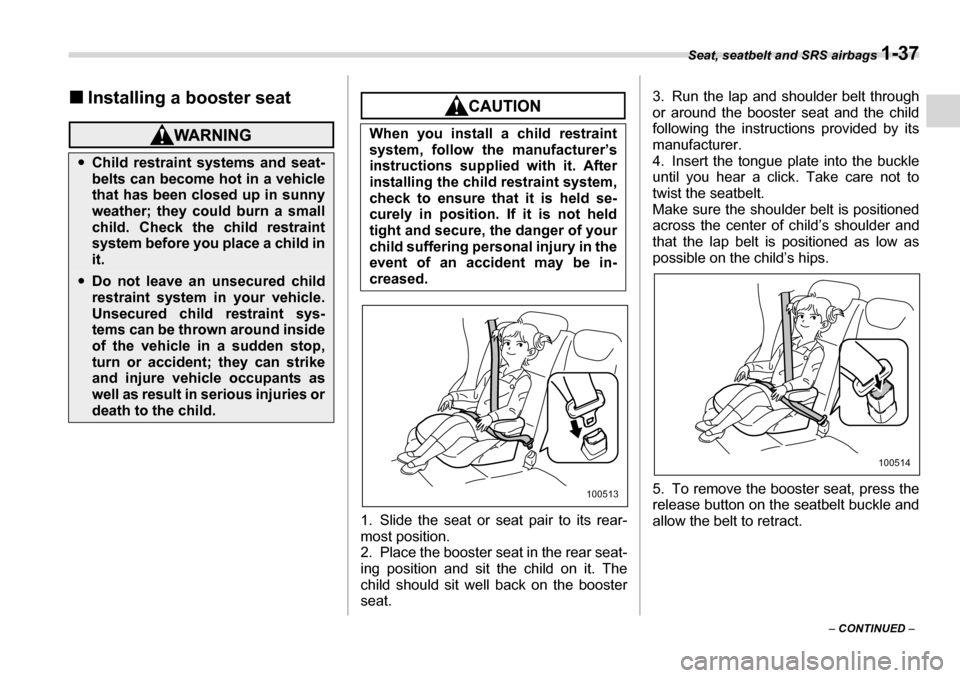

Seat, seatbelt and SRS airbags 1-37
– CONTINUED –
„
Installing a booster seat
1. Slide the seat or seat pair to its rear-
most position.
2. Place the booster seat in the rear seat-
ing position and sit the child on it. The
child should sit well back on the booster seat. 3. Run the lap and shoulder belt through
or around the booster seat and the child
following the instructions provided by its
manufacturer.
4. Insert the tongue plate into the buckle
until you hear a click. Take care not to
twist the seatbelt.
Make sure the shoulder belt is positioned
across the center of child’s shoulder and
that the lap belt is positioned as low as
possible on the child’s hips.
5. To remove the booster seat, press the
release button on the seatbelt buckle and
allow the belt to retract.
y
Child restraint systems and seat-
belts can become hot in a vehicle
that has been closed up in sunny
weather; they could burn a small
child. Check the child restraint
system before you place a child in it.
yDo not leave an unsecured child
restraint system in your vehicle.
Unsecured child restraint sys-
tems can be thrown around inside
of the vehicle in a sudden stop,
turn or accident; they can strike
and injure vehicle occupants as
well as result in serious injuries or
death to the child.
When you install a child restraint system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held se-
curely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in the
event of an accident may be in-
creased.
100513
100514

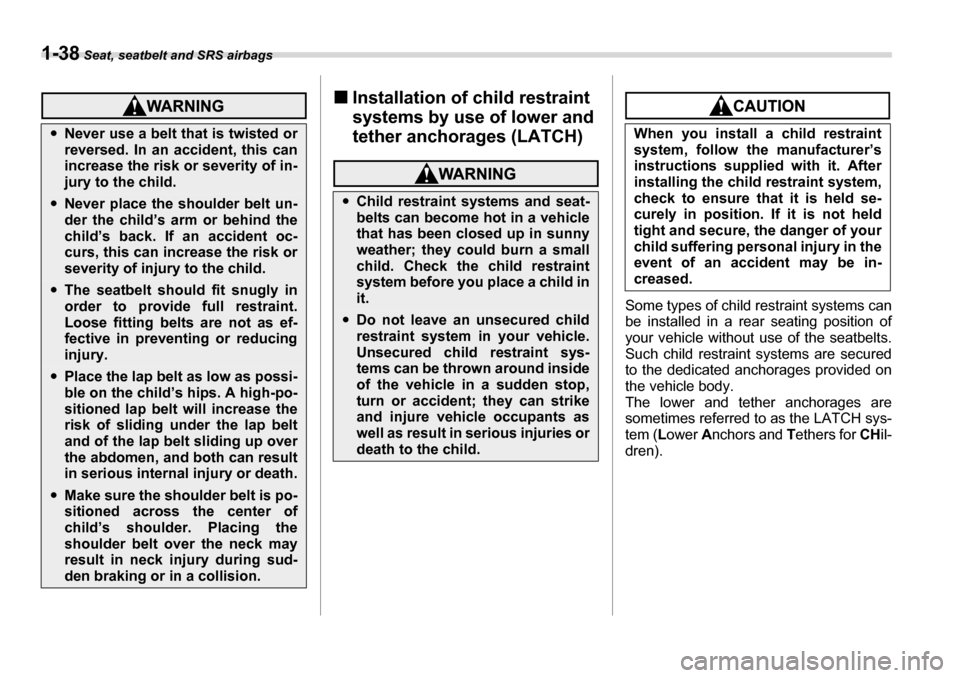

1-38 Seat, seatbelt and SRS airbags
„Installation of child restraint
systems by use of lower and
tether anchorages (LATCH)
Some types of child restraint systems can
be installed in a rear seating position of
your vehicle without use of the seatbelts.
Such child restraint systems are secured
to the dedicated anchorages provided on
the vehicle body.
The lower and tether anchorages are
sometimes referred to as the LATCH sys-
tem ( Lower Anchors and Tethers for CHil-
dren).
y Never use a belt that is twisted or
reversed. In an accident, this can
increase the risk or severity of in-
jury to the child.
yNever place the shoulder belt un-
der the child’s arm or behind the
child’s back. If an accident oc-
curs, this can increase the risk or
severity of injury to the child.
yThe seatbelt should fit snugly in
order to provide full restraint.
Loose fitting belts are not as ef-
fective in preventing or reducing
injury.
yPlace the lap belt as low as possi-
ble on the child’s hips. A high-po-
sitioned lap belt will increase the
risk of sliding under the lap belt
and of the lap belt sliding up over
the abdomen, and both can result
in serious internal injury or death.
yMake sure the shoulder belt is po-
sitioned across the center of
child’s shoulder. Placing the
shoulder belt over the neck may
result in neck injury during sud-
den braking or in a collision.
yChild restraint systems and seat-
belts can become hot in a vehicle
that has been closed up in sunny
weather; they could burn a small
child. Check the child restraint
system before you place a child in it.
yDo not leave an unsecured child
restraint system in your vehicle.
Unsecured child restraint sys-
tems can be thrown around inside
of the vehicle in a sudden stop,
turn or accident; they can strike
and injure vehicle occupants as
well as result in serious injuries or
death to the child.
When you install a child restraint
system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held se-
curely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in the
event of an accident may be in-
creased.

Seat, seatbelt and SRS airbags 1-39
– CONTINUED –

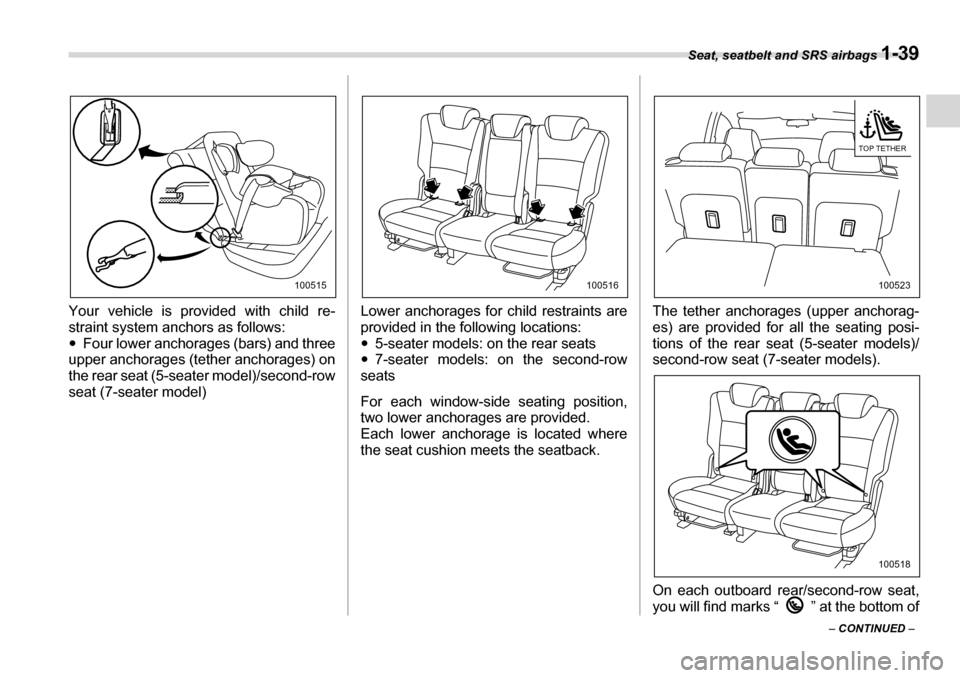

Your vehicle is provided with child re-
straint system anchors as follows:y
Four lower anchorages (bars) and three
upper anchorages (tether anchorages) on
the rear seat (5-seater model)/second-row seat (7-seater model) Lower anchorages for child restraints are
provided in the following locations: y
5-seater models: on the rear seats
y 7-seater models: on the second-row
seats
For each window-side seating position,
two lower anchorages are provided.
Each lower anchorage is located where
the seat cushion meets the seatback. The tether anchorages (upper anchorag-
es) are provided for all the seating posi-
tions of the rear seat (5-seater models)/
second-row seat (7-seater models).
On each outboard rear/second-row seat,
you will find marks “ ” at the bottom of
100515100516
TOP TETHER
100523
100518
