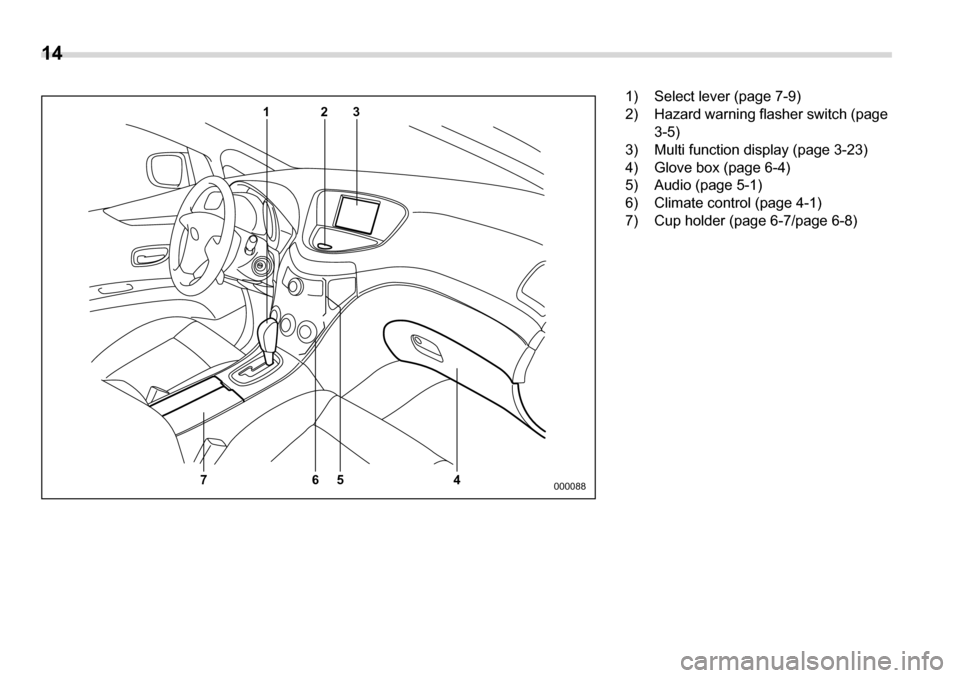

1) Select lever (page 7-9)
2) Hazard warning flasher switch (page
3-5)
3) Multi function display (page 3-23)
4) Glove box (page 6-4)
5) Audio (page 5-1)
6) Climate control (page 4-1)
7) Cup holder (page 6-7/page 6-8)

15
– CONTINUED –
„
Instrument panel
1
2345 6 7 8
11
12
13
15 14 10 9
000106
1) Door locks (page 2-4)
2) Illumination brightness control (page
3-27)
3) Remote control mirror (page 3-36)
4) Windshield wiper deicer (page 3-32)
5) Traction Control system OFF switch
(page 7-23)
6) Light control lever (page 3-26)
7) Combination meter (page 3-5)
8) Wiper control lever (page 3-29)
9) Cruise control (page 7-27)
10) Horn (page 3-37)
11) SRS airbag (page 1-44)
12) Tilt steering (page 3-37)
13) Hood lock release knob (page 11-4)
14) Fuse box (page 11-36)
15) Power windows (page 2-19)

16

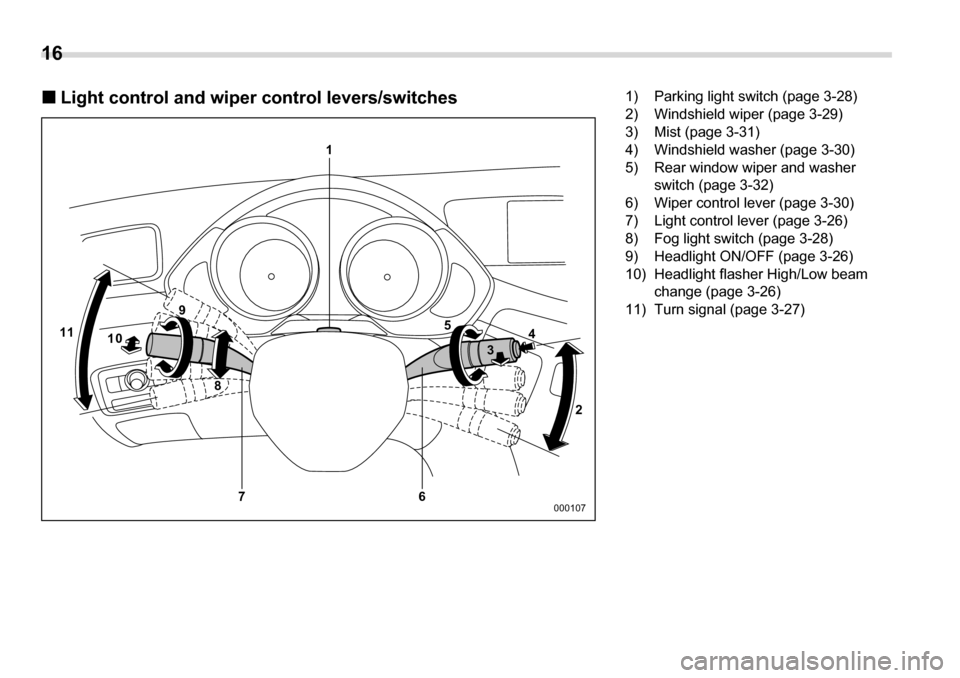

„ Light control and wiper control levers/switches
1
65
4
3
2
7
8
9
11 10
000107
1) Parking light switch (page 3-28)
2) Windshield wiper (page 3-29)
3) Mist (page 3-31)
4) Windshield washer (page 3-30)
5) Rear window wiper and washer
switch (page 3-32)
6) Wiper control lever (page 3-30)
7) Light control lever (page 3-26)
8) Fog light switch (page 3-28)
9) Headlight ON/OFF (page 3-26)
10) Headlight flasher High/Low beam change (page 3-26)
11) Turn signal (page 3-27)

17
– CONTINUED –
„
Combination meter

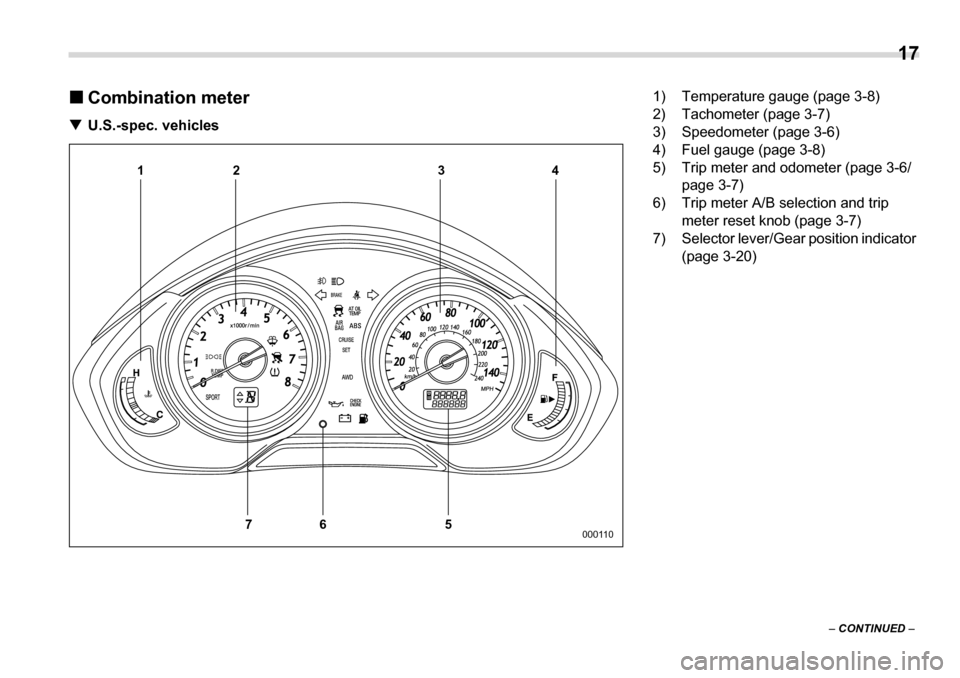

T U.S.-spec. vehicles
34
2
1
76 5
000110
1) Temperature gauge (page 3-8)
2) Tachometer (page 3-7)
3) Speedometer (page 3-6)
4) Fuel gauge (page 3-8)
5) Trip meter and odometer (page 3-6/page 3-7)
6) Trip meter A/B selection and trip meter reset knob (page 3-7)
7) Selector lever/Gear position indicator
(page 3-20)

18

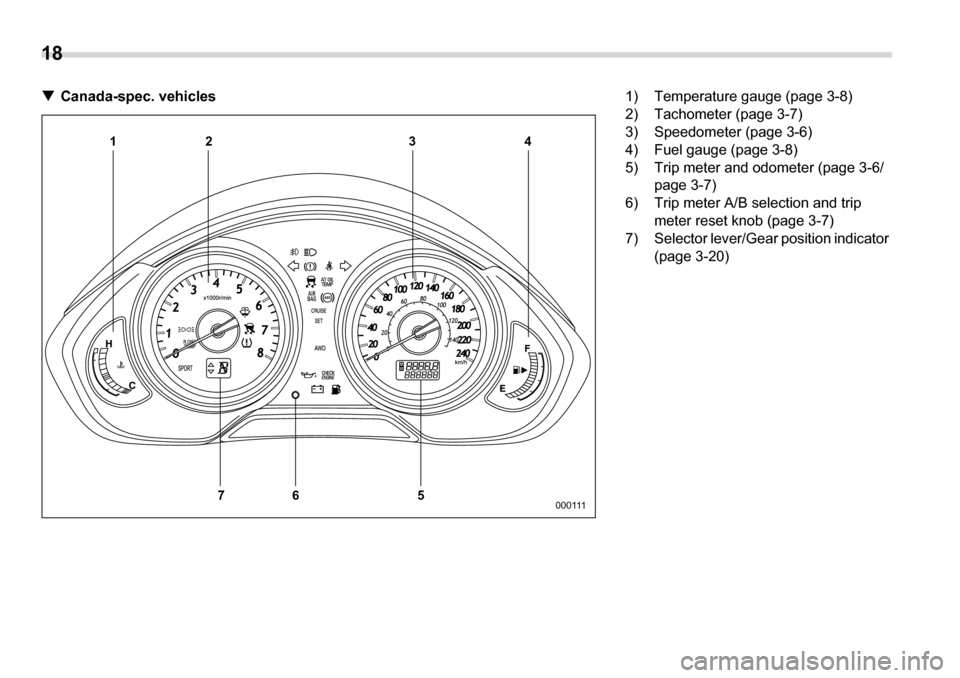

T Canada-spec. vehicles
34
2
1
76 5
000111
1) Temperature gauge (page 3-8)
2) Tachometer (page 3-7)
3) Speedometer (page 3-6)
4) Fuel gauge (page 3-8)
5) Trip meter and odometer (page 3-6/page 3-7)
6) Trip meter A/B selection and trip meter reset knob (page 3-7)
7) Selector lever/Gear position indicator
(page 3-20)

19
– CONTINUED –
„

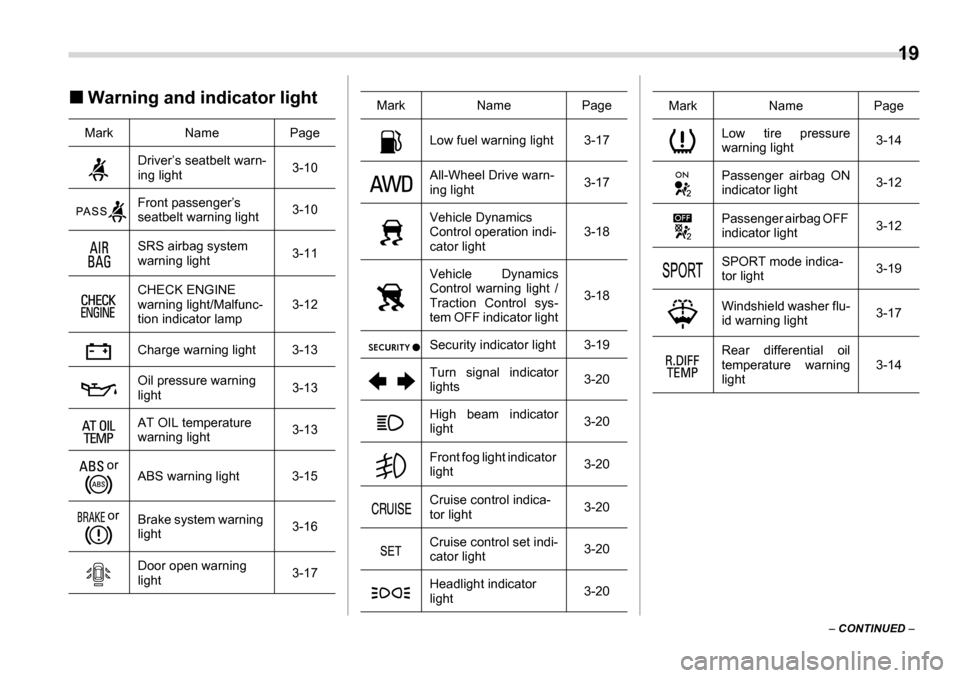

Warning and indicator light
Mark Name Page Driver’s seatbelt warn-
ing light 3-10
Front passenger’s
seatbelt warning light 3-10
SRS airbag system
warning light 3-11
CHECK ENGINE
warning light/Malfunc-
tion indicator lamp 3-12
Charge warning light 3-13
Oil pressure warning light 3-13
AT OIL temperature
warning light 3-13
or ABS warning light 3-15
or Brake system warning light 3-16
Door open warning light 3-17
Low fuel warning light 3-17
All-Wheel Drive warn- ing light3-17
Vehicle Dynamics
Control operation indi-
cator light 3-18
Vehicle Dynamics
Control warning light /
Traction Control sys-
tem OFF indicator light 3-18
Security indicator light 3-19
Turn signal indicator lights 3-20
High beam indicator light 3-20
Front fog light indicator light 3-20
Cruise control indica-
tor light 3-20
Cruise control set indi-
cator light 3-20
Headlight indicator light 3-20
Mark Name PageLow tire pressure warning light
3-14
Passenger airbag ON
indicator light 3-12
Passenger airbag OFF
indicator light 3-12
SPORT mode indica-tor light 3-19
Windshield washer flu-
id warning light 3-17
Rear differential oil
temperature warning light 3-14
Mark Name Page

20
„ Cargo area

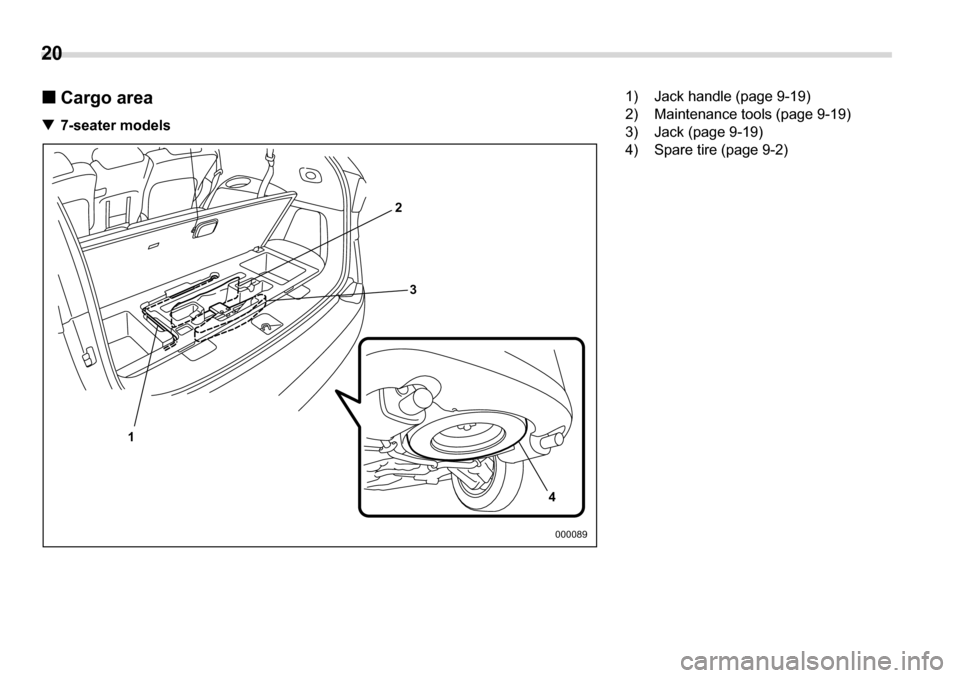

T 7-seater models
1 3
4
2
000089
1) Jack handle (page 9-19)
2) Maintenance tools (page 9-19)
3) Jack (page 9-19)
4) Spare tire (page 9-2)

21
– CONTINUED –
T

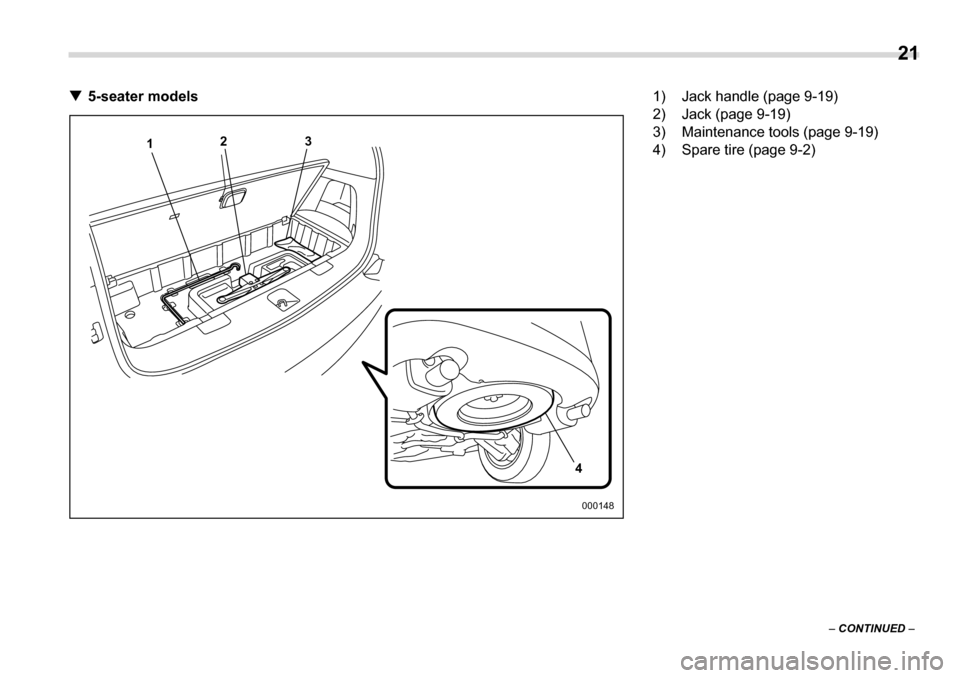

5-seater models
1 3
4
2
000148
1) Jack handle (page 9-19)
2) Jack (page 9-19)
3) Maintenance tools (page 9-19)
4) Spare tire (page 9-2)
