11 - 3 2 Maintenance and service
2. While pressing the wiper blade stop-
per, slide the wiper blade assembly down-
ward.
3. Remove the wiper blade assembly
from the wiper arm.
4. Put the wiper blade assembly on the
wiper arm and slide it upward while press-
ing the wiper blade stopper. Make sure
that it locks in place.
5. Hold the wiper arm by hand and slowly
lower it in position.„Windshield wiper blade rub- ber
1) Metal support
1. Grasp the locked end of the blade rub-
ber assembly and pull it firmly until the
stoppers on the rubber are free of the met-
al support. 1) Metal spines
2. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and in-
stall them in the new blade rubber.
Do not let go of the wiper arm until it
touches the windshield. Letting the
wiper arm snap onto the windshield
could damage it.B00396
Be sure to install each metal spine
so as to fit its groove completely on
the center ridge of the blade rubber.
Doing otherwise may result in dislo-
cation and breakage of the spine
during wiper operation.
1
B00397

Maintenance and service 11 - 3 3
– CONTINUED –

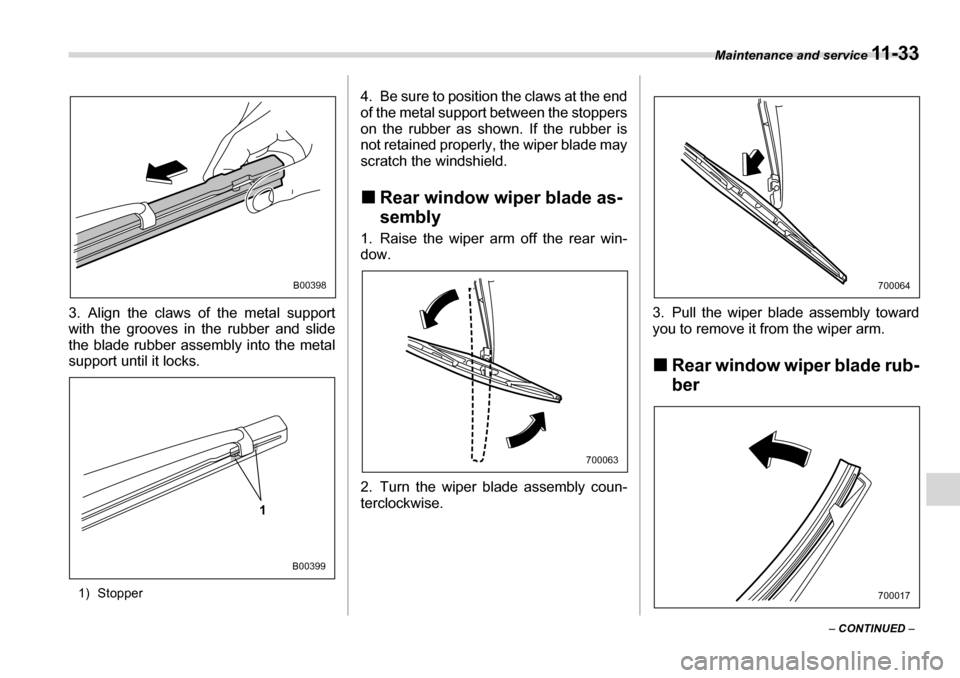

3. Align the claws of the metal support
with the grooves in the rubber and slide
the blade rubber assembly into the metal
support until it locks.
1) Stopper 4. Be sure to position the claws at the end
of the metal support between the stoppers
on the rubber as shown. If the rubber is
not retained properly, the wiper blade may
scratch the windshield. „
Rear window wiper blade as- sembly
1. Raise the wiper arm off the rear win-
dow.
2. Turn the wiper blade assembly coun-
terclockwise. 3. Pull the wiper blade assembly toward
you to remove it from the wiper arm. „
Rear window wiper blade rub- ber
B00398
1
B00399
700063
700064
700017

11 - 3 4 Maintenance and service

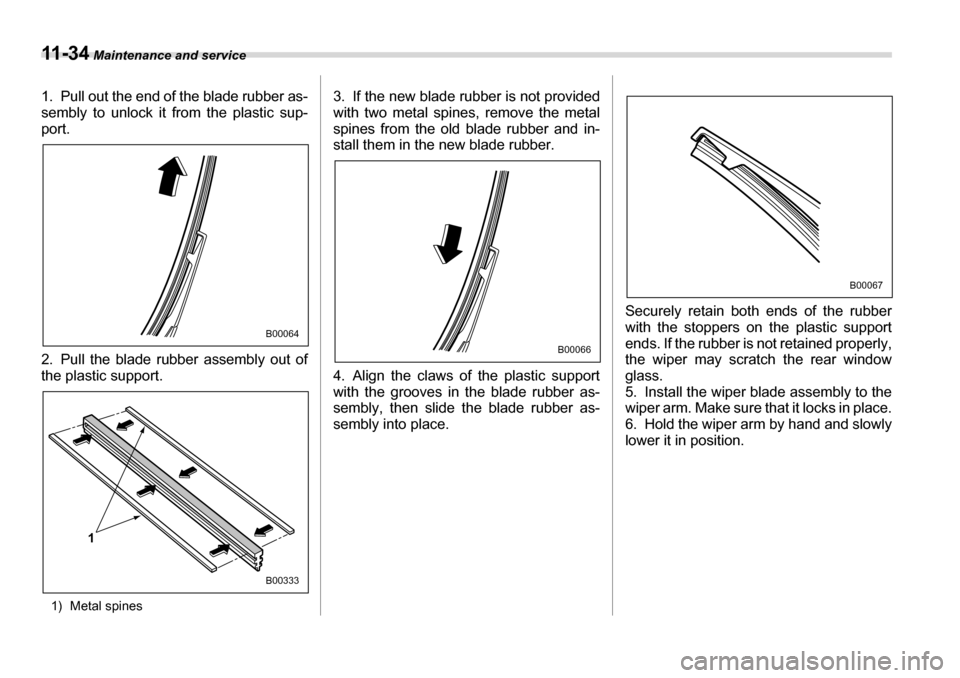

1. Pull out the end of the blade rubber as-
sembly to unlock it from the plastic sup-
port.
2. Pull the blade rubber assembly out of
the plastic support.
1) Metal spines 3. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and in-
stall them in the new blade rubber.
4. Align the claws of the plastic support
with the grooves in the blade rubber as-
sembly, then slide the blade rubber as-
sembly into place.
Securely retain both ends of the rubber
with the stoppers on the plastic support
ends. If the rubber is not retained properly,
the wiper may scratch the rear window
glass.
5. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
6. Hold the wiper arm by hand and slowly
lower it in position.
B00064
1
B00333
B00066
B00067

Maintenance and service 11 - 3 5

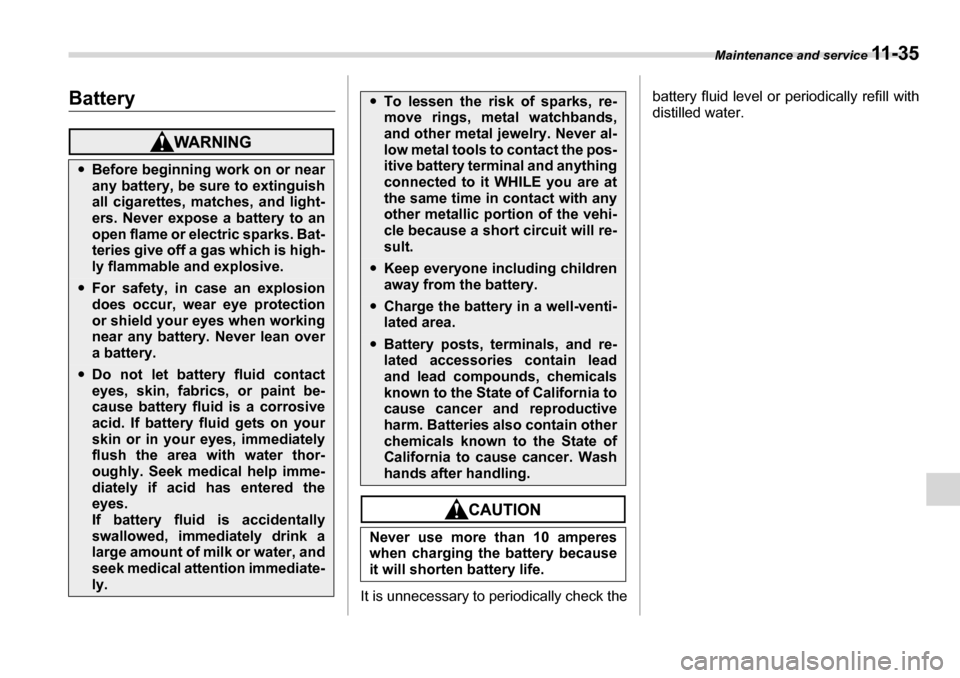

Battery
It is unnecessary to periodically check the battery fluid level or periodically refill with
distilled water.
y
Before beginning work on or near
any battery, be sure to extinguish
all cigarettes, matches, and light-
ers. Never expose a battery to an
open flame or electric sparks. Bat-
teries give off a gas which is high-
ly flammable and explosive.
yFor safety, in case an explosion
does occur, wear eye protection
or shield your eyes when working
near any battery. Never lean over a battery.
yDo not let battery fluid contact
eyes, skin, fabrics, or paint be-
cause battery fluid is a corrosive
acid. If battery fluid gets on your
skin or in your eyes, immediately
flush the area with water thor-
oughly. Seek medical help imme-
diately if acid has entered the
eyes.
If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water, and
seek medical attention immediate-ly.
yTo lessen the risk of sparks, re-
move rings, metal watchbands,
and other metal jewelry. Never al-
low metal tools to contact the pos-
itive battery terminal and anything
connected to it WHILE you are at
the same time in contact with any
other metallic portion of the vehi-
cle because a short circuit will re-
sult.
yKeep everyone including children
away from the battery.
yCharge the battery in a well-venti-
lated area.
yBattery posts, terminals, and re-
lated accessories contain lead
and lead compounds, chemicals
known to the State of California to
cause cancer and reproductive
harm. Batteries also contain other
chemicals known to the State of
California to cause cancer. Wash
hands after handling.
Never use more than 10 amperes
when charging the battery because
it will shorten battery life.

11 - 3 6 Maintenance and service
Fuses
The fuses are designed to melt during an
overload to prevent damage to the wiring
harness and electrical equipment. The
fuses are located in two fuse boxes. One
is located under the instrument panel be-
hind the fuse box cover on the driver’sseat side. Open the lid that is located above the
hood release knob and pull it toward you
to remove it.
The other one is housed in the engine compartment. The spare fuses are stored in the main
fuse box cover in the engine compart-
ment.
The fuse puller is stored in the main fuse
box in the engine compartment.
Never replace a fuse with one hav-
ing a higher rating or with material
other than a fuse because serious
damage or a fire could result.
B00334
B00335
B00336
B00198
B00337

Maintenance and service 11 - 3 7
1) Good
2) Blown
If any lights, accessories or other electri-
cal controls do not operate, inspect the
corresponding fuse. If a fuse has blown,
replace it.
1. Turn the ignition switch to the “LOCK”
position and turn off all electrical accesso- ries.
2. Remove the cover.
3. Determine which fuse may be blown.
The back side of each fuse box cover and
the “Fuses and circuits” section in chapter
12 in this manual show the circuit for each fuse. 4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, re-
place it with a spare fuse of the same rat-
ing.
6. If the same fuse blows again, this indi-
cates that its system has a problem. Con-
tact your SUBARU dealer for repairs.
Main fuse
Main fuse box
The main fuses are designed to melt dur-
ing an overload to prevent damage to the
wiring harness and electrical equipment.
Check the main fuses if any electrical
component fails to operate (except the
starter motor) and other fuses are good. A
melted main fuse must be replaced. Use
only replacements with the same speci-
fied rating as the melted main fuse. If a
main fuse blows after it is replaced, havethe electrical system checked by your
nearest SUBARU dealer.
12
B00338600160
B00336

11 - 3 8 Maintenance and service
Installation of accessories

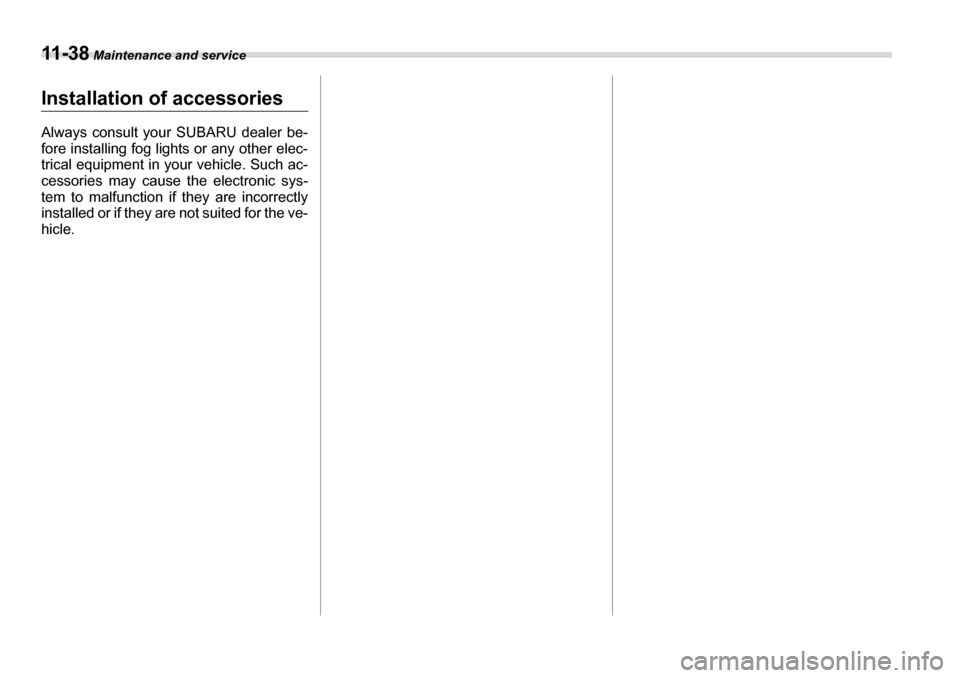

Always consult your SUBARU dealer be-
fore installing fog lights or any other elec-
trical equipment in your vehicle. Such ac- cessories may cause the electronic sys-
tem to malfunction if they are incorrectly
installed or if they are not suited for the ve-
hicle.

Maintenance and service 11 - 3 9
– CONTINUED –

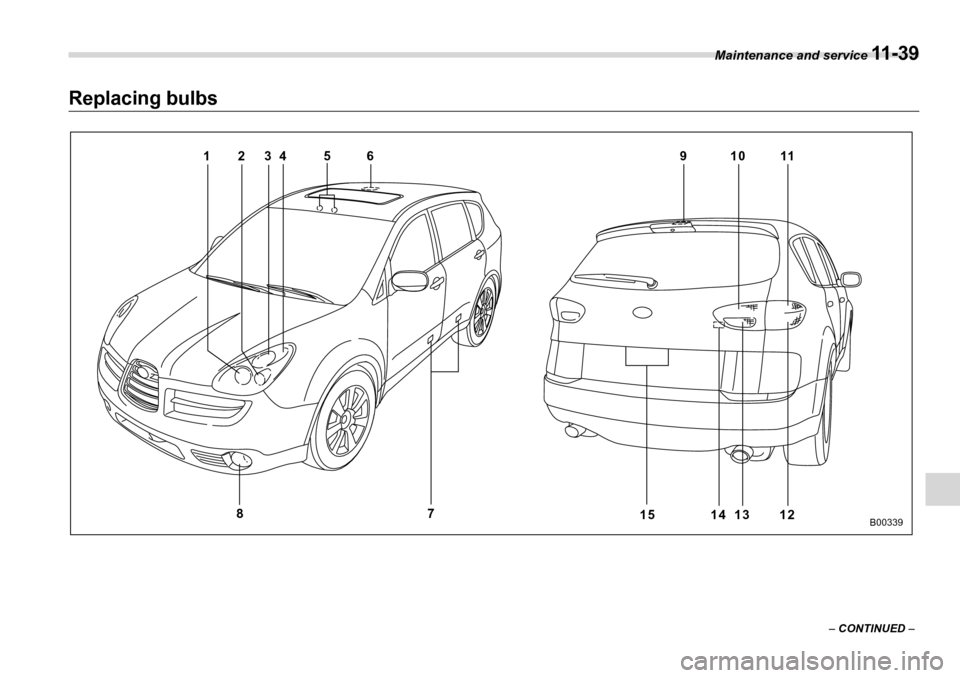

Replacing bulbs
69 10 11
12
13
14
5
4
23
1
715
8
B00339
