2007 SUBARU TRIBECA horn

3
– CONTINUED –

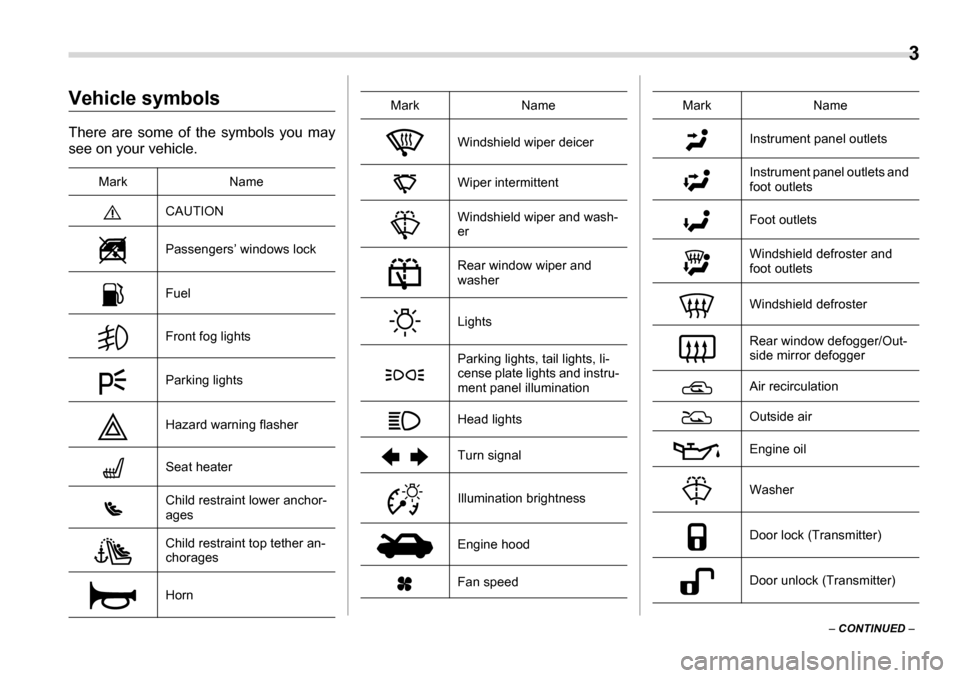

Vehicle symbols
There are some of the symbols you may
see on your vehicle.
Mark Name CAUTION Passengers’ windows lock
Fuel
Front fog lights
Parking lights
Hazard warning flasher
Seat heater
Child restraint lower anchor-
ages
Child restraint top tether an-
chorages
Horn
Windshield wiper deicer
Wiper intermittent
Windshield wiper and wash- er
Rear window wiper and
washer Lights
Parking lights, tail lights, li-
cense plate lights and instru-
ment panel illumination
Head lights
Turn signal
Illumination brightness
Engine hood
Fan speed
Mark NameInstrument panel outlets
Instrument panel outlets and foot outlets
Foot outlets
Windshield defroster and foot outlets
Windshield defroster
Rear window defogger/Out-
side mirror defogger
Air recirculation
Outside air Engine oil Washer
Door lock (Transmitter)
Door unlock (Transmitter)
Mark Name

15
– CONTINUED –
„
Instrument panel
1
2345 6 7 8
11
12
13
15 14 10 9
000106
1) Door locks (page 2-4)
2) Illumination brightness control (page
3-27)
3) Remote control mirror (page 3-36)
4) Windshield wiper deicer (page 3-32)
5) Traction Control system OFF switch
(page 7-23)
6) Light control lever (page 3-26)
7) Combination meter (page 3-5)
8) Wiper control lever (page 3-29)
9) Cruise control (page 7-27)
10) Horn (page 3-37)
11) SRS airbag (page 1-44)
12) Tilt steering (page 3-37)
13) Hood lock release knob (page 11-4)
14) Fuse box (page 11-36)
15) Power windows (page 2-19)

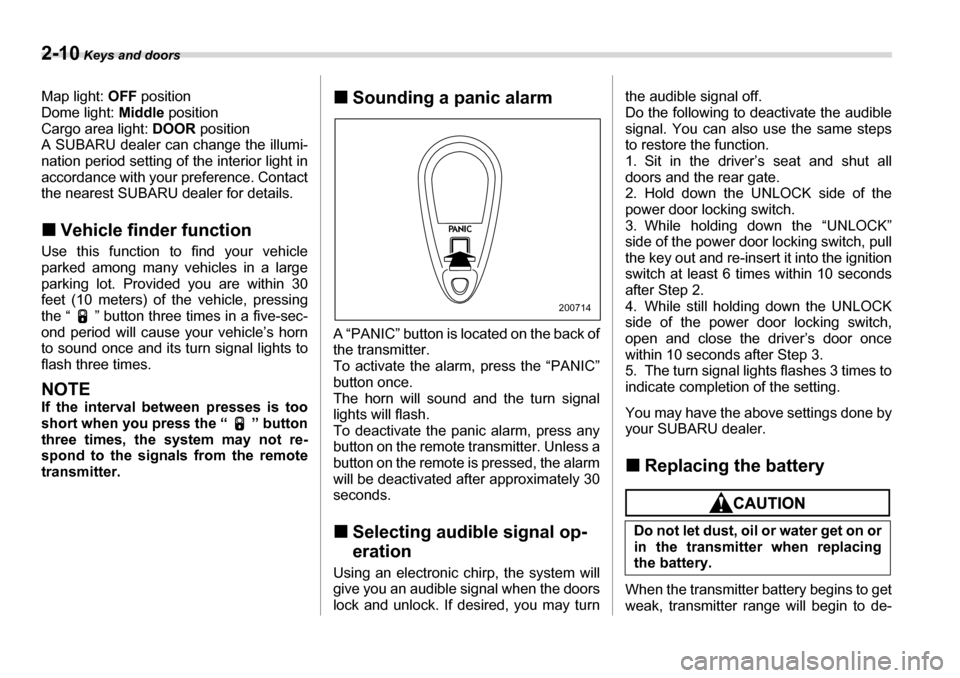

2-10 Keys and doors
Map light: OFF position
Dome light: Middle position
Cargo area light: DOOR position
A SUBARU dealer can change the illumi-
nation period setting of the interior light in
accordance with your preference. Contact
the nearest SUBARU dealer for details. „ Vehicle finder function
Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30
feet (10 meters) of the vehicle, pressing
the “ ” button three times in a five-sec-
ond period will cause your vehicle’s horn
to sound once and its turn signal lights toflash three times.
NOTE
If the interval between presses is too
short when you press the “ ” button
three times, the system may not re-
spond to the signals from the remote transmitter. „
Sounding a panic alarm
A “PANIC” button is located on the back of
the transmitter.
To activate the alarm, press the “PANIC”
button once.
The horn will sound and the turn signal
lights will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. Unless a
button on the remote is pressed, the alarm
will be deactivated after approximately 30seconds. „ Selecting audible signal op-
eration
Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn the audible signal off.
Do the following to deactivate the audible
signal. You can also use the same steps
to restore the function.
1. Sit in the driver’s seat and shut all
doors and the rear gate.
2. Hold down the UNLOCK side of the
power door locking switch.
3. While holding down the “UNLOCK”
side of the power door locking switch, pull
the key out and re-insert it into the ignition switch at least 6 times within 10 seconds
after Step 2.
4. While still holding down the UNLOCK
side of the power door locking switch,
open and close the driver’s door once
within 10 seconds after Step 3.
5. The turn signal lights flashes 3 times to
indicate completion of the setting.
You may have the above settings done by
your SUBARU dealer. „
Replacing the battery
When the transmitter battery begins to get
weak, transmitter range will begin to de-
200714
Do not let dust, oil or water get on or
in the transmitter when replacingthe battery.

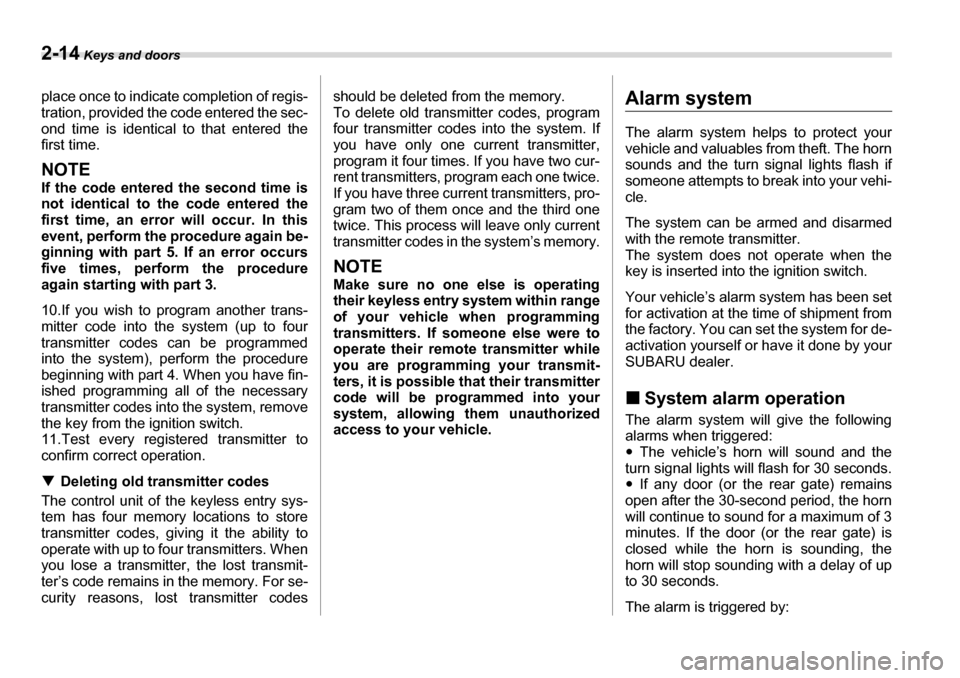

2-14 Keys and doors
place once to indicate completion of regis-
tration, provided the code entered the sec-
ond time is identical to that entered the
first time.
NOTE
If the code entered the second time is not identical to the code entered the
first time, an error will occur. In this
event, perform the procedure again be-
ginning with part 5. If an error occurs
five times, perform the procedure
again starting with part 3.
10.If you wish to program another trans-
mitter code into the system (up to four
transmitter codes can be programmed
into the system), perform the procedure
beginning with part 4. When you have fin-
ished programming all of the necessary
transmitter codes into the system, remove
the key from the ignition switch.
11.Test every registered transmitter to
confirm correct operation. TDeleting old transmitter codes
The control unit of the keyless entry sys-
tem has four memory locations to store
transmitter codes, giving it the ability to
operate with up to four transmitters. When
you lose a transmitter, the lost transmit-
ter’s code remains in the memory. For se-
curity reasons, lost transmitter codes should be deleted from the memory.
To delete old transmitter codes, program
four transmitter codes into the system. If
you have only one current transmitter,
program it four times. If you have two cur-
rent transmitters, program each one twice.
If you have three current transmitters, pro-
gram two of them once and the third one
twice. This process will leave only current
transmitter codes in the system’s memory.
NOTE
Make sure no one else is operating
their keyless entry system within range
of your vehicle when programming
transmitters. If someone else were tooperate their remote transmitter while
you are programming your transmit-
ters, it is possible that their transmitter
code will be programmed into your
system, allowing them unauthorized
access to your vehicle.
Alarm system
The alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the turn signal lights flash if
someone attempts to break into your vehi-cle.
The system can be armed and disarmed
with the remote transmitter.
The system does not operate when the
key is inserted into the ignition switch.
Your vehicle’s alarm system has been set
for activation at the time of shipment from
the factory. You can set the system for de-
activation yourself or have it done by your
SUBARU dealer. „
System alarm operation
The alarm system will give the following
alarms when triggered: y The vehicle’s horn will sound and the
turn signal lights will flash for 30 seconds. y If any door (or the rear gate) remains
open after the 30-second period, the horn
will continue to sound for a maximum of 3
minutes. If the door (or the rear gate) is
closed while the horn is sounding, the
horn will stop sounding with a delay of up
to 30 seconds.
The alarm is triggered by:

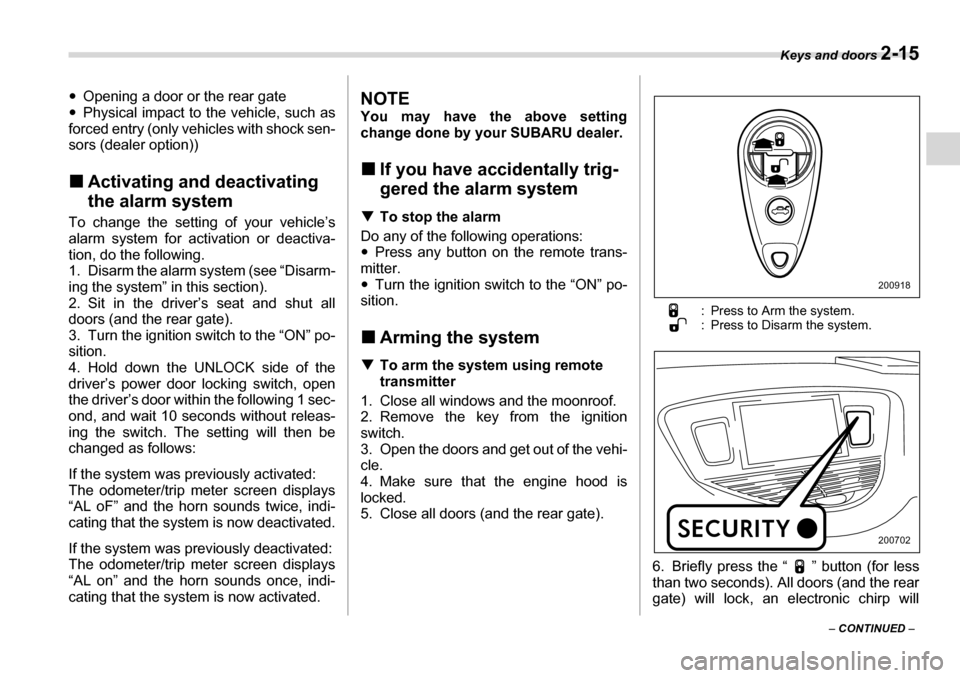

Keys and doors 2-15
– CONTINUED –
y
Opening a door or the rear gate
y Physical impact to the vehicle, such as
forced entry (only vehicles with shock sen-
sors (dealer option)) „ Activating and deactivating
the alarm system
To change the setting of your vehicle’s
alarm system for activation or deactiva- tion, do the following.
1. Disarm the alarm system (see “Disarm-
ing the system” in this section).
2. Sit in the driver’s seat and shut all
doors (and the rear gate).
3. Turn the ignition switch to the “ON” po- sition.
4. Hold down the UNLOCK side of the
driver’s power door locking switch, open
the driver’s door within the following 1 sec-
ond, and wait 10 seconds without releas-
ing the switch. The setting will then be
changed as follows:
If the system was previously activated:
The odometer/trip meter screen displays
“AL oF” and the horn sounds twice, indi- cating that the system is now deactivated.
If the system was previously deactivated:
The odometer/trip meter screen displays
“AL on” and the horn sounds once, indi-
cating that the system is now activated.
NOTE
You may have the above setting
change done by your SUBARU dealer. „ If you have accidentally trig-
gered the alarm system
T To stop the alarm
Do any of the following operations: y Press any button on the remote trans-
mitter.y Turn the ignition switch to the “ON” po-
sition. „ Arming the system
T To arm the system using remote transmitter
1. Close all windows and the moonroof.
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehi-cle.
4. Make sure that the engine hood is
locked.
5. Close all doors (and the rear gate). : Press to Arm the system.
: Press to Disarm the system.
6. Briefly press the “ ” button (for less
than two seconds). All doors (and the rear
gate) will lock, an electronic chirp will
200918
200702

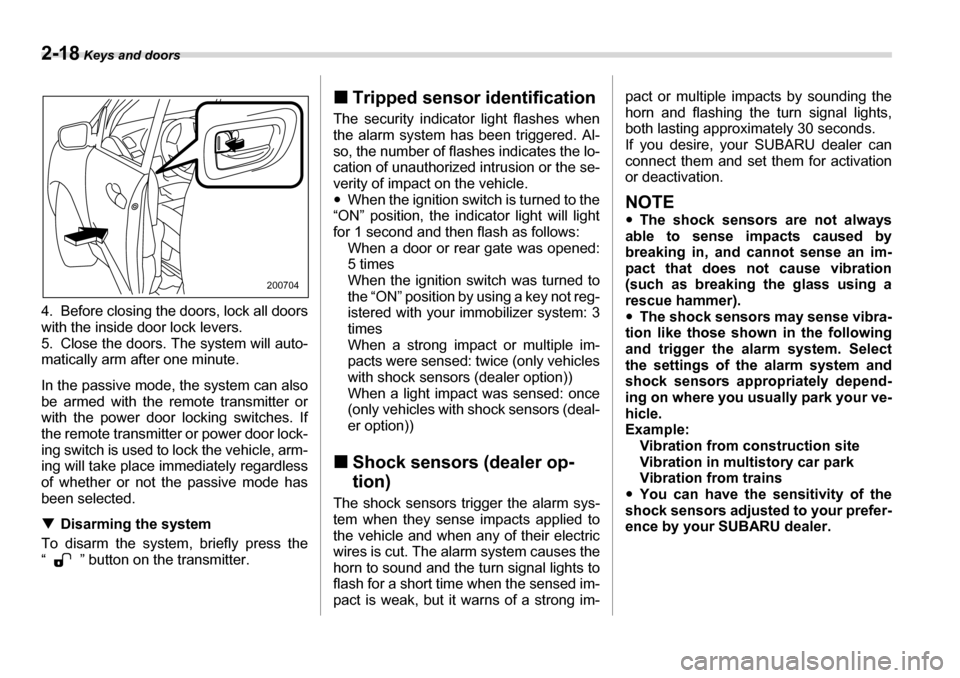

2-18 Keys and doors
4. Before closing the doors, lock all doors
with the inside door lock levers.
5. Close the doors. The system will auto-
matically arm after one minute.
In the passive mode, the system can also
be armed with the remote transmitter or
with the power door locking switches. If
the remote transmitter or power door lock-
ing switch is used to lock the vehicle, arm-
ing will take place immediately regardless
of whether or not the passive mode has
been selected. TDisarming the system
To disarm the system, briefly press the
“ ” button on the transmitter. „
Tripped sensor identification
The security indicator light flashes when
the alarm system has been triggered. Al-
so, the number of flashes indicates the lo-
cation of unauthorized intrusion or the se-
verity of impact on the vehicle. y When the ignition switch is turned to the
“ON” position, the indicator light will light
for 1 second and then flash as follows: When a door or rear gate was opened:
5 times
When the ignition switch was turned to
the “ON” position by using a key not reg-
istered with your immobilizer system: 3
times
When a strong impact or multiple im-
pacts were sensed: twice (only vehicles
with shock sensors (dealer option))
When a light impact was sensed: once
(only vehicles with shock sensors (deal-
er option))
„ Shock sensors (dealer op- tion)
The shock sensors trigger the alarm sys-
tem when they sense impacts applied to
the vehicle and when any of their electric
wires is cut. The alarm system causes the
horn to sound and the turn signal lights to
flash for a short time when the sensed im-
pact is weak, but it warns of a strong im- pact or multiple impacts by sounding the
horn and flashing the turn signal lights,
both lasting approximately 30 seconds.
If you desire, your SUBARU dealer can
connect them and set them for activation
or deactivation.
NOTE y
The shock sensors are not always
able to sense impacts caused by
breaking in, and cannot sense an im-
pact that does not cause vibration
(such as breaking the glass using a
rescue hammer). y The shock sensors may sense vibra-
tion like those shown in the following
and trigger the alarm system. Select
the settings of the alarm system and
shock sensors appropriately depend-
ing on where you usually park your ve- hicle.
Example: Vibration from construction site
Vibration in multistory car park
Vibration from trains
y You can have the sensitivity of the
shock sensors adjusted to your prefer-
ence by your SUBARU dealer.
200704

Instruments and controls

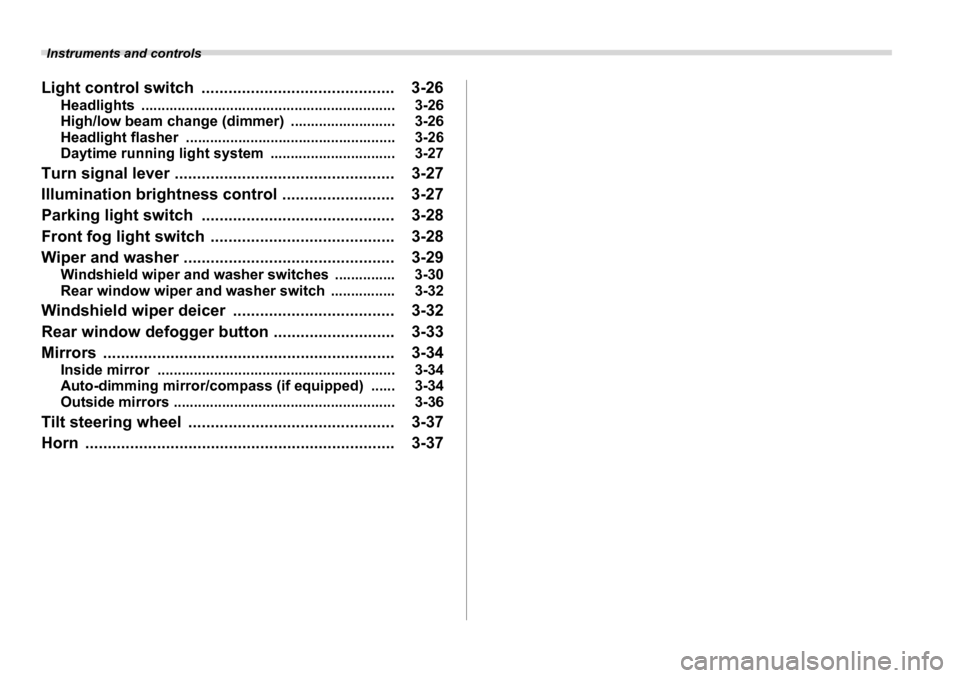

Light control switch ........................................... 3-26
Headlights ............................................................... 3-26
High/low beam change (dimmer) .......................... 3-26
Headlight flasher .................................................... 3-26
Daytime running light system ............................... 3-27
Turn signal lever ................................................. 3-27
Illumination brightness control ......................... 3-27
Parking light switch ........................................... 3-28
Front fog light switch ......................................... 3-28
Wiper and washer ............................................... 3-29 Windshield wiper and washer switches ............... 3-30
Rear window wiper and washer switch ................ 3-32
Windshield wiper deicer .................................... 3-32
Rear window defogger button ........................... 3-33
Mirrors ................................................................. 3-34 Inside mirror ........................................................... 3-34
Auto-dimming mirror/compass (if equipped) ...... 3-34
Outside mirrors ....................................................... 3-36
Tilt steering wheel .............................................. 3-37
Horn ..................................................................... 3-37

Instruments and controls 3-37
Tilt steering wheel
1. Adjust the seat position. Refer to the
“Front seats” section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired
level.
4. Push the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down.
Horn
To sound the horn, push the horn pad.
Do not adjust the steering wheel tilt
position while driving. This may
cause loss of vehicle control and re-
sult in personal injury.
300520
300521
