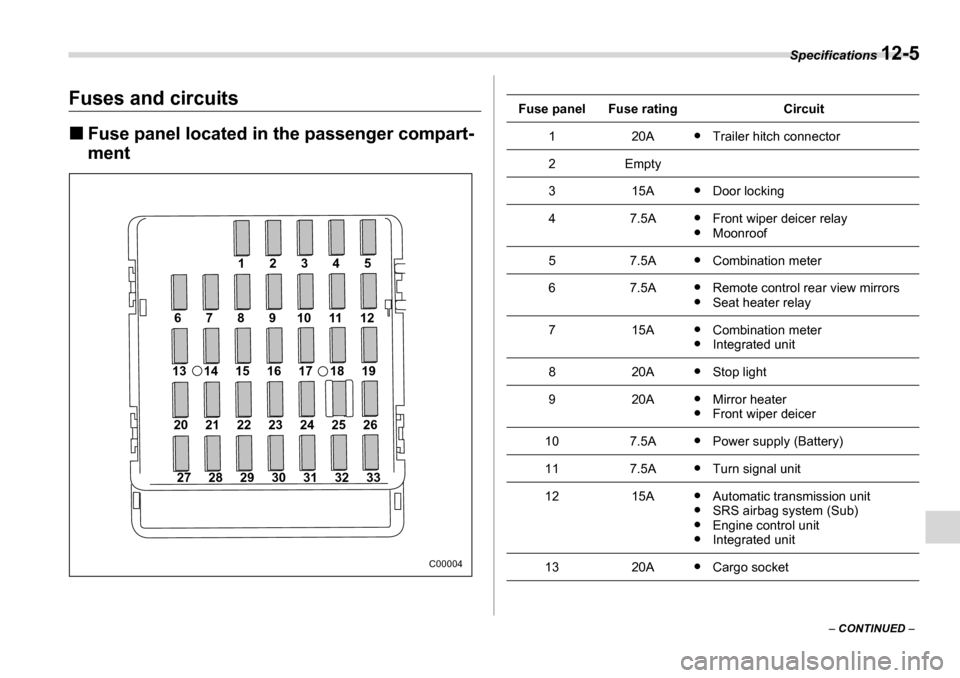

Specifications 12-5
– CONTINUED –
Fuses and circuits „Fuse panel located in the passenger compart- ment
27 28 29 30 31 32 33
20 21 22 23 24 25 26
13 14 15 16 17 18 19
6789101112 12345
C00004
Fuse panelFuse ratingCircuit
120A y
Trailer hitch connector
2Empty
315A yDoor locking
47.5A yFront wiper deicer relay
y Moonroof
57.5A yCombination meter
67.5A yRemote control rear view mirrors
y Seat heater relay
715A yCombination meter
y Integrated unit
820A yStop light
920A yMirror heater
y Front wiper deicer
107.5A yPower supply (Battery)
117.5A yTurn signal unit
1215A yAutomatic transmission unit
y SRS airbag system (Sub)
y Engine control unit
y Integrated unit
1320A yCargo socket

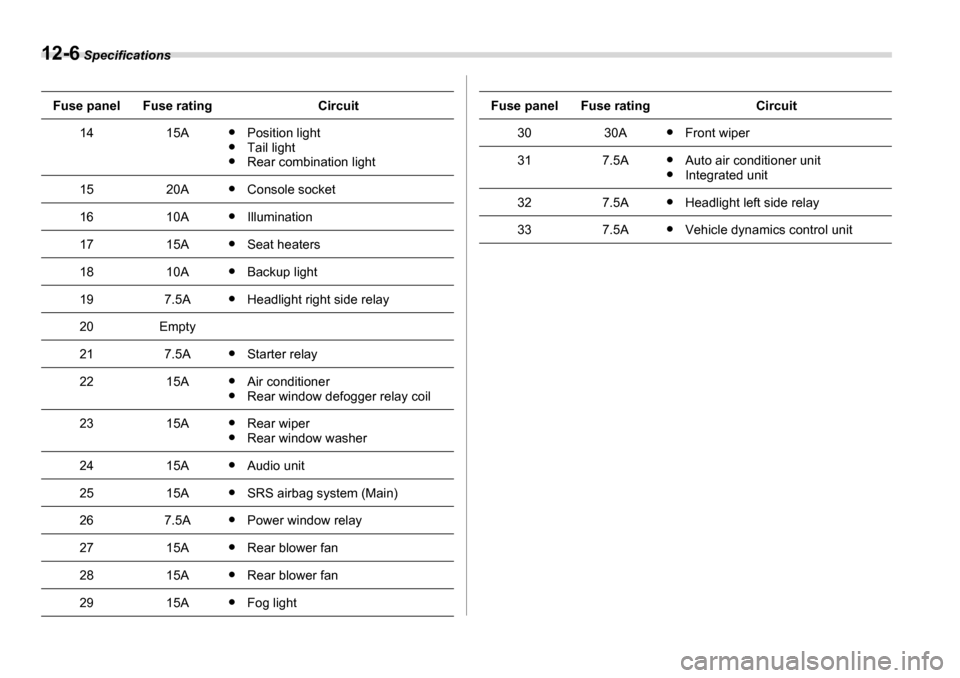

12-6 Specifications
1415A yPosition light
y Tail light
y Rear combination light
1520A yConsole socket
1610A yIllumination
1715A ySeat heaters
1810A yBackup light
197.5A yHeadlight right side relay
20Empty
217.5A yStarter relay
2215A yAir conditioner
y Rear window defogger relay coil
2315A yRear wiper
y Rear window washer
2415A yAudio unit
2515A ySRS airbag system (Main)
267.5A yPower window relay
2715A yRear blower fan
2815A yRear blower fan
2915A yFog light
Fuse panelFuse ratingCircuit
3030A yFront wiper
317.5A yAuto air conditioner unit
y Integrated unit
327.5A yHeadlight left side relay
337.5A yVehicle dynamics control unit
Fuse panelFuse ratingCircuit
