PRACTICAL INFORMATION

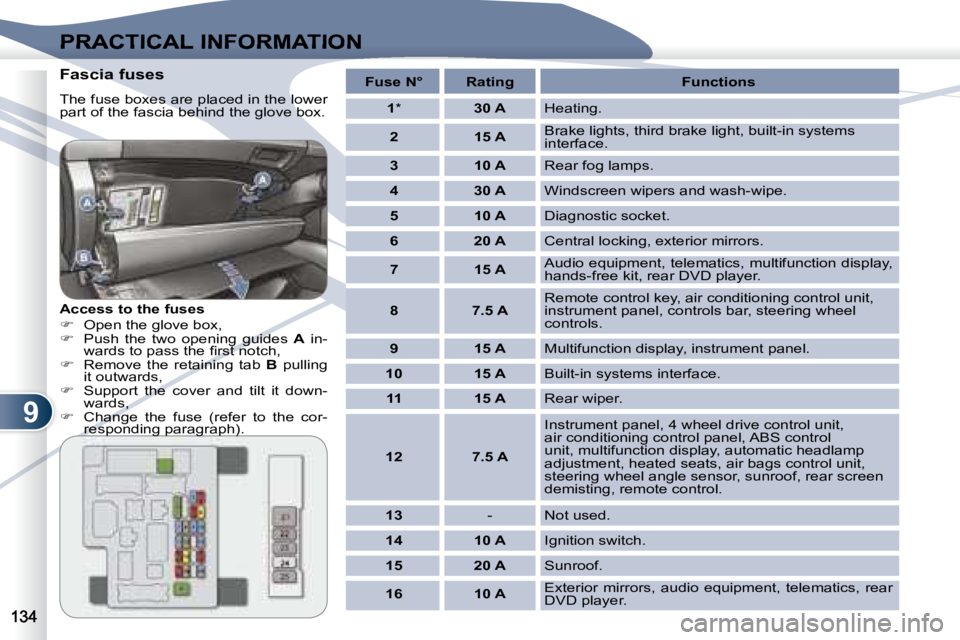

Fascia fuses
The fuse boxes are placed in the lower
part of the fascia behind the glove box.
Access to the fuses

 Open the glove box,

 Push the two opening guides A in-
wards to pass the fi rst notch,

 Remove the retaining tab B pulling
it outwards,

 Support the cover and tilt it down-
wards,

 Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions

1 * 30 A Heating.

2
15 A Brake lights, third brake light, built-in systems
interface.

3 10 A Rear fog lamps.

4 30 A Windscreen wipers and wash-wipe.

5 10 A Diagnostic socket.

6 20 A Central locking, exterior mirrors.

7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.

8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.

9 15 A Multifunction display, instrument panel.

10 15 A Built-in systems interface.

11 15 A Rear wiper.

12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.

13 -
Not used.

14 10 A Ignition switch.

15 20 A Sunroof.

16 10 A Exterior mirrors, audio equipment, telematics, rear
DVD player.

9
PRACTICAL INFORMATION

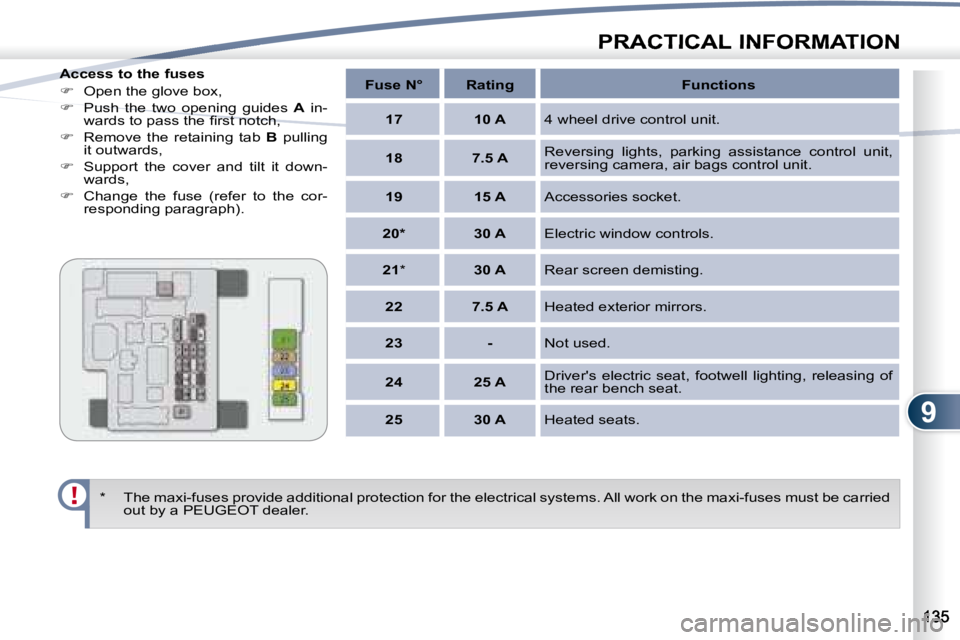

Access to the fuses

 Open the glove box,

 Push the two opening guides A in-
wards to pass the fi rst notch,

 Remove the retaining tab B pulling
it outwards,

 Support the cover and tilt it down-
wards,

 Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electri cal systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer.
Fuse N° Rating Functions

17 10 A 4 wheel drive control unit.

18 7.5 A Reversing lights, parking assistance control unit,
reversing camera, air bags control unit.

19 15 A Accessories socket.

20* 30 A Electric window controls.

21 * 30 A Rear screen demisting.

22 7.5 A Heated exterior mirrors.

23 - Not used.

24 25 A Driver's electric seat, footwell lighting, releasing of
the rear bench seat.

25 30 A Heated seats.

9

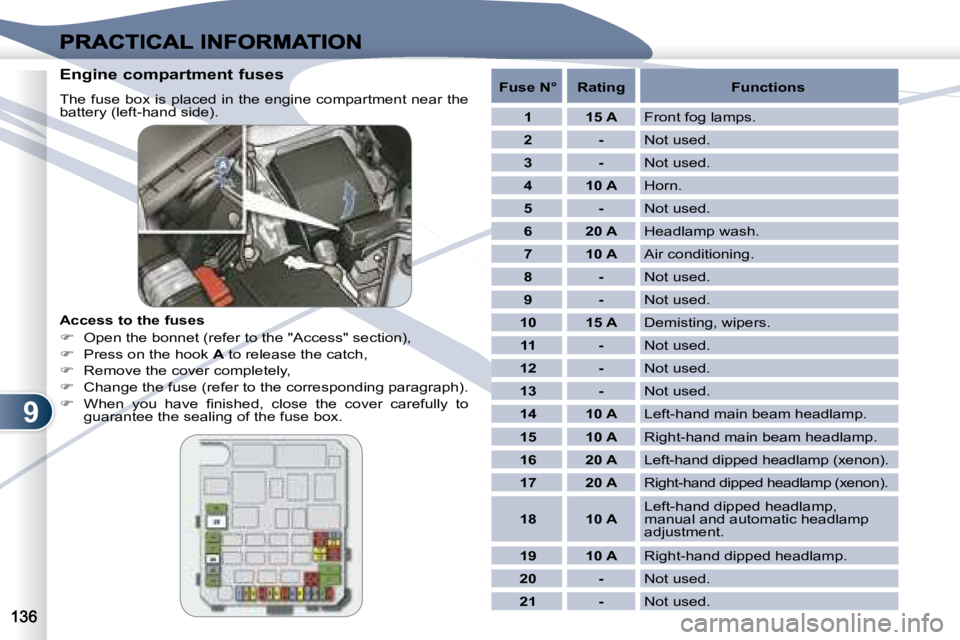

Engine compartment fuses
The fuse box is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses

 Open the bonnet (refer to the "Access" section),

 Press on the hook A to release the catch,

 Remove the cover completely,

 Change the fuse (refer to the corresponding paragraph).

 When you have fi nished, close the cover carefully to
guarantee the sealing of the fuse box.
Fuse N° Rating Functions

1 15 A Front fog lamps.

2 - Not used.

3 - Not used.

4 10 A Horn.

5 - Not used.

6 20 A Headlamp wash.

7 10 A Air conditioning.

8 - Not used.

9 - Not used.

10 15 A Demisting, wipers.

11 - Not used.

12 - Not used.

13 - Not used.

14 10 A Left-hand main beam headlamp.

15 10 A Right-hand main beam headlamp.

16 20 A Left-hand dipped headlamp (xenon).

17 20 A Right-hand dipped headlamp (xenon).

18 10 A Left-hand dipped headlamp,
manual and automatic headlamp
adjustment.

19 10 A Right-hand dipped headlamp.

20 - Not used.

21 - Not used.

9
i
PRACTICAL INFORMATION

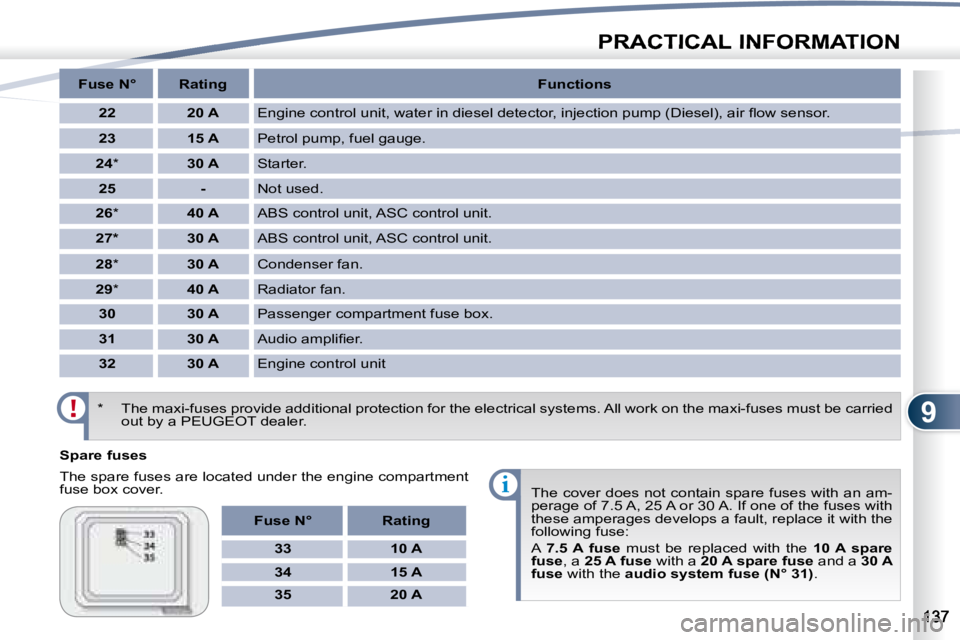

Spare fuses
The spare fuses are located under the engine compartment
fuse box cover. The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse must be replaced with the 10 A spare
fuse , a 25 A fuse with a 20 A spare fuse and a 30 A
fuse with the audio system fuse (N° 31) .
* The maxi-fuses provide additional protection for the electri
cal systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer.

Fuse N° Rating
Functions

22 20 A Engine control unit, water in diesel detector, injection pump (Diesel), air fl ow sensor.

23 15 A Petrol pump, fuel gauge.

24 * 30 A Starter.

25 - Not used.

26 * 40 A ABS control unit, ASC control unit.

27* 30 A ABS control unit, ASC control unit.

28 * 30 A Condenser fan.

29 * 40 A Radiator fan.

30 30 A Passenger compartment fuse box.

31 30 A Audio amplifi er.

32 30 A Engine control unit

Fuse N° Rating

33 10 A

34 15 A

35 20 A

9
i
PRACTICAL INFORMATION

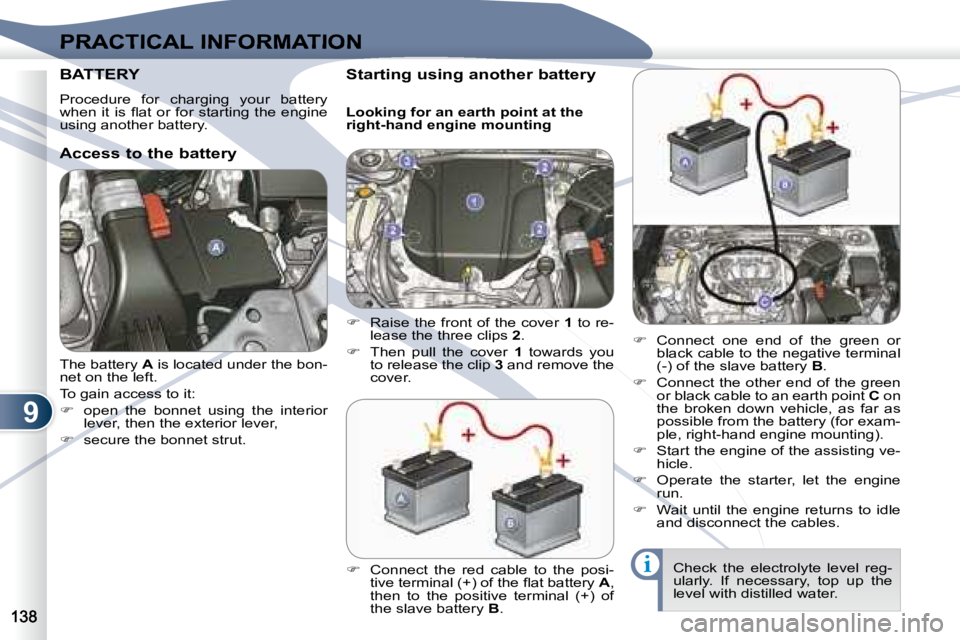

The battery A is located under the bon-
net on the left.
To gain access to it:

 open the bonnet using the interior
lever, then the exterior lever,

 secure the bonnet strut.
BATTER BATTERY
Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.
Access to the battery

 Connect the red cable to the posi-
tive terminal (+) of the fl at battery A ,
then to the positive terminal (+) of
the slave battery B .
 Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .

 Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
possible from the battery (for exam-
ple, right-hand engine mounting).

 Start the engine of the assisting ve-
hicle.

 Operate the starter, let the engine
run.

 Wait until the engine returns to idle
and disconnect the cables.

 Raise the front of the cover 1 to re-
lease the three clips 2 .

 Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level reg-
ularly. If necessary, top up the
level with distilled water.
Starting using another battery
Looking for an earth point at the
right-hand engine mounting

9
i
i
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Charging the battery using a
battery charger


Disconnect the battery from the vehicle.

 Remove the battery and place it in a
ventilated area.

 Remove the top-up caps and top up
the level with distilled water if nec-
essary.

 Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.

 Disconnect the battery from the
charger and let it to cool.

 If necessary, top up the level with
distilled water.

 Clean the top of the battery care-
fully.

 Put the top-up caps back in place.

 Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish de-
posit), remove them and clean them.

 Reconnect the battery starting with
the negative terminal (-). It is advisable to disconnect the
battery if the vehicle is to be
left unused for more than one
month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi rst. Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
diffi culties are encountered following this
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
Avoid prolonged contact of the
electrolyte with the skin.
Most of these fl uids are harmful
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before discon-
necting the battery.

9
PRACTICAL INFORMATION

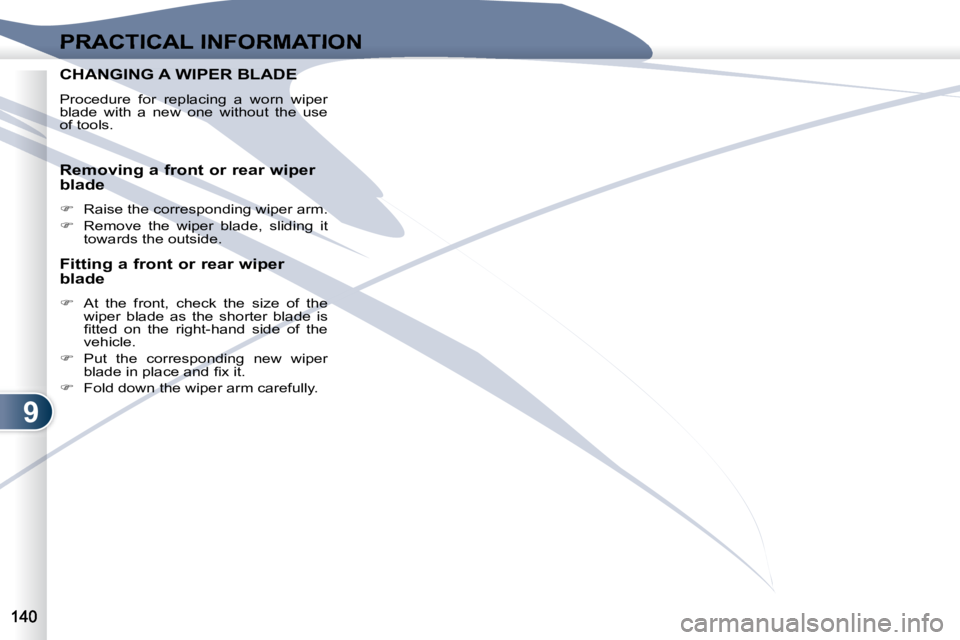

CHANGING A WIPER BLADE CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper
blade

 Raise the corresponding wiper arm.

 Remove the wiper blade, sliding it
towards the outside.
Fitting a front or rear wiper
blade

 At the front, check the size of the
wiper blade as the shorter blade is
fi tted on the right-hand side of the
vehicle.

 Put the corresponding new wiper
blade in place and fi x it.

 Fold down the wiper arm carefully.

9
i
PRACTICAL INFORMATION

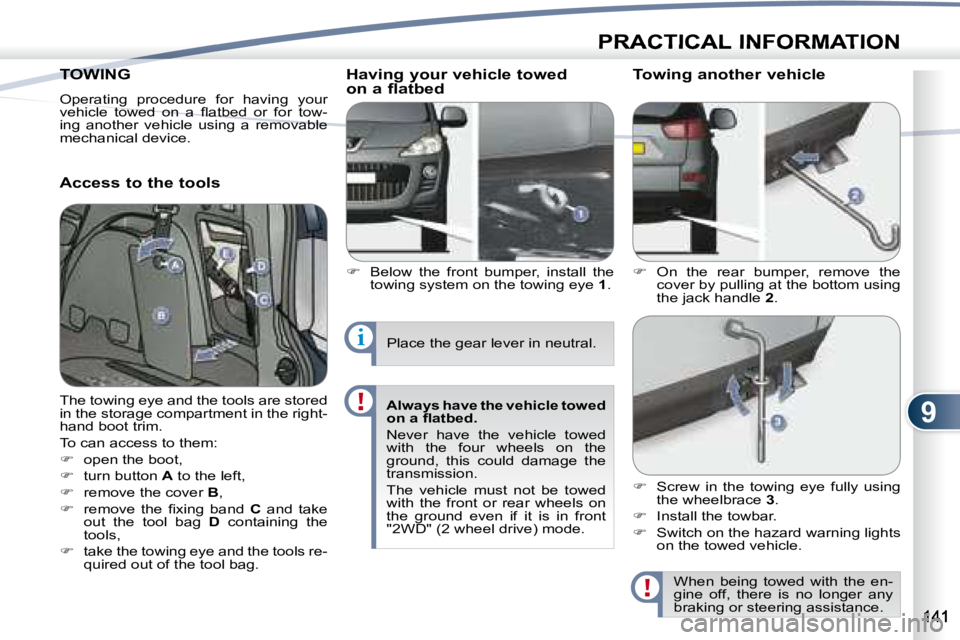

TOWING TOWING
Operating procedure for having your
vehicle towed on a fl atbed or for tow-
ing another vehicle using a removable
mechanical device.
Access to the tools Having your vehicle towed
on a flatbed

 Below the front bumper, install the
towing system on the towing eye 1 .
 On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2 .
Towing another vehicle
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To can access to them:

 open the boot,

 turn button A to the left,

 remove the cover B ,

 remove the fi xing band C and take
out the tool bag D containing the
tools,

 take the towing eye and the tools re-
quired out of the tool bag.
When being towed with the en-
gine off, there is no longer any
braking or steering assistance.
Place the gear lever in neutral.

Always have the vehicle towed
on a fl atbed.
Never have the vehicle towed
with the four wheels on the
ground, this could damage the
transmission.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.
 Screw in the towing eye fully using
the wheelbrace 3 .

 Install the towbar.

 Switch on the hazard warning lights
on the towed vehicle.
