2007 PEUGEOT 4007 Owners Manual

11
DE
E1E2E3E4
D1D2
D3D4
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA
Time and date, language, unit,
picture size E -
Choose the size of the DVD picture for:
E1 - normal 4/3, E2 - extends the picture evenly to the right
and to the left in wide screen mode,
E3 - extends the right and left parts only leaving
the centre as it stands in wide screen mode,

E4 - enlarges the picture in 4/3 format. The top
and the bottom are outside the frame.
D - Choose the base settings of the sys- tem for:
D1 - setting of the time by the RDS signal, time zone, summer time,
D2 - the language (English, Français, Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis- tances (km or miles and °C or °F),
D4 - other settings such as:
- the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation bleeps (1 to 3 and 0=no bleep),
- the type of inputting keypad (alpha- bet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the display when the air conditioning is used.

11
H
G
F
F1
F2
F3
AUDIO EQUIPMENT and TELEMATICS

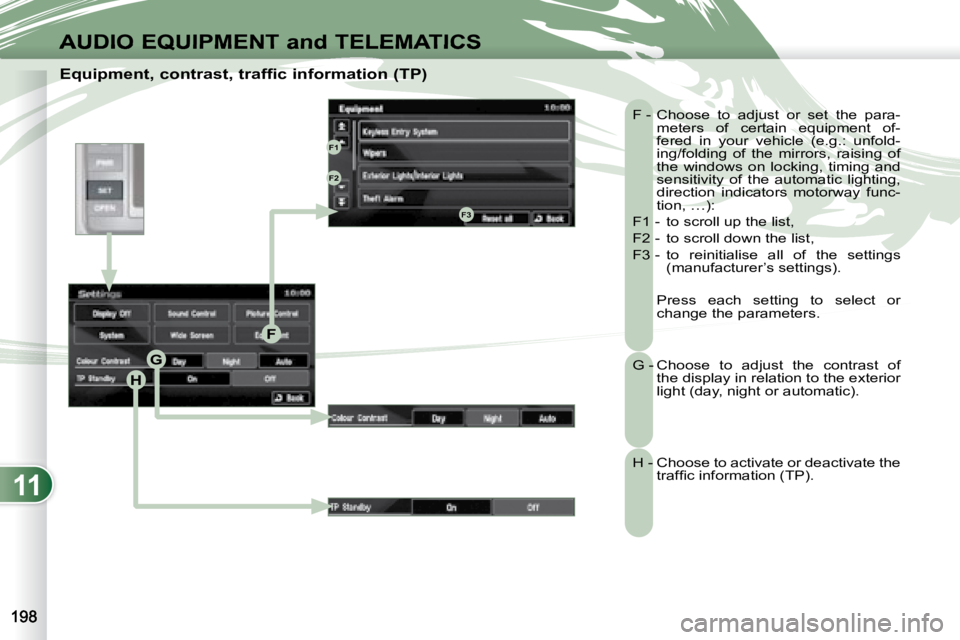

Equipment, contrast, traffic information (TP) F - Choose to adjust or set the para-meters of certain equipment of-
fered in your vehicle (e.g.: unfold-
ing/folding of the mirrors, raising of
the windows on locking, timing and
sensitivity of the automatic lighting,
direction indicators motorway func-
tion, …):
F1 - to scroll up the list,
F2 - to scroll down the list,
F3 - to reinitialise all of the settings (manufacturer’s settings).
Press each setting to select or change the parameters.
G - Choose to adjust the contrast of the display in relation to the exterior
light (day, night or automatic).
H - Choose to activate or deactivate the traffi c information (TP).

11
AB
A2A1
A3
B1B2
B3B4
B5B6B7B8
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

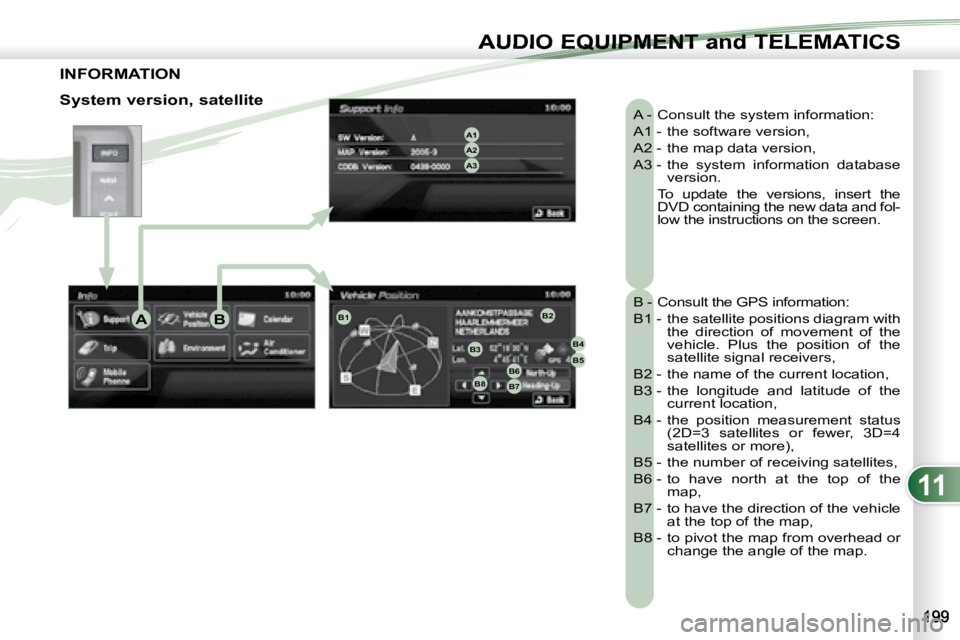

INFORMATION
System version, satellite A - Consult the system information:
A1 - the software version,
A2 - the map data version,
A3 - the system information database version.
To update the versions, insert the DVD containing the new data and fol-
low the instructions on the screen.
B - Consult the GPS information:
B1 - the satellite positions diagram with the direction of movement of the
vehicle. Plus the position of the
satellite signal receivers,
B2 - the name of the current location,
B3 - the longitude and latitude of the current location,
B4 - the position measurement status (2D=3 satellites or fewer, 3D=4
satellites or more),
B5 - the number of receiving satellites,
B6 - to have north at the top of the map,
B7 - to have the direction of the vehicle at the top of the map,
B8 - to pivot the map from overhead or change the angle of the map.

11
D
C
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12
AUDIO EQUIPMENT and TELEMATICS

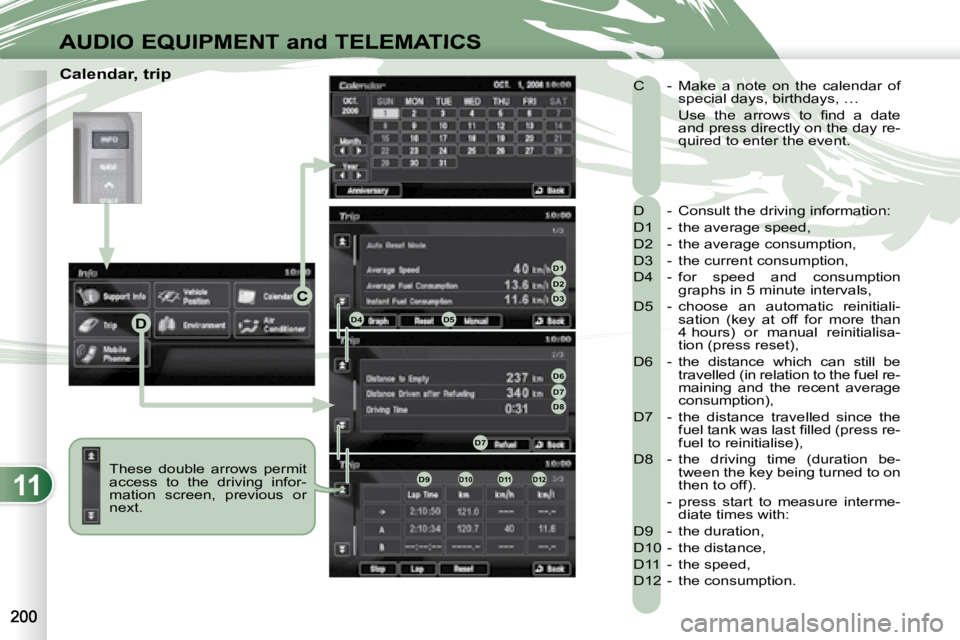

Calendar, trip These double arrows permit
access to the driving infor-
mation screen, previous or
next. D - Consult the driving information:
D1 - the average speed,
D2 - the average consumption,
D3 - the current consumption,
D4 - for speed and consumption
graphs in 5 minute intervals,
D5 - choose an automatic reinitiali- sation (key at off for more than
4 hours) or manual reinitialisa-
tion (press reset),
D6 - the distance which can still be travelled (in relation to the fuel re-
maining and the recent average
consumption),
D7 - the distance travelled since the fuel tank was last fi lled (press re-
fuel to reinitialise),
D8 - the driving time (duration be- tween the key being turned to on
then to off).
- press start to measure interme- diate times with:
D9 - the duration,
D10 - the distance,
D11 - the speed,
D12 - the consumption.
C - Make a note on the calendar of
special days, birthdays, …
Use the arrows to fi nd a date and press directly on the day re-
quired to enter the event.

11
i
G
EFF1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA
F - Consult the air conditioning condi-tions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indicator light,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indicator light,
F6 - the AUTO mode indicator.
E - Consult the environment informa-
tion:
E1 - the altitude,
E2 - the atmospheric pressure,
E3 - the exterior temperature. The ice symbol fl ashes if there is a risk of
ice.
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call. Refer to the hands-free tele-
phone section to connect your
Bluetooth® mobile telephone.

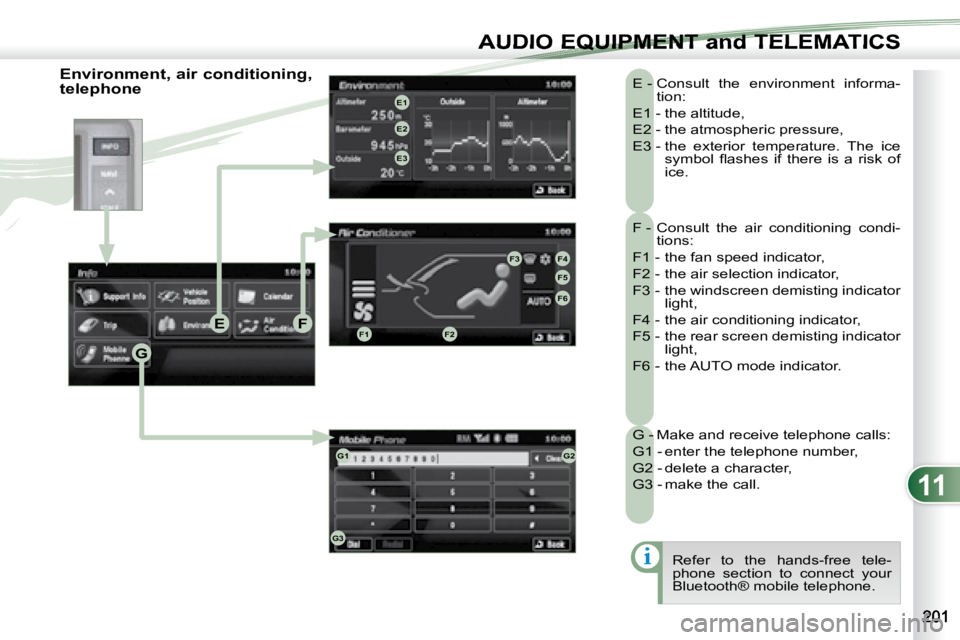

Environment, air conditioning,
telephone

11
AUDIO EQUIPMENT and TELEMATICS

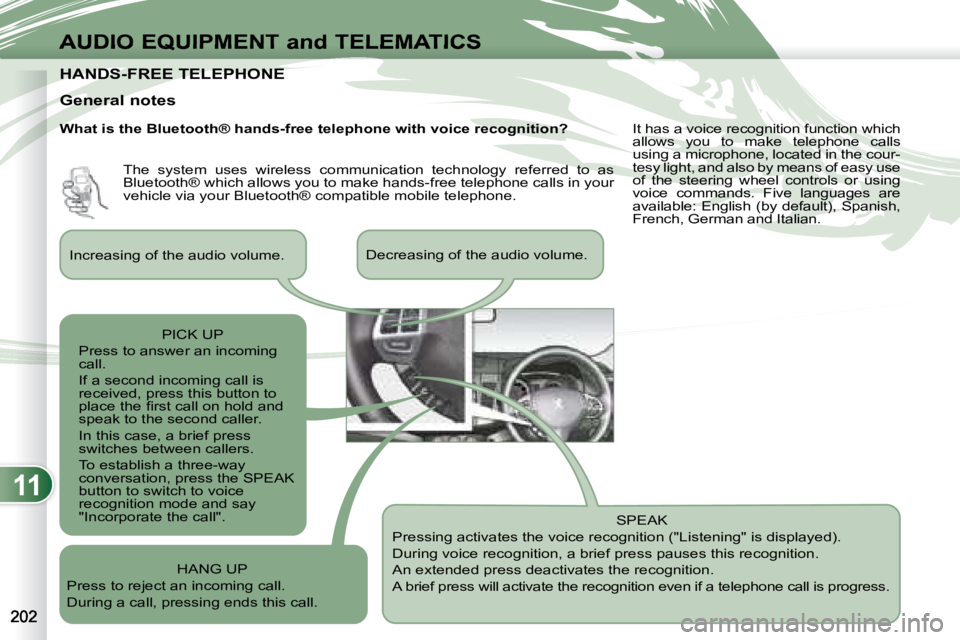

HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
General notes SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even i f a telephone call is progress.
Increasing of the audio volume.
Decreasing of the audio volume.
PICK UP
Press to answer an incoming
call.
If a second incoming call is
received, press this button to
place the fi rst call on hold and
speak to the second caller.
In this case, a brief press
switches between callers.
To establish a three-way
conversation, press the SPEAK
button to switch to voice
recognition mode and say
"Incorporate the call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call. The system uses wireless communication technology referred to as
Bluetooth® which allows you to make hands-free telephone call
s in your
vehicle via your Bluetooth® compatible mobile telephone. It has a voice recognition function which
allows you to make telephone calls
using a microphone, located in the cour-
tesy light, and also by means of easy use
of the steering wheel controls or using
voice commands. Five languages are
available: English (by default), Spanish,
French, German and Italian.
What is the Bluetooth® hands-free telephone with voice re
cognition?

11
i
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

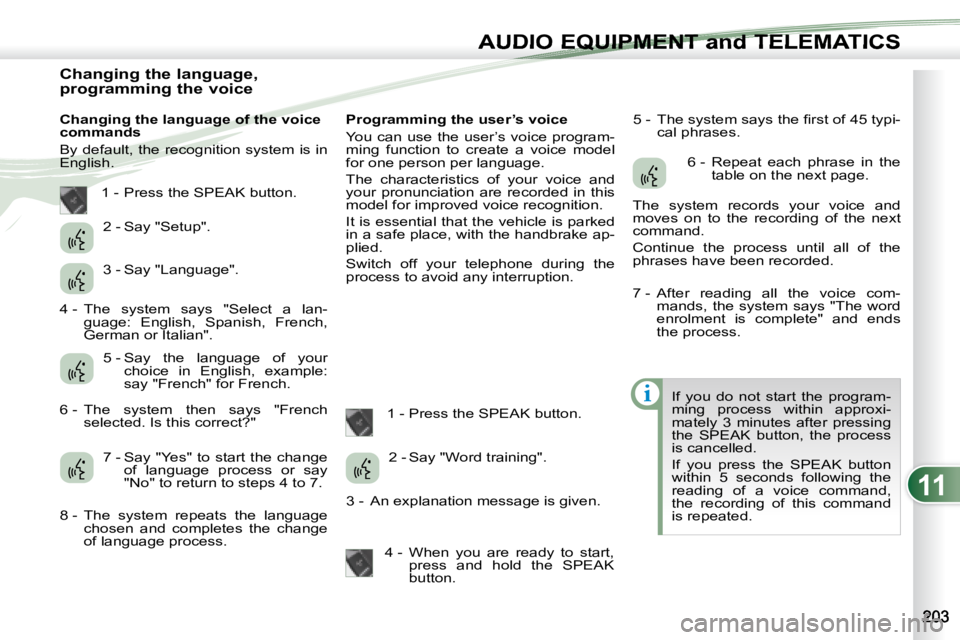

Changing the language,
programming the voice
Changing the language of the voice
commands
By default, the recognition system is in
English. Programming the user’s voice
You can use the user’s voice program-
ming function to create a voice model
for one person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked
in a safe place, with the handbrake ap-
plied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - The system says the fi rst of 45 typi-
cal phrases.
If you do not start the program-
ming process within approxi-
mately 3 minutes after pressing
the SPEAK button, the process
is cancelled.
If you press the SPEAK button
within 5 seconds following the
reading of a voice command,
the recording of this command
is repeated.
1 - Press the SPEAK button.
2 - Say "Setup".
3 - Say "Language".
4 - The system says "Select a lan- guage: English, Spanish, French,
German or Italian".
5 - Say the language of your choice in English, example:
say "French" for French.
6 - The system then says "French selected. Is this correct?"
7 - Say "Yes" to start the change of language process or say
"No" to return to steps 4 to 7.
8 - The system repeats the language chosen and completes the change
of language process. 2 - Say "Word training".
3 - An explanation message is given.
4 - When you are ready to start, press and hold the SPEAK
button. 6 - Repeat each phrase in the
table on the next page.
The system records your voice and
moves on to the recording of the next
command.
Continue the process until all of the
phrases have been recorded.
7 - After reading all the voice com- mands, the system says "The word
enrolment is complete" and ends
the process.

11
AUDIO EQUIPMENT and TELEMATICS

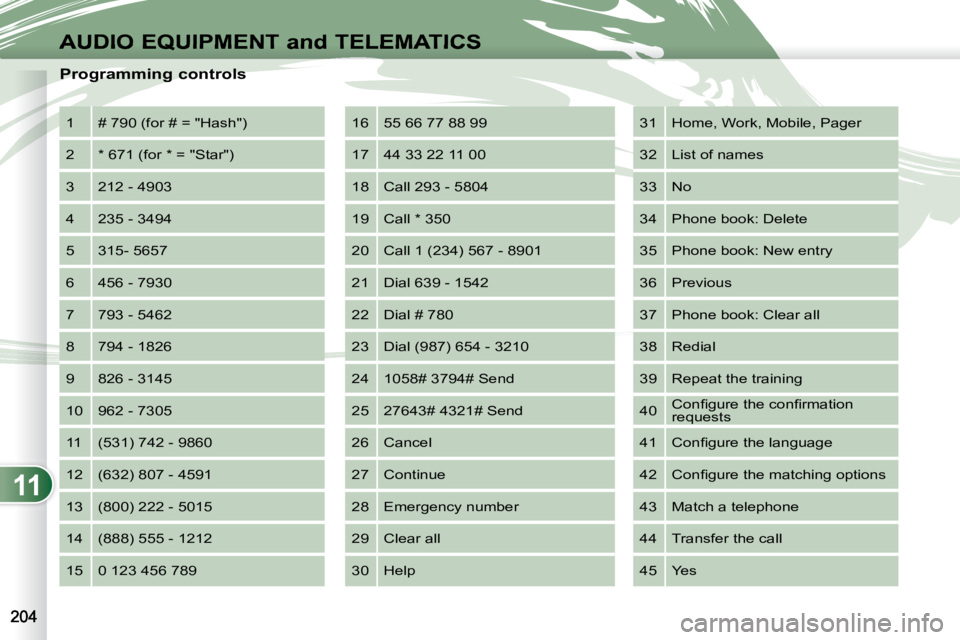

Programming controls 1 # 790 (for # = "Hash")
2 * 671 (for * = "Star")
3 212 - 4903
4 235 - 3494
5 315- 5657
6 456 - 7930
7 793 - 5462
8 794 - 1826
9 826 - 3145
10 962 - 7305
11 (531) 742 - 9860
12 (632) 807 - 4591
13 (800) 222 - 5015
14 (888) 555 - 1212
15 0 123 456 789 16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19 Call * 350
20 Call 1 (234) 567 - 8901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency number
29 Clear all
30 Help

31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete
35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40
Confi gure the confi rmation
requests
41 Confi gure the language
42 Confi gure the matching options
43 Match a telephone
44 Transfer the call
45 Yes
