2007 PEUGEOT 4007 Owners Manual

4
VISIBILITY
MANUAL ADJUSTMENT OF THE
HEADLAMPS
To avoid dazzling other road users, the
height of the headlamps must be adjusted
in relation to the load in the vehicle.
5-seat version

0. Driver only or Driver + 1 passenger
in the front.

1 or 2. 5 occupants (including the
driver).

3. 5 occupants (including the driver) +
maximum authorised load.

4. Driver + maximum authorised load.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driv-
er is then assured of having optimum
lighting and not causing a nuisance to
other road users.
In cases of malfunction ,
this message appears on
the multifunction display.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer.
7-seat version

0. Driver only or Driver + 1 passenger
in the front.

1 or 2. Driver + 1 passenger in the
front + 2 passengers on the
third bench seat.

3. 7 occupants (including the driver
with or without maximum authorised
load).

4. Driver + maximum authorised load.

4
VISIBILITY

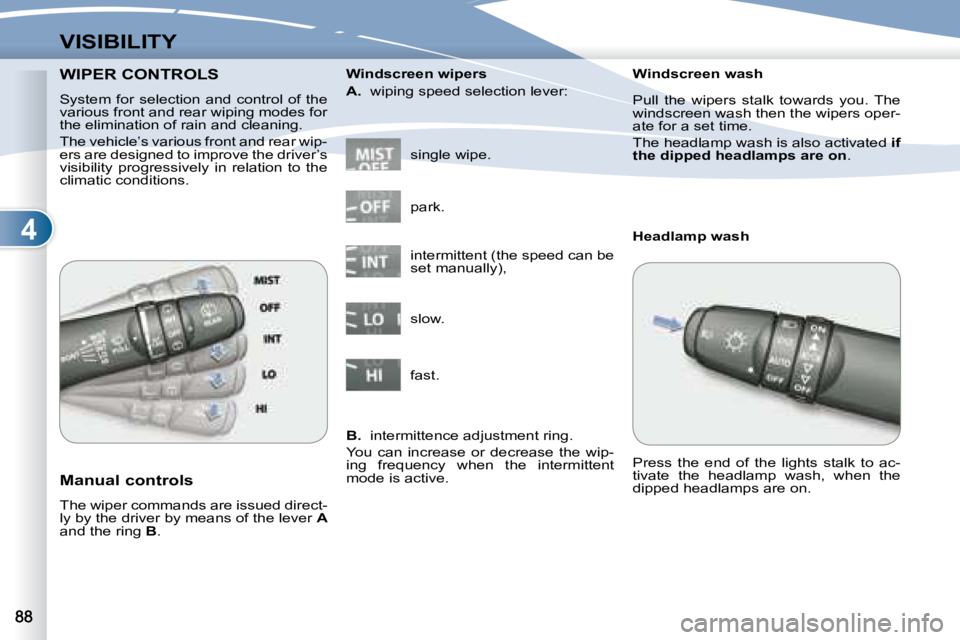

WIPER CONTROLS WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle’s various front and rear wip-
ers are designed to improve the driver’s
visibility progressively in relation to the
climatic conditions. Manual controls
The wiper commands are issued direct-
ly by the driver by means of the lever A
and the ring B . single wipe.
Windscreen wipers

A. wiping speed selection lever:
park.
intermittent (the speed can be
set manually),
slow.
fast.

B. intermittence adjustment ring.
You can increase or decrease the wip-
ing frequency when the intermittent
mode is active. Windscreen wash
Pull the wipers stalk towards you. The
windscreen wash then the wipers oper-
ate for a set time.
The headlamp wash is also activated
if
the dipped headlamps are on .
Headlamp wash
Press the end of the lights stalk to ac-
tivate the headlamp wash, when the
dipped headlamps are on.

4
VISIBILITY

A. rear wiper selection ring:
park
intermittent wipe
wipe with screen wash
Rear wiper
The wiper wipes twice then switches to
intermittent mode with an interval of a
few seconds
Keep the ring in this position to operate
the screen wash with several wipes of
the wiper.

4
VISIBILITY

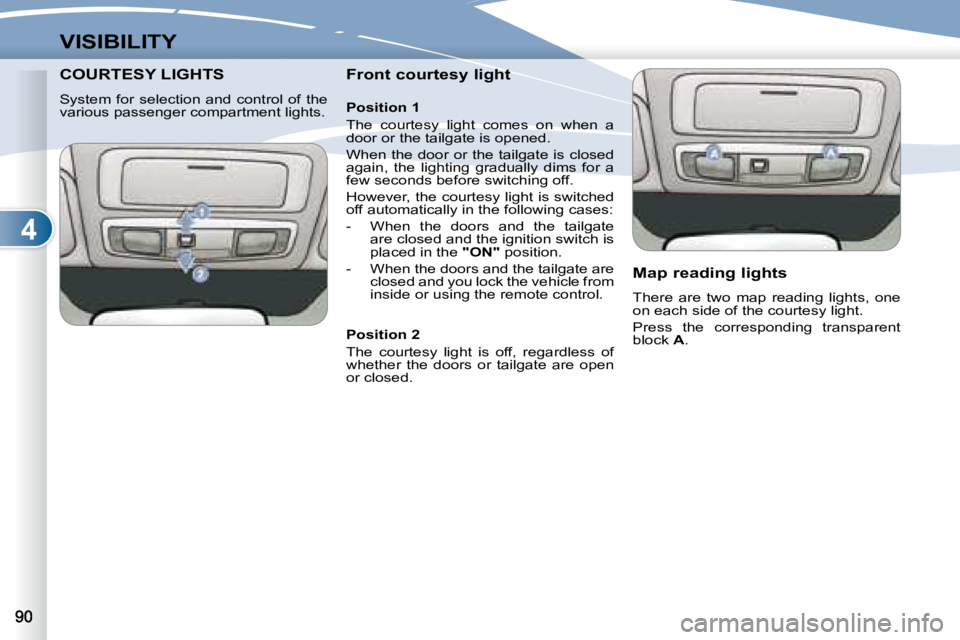

COURTESY LIGHTS COURTESY LIGHTS
System for selection and control of the
various passenger compartment lights. Front courtesy light
Map reading lights
There are two map reading lights, one
on each side of the courtesy light.
Press the corresponding transparent
block A .
Position 1
The courtesy light comes on when a
door or the tailgate is opened.
When the door or the tailgate is closed
again, the lighting gradually dims for a
few seconds before switching off.
However, the courtesy light is switched
off automatically in the following cases:
- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON" position.
- When the doors and the tailgate are closed and you lock the vehicle from
inside or using the remote control.
Position 2
The courtesy light is off, regardless of
whether the doors or tailgate are open
or closed.

4
VISIBILITY

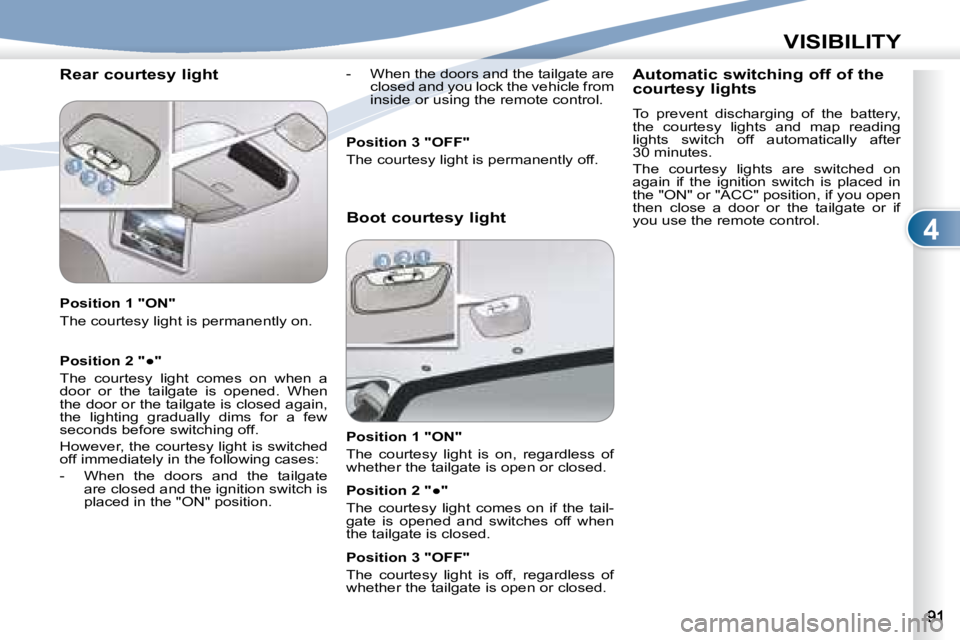

Rear courtesy light
Position 1 "ON"
The courtesy light is permanently on.
Position 2 "

5
i

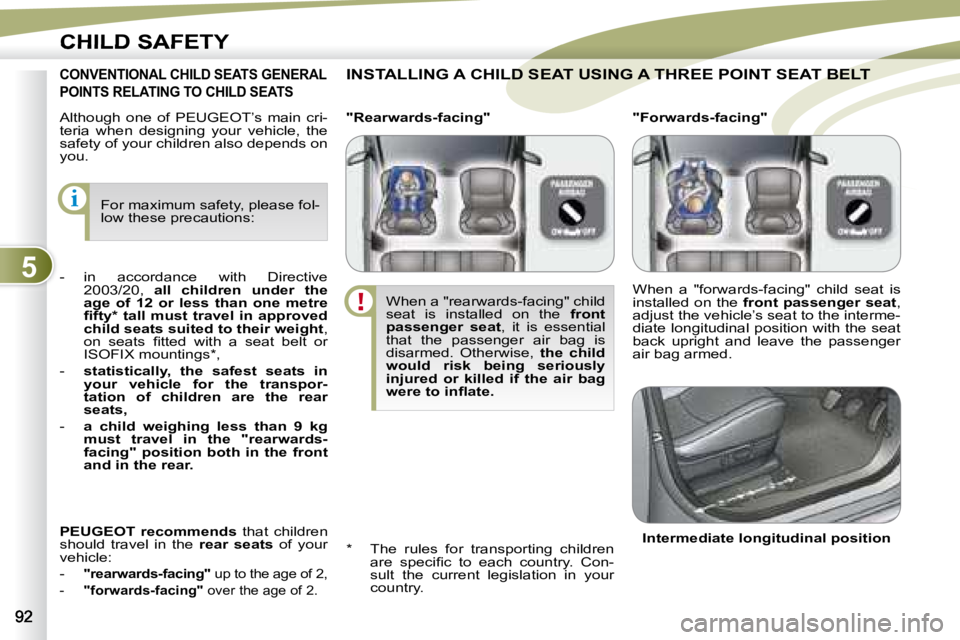

CHILD SAFETY
Although one of PEUGEOT’s main cri-
teria when designing your vehicle, the
safety of your children also depends on
you. INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
Intermediate longitudinal position
* The rules for transporting children
are specifi c to each country. Con-
sult the current legislation in your
country.
CONVENTIONAL CHILD SEATS GENERAL
POINTS RELATING TO CHILD SEATS
"Forwards-facing"

"Rearwards-facing"
For maximum safety, please fol-
low these precautions: When a "rearwards-facing" child
seat is installed on the front
passenger seat , it is essential
that the passenger air bag is
disarmed. Otherwise, the child
would risk being seriously
injured or killed if the air bag
were to infl ate.
- in accordance with Directive
2003/20, all children under the
age of 12 or less than one metre
fi fty * tall must travel in approved
child seats suited to their weight ,
on seats fi tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.

PEUGEOT recommends that children
should travel in the rear seats of your
vehicle:
-

"rearwards-facing" up to the age of 2,
- "forwards-facing" over the age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle’s seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.

5
CHILD SAFETY

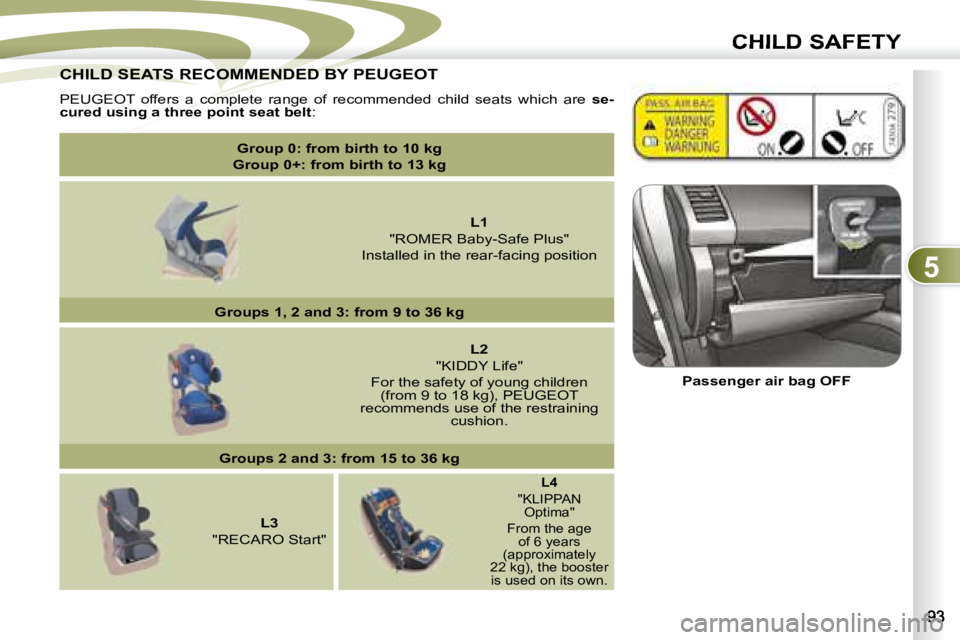

CHILD SEATS RECOMMENDED BY PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Passenger air bag OFF

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start"

L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.

5

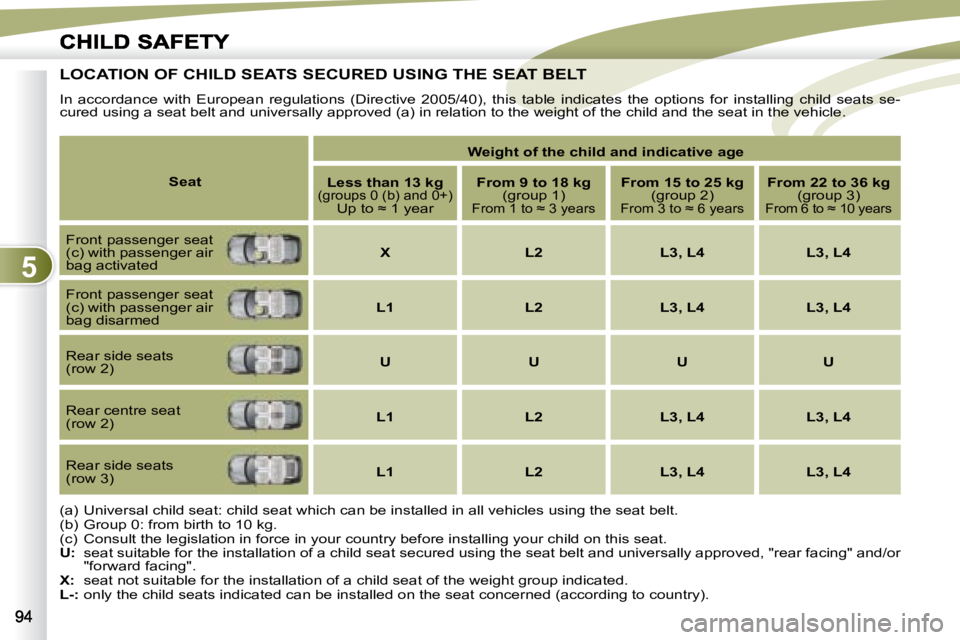

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELTS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child seats se-
cured using a seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed i n all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.

U: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and /or
"forward facing".

X: seat not suitable for the installation of a child seat of the weight group indicated.

L-: only the child seats indicated can be installed on the se at concerned (according to country).

Seat
Weight of the child and indicative age

Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)From 1 to ≈ 3 years

From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years

From 22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat
(c) with passenger air
bag activated

X L2 L3, L4 L3, L4
Front passenger seat
(c) with passenger air
bag disarmed

L1 L2 L3, L4 L3, L4
Rear side seats
(row 2)

U U U U
Rear centre seat
(row 2)

L1 L2 L3, L4 L3, L4
Rear side seats
(row 3)

L1 L2 L3, L4 L3, L4
