2007 PEUGEOT 4007 Owners Manual

7
i
DRIVING

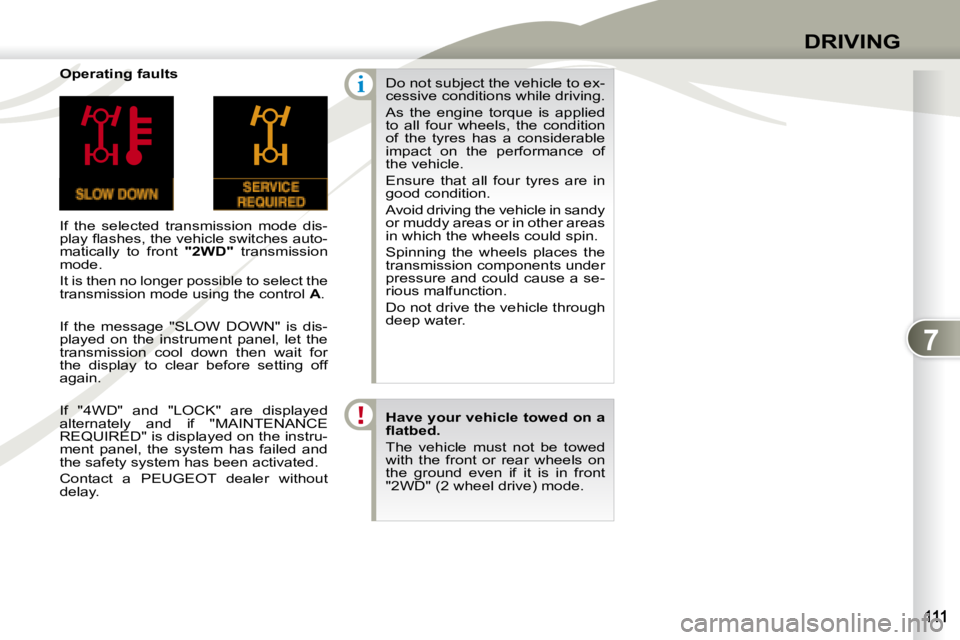

Operating faults
If the selected transmission mode dis-
play fl ashes, the vehicle switches auto-
matically to front "2WD" transmission
mode.
It is then no longer possible to select the
transmission mode using the control A .
If the message "SLOW DOWN" is dis-
played on the instrument panel, let the
transmission cool down then wait for
the display to clear before setting off
again.
If "4WD" and "LOCK" are displayed
alternately and if "MAINTENANCE
REQUIRED" is displayed on the instru-
ment panel, the system has failed and
the safety system has been activated.
Contact a PEUGEOT dealer without
delay. Do not subject the vehicle to ex-
cessive conditions while driving.
As the engine torque is applied
to all four wheels, the condition
of the tyres has a considerable
impact on the performance of
the vehicle.
Ensure that all four tyres are in
good condition.
Avoid driving the vehicle in sandy
or muddy areas or in other areas
in which the wheels could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a se-
rious malfunction.
Do not drive the vehicle through
deep water.

Have your vehicle towed on a
fl atbed.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.

7
i
DRIVING
Programming

 Press button 1 .

 Set the programmed speed by ac-
celerating to the required speed,
then press button 2 "COAST SET" .

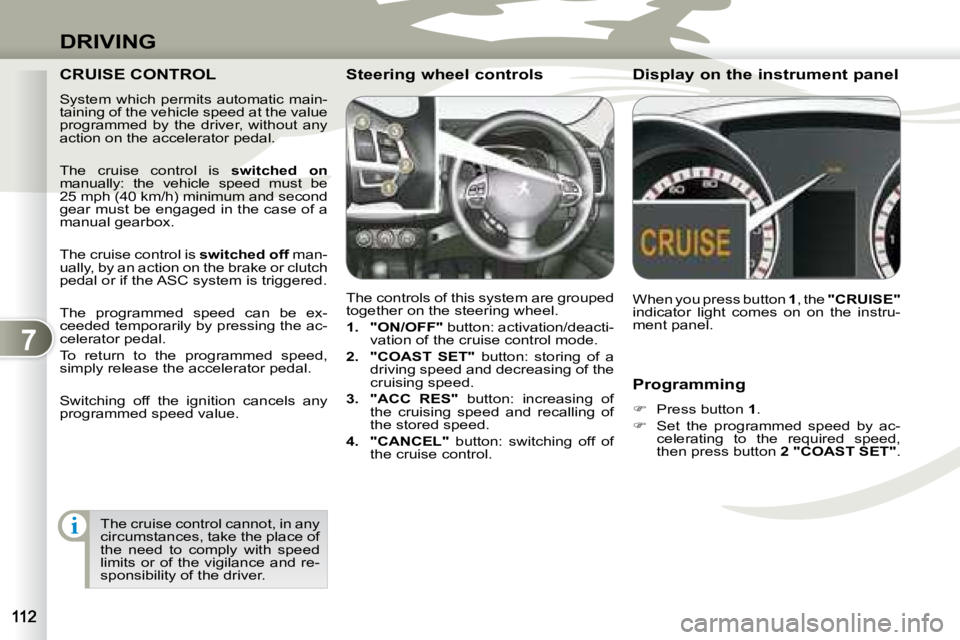

CRUISE CONTROL
System which permits automatic main-
taining of the vehicle speed at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
25 mph (40 km/h) minimum and second
gear must be engaged in the case of a
manual gearbox.
The cruise control is switched off man-
ually, by an action on the brake or clutch
pedal or if the ASC system is triggered.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on the steering wheel.

1. "ON/OFF" button: activation/deacti-
vation of the cruise control mode.

2. "COAST SET" button: storing of a
driving speed and decreasing of the
cruising speed.

3. "ACC RES" button: increasing of
the cruising speed and recalling of
the stored speed.

4. "CANCEL" button: switching off of
the cruise control. When you press button
1 , the "CRUISE"
indicator light comes on on the instru-
ment panel.
Steering wheel controls Display on the instrument p
anel
The cruise control cannot, in any
circumstances, take the place of
the need to comply with speed
limits or of the vigilance and re-
sponsibility of the driver.

7
DRIVING
When the cruise control is in
operation, pay attention if you
press and hold one of the pro-
grammed speed adjustment
buttons: this can result in a very
rapid change in the speed of
your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to pre-
vent the vehicle from exceeding
the programmed speed.
To prevent the mat from becom-
ing caught under the pedals:
- ensure that the mat is posi-tioned correctly,
- never fi t one mat on top of another.

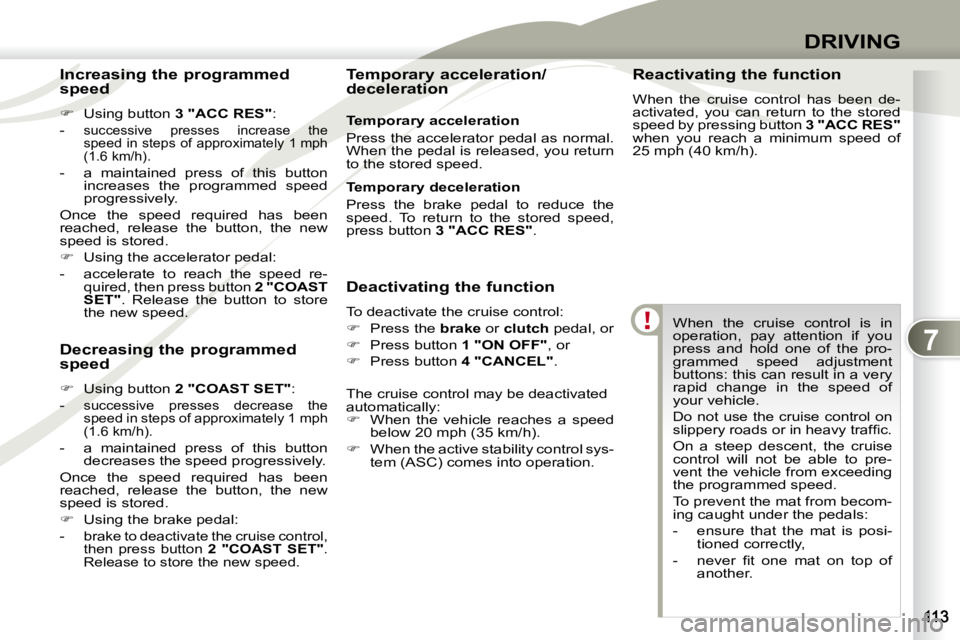

Deactivating the function
To deactivate the cruise control:

 Press the brake or clutch pedal, or

 Press button 1 "ON OFF" , or

 Press button 4 "CANCEL" .
The cruise control may be deactivated
automatically:

 When the vehicle reaches a speed
below 20 mph (35 km/h).

 When the active stability control sys-
tem (ASC) comes into operation. Reactivating the function
When the cruise control has been de-
activated, you can return to the stored
speed by pressing button
3 "ACC RES"
when you reach a minimum speed of
25 mph (40 km/h).
Decreasing the programmed
speed

 Using button 2 "COAST SET" :
- successive presses decrease the
speed in steps of approximately 1 mph
(1.6 km/h).
- a maintained press of this button decreases the speed progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.

 Using the brake pedal:
-
brake to deactivate the cruise control,
then press button 2 "COAST SET" .
Release to store the new speed.
Temporary acceleration/
deceleration
Temporary acceleration
Press the accelerator pedal as normal.
When the pedal is released, you return
to the stored speed.
Temporary deceleration
Press the brake pedal to reduce the
speed. To return to the stored speed,
press button 3 "ACC RES" .
Increasing the programmed
speed

 Using button 3 "ACC RES" :
-
successive presses increase the
speed in steps of approximately 1 mph
(1.6 km/h).
- a maintained press of this button increases the programmed speed
progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.

 Using the accelerator pedal:
- accelerate to reach the speed re- quired, then press button 2 "COAST
SET" . Release the button to store
the new speed.

7
i
i
DRIVING

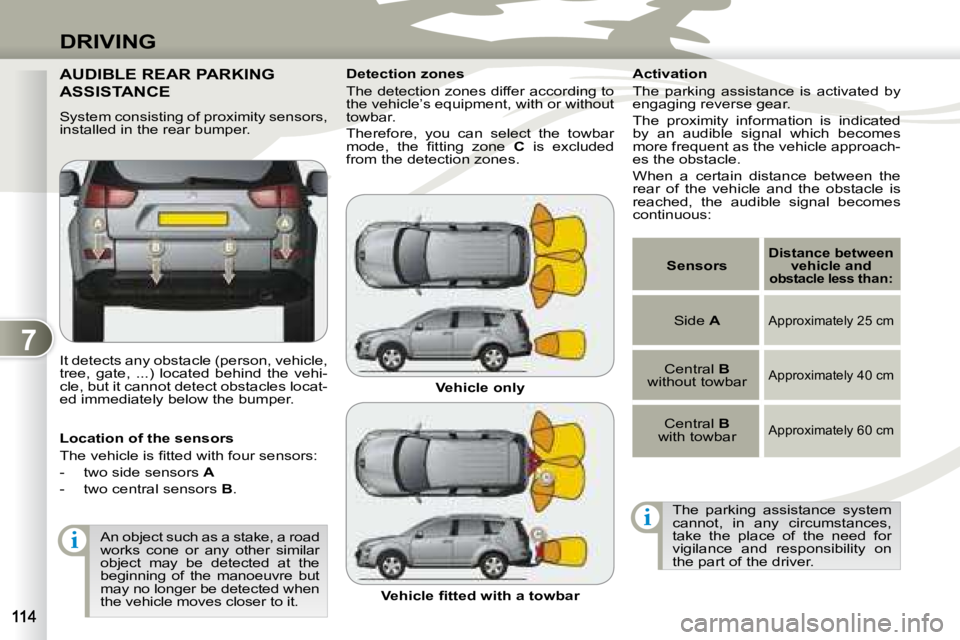

AUDIBLE REAR PARKING
ASSISTANCE
System consisting of proximity sensors,
installed in the rear bumper.
It detects any obstacle (person, vehicle,
tree, gate, ...) located behind the vehi-
cle, but it cannot detect obstacles locat-
ed immediately below the bumper. Activation
The parking assistance is activated by
engaging reverse gear.
The proximity information is indicated
by an audible signal which becomes
more frequent as the vehicle approach-
es the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar
object may be detected at the
beginning of the manoeuvre but
may no longer be detected when
the vehicle moves closer to it.
Location of the sensors
The vehicle is fi tted with four sensors:
- two side sensors
A
- two central sensors B . Vehicle only
Vehicle fi tted with a towbar
Detection zones
The detection zones differ according to
the vehicle’s equipment, with or without
towbar.
Therefore, you can select the towbar
mode, the fi tting zone
C is excluded
from the detection zones.
The parking assistance system
cannot, in any circumstances,
take the place of the need for
vigilance and responsibility on
the part of the driver.

Sensors

Distance between
vehicle and
obstacle less than:
Side A Approximately 25 cm
Central B
without towbar Approximately 40 cm
Central B
with towbar Approximately 60 cm

7
i
DRIVING

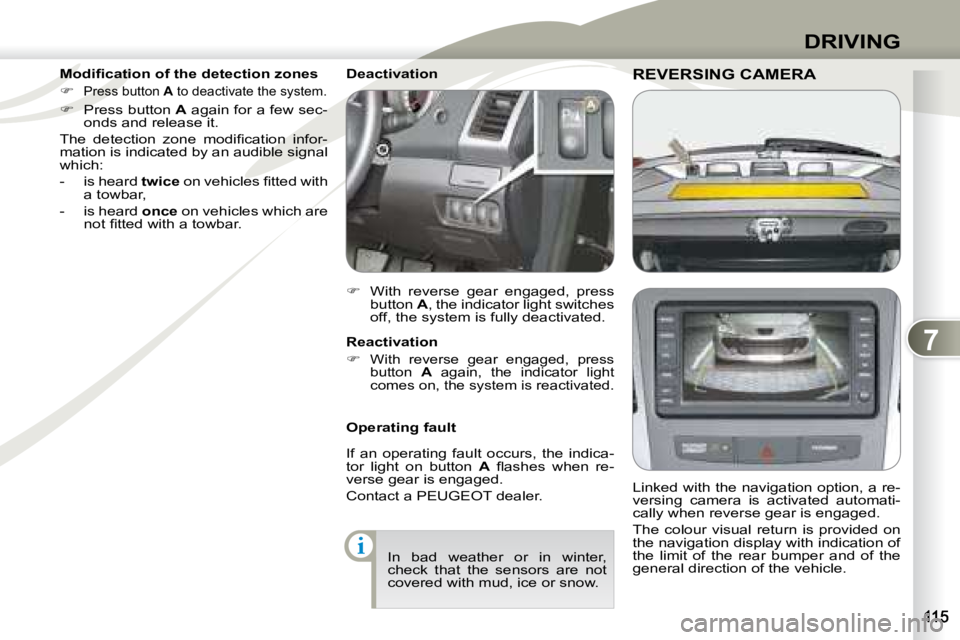

REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl ashes when re-
verse gear is engaged.
Contact a PEUGEOT dealer.
In bad weather or in winter,
check that the sensors are not
covered with mud, ice or snow.
Deactivation

 With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation


With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
Modifi cation of the detection zones


Press button A to deactivate the system.

 Press button A again for a few sec-
onds and release it.
The detection zone modifi cation infor-
mation is indicated by an audible signal
which:
- is heard twice on vehicles fi tted with
a towbar,
- is heard once on vehicles which are
not fi tted with a towbar.

7
i
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl ashes when re-
verse gear is engaged.
Contact a PEUGEOT dealer.
In bad weather or in winter,
check that the sensors are not
covered with mud, ice or snow.
Deactivation

 With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation


With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
Modifi cation of the detection zones


Press button A to deactivate the system.

 Press button A again for a few sec-
onds and release it.
The detection zone modifi cation infor-
mation is indicated by an audible signal
which:
- is heard twice on vehicles fi tted with
a towbar,
- is heard once on vehicles which are
not fi tted with a towbar.

8
CHECKS

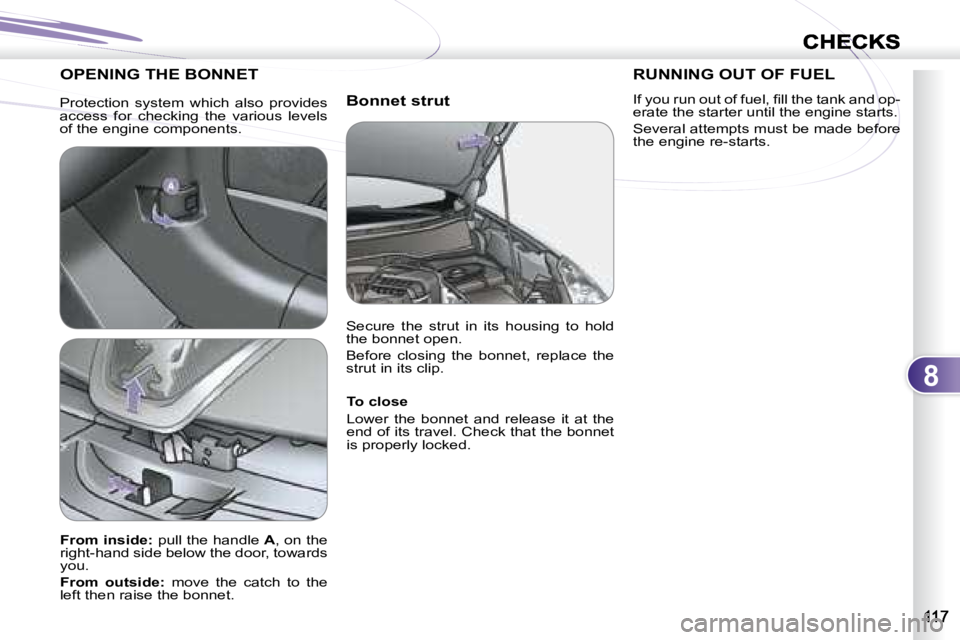

Bonnet strut
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.

From inside: pull the handle A , on the
right-hand side below the door, towards
you.

From outside: move the catch to the
left then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.
RUNNING OUT OF FUEL
If you run out of fuel, fi ll the tank and op-
erate the starter until the engine starts.
Several attempts must be made before
the engine re-starts.
Protection system which also provides
access for checking the various levels
of the engine components.

8
CHECKSCHECKS

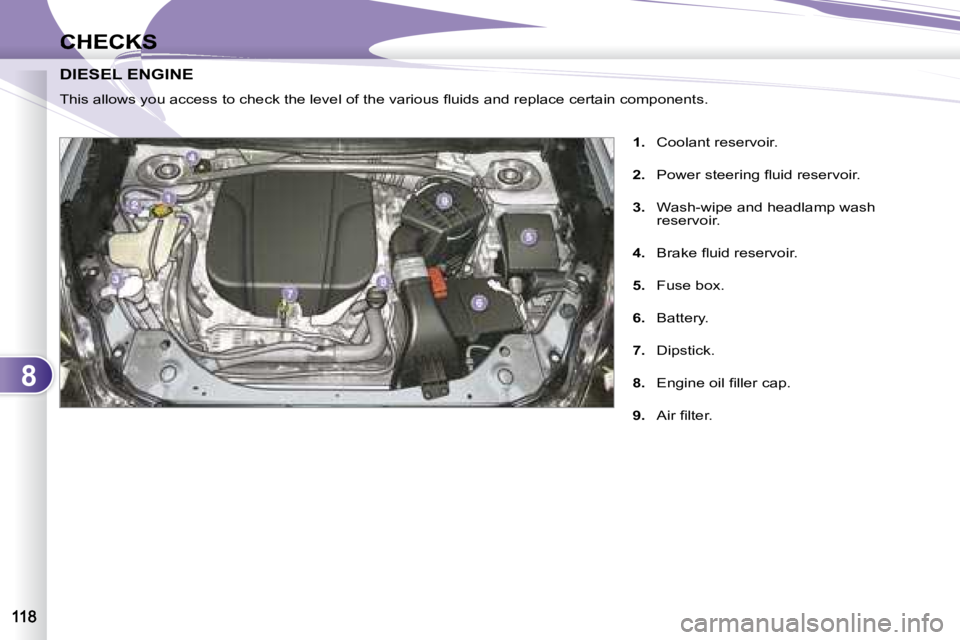

DIESEL ENGINE DIESEL ENGINE
This allows you access to check the level of the various fl uids and replace certain components.

1. Coolant reservoir.

2. Power steering fl uid reservoir.

3. Wash-wipe and headlamp wash
reservoir.

4. Brake fl uid reservoir.

5. Fuse box.

6. Battery.

7. Dipstick.

8. Engine oil fi ller cap.

9. Air fi lter.
