2007 PEUGEOT 4007 Owners Manual

1
CRUISE
INSTRUMENTS and CONTROLS

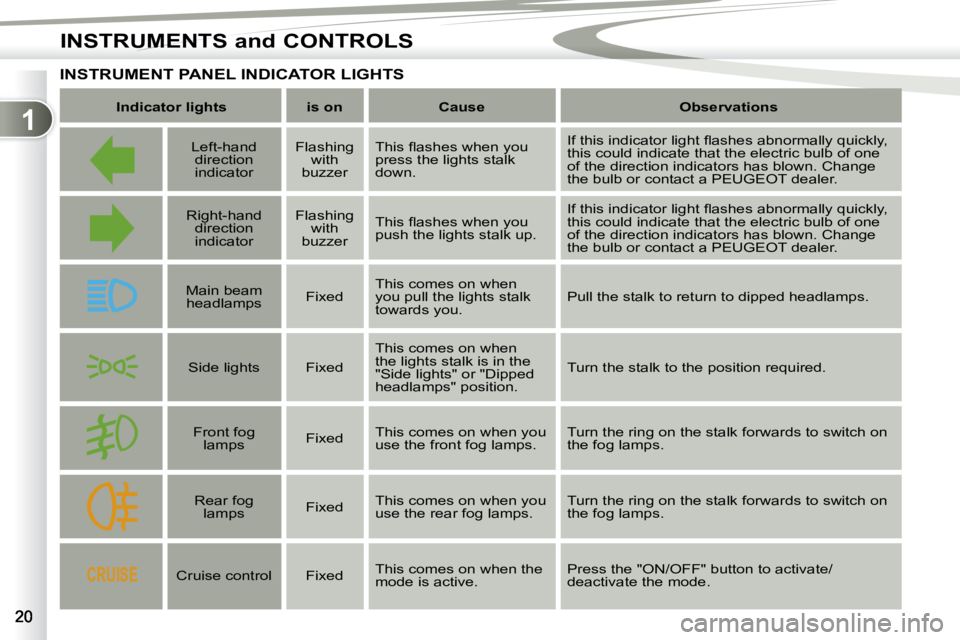

INSTRUMENT PANEL INDICATOR LIGHTS

Indicator lights is on Cause Observations
Left-hand
direction
indicator Flashing
with
buzzer This fl ashes when you
press the lights stalk
down. If this indicator light fl ashes abnormally quickly,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
buzzer This fl ashes when you
push the lights stalk up. If this indicator light fl ashes abnormally quickly,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. Turn the stalk to the position required.
Front fog
lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog
lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.

1
INSTRUMENTS and CONTROLS

Indicator lights is on Cause Observations
Diesel
pre-heating Fixed This comes on when
the ignition switch is at
ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.

Warning lights is on Cause Observations
Handbrake/
Brake fl uid level Fixed This comes on for a
few seconds when the
ignition is turned to
"ON" then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the
handbrak²e to switch off the warning light.
The brake fl uid level is
too low. It is accompanied by a message on the
instrument panel display. Top up with brake fl uid
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl ashing This comes on or
fl ashes if the system
fails. Contact a PEUGEOT dealer without delay.
It should switch off a few seconds after starting
the engine.
Battery charge Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the "Battery" section).

1
INSTRUMENTS and CONTROLS

Warning lights is on Cause Solution - action
Driver’s
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat
belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.
ABS Fixed This comes on if an
anti-lock braking
system failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Contact a PEUGEOT
dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to
"ON" then switches off.
It should switch off when the engine is started.
If it does not switch off, contact a PEUGEOT
dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a PEUGEOT dealer without delay.

1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on continu -
ously or fl ashes. This initial warning may be accompanied by an audible signal and a message on the display. Do not ignore
these warnings.
When the cause of the appearance of the warning light o r warning message has been rectifi ed, the warning disappears fro m
the display automatically. If the cause of the warning is n ot rectifi ed, you can return to the previous screen at any time b y
pressing the INFO button on the fascia.
The symbol "!" is displayed.
To return to the previous screen (with the "!" symbol), you must press the INFO button several times.
INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can shut down the warning messages which show these symbol
s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press briefl y . Press and hold .
Symbols which appear in the top right corner of the di
splay.

Message is on
Associated
warning light
Cause Solution - action Observations

Key in
ignition Fixed - The driver’s door
is open and you
have forgotten to
remove the key
from the ignition. Turn the ignition
switch to the LOCK
position and remove
the key.
Only if the engine has
been started.
An intermittent audible
signal is heard.
Lights left on Fixed - You have
forgotten to
switch off your
lights. Switch off your lights
by placing the stalk
at OFF.
An intermittent audible
signal is heard.

1
INSTRUMENTS and CONTROLS

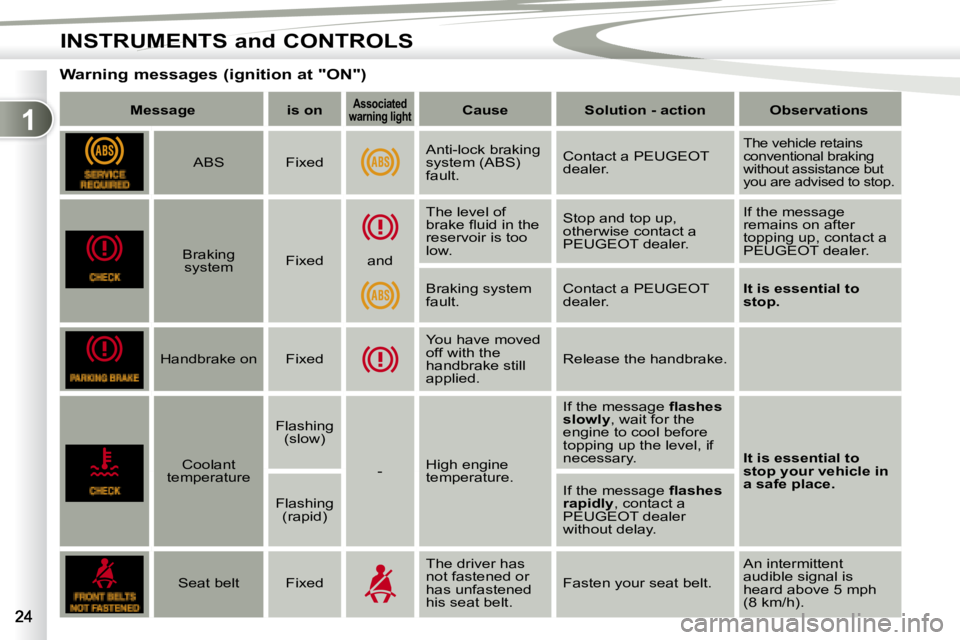

Warning messages (ignition at "ON")
Message is on
Associated
warning light
Cause Solution - action Observations
ABS Fixed Anti-lock braking
system (ABS)
fault. Contact a PEUGEOT
dealer.
The vehicle retains
conventional braking
without assistance but
you are advised to stop.

Braking
system Fixed and The level of
brake fl uid in the
reservoir is too
low.
Stop and top up,
otherwise contact a
PEUGEOT dealer. If the message
remains on after
topping up, contact a
PEUGEOT dealer.
Braking system
fault. Contact a PEUGEOT
dealer.
It is essential to
stop.
Handbrake on Fixed You have moved
off with the
handbrake still
applied. Release the handbrake.
Coolant
temperature Flashing
(slow)
- High engine
temperature. If the message
fl ashes
slowly , wait for the
engine to cool before
topping up the level, if
necessary.
It is essential to
stop your vehicle in
a safe place.
Flashing (rapid) If the message
fl ashes
rapidly , contact a
PEUGEOT dealer
without delay.
Seat belt Fixed The driver has
not fastened or
has unfastened
his seat belt. Fasten your seat belt. An intermittent
audible signal is
heard above 5 mph
(8 km/h).

1
!
INSTRUMENTS and CONTROLS

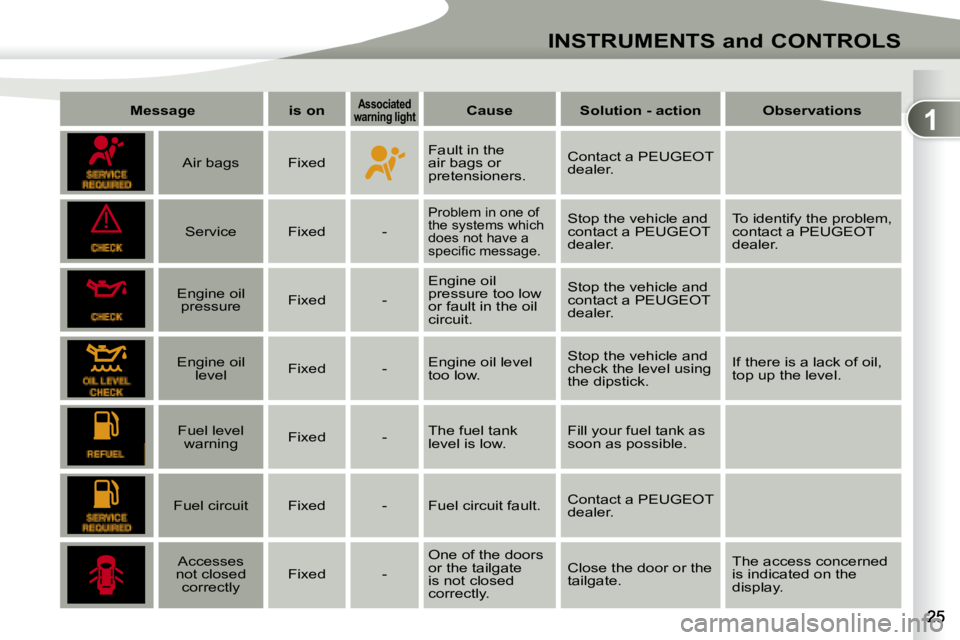

Message is on Associated
warning light
Cause Solution - action Observations
Air bags Fixed
Fault in the
air bags or
pretensioners. Contact a PEUGEOT
dealer.

Service Fixed -
Problem in one of
the systems which
does not have a
specifi c message. Stop the vehicle and
contact a PEUGEOT
dealer. To identify the problem,
contact a PEUGEOT
dealer.
Engine oil
pressure Fixed - Engine oil
pressure too low
or fault in the oil
circuit. Stop the vehicle and
contact a PEUGEOT
dealer.

Engine oil
level Fixed - Engine oil level
too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning Fixed - The fuel tank
level is low. Fill your fuel tank as
soon as possible.

Fuel circuit Fixed - Fuel circuit fault. Contact a PEUGEOT
dealer.

Accesses
not closed correctly Fixed - One of the doors
or the tailgate
is not closed
correctly. Close the door or the
tailgate.
The access concerned
is indicated on the
display.

1
INSTRUMENTS and CONTROLS

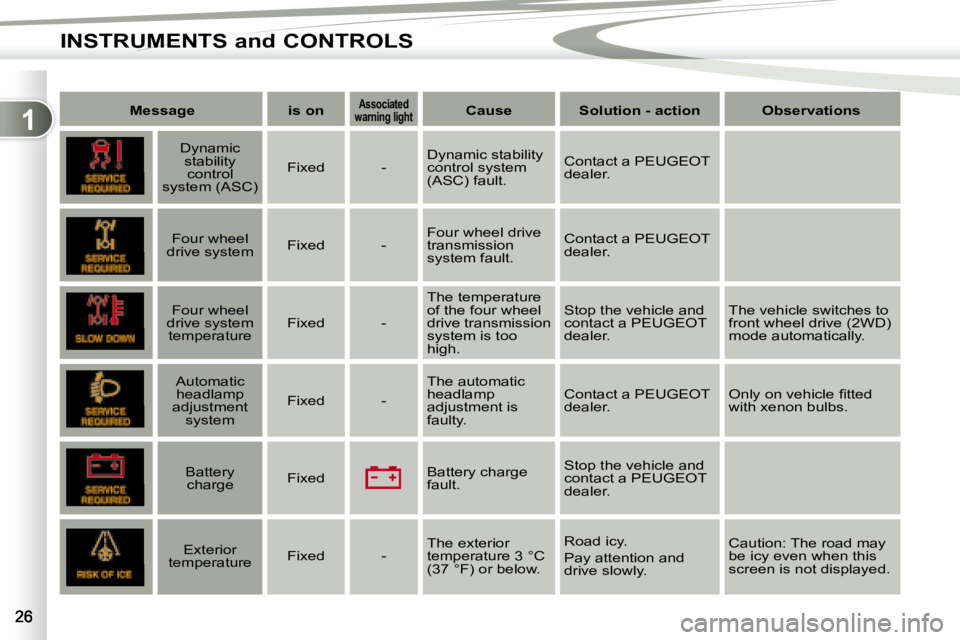

Message is on
Associated
warning light
Cause Solution - action Observations
Dynamic
stability control
system (ASC) Fixed -
Dynamic stability
control system
(ASC) fault. Contact a PEUGEOT
dealer.

Four wheel
drive system Fixed - Four wheel drive
transmission
system fault. Contact a PEUGEOT
dealer.

Four wheel
drive system temperature Fixed - The temperature
of the four wheel
drive transmission
system is too
high. Stop the vehicle and
contact a PEUGEOT
dealer.
The vehicle switches to
front wheel drive (2WD)
mode automatically.
Automatic
headlamp
adjustment system Fixed - The automatic
headlamp
adjustment is
faulty. Contact a PEUGEOT
dealer.
Only on vehicle fi tted
with xenon bulbs.
Battery
charge Fixed
Battery charge
fault. Stop the vehicle and
contact a PEUGEOT
dealer.

Exterior
temperature Fixed - The exterior
temperature 3 °C
(37 °F) or below. Road icy.
Pay attention and
drive slowly. Caution: The road may
be icy even when this
screen is not displayed.

1
INSTRUMENTS and CONTROLS

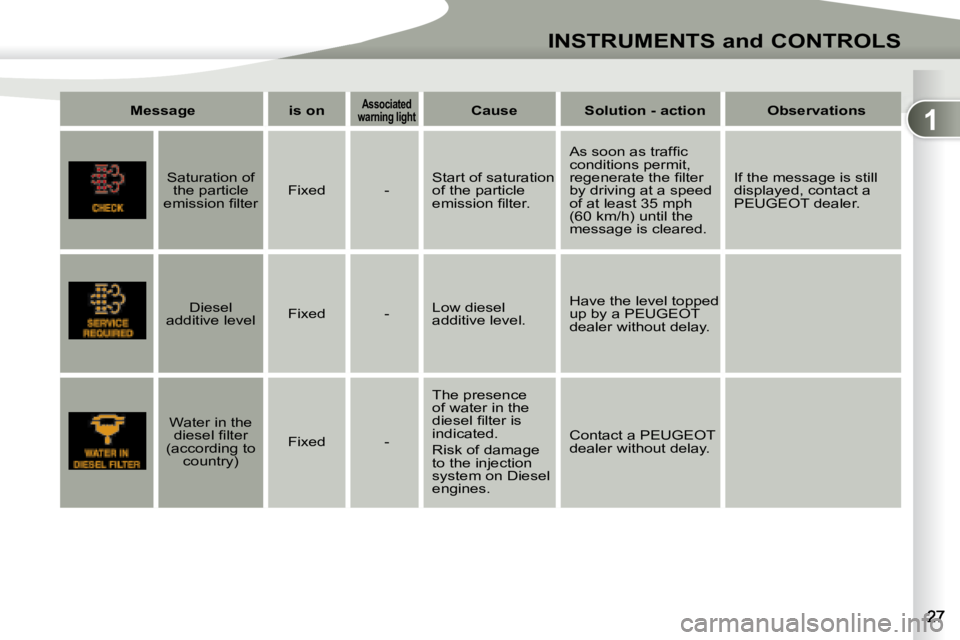

Messageis onAssociated warning light warning lightwarning lightCauseSolution - actionObservations
Saturation of
the particle
emission fi lter Fixed - Start of saturation
of the particle
emission fi lter. As soon as traffi c
conditions permit,
regenerate the fi lter
by driving at a speed
of at least 35 mph
(60 km/h) until the
message is cleared. If the message is still
displayed, contact a
PEUGEOT dealer.
Diesel
additive level Fixed - Low diesel
additive level. Have the level topped
up by a PEUGEOT
dealer without delay.

Water in the
diesel fi lter
(according to country) Fixed - The presence
of water in the
diesel fi lter is
indicated.
Risk of damage
to the injection
system on Diesel
engines. Contact a PEUGEOT
dealer without delay.
