2007 PEUGEOT 4007 Owners Manual

9
PRACTICAL INFORMATION
TOWING A TRAILER, CARAVAN, TOWING A TRAILER, CARAVAN,
ETC.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
Distribution of loads

 Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing
load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle. The maximum towing load on a long
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Side wind

 Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

 To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres

 Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lights

 Check the electrical signalling on
the trailer.
 If this message is
displayed, stop your
vehicle as soon as it
is safe to do so.
If the message fl ashes slowly, wait for
the engine to cool before topping up the
level, if necessary.
If the message fl ashes rapidly, contact
a PEUGEOT dealer without delay.
Opening of the lower tailgate is
prohibited if a towbar is being
used.
Driving with a trailer subjects the towing
vehicle to more signifi cant stress and
its driver must be particularly careful.
We recommend the use of origi-
nal PEUGEOT towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle and that the
fi tting of the towbar is entrusted
to a PEUGEOT dealer.
If the towbar is not fi tted by a
PEUGEOT dealer, it is impera-
tive that it is fi tted using the
electrical pre-equipment located
at the rear of the vehicle and in
accordance with the manufac-
turer’s instructions.

9
i
PRACTICAL INFORMATION

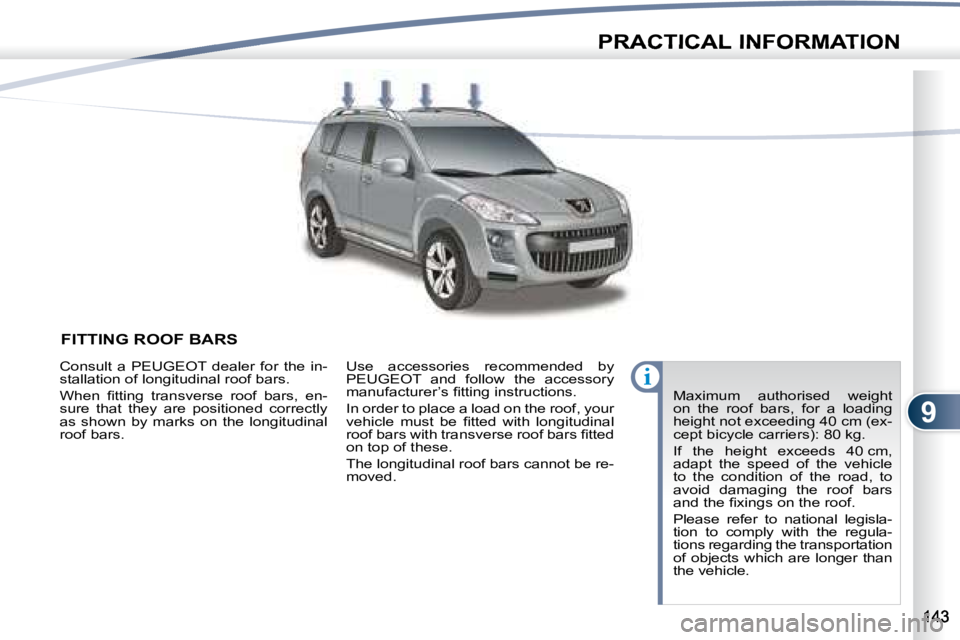

FITTING ROOF BARS
Maximum authorised weight
on the roof bars, for a loading
height not exceeding 40 cm (ex-
cept bicycle carriers): 80 kg.
If the height exceeds 40 cm,
adapt the speed of the vehicle
to the condition of the road, to
avoid damaging the roof bars
and the fi xings on the roof.
Please refer to national legisla-
tion to comply with the regula-
tions regarding the transportation
of objects which are longer than
the vehicle.
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
When fi tting transverse roof bars, en-
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer’s fi tting instructions.
In order to place a load on the roof, your
vehicle must be fi tted with longitudinal
roof bars with transverse roof bars fi tted
on top of these.
The longitudinal roof bars cannot be re-
moved.

9i
i
PRACTICAL INFORMATION
The fi tting of electrical equipment
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle’s
electronic system.
Please note this specifi c warn-
ing. You are advised to contact
a representative of the Marque
to be shown the range of recom-
mended equipment and acces-
sories.

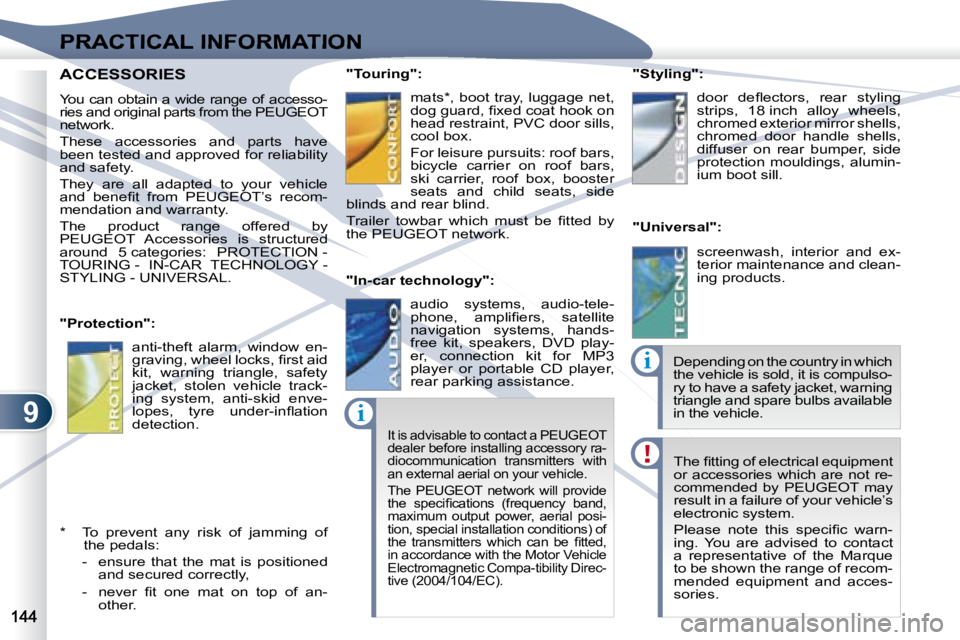

ACCESSORIES ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
and benefi t from PEUGEOT’s recom-
mendation and warranty.
The product range offered by
PEUGEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of an- other. Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a safety jacket, warning
triangle and spare bulbs available
in the vehicle.
anti-theft alarm, window en-
graving, wheel locks, fi rst aid
kit, warning triangle, safety
jacket, stolen vehicle track-
ing system, anti-skid enve-
lopes, tyre under-infl ation
detection. mats * , boot tray, luggage net,
dog guard, fi xed coat hook on
head restraint, PVC door sills,
cool box.
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
ski carrier, roof box, booster
seats and child seats, side
blinds and rear blind.
Trailer towbar which must be fi tted by
the PEUGEOT network.
audio systems, audio-tele-
phone, amplifi ers, satellite
navigation systems, hands-
free kit, speakers, DVD play-
er, connection kit for MP3
player or portable CD player,
rear parking assistance. door defl ectors, rear styling
strips, 18 inch alloy wheels,
chromed exterior mirror shells,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, alumin-
ium boot sill.
screenwash, interior and ex-
terior maintenance and clean-
ing products.
It is advisable to contact a PEUGEOT
dealer before installing accessory ra-
diocommunication transmitters with
an external aerial on your vehicle.
The PEUGEOT network will provide
the specifi cations (frequency band,
maximum output power, aerial posi-
tion, special installation conditions) of
the transmitters which can be fi tted,
in accordance with the Motor Vehicle
Electromagnetic Compa-tibility Direc-
tive (2004/104/EC).

10
TECHNICAL DATA

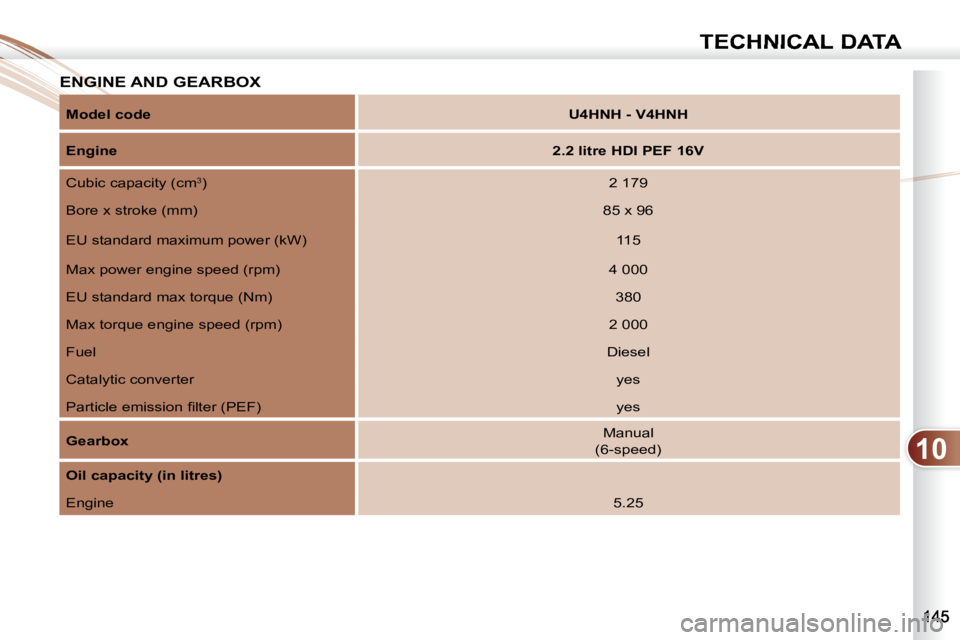

ENGINE AND GEARBOX ENGINE

Model code
U4HNH - V4HNH

Engine
2.2 litre HDI PEF 16V
Cubic capacity (cm 3
) 2 179
Bore x stroke (mm) 85 x 96
EU standard maximum power (kW) 115
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 380
Max torque engine speed (rpm) 2 000
Fuel Diesel
Catalytic converter yes
Particle emission fi lter (PEF) yes

Gearbox Manual
(6-speed)

Oil capacity (in litres)
Engine 5.25

10
TECHNICAL DATA

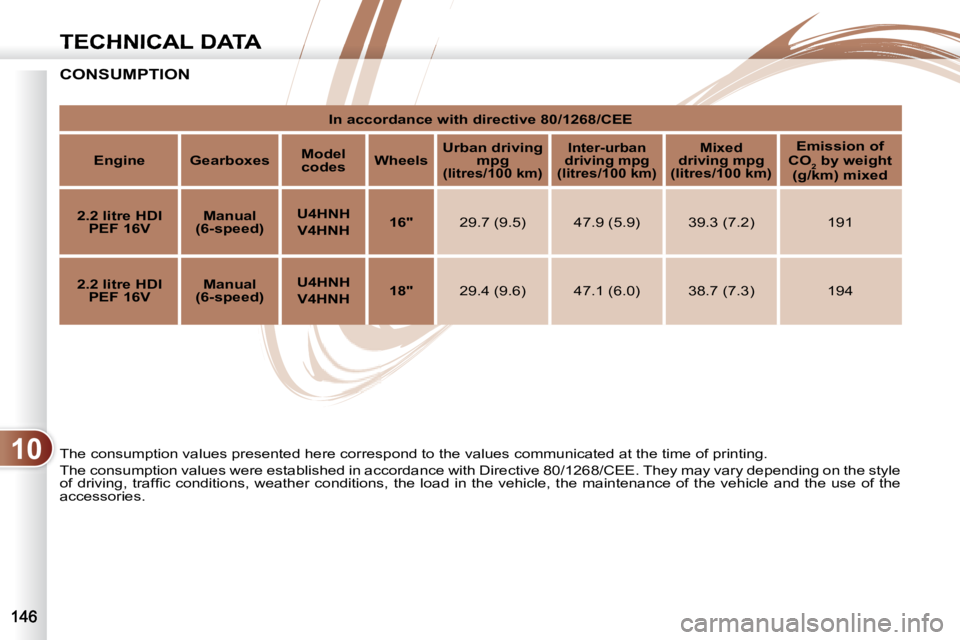

CONSUMPTION
The consumption values presented here correspond to the values communicated at the time of printing.
The consumption values were established in accordance with Dire ctive 80/1268/CEE. They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the u se of the
accessories.
In accordance with directive 80/1268/CEE

Engine Gearboxes
Model
codes
Wheels
Urban driving
mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)

Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by weight
(g/km) mixed

2.2 litre HDI
PEF 16V
Manual

(6-speed)
U4HNH

V4HNH
16" 29.7 (9.5) 47.9 (5.9) 39.3 (7.2) 191

2.2 litre HDI
PEF 16V
Manual
(6-speed)
U4HNH

V4HNH
18" 29.4 (9.6) 47.1 (6.0) 38.7 (7.3) 194

10
TECHNICAL DATA

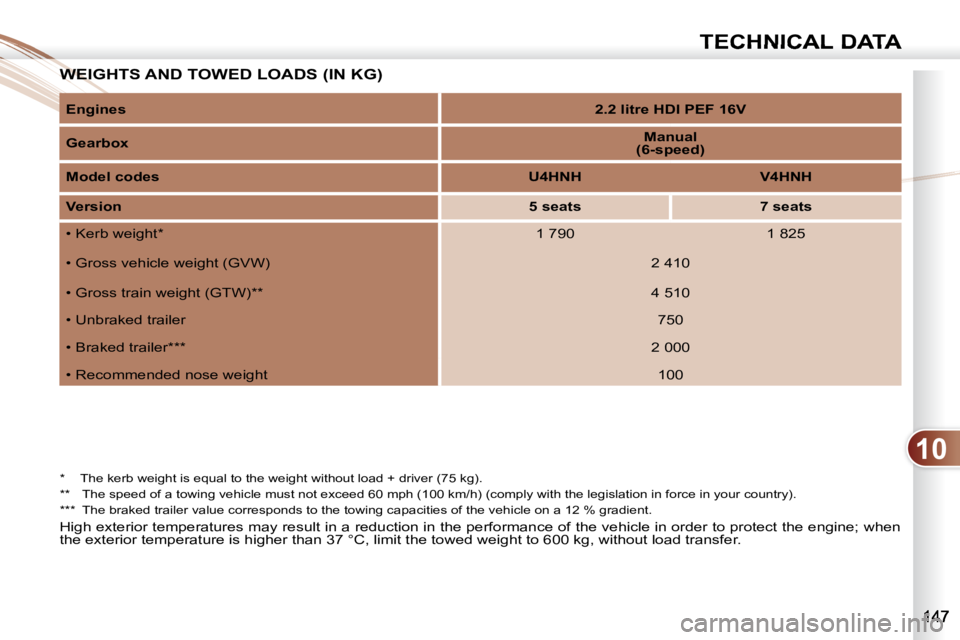

WEIGHTS AND TOWED LOADS (IN KG) WEIGHTS
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing ca pacities of the vehicle on a 12 % gradient.
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the tow ed weight to 600 kg, without load transfer.

Engines
2.2 litre HDI PEF 16V

Gearbox
Manual
(6-speed)

Model codes
U4HNH V4HNH

Version
5 seats 7 seats

10
TECHNICAL DATA

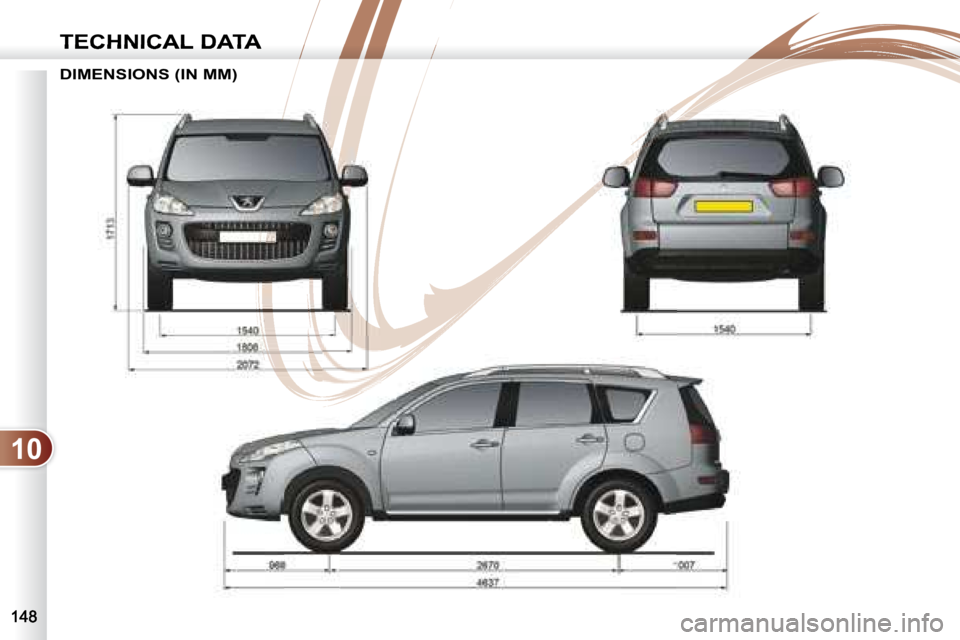

DIMENSIONS (IN MM)

10
i
TECHNICAL DATA

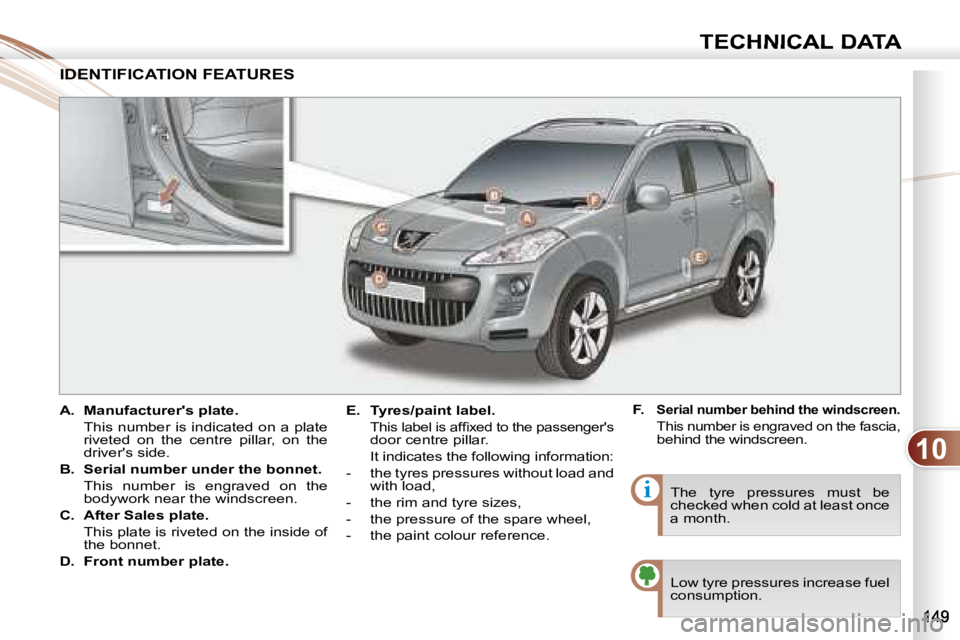

A. Manufacturer's plate.
This number is indicated on a plate riveted on the centre pillar, on the
driver's side.

B. Serial number under the bonnet.
This number is engraved on the bodywork near the windscreen.

C. After Sales plate.
This plate is riveted on the inside of the bonnet.

D. Front number plate.
E. Tyres/paint label.

This label is affi xed to the passenger's door centre pillar.
It indicates the following information:
- the tyres pressures without load and with load,
- the rim and tyre sizes,
- the pressure of the spare wheel,
- the paint colour reference. The tyre pressures must be
checked when cold at least once
a month.
IDENTIFICATION FEATURES IDENTIFICA
Low tyre pressures increase fuel
consumption.

F.
Serial number behind the windscreen.
This number is engraved on the fascia, behind the windscreen.
