2007 PEUGEOT 4007 Owners Manual

11
i
i
EQUIPMENT and TELEMA

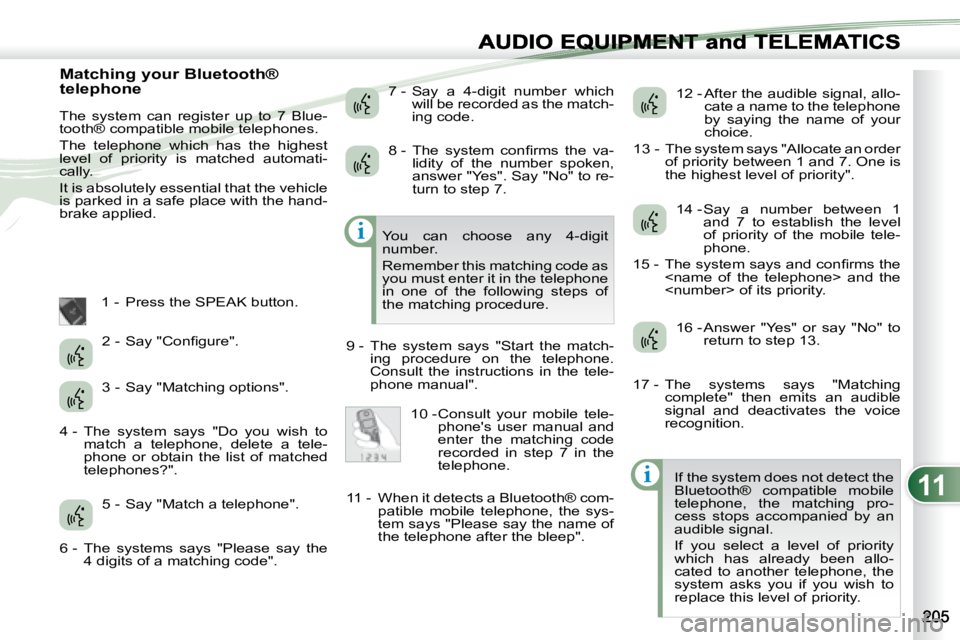

Matching your Bluetooth®
telephone
The system can register up to 7 Blue-
tooth® compatible mobile telephones.
The telephone which has the highest
level of priority is matched automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the hand-
brake applied.
1 - Press the SPEAK button. 7 - Say a 4-digit number which
will be recorded as the match-
ing code. 12 - After the audible signal, allo-
cate a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order of priority between 1 and 7. One is
the highest level of priority".
If the system does not detect the
Bluetooth® compatible mobile
telephone, the matching pro-
cess stops accompanied by an
audible signal.
If you select a level of priority
which has already been allo-
cated to another telephone, the
system asks you if you wish to
replace this level of priority.
You can choose any 4-digit
number.
Remember this matching code as
you must enter it in the telephone
in one of the following steps of
the matching procedure.
9 - The system says "Start the match- ing procedure on the telephone.
Consult the instructions in the tele-
phone manual".
2 - Say "Confi gure".
3 - Say "Matching options".
4 - The system says "Do you wish to match a telephone, delete a tele-
phone or obtain the list of matched
telephones?".
5 - Say "Match a telephone".
6 - The systems says "Please say the 4 digits of a matching code". 8 - The system confi rms the va-
lidity of the number spoken,
answer "Yes". Say "No" to re-
turn to step 7.
10 - Consult your mobile tele- phone's user manual and
enter the matching code
recorded in step 7 in the
telephone.
11 - When it detects a Bluetooth® com- patible mobile telephone, the sys-
tem says "Please say the name of
the telephone after the bleep". 14 - Say a number between 1
and 7 to establish the level
of priority of the mobile tele-
phone.
15 - The system says and confi rms the and the
of its priority.
16 - Answer "Yes" or say "No" to return to step 13.
17 - The systems says "Matching complete" then emits an audible
signal and deactivates the voice
recognition.

11
i
AUDIO EQUIPMENT and TELEMATICS

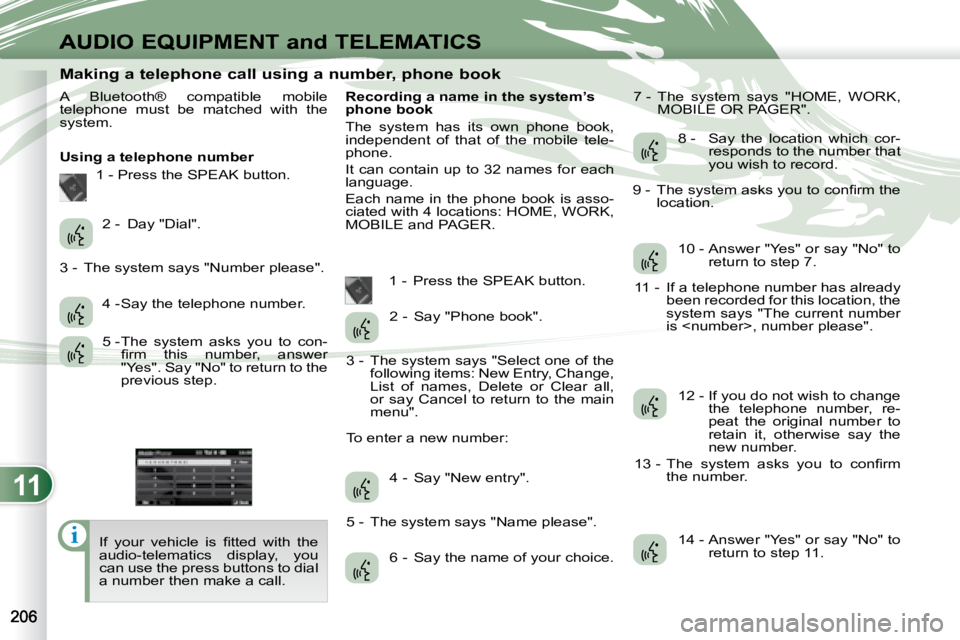

Making a telephone call using a number, phone book
A Bluetooth® compatible mobile
telephone must be matched with the
system.
Using a telephone number 1 - Press the SPEAK button.
If your vehicle is fi tted with the
audio-telematics display, you
can use the press buttons to dial
a number then make a call. Recording a name in the system’s
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
3 - The system says "Number please". 4 - Say the telephone number.
5 - The system asks you to con-fi rm this number, answer
"Yes". Say "No" to return to the
previous step. 2 - Say "Phone book".
3 - The system says "Select one of the following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
To enter a new number:
4 - Say "New entry".
5 - The system says "Name please". 6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
9 - The system asks you to confi rm the location.
10 - Answer "Yes" or say "No" to return to step 7.
11 - If a telephone number has already been recorded for this location, the
system says "The current number
is , number please".
12 - If you do not wish to change the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
13 - The system asks you to confi rm the number.
14 - Answer "Yes" or say "No" to return to step 11.

11
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

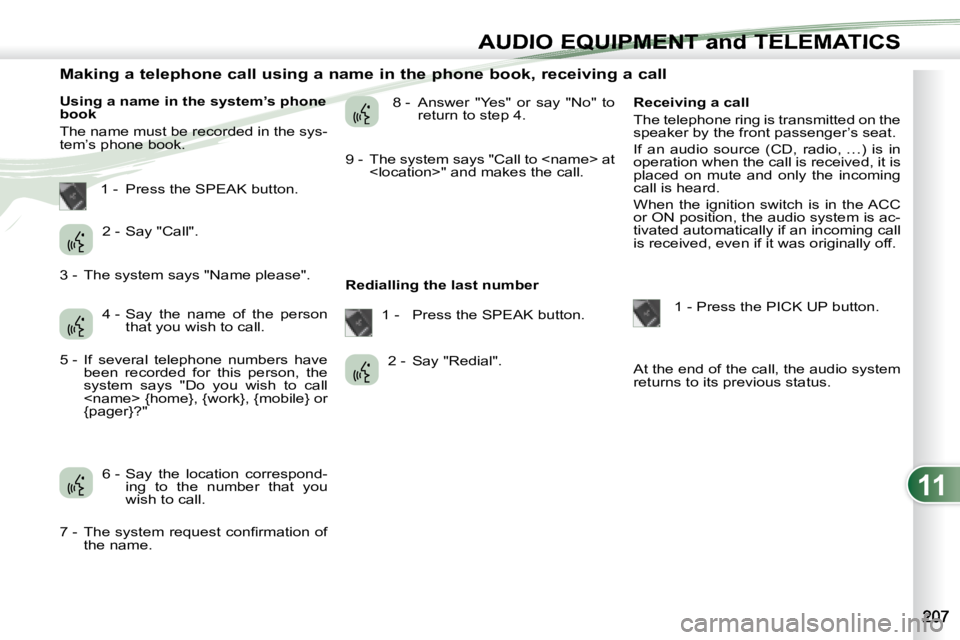

Making a telephone call using a name in the phone book, receiving a call
Using a name in the system’s phone
book
The name must be recorded in the sys-
tem’s phone book. 8 - Answer "Yes" or say "No" to
return to step 4.
9 - The system says "Call to at " and makes the call.
Redialling the last number Receiving a call
The telephone ring is transmitted on the
speaker by the front passenger’s seat.
If an audio source (CD, radio, …) is in
operation when the call is received, it is
placed on mute and only the incoming
call is heard.
When the ignition switch is in the ACC
or ON position, the audio system is ac-
tivated automatically if an incoming call
is received, even if it was originally off.
1 - Press the PICK UP button.
At the end of the call, the audio system
returns to its previous status.
1 - Press the SPEAK button.
2 - Say "Call".
3 - The system says "Name please". 4 - Say the name of the person that you wish to call.
5 - If several telephone numbers have been recorded for this person, the
system says "Do you wish to call
{home}, {work}, {mobile} or
{pager
}?"
6 - Say the location correspond- ing to the number that you
wish to call.
7 - The system request confi rmation of the name. 1 - Press the SPEAK button.
2 - Say "Redial".

11
i
AUDIO EQUIPMENT and TELEMATICS
When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the
current situation.
Voice commands (1/2)
Press this button to start the voice recognition.
Confi gure
Phone book
Dial
Call
Redial
Emergency number
Matching options
Match a telephone
Delete a telephone
List of matched telephones
Select a telephone
Previous Divert the call
Add a location
Confi gure the confi rmation requests
Language
New entry
Delete
Change
Call this number
Change another entry
Try again
Clear all
List of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
Mute
Deactivate mute
Yes
No

11
i
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

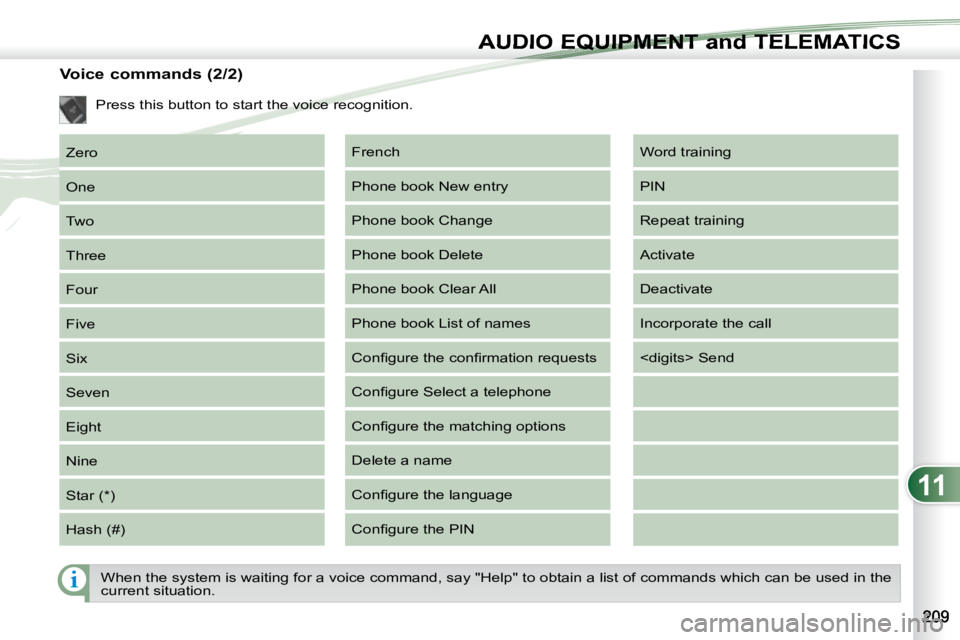

Voice commands (2/2) Zero
One
Two
Three
Four
Five
Six
Seven
Eight
Nine
Star (*)
Hash (#) Word training
PIN
Repeat training
Activate
Deactivate
Incorporate the call
Send
French
Phone book New entry
Phone book Change
Phone book Delete
Phone book Clear All
Phone book List of names
Confi gure the confi rmation requests
Confi gure Select a telephone
Confi gure the matching options
Delete a name
Confi gure the language
Confi gure the PIN
Press this button to start the voice recognition.
When the system is waiting for a voice command, say "Help" t o obtain a list of commands which can be used in the
current situation.
