2007 PEUGEOT 4007 Owners Manual

5
i
CHILD SAFETY
The incorrect installation of a
child seat in a vehicle compro-
mises the child’s protection in
the event of an accident. For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the loca-
tion of the ISOFIX child seats.

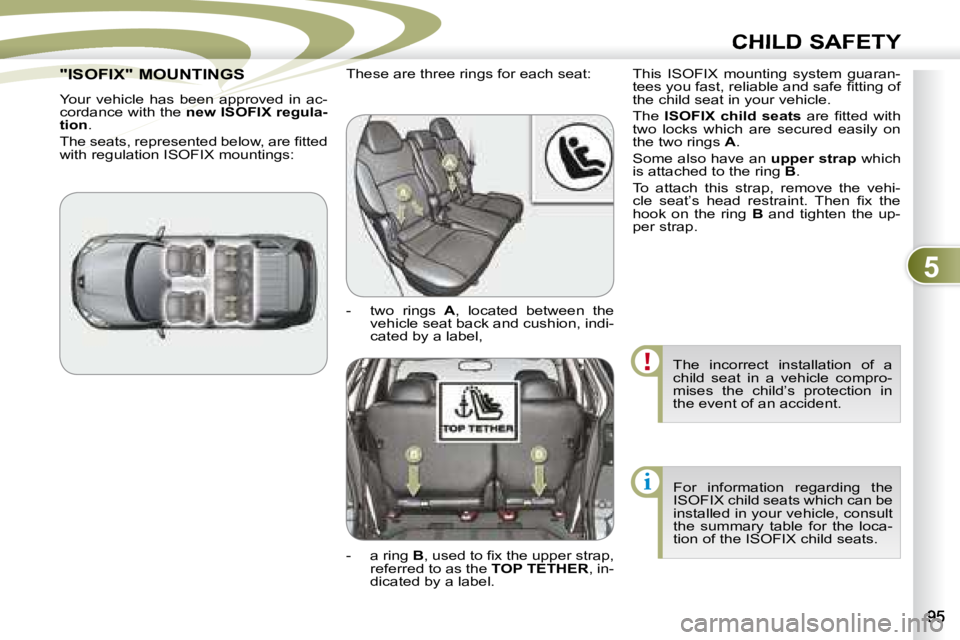

"ISOFIX" MOUNTINGS
Your vehicle has been approved in ac-
cordance with the
new ISOFIX regula-
tion .
The seats, represented below, are fi tted
with regulation ISOFIX mountings: These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , used to fi x the upper strap,
referred to as the TOP TETHER , in-
dicated by a label. This ISOFIX mounting system guaran-
tees you fast, reliable and safe fi tting of
the child seat in your vehicle.
The
ISOFIX child seats are fi tted with
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to the ring B .
To attach this strap, remove the vehi-
cle seat’s head restraint. Then fi x the
hook on the ring B and tighten the up-
per strap.

5
i
CHILD SAFETY

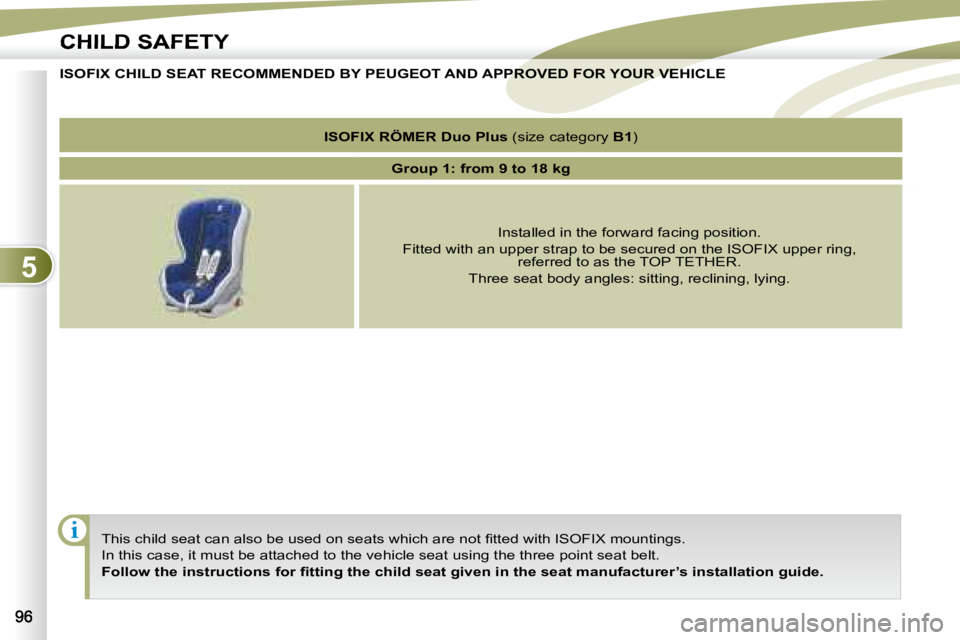

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not fi t ted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer’s installation guide.

ISOFIX RÖMER Duo Plus (size category B1 )

Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX uppe r ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

5
CHILD SAFETY

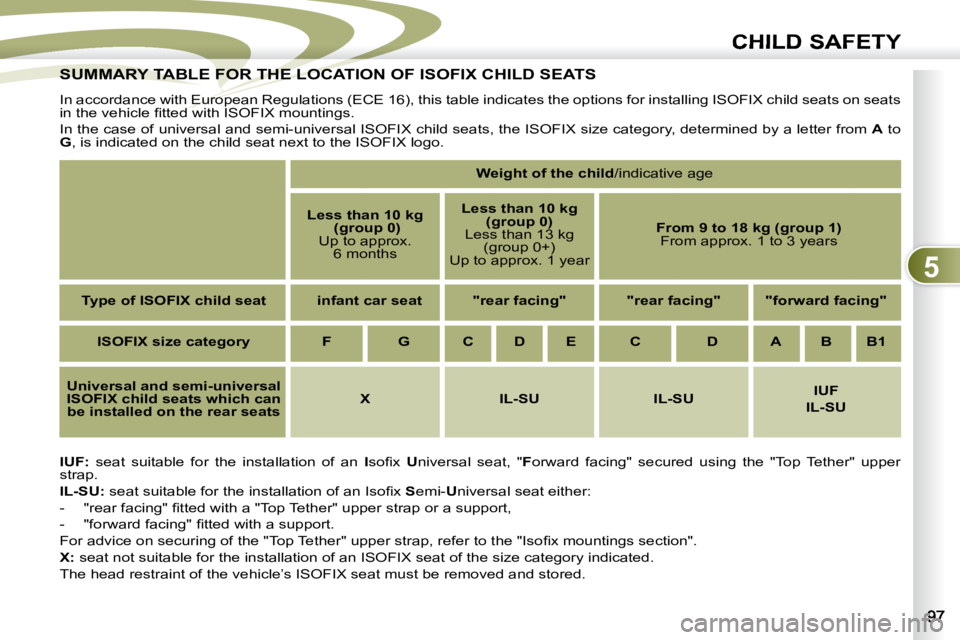

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS SUMMARY TABLE FOR THE LOCA

IUF: seat suitable for the installation of an I sofi x U niversal seat, " F orward facing" secured using the "Top Tether" upper
strap.

IL-SU: seat suitable for the installation of an Isofi x S emi- U niversal seat either:
- "rear facing" fi tted with a "Top Tether" upper strap or a support,
- "forward facing" fi tted with a support.
For advice on securing of the "Top Tether" upper strap, refer to the "Isofi x mountings section".

X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
The head restraint of the vehicle’s ISOFIX seat must be removed and stored.
In accordance with European Regulations (ECE 16), this table i
ndicates the options for installing ISOFIX child seats on seats
in the vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to

G , is indicated on the child seat next to the ISOFIX logo.

Weight of the child /indicative age

Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years

Type of ISOFIX child seat infant car seat "rear facing" "rear facing" "forward facing"

ISOFIX size category F G C D E C D A B B1
Universal and semi-universal ISOFIX child seats which can be installed on the rear seats X IL-SU IL-SU
IUF
IL-SU

5
CHILD SAFETY

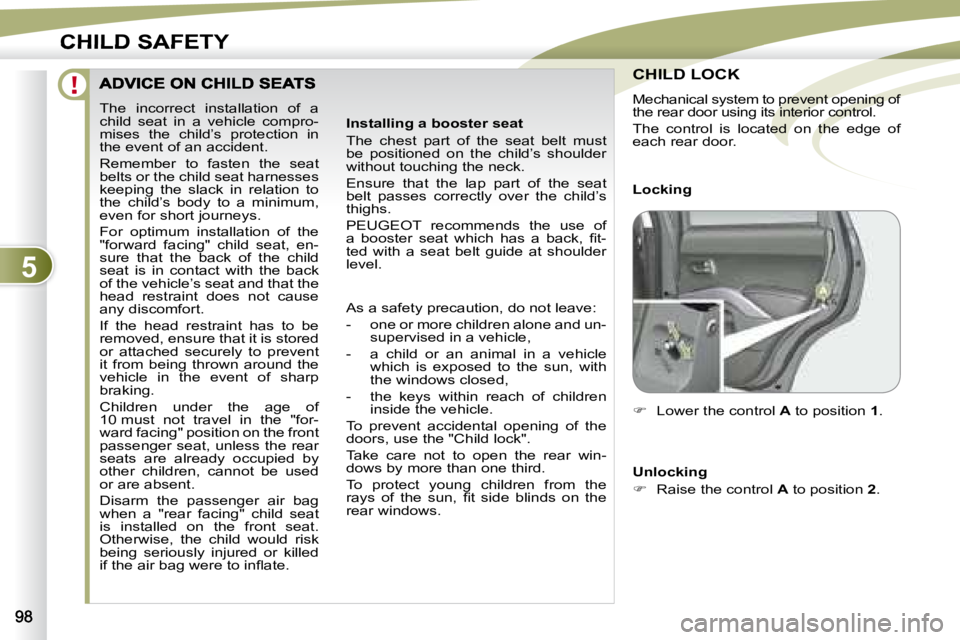

The incorrect installation of a
child seat in a vehicle compro-
mises the child’s protection in
the event of an accident.
Remember to fasten the seat
belts or the child seat harnesses
keeping the slack in relation to
the child’s body to a minimum,
even for short journeys.
For optimum installation of the
"forward facing" child seat, en-
sure that the back of the child
seat is in contact with the back
of the vehicle’s seat and that the
head restraint does not cause
any discomfort.
If the head restraint has to be
removed, ensure that it is stored
or attached securely to prevent
it from being thrown around the
vehicle in the event of sharp
braking.
Children under the age of
10 must not travel in the "for-
ward facing" position on the front
passenger seat, unless the rear
seats are already occupied by
other children, cannot be used
or are absent.
Disarm the passenger air bag
when a "rear facing" child seat
is installed on the front seat.
Otherwise, the child would risk
being seriously injured or killed
if the air bag were to infl ate. Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
CHILD LOCK CHILD LOCK
Mechanical system to prevent opening of
the rear door using its interior control.
The control is located on the edge of
each rear door.

 Lower the control A to position 1 .
Locking
Unlocking

 Raise the control A to position 2 .

6
99

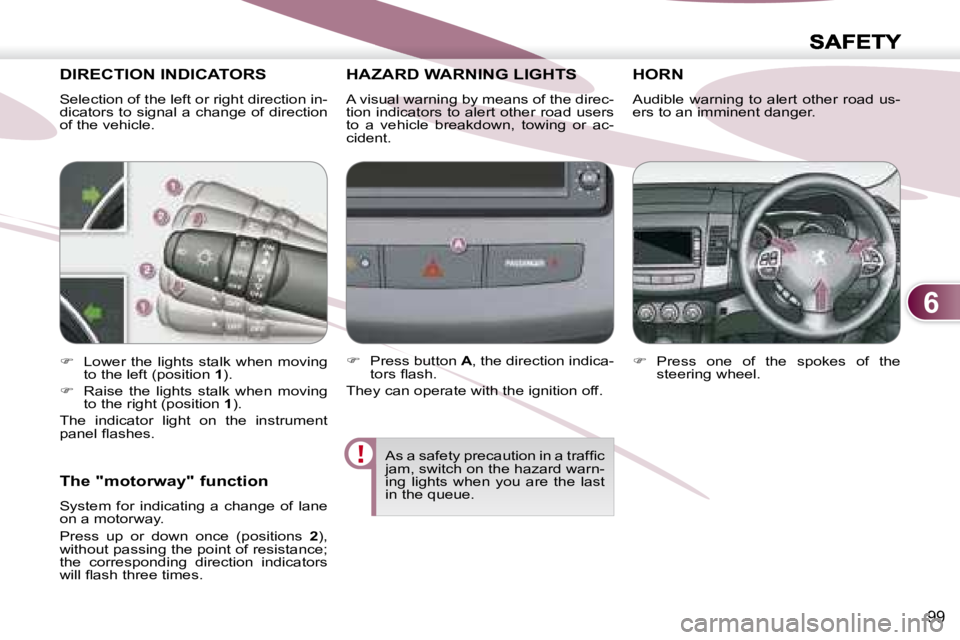

DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
HAZARD WARNING LIGHTS HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
HORN
Audible warning to alert other road us-
ers to an imminent danger.

 Lower the lights stalk when moving
to the left (position 1 ).

 Raise the lights stalk when moving
to the right (position 1 ).
The indicator light on the instrument
panel fl ashes.
As a safety precaution in a traffi c
jam, switch on the hazard warn-
ing lights when you are the last
in the queue.

 Press button A , the direction indica-
tors fl ash.
They can operate with the ignition off.
 Press one of the spokes of the
steering wheel.
The "motorway" function
System for indicating a change of lane
on a motorway.
Press up or down once (positions 2 ),
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.

6ii
SAFETY

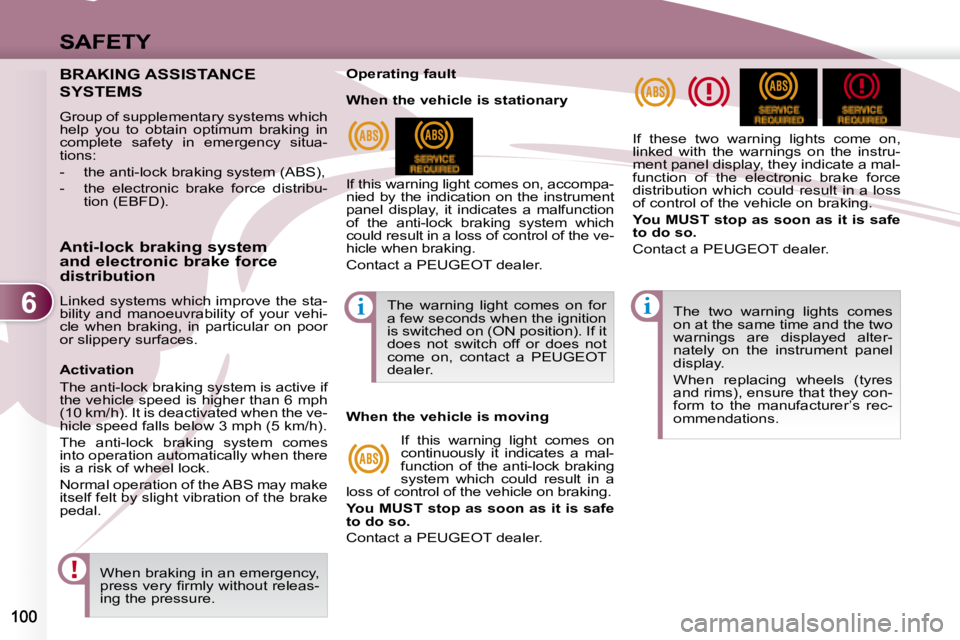

BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:
- the anti-lock braking system (ABS),
- the electronic brake force distribu-tion (EBFD).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.
When braking in an emergency,
press very fi rmly without releas-
ing the pressure. The two warning lights comes
on at the same time and the two
warnings are displayed alter-
nately on the instrument panel
display.
When replacing wheels (tyres
and rims), ensure that they con-
form to the manufacturer’s rec-
ommendations.
Operating fault
If this warning light comes on, accompa-
nied by the indication on the instrument
panel display, it indicates a malfunction
of the anti-lock braking system which
could result in a loss of control of the ve-
hicle when braking.
Contact a PEUGEOT dealer.
If these two warning lights come on,
linked with the warnings on the instru-
ment panel display, they indicate a mal-
function of the electronic brake force
distribution which could result in a loss
of control of the vehicle on braking.

You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer.
Activation
The anti-lock braking system is active if
the vehicle speed is higher than 6 mph
(10 km/h). It is deactivated when the ve-
hicle speed falls below 3 mph (5 km/h).
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. The warning light comes on for
a few seconds when the ignition
is switched on (ON position). If it
does not switch off or does not
come on, contact a PEUGEOT
dealer.
When the vehicle is stationary
When the vehicle is moving
If this warning light comes on
continuously it indicates a mal-
function of the anti-lock braking
system which could result in a
loss of control of the vehicle on braking.

You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer.

6
SAFETY
101

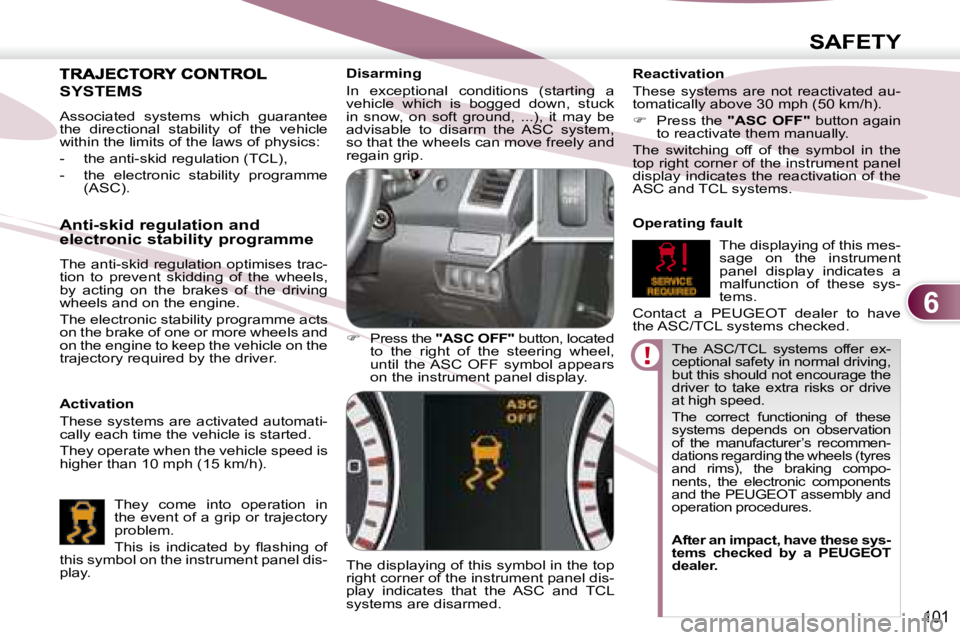

The ASC/TCL systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive
at high speed.

The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking compo-
nents, the electronic components
and the PEUGEOT assembly and
operation procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.

Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASC system,
so that the wheels can move freely and
regain grip.

 Press the "ASC OFF" button, located
to the right of the steering wheel,
until the ASC OFF symbol appears
on the instrument panel display.
The displaying of this symbol in the top
right corner of the instrument panel dis-
play indicates that the ASC and TCL
systems are disarmed. Reactivation
These systems are not reactivated au-
tomatically above 30 mph (50 km/h).

 Press the "ASC OFF" button again
to reactivate them manually.
The switching off of the symbol in the
top right corner of the instrument panel
display indicates the reactivation of the
ASC and TCL systems.
Operating fault
The displaying of this mes-
sage on the instrument
panel display indicates a
malfunction of these sys-
tems.
Contact a PEUGEOT dealer to have
the ASC/TCL systems checked.
SYSTEMS
Associated systems which guarantee
the directional stability of the vehicle
within the limits of the laws of physics:
- the anti-skid regulation (TCL),
- the electronic stability programme (ASC).
Activation
These systems are activated automati-
cally each time the vehicle is started.
They operate when the vehicle speed is
higher than 10 mph (15 km/h).
Anti-skid regulation and
electronic stability programme
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
This is indicated by fl ashing of
this symbol on the instrument panel dis-
play.

6
SAFETY

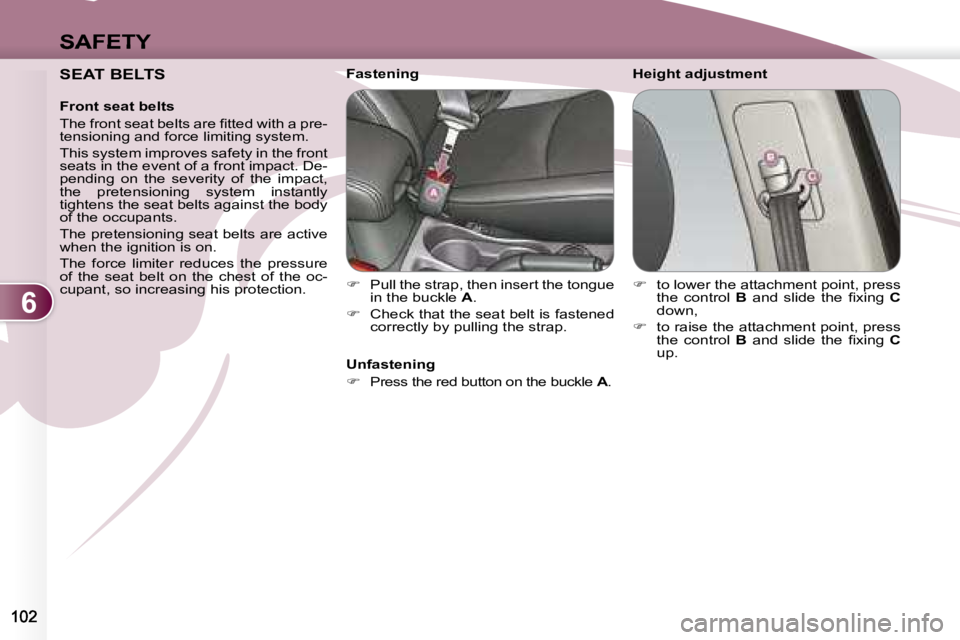

SEAT BELTS
Front seat belts
The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly
tightens the seat belts against the body
of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, so increasing his protection. Height adjustment
Fastening

 Pull the strap, then insert the tongue
in the buckle A .

 Check that the seat belt is fastened
correctly by pulling the strap.
 to lower the attachment point, press
the control B and slide the fi xing C
down,

 to raise the attachment point, press
the control B and slide the fi xing C
up.
Unfastening

 Press the red button on the buckle A .
