2007 PEUGEOT 4007 Owners Manual

3
i
ACCESS

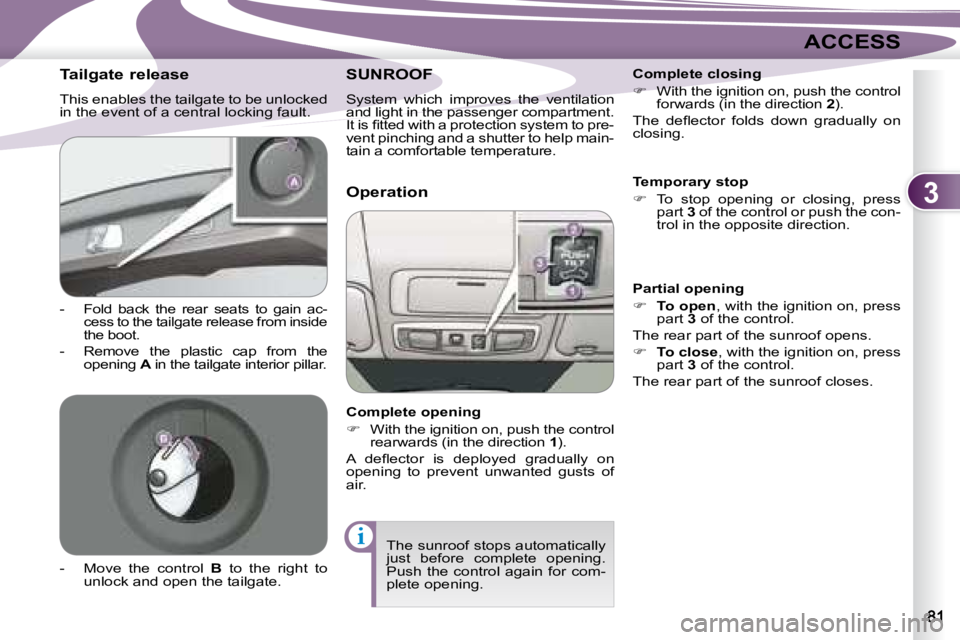

Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
-
Fold back the rear seats to gain ac-
cess to the tailgate release from inside
the boot.
- Remove the plastic cap from the opening A in the tailgate interior pillar.
SUNROOF SUNROOF
System which improves the ventilation
and light in the passenger compartment.
It is fi tted with a protection system to pre-
vent pinching and a shutter to help main-
tain a comfortable temperature.
Complete opening

 With the ignition on, push the control
rearwards (in the direction 1 ).
A defl ector is deployed gradually on
opening to prevent unwanted gusts of
air.
Operation
Complete closing

 With the ignition on, push the control
forwards (in the direction 2 ).
The defl ector folds down gradually on
closing.
Temporary stop

 To stop opening or closing, press
part 3 of the control or push the con-
trol in the opposite direction.
Partial opening

 To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.

 To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes.
- Move the control B to the right to
unlock and open the tailgate. The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening.

3
i
ACCESS

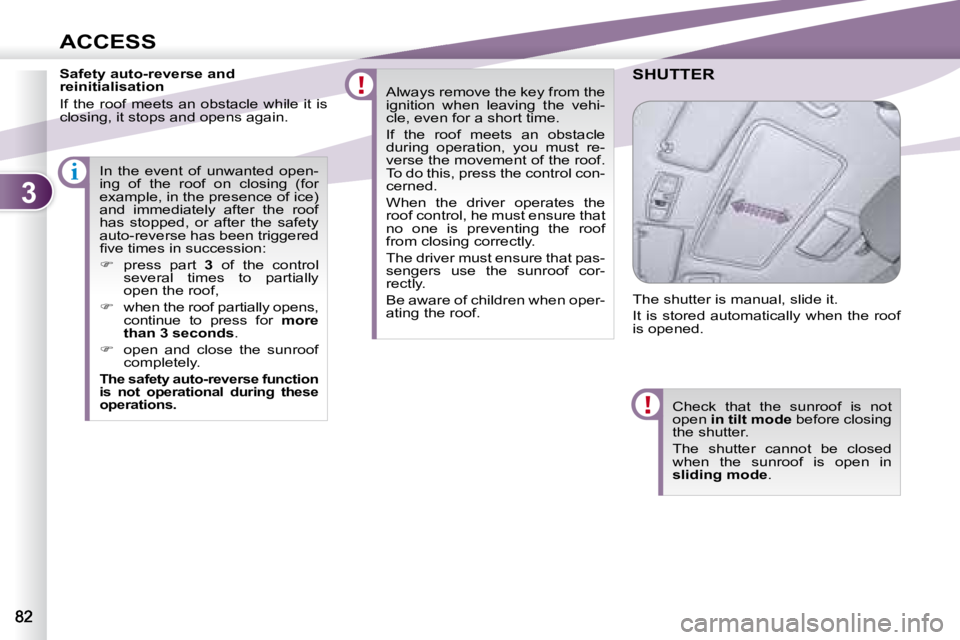

Safety auto-reverse and
reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must re-
verse the movement of the roof.
To do this, press the control con-
cerned.
When the driver operates the
roof control, he must ensure that
no one is preventing the roof
from closing correctly.
The driver must ensure that pas-
sengers use the sunroof cor-
rectly.
Be aware of children when oper-
ating the roof.
In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
auto-reverse has been triggered
fi ve times in succession:

 press part 3 of the control
several times to partially
open the roof,

 when the roof partially opens,
continue to press for more
than 3 seconds .

 open and close the sunroof
completely.

The
safety
auto-reverse
function
is not
operational during
t
hese
operations.
SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened.
Check that the sunroof is not
open in tilt mode before closing
the shutter.
The shutter cannot be closed
when the sunroof is open in

sliding mode .

3
i
ACCESS
Safety auto-reverse and
reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must re-
verse the movement of the roof.
To do this, press the control con-
cerned.
When the driver operates the
roof control, he must ensure that
no one is preventing the roof
from closing correctly.
The driver must ensure that pas-
sengers use the sunroof cor-
rectly.
Be aware of children when oper-
ating the roof.
In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
auto-reverse has been triggered
fi ve times in succession:

 press part 3 of the control
several times to partially
open the roof,

 when the roof partially opens,
continue to press for more
than 3 seconds .

 open and close the sunroof
completely.

The
safety
auto-reverse
function
is not
operational during
t
hese
operations.
SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened.
Check that the sunroof is not
open in tilt mode before closing
the shutter.
The shutter cannot be closed
when the sunroof is open in

sliding mode .

3
ACCESS

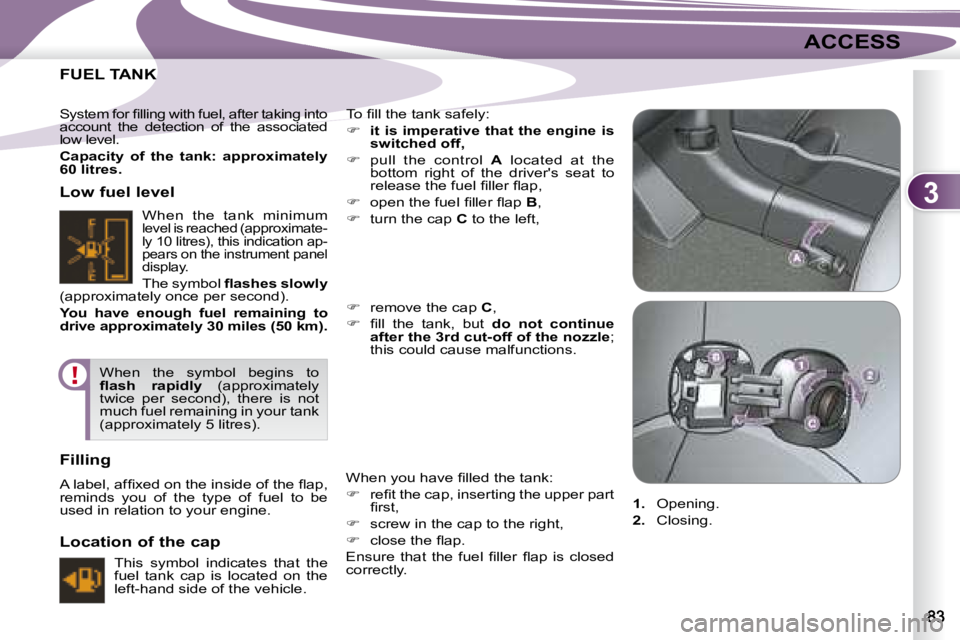

FUEL TANK ANK
To fi ll the tank safely:

 it is imperative that the engine is
switched off,

 pull the control A located at the
bottom right of the driver's seat to
release the fuel fi ller fl ap,

 open the fuel fi ller fl ap B ,

 turn the cap C to the left,
When you have fi lled the tank:

 refi t the cap, inserting the upper part
fi rst,

 screw in the cap to the right,

 close the fl ap.
Ensure that the fuel fi ller fl ap is closed
correctly.
 remove the cap C ,

 fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A label, affi xed on the inside of the fl ap,
reminds you of the type of fuel to be
used in relation to your engine. When the tank minimum
level is reached (approximate-
ly 10 litres), this indication ap-
pears on the instrument panel display.
The symbol fl ashes slowly
(approximately once per second).

You have enough fuel remaining to
drive approximately 30 miles (50 km)
.
When the symbol begins to

fl ash rapidly (approximately
twice per second), there is not
much fuel remaining in your tank
(approximately 5 litres).
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap

1. Opening.

2. Closing.
System for fi lling with fuel, after taking into
account the detection of the associated
low level.

Capacity of the tank: approximately
60 litres.

4
VISIBILITY

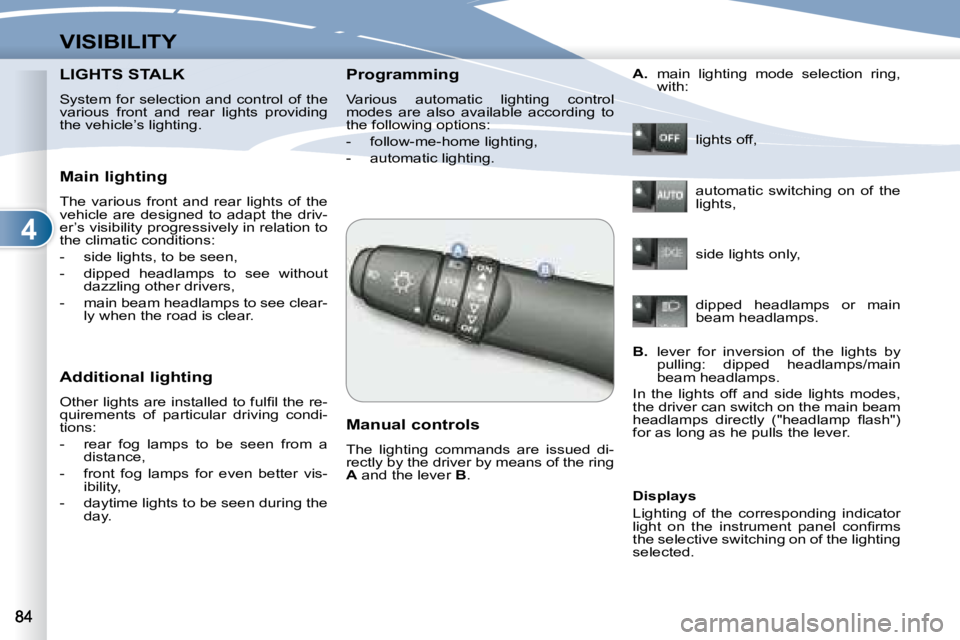

LIGHTS STALK LIGHTS STALK
System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driv-
er’s visibility progressively in relation to
the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clear- ly when the road is clear.
Additional lighting
Other lights are installed to fulfi l the re-
quirements of particular driving condi-
tions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better vis- ibility,
- daytime lights to be seen during the day. Programming
Various automatic lighting control
modes are also available according to
the following options:
- follow-me-home lighting,
- automatic lighting.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the ring

A and the lever B . lights off,
automatic switching on of the
lights,
side lights only,

B. lever for inversion of the lights by
pulling: dipped headlamps/main
beam headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
headlamps directly ("headlamp fl ash")
for as long as he pulls the lever.
Displays
Lighting of the corresponding indicator
light on the instrument panel confi rms
the selective switching on of the lighting
selected.

A. main lighting mode selection ring,
with:
dipped headlamps or main
beam headlamps.

4
i
VISIBILITY

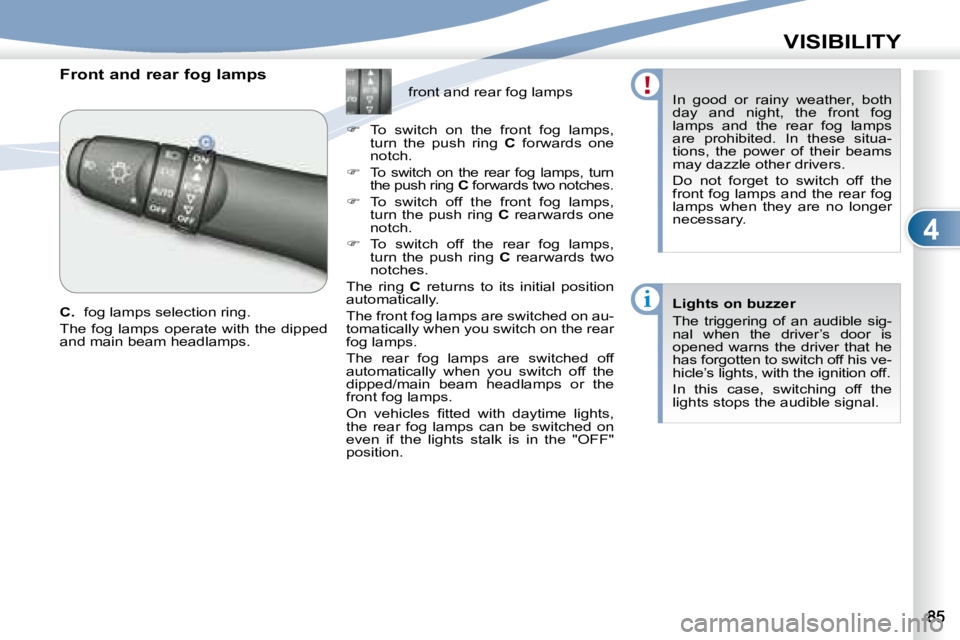

Front and rear fog lamps

C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps. front and rear fog lamps

 To switch on the front fog lamps,
turn the push ring C forwards one
notch.


To switch on the rear fog lamps, turn
the push ring C forwards two notches.

 To switch off the front fog lamps,
turn the push ring C rearwards one
notch.

 To switch off the rear fog lamps,
turn the push ring C rearwards two
notches.
The ring C returns to its initial position
automatically.
The front fog lamps are switched on au-
tomatically when you switch on the rear
fog lamps.
The rear fog lamps are switched off
automatically when you switch off the
dipped/main beam headlamps or the
front fog lamps.
On vehicles fi tted with daytime lights,
the rear fog lamps can be switched on
even if the lights stalk is in the "OFF"
position. In good or rainy weather, both
day and night, the front fog
lamps and the rear fog lamps
are prohibited. In these situa-
tions, the power of their beams
may dazzle other drivers.
Do not forget to switch off the
front fog lamps and the rear fog
lamps when they are no longer
necessary.
Lights on buzzer
The triggering of an audible sig-
nal when the driver’s door is
opened warns the driver that he
has forgotten to switch off his ve-
hicle’s lights, with the ignition off.
In this case, switching off the
lights stops the audible signal.

4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
suffi cient light. The lights will not
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.

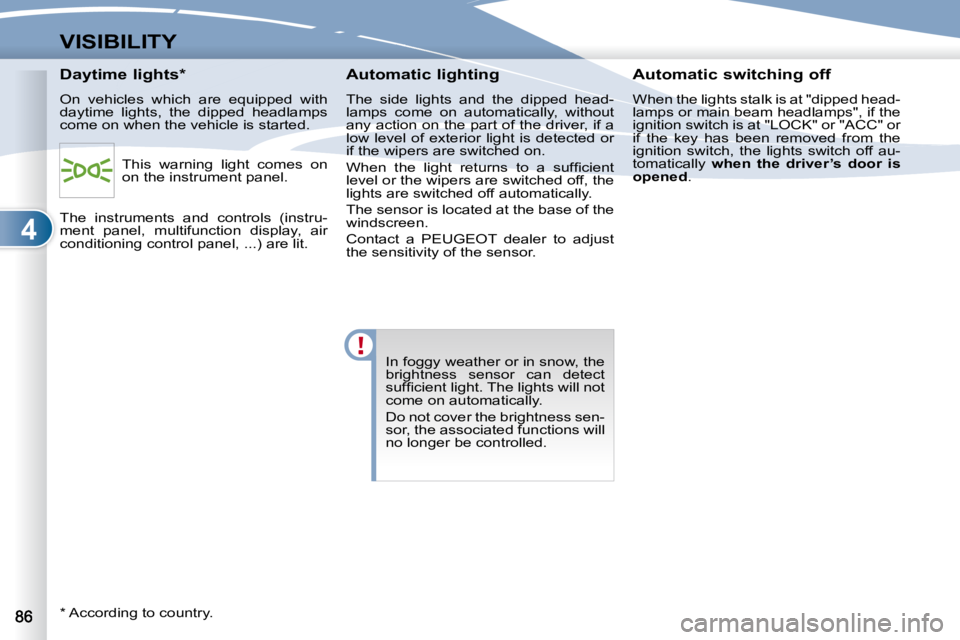

Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
When the light returns to a suffi cient
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are lit. Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .

4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
suffi cient light. The lights will not
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
When the light returns to a suffi cient
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are lit. Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
