Component InspectionNBS000I0
FUEL PUMP
1. Disconnect “fuel level sensor unit and fuel pump” harness connector.
2. Check resistance between “fuel level sensor unit and fuel pump”
terminals 1 and 3.
CONDENSER
1. Disconnect condenser harness connector.
2. Check resistance between condenser terminals 1 and 2.
Removal and InstallationNBS000I1
FUEL PUMP
Refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" . Resistance: 0.2 - 5.0Ω [at 25°C (77°F)]
SEC918C
Resistance: Above 1 MΩ [at 25°C (77°F)]
PBIB0794E

EC-698
IGNITION SIGNAL
Revision: 2006 November2007 350Z
IGNITION SIGNALPFP:22448
Component DescriptionNBS000HL
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns ON and OFF the ignition
coil primary circuit. This ON/OFF operation induces the proper high
voltage in the coil secondary circuit.
1 : Ignition coil No.5 (with power transistor)
2 : Ignition col No.3 (with power transistor)
3 : Ignition coil No.1 (with power transistor)
4 : Condenser
5 : Fuel injector No.3
6 : Fuel injector No.1
7 : Fuel injector No.2
8 : Fuel injector No.4
9 : Ignition coil No.2 (with power transistor)
10 : Ignition coil No.4 (with power transistor)
11 : Ignition coil No.6 (with power transistor)
12 : Fuel injector No.6
13 : Fuel injector No.5
PBIB3512E

IGNITION SIGNAL
EC-699
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

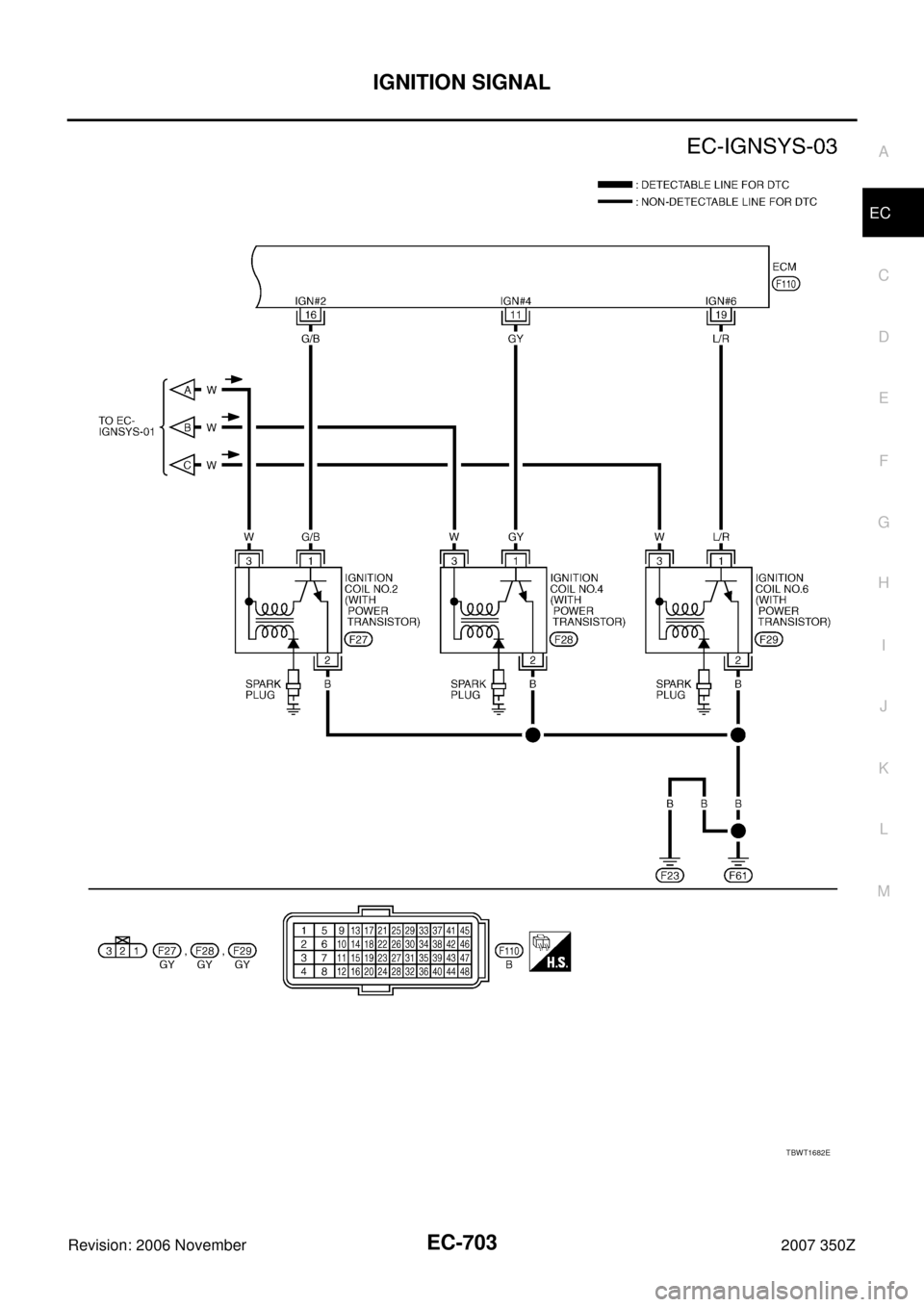

Wiring DiagramNBS000HM
TBWT1680E

EC-700
IGNITION SIGNAL
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 BR/YECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
125 R Power supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)

IGNITION SIGNAL
EC-701
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
TBWT1681E

EC-702
IGNITION SIGNAL
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
12
15
20LG/R
PU
Y/BIgnition signal No. 3
Ignition signal No. 5
Ignition signal No. 1[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 0.2V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0.1 - 0.4V
PBIB3543E
PBIB3544E

IGNITION SIGNAL
EC-703
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
TBWT1682E

EC-704
IGNITION SIGNAL
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS000HN
1. CHECK ENGINE START
Turn ignition switch OFF and restart engine.
Is engine running?
Ye s o r N o
Yes (With CONSULT-III)>>GO TO 2.
Yes (Without CONSULT-III)>>GO TO 3.
No >> GO TO 4.
2. CHECK OVERALL FUNCTION
With CONSULT-III
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.
2. Make sure that each circuit produces a momentary engine speed drop.
OK or NG
OK >>INSPECTION END
NG >> GO TO 10.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11
16
19GY
G/B
L/RIgnition signal No. 4
Ignition signal No. 2
Ignition signal No. 6[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 0.2V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0.1 - 0.4V
PBIB3543E
