2007 NISSAN 350Z Engine Control Workshop Manual

DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
EC-561
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionNBS000C3
NOTE:
If DTC P1233 or P2101 is displayed with DTC P1238, P1290, P2100, P2119 first perform the trouble
diagnosis for DTC P1238, P2119 or P1290, P2100. Refer to EC-580, "
DTC P1238, P2119 ELECTRIC
THROTTLE CONTROL ACTUATOR" or EC-592, "DTC P1290, P2100, P2103 THROTTLE CONTROL
MOTOR RELAY" .
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagnosis LogicNBS000C4
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureNBS000C5
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V when engine
is running.
WITH CONSULT-III
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-566, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1233
1233
(Bank 2)
Electric throttle control
performanceElectric throttle control function does not oper-
ate properly.

Harness or connectors
(The throttle control motor circuit is open
or shorted)

Electric throttle control actuator P2101
2101
(Bank 1)
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

EC-562
DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 November2007 350Z
Wiring DiagramNBS000C6
BANK 1
TBWT1666E

DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
EC-563
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2GThrottle control motor
(Open) (bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressed0 - 14V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully released0 - 14V
3R/WThrottle control motor relay
power supply (bank 1)[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4BRThrottle control motor
(Close) (bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: In the middle of releasing
operation0 - 14V
25 OR Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
52 R/WThrottle control motor relay
power supply (bank 2)[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
PBIB3539E
PBIB3540E
PBIB3541E

EC-564
DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 November2007 350Z

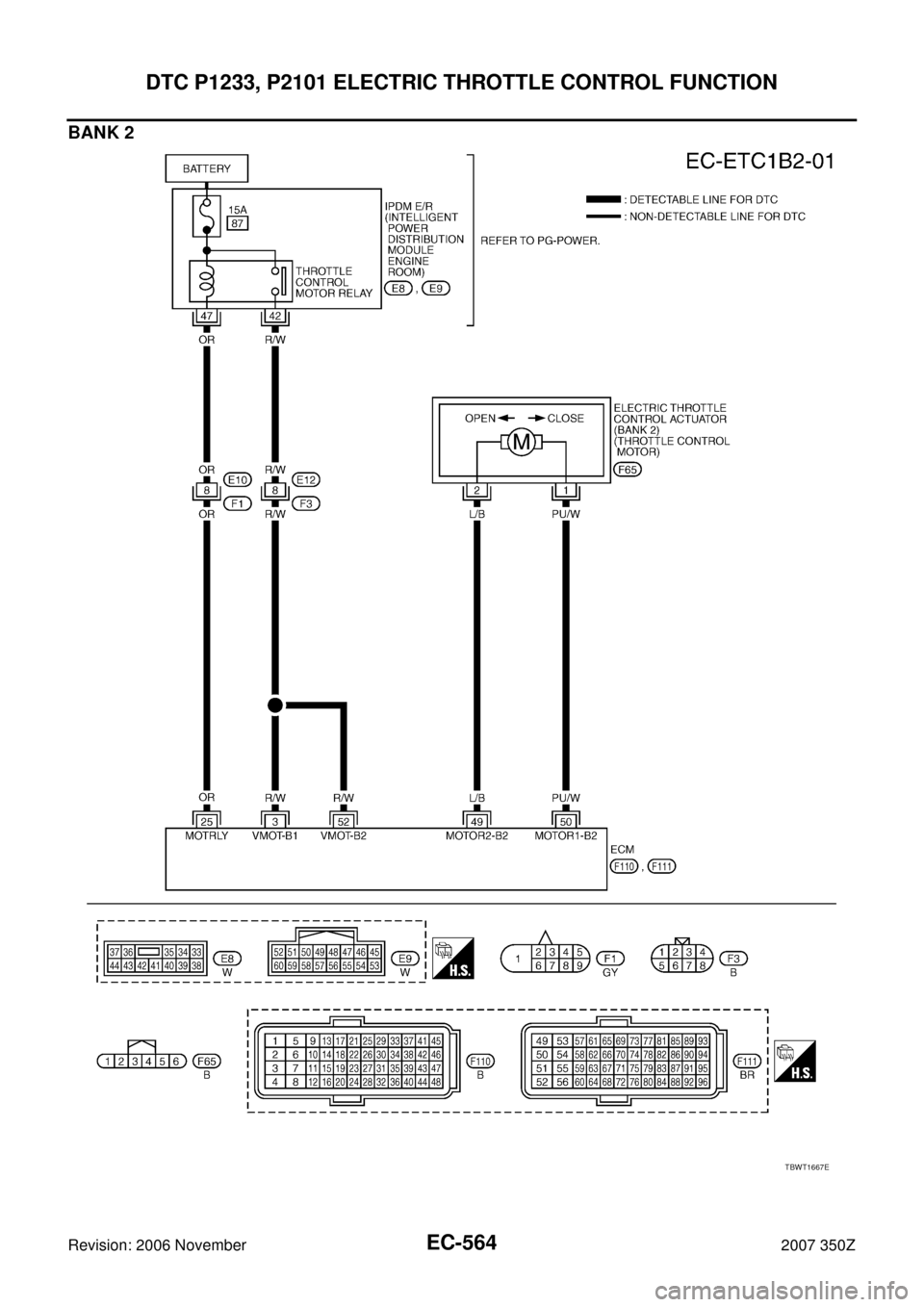

BANK 2
TBWT1667E

DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
EC-565
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
3R/WThrottle control motor relay
power supply (bank 1)[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
25 OR Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
49 L/BThrottle control motor
(Close) (bank 2)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: In the middle of releasing
operation0 - 14V
50 PU/WThrottle control motor
(Open) (bank 2)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressed0 - 14V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully released0 - 14V
52 R/WThrottle control motor relay
power supply (bank 2)[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
PBIB3541E
PBIB3539E
PBIB3540E

EC-566
DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS000C7
1. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
Check voltage between ECM terminal 3 (bank 1), 52 (bank 2) and
ground under the following conditions with CONSULT-III or tester.
OK or NG
OK >> GO TO 12.
NG >> GO TO 3.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E
Ignition switch Voltage
OFF Approximately 0V
ONBattery voltage
(11 - 14V)
PBIB3580E

DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
EC-567
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
3. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Check voltage between ECM terminal 25 and ground with CON-
SULT-III or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
4. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check continuity between ECM terminal 25 and IPDM E/R terminal 47.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E10, F1

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK FUSE
1. Disconnect 15A fuse.
2. Check 15A fuse for blown.
OK or NG
OK >> GO TO 9.
NG >> Replace 15A fuse.
7. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E8.
3. Check continuity between ECM terminal 3 (bank 1), 52 (bank 2) and IPDM E/R terminal 42.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.Voltage: Battery voltage
PBIB3579E
Continuity should exist.
Continuity should exist.

EC-568
DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 November2007 350Z
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E12, F3

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-16, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connectors.
10. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair or replace.
1. Electric throttle control acutator
(bank 1)2. Electric throttle control acutator
(bank 2)
BankElectric throttle control
actuator terminalECM terminal Continuity
112 Should exist
4 Should not exist
22 Should not exist
4 Should exist
2149 Should not exist
50 Should exist
249 Should exist
50 Should not exist
PBIB3504E
