2007 NISSAN 350Z Engine Control Workshop Manual

REFRIGERANT PRESSURE SENSOR
EC-713
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
2. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn A/C switch and blower fan switch OFF.
2. Stop engine.
3. Turn ignition switch OFF.
4. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn A/C switch and blower fan switch OFF.
2. Stop engine.
3. Turn ignition switch OFF.
4. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E

EC-714
REFRIGERANT PRESSURE SENSOR
Revision: 2006 November2007 350Z
3. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sensor harness connector (1).
2. Turn ignition switch ON.
3. Check voltage between refrigerant pressure sensor terminal 1
and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E251, E31

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between refrigerant pressure sensor terminal 3 and ECM terminal 116.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E251, E31

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB3514E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.

REFRIGERANT PRESSURE SENSOR
EC-715
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
7. CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 105 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E251, E31

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationNBS000I5
REFRIGERANT PRESSURE SENSOR
Refer to ATC-135, "Removal and Installation of Refrigerant Pressure Sensor" . Continuity should exist.

EC-716
MIL AND DATA LINK CONNECTOR
Revision: 2006 November2007 350Z
MIL AND DATA LINK CONNECTORPFP:24814
Wiring DiagramNBS000II
TBWT1685E

MIL AND DATA LINK CONNECTOR
EC-717
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

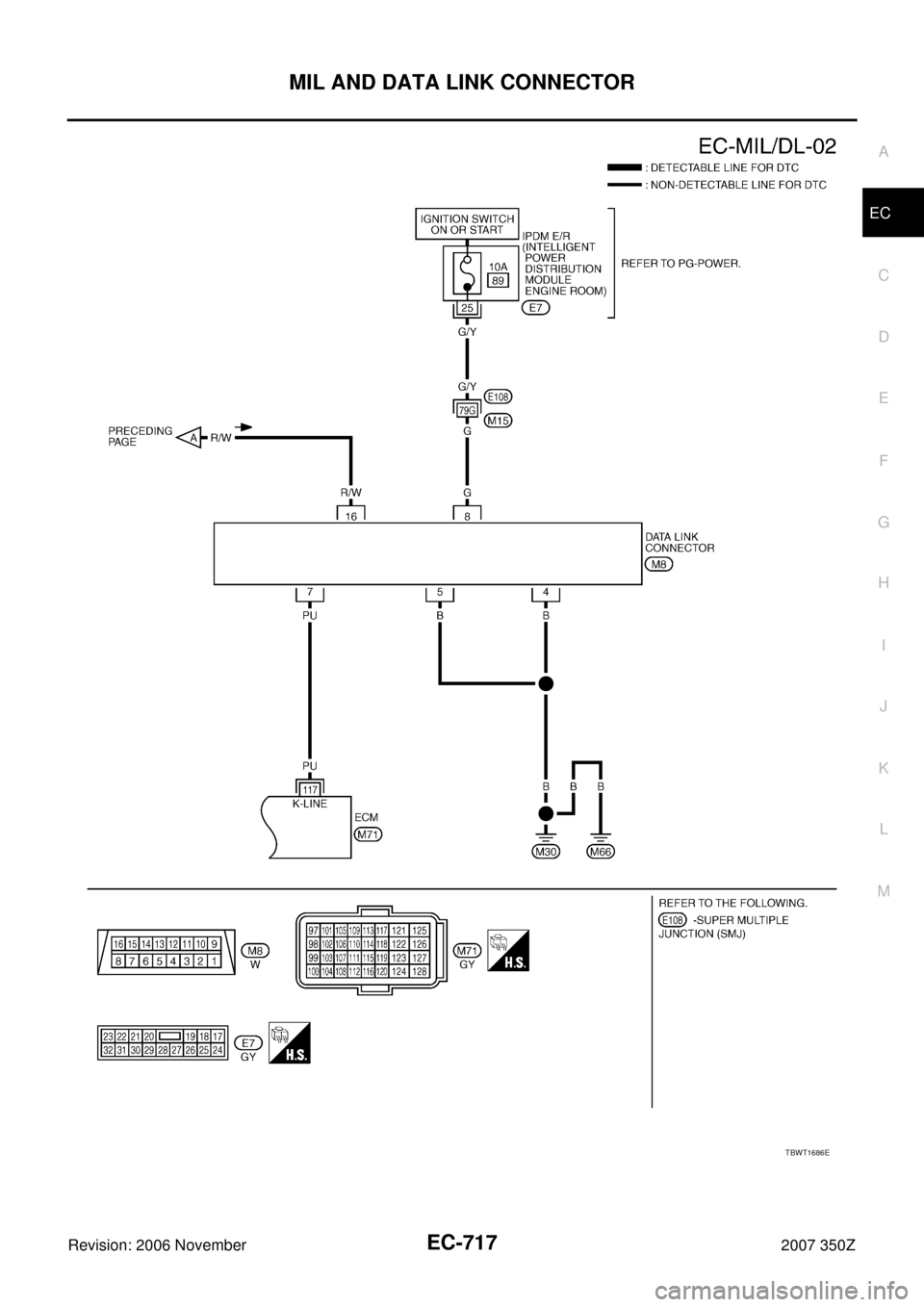

TBWT1686E

EC-718
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureNBS000IJ
Idle Speed and Ignition TimingNBS000IK
*: Under the following conditions:

Air conditioner switch: OFF

Electric load: OFF (Lights, heater fan & rear window defogger)

Steering wheel: Kept in straight-ahead position
Calculated Load ValueNBS000IL
Mass Air Flow SensorNBS000IM
*: Engine is warmed up to normal operating temperature and running under no load.
Intake Air Temperature SensorNBS000IN
Engine Coolant Temperature SensorNBS000IO
Air Fuel Ratio (A/F) Sensor 1 HeaterNBS000IP
Heated Oxygen sensor 2 HeaterNBS000IQ
Crankshaft Position Sensor (POS)NBS000IR
Refer to EC-393, "Component Inspection" .
Camshaft Position Sensor (PHASE)NBS000IS
Refer to EC-405, "Component Inspection" .
Fuel pressure at idling kPa (kg/cm2 , psi)Approximately 350 (3.57, 51)
Target idle speedA/T No load* (in P or N position)
650 ± 50 rpm
M/T No load* (in Neutral position)
Air conditioner: ONA/T In P or N position 650 rpm or more
M/T In Neutral position 800 rpm or more
Ignition timingA/T In P or N position
15° ± 5° BTDC
M/T In Neutral position
Conditions Calculated load value % (Using CONSULT-III or GST)
At idle5 - 35
At 2,500 rpm5 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle0.8 - 1.1V*
Mass air flow (Using CONSULT-III or GST)2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C (°F) Resistance kΩ
25 (77)1.800 - 2.200
Temperature °C (°F) Resistance kΩ
20 (68)2.37 - 2.63
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Resistance [at 25°C (77°F)] 1.8 - 2.44Ω
Resistance [at 25°C (77°F)] 3.4 - 4.4Ω

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-719
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Throttle Control MotorNBS000IT
Fuel InjectorNBS000IU
Fuel PumpNBS000IV
Resistance [at 25°C (77°F)] Approximately 1 - 15Ω
Resistance [at 10 - 60°C (50 - 140°F)] 11.1 - 14.3Ω
Resistance [at 25°C (77°F)] 0.2 - 5.0Ω

EC-720
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
