2007 NISSAN 350Z Engine Control Workshop Manual

TROUBLE DIAGNOSIS
EC-97
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
1. Refrigerant pressure sensor har-
ness connector2. IPDM E/R
1. Power steering pressure sensor 2. Alternator 3. Engine oil temperature sensor
:Vehicle front
1. EVAP service port 2. EVAP canister purge volume con-
trol solenoid valve3. EVAP canister vent control valve
4. EVAP control system pressure sen-
sor5. EVAP canister
:Vehicle front
PBIB3510E
PBIB3522E
PBIB3475E
PBIB3495E

EC-98
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
1. Fuel level sensor unit and fuel pump
harness connector2. Fuel level sensor unit and fuel pump 3. Fuel pressure regurator
4. Fuel tank temperature sensor
:Vehicle front
PBIB1907E
1. A/F sensor 1 (bank 1) harness con-
nector2. A/F sensor 1 (bank 2) harness con-
nector
:Vehicle front
1. A/F sensor 1 (bank 1) 2. A/F sensor 1 (bank 2)
:Vehicle front
PBIB3516E
PBIB3517E

TROUBLE DIAGNOSIS
EC-99
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
1. Heated oxygen sensor 2 (bank 2) 2. Heated oxygen sensor 2 (bank 2)
harness connector3. Heated oxygen sensor 2 (bank 1)
4. Heated oxygen sensor 2 (bank 1)
harness connector
:Vehicle front
1. Accelerator pedal 2. Accelerator pedal position sensor 3. ECM
4. ECM harness connector
1. Stop lamp switch 2. ASCD brake switch 3. Brake pedal
4. ASCD clutch switch 5. Clutch pedal
1. ASCD steering switch 2. RESUME/ACCELERATE switch 3. SET/COAST switch
4. CANCEL switch 5. MAIN switch
PBIB3502E
PBIB3496E
PBIB3498E
PBIB3497E

EC-100
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
Vacuum Hose DrawingNBS0003J
Refer to EC-24, "System Diagram" for Vacuum Control System.
1. Intake manifold collector 2. EVAP canister purge volume control solenoid valve
PBIB3515E

TROUBLE DIAGNOSIS
EC-101
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

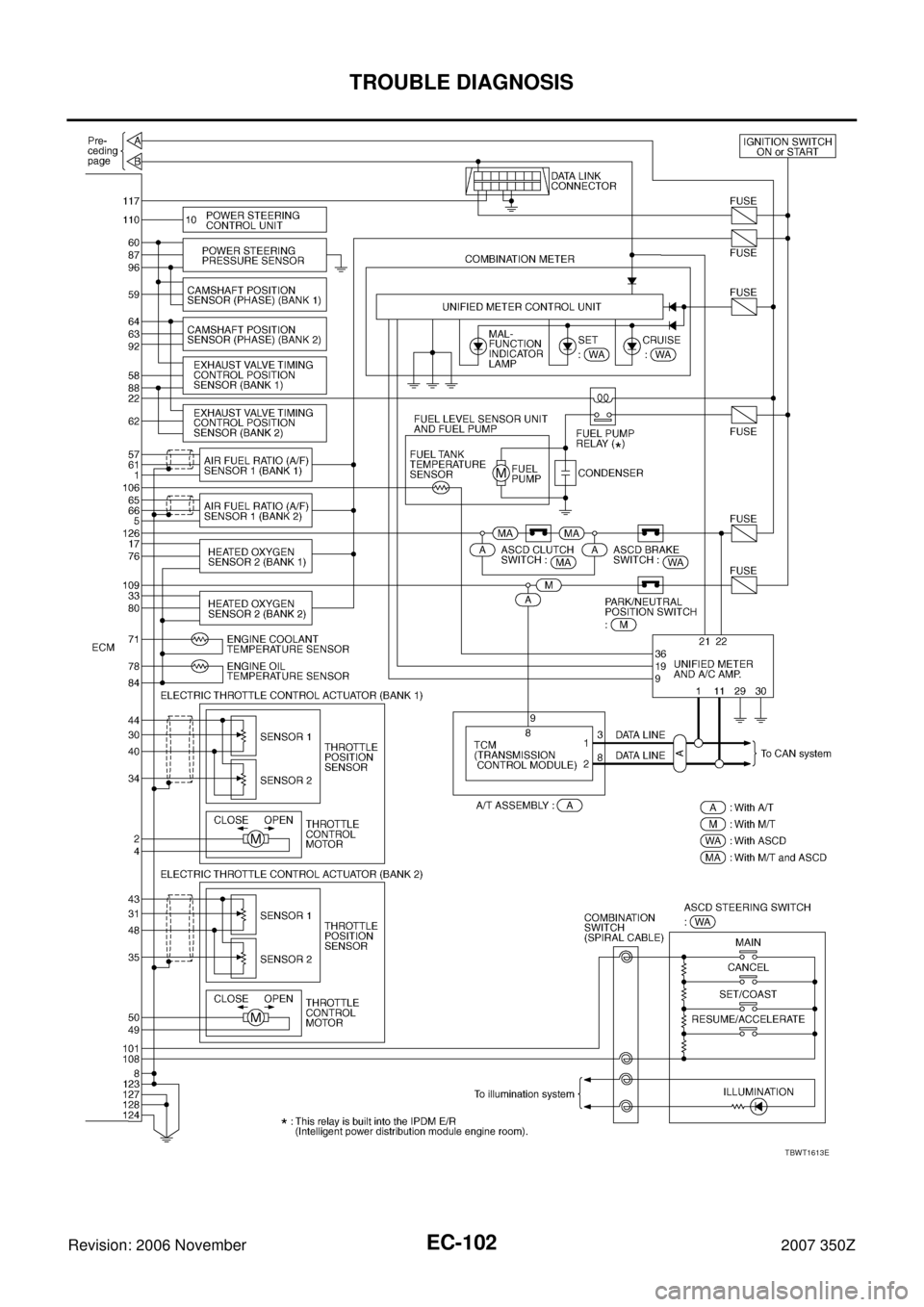

Circuit DiagramNBS0003K
TBWT1612E

EC-102
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
TBWT1613E

TROUBLE DIAGNOSIS
EC-103
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
ECM Harness Connector Terminal LayoutNBS0003L
ECM Terminals and Reference ValueNBS0003M
PREPARATION
ECM (1) is located behind the passenger side instrument lower
panel. For this inspection, remove passenger side instrument lower
panel.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIB3537E
2 : ECM harness connector
PBIB3499E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1W/RA/F sensor 1 heater
(bank 1)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8V
PBIB3538E

EC-104
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
2GThrottle control motor
(Open) (bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully depressed0 - 14V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: Fully released0 - 14V
3R/WThrottle control motor relay
power supply (bank 1)[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4BRThrottle control motor
(Close) (bank 1)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T) or 1st (M/T)

Accelerator pedal: In the middle of releasing
operation0 - 14V
5GY/LA/F sensor 1 heater
(bank 2)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8
6 L/ORExhaust valve timing control
magnet retarder (bank 1)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Around 2,500 rpm while the engine speed is
rising7 - 12V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB3539E
PBIB3540E
PBIB3541E
PBIB3538E
