ON BOARD REFUELING VAPOR RECOVERY (ORVR)
EC-41
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
SYMPTOM: CANNOT REFUEL/FUEL ODOR FROM THE FUEL FILLER OPENING IS STRONG
WHILE REFUELING.
1. CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.2 kg (4.9 lb).
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK IF EVAP CANISTER SATURATED WITH WATER
Does water drain from the EVAP canister?
Ye s o r N o
Ye s > > G O T O 3 .
No >> GO TO 5.
3. REPLACE EVAP CANISTER
Replace EVAP canister with a new one.
>> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.
>> Repair or replace EVAP hose.
5. CHECK VENT HOSES AND VENT TUBES
Check hoses and tubes between EVAP canister and refueling EVAP vapor cut valve for clogging, kink, loose-
ness and improper connection.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace hoses and tubes.
6. CHECK FILLER NECK TUBE
Check recirculation line for clogging, dents and cracks.
OK or NG
OK >> GO TO 7.
NG >> Replace filler neck tube.
PBIB1031E

EC-42
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Revision: 2006 November2007 350Z
7. CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-42, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace refueling EVAP vapor cut valve with fuel tank.
8. CHECK FUEL FILLER TUBE
Check filler neck tube and hose connected to the fuel tank for clogging, dents and cracks.
OK or NG
OK >> GO TO 9.
NG >> Replace fuel filler tube.
9. CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.
OK or NG
OK >> GO TO 10.
NG >> Repair or replace one-way fuel valve with fuel tank.
10. CHECK ONE-WAY FUEL VALVE-II
1. Make sure that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as follows.
When a stick is inserted, the valve should open, when removing
stick it should close.
Do not drop any material into the tank.
OK or NG
OK >>INSPECTION END
NG >> Replace fuel filler tube or replace one-way fuel valve
with fuel tank.
Component InspectionNBS0002V
REFUELING EVAP VAPOR CUT VALVE
With CONSULT-III
1. Remove fuel tank. Refer to FL-10, "FUEL TANK" .
2. Drain fuel from the tank as follows:
a. Remove fuel feed hose located on the fuel gauge retainer.
b. Connect a spare fuel hose, one side to fuel gauge retainer where the hose was removed and the other
side to a fuel container.
c. Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-III.
3. Check refueling EVAP vapor cut valve for being stuck to close as follows.
Blow air into the refueling EVAP vapor cut valve (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as follows.
a. Connect vacuum pump to hose end.
b. Remove fuel gauge retainer with fuel gauge unit.
Always replace O-ring with new one.
c. Put fuel tank upside down.
SEF665U

ON BOARD REFUELING VAPOR RECOVERY (ORVR)
EC-43
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
d. Apply vacuum pressure to hose end [−13.3 kPa (−100 mmHg, −3.94 inHg)] with fuel gauge retainer
remaining open and check that the pressure is applicable.
Without CONSULT-III
1. Remove fuel tank. Refer to FL-10, "FUEL TANK" .
2. Drain fuel from the tank as follows:
a. Remove fuel gauge retainer.
b. Drain fuel from the tank using a handy pump into a fuel container.
3. Check refueling EVAP vapor cut valve for being stuck to close as follows.
Blow air into the refueling EVAP vapor cut valve (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as follows.
a. Connect vacuum pump to hose end.
b. Remove fuel gauge retainer with fuel gauge unit.
Always replace O-ring with new one.
c. Put fuel tank upside down.
d. Apply vacuum pressure to hose end [−13.3 kPa (−100 mmHg, −3.94 inHg)] with fuel gauge retainer
remaining open and check that the pressure is applicable.

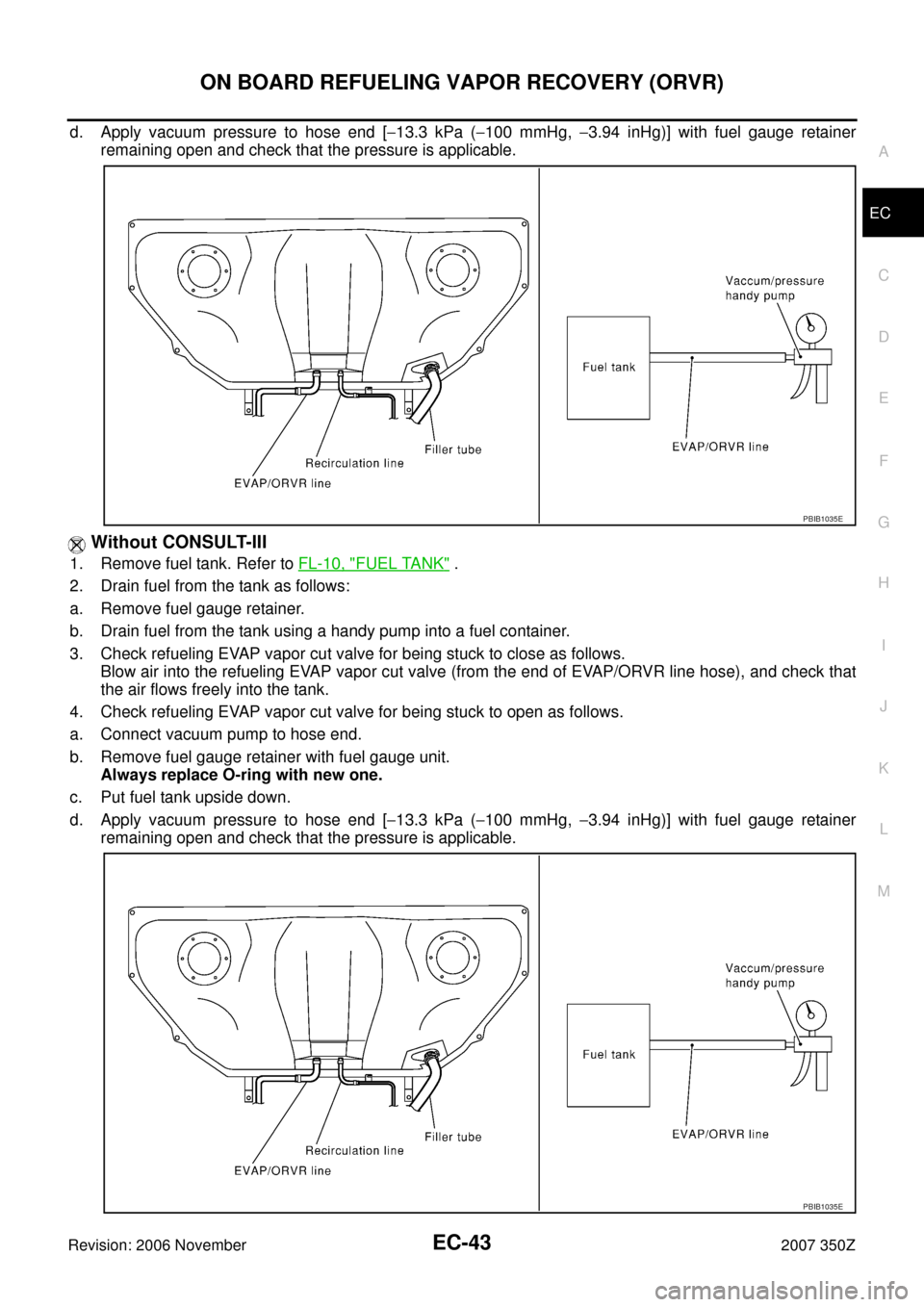

PBIB1035E
PBIB1035E

EC-44
POSITIVE CRANKCASE VENTILATION
Revision: 2006 November2007 350Z
POSITIVE CRANKCASE VENTILATIONPFP:11810
DescriptionNBS0002W
SYSTEM DESCRIPTION
This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold. During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the
PCV valve. Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of venti-
lating air. The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air
passes through the hose connecting air inlet tubes to rocker cover. Under full-throttle condition, the manifold
vacuum is insufficient to draw the blow-by flow through the valve. The flow goes through the hose connection
in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.
1. PCV valve 2. Electric throttle control actuator 3. Mass air flow sensor
A. Normal condition B. Hi-load condition
:Fresh air
:Blow-by air
PBIB3536E
PBIB1588E

POSITIVE CRANKCASE VENTILATION
EC-45
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Component InspectionNBS0002X
PCV (POSITIVE CRANKCASE VENTILATION) VALVE
With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.
2. Disconnect all hoses and clean with compressed air. If any hose
cannot be freed of obstructions, replace.
PBIB1589E
S-ET277

EC-46
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 November2007 350Z
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:25386
DescriptionNBS0002Y

If the security indicator lights up with the ignition switch in the ON position or “NATS MALFUNC-
TION” is displayed on “SELF-DIAG RESULTS” screen, perform self-diagnostic results mode with
CONSULT-III using NATS program card. Refer to BL-150, "
NVIS (NISSAN VEHICLE IMMOBILIZER
SYSTEM-NATS)" .

Confirm no self-diagnostic results of NVIS (NATS) is displayed before touching “ERASE” in
“SELF-DIAG RESULTS” mode with CONSULT-III.

When replacing ECM, initialization of NVIS (NATS) system and registration of all NVIS (NATS) igni-
tion key IDs must be carried out with CONSULT-III using NATS program card.
Therefore, be sure to receive all keys from vehicle owner. Regarding the procedures of NVIS
(NATS) initialization and all NVIS (NATS) ignition key ID registration, refer to CONSULT-III Opera-
tion Manual, IVIS/NVIS.

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-47
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionNBS0002Z
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected
in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode.
(Refer to EC-89, "
Fail-safe Chart" .)
Two Trip Detection LogicNBS00030
When a malfunction is detected for the 1st time, 1st trip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MIL will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MIL lights up. The MIL lights up at the same time when the DTC is stored. <2nd
trip> The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation. Specific on board diagnostic items will cause the ECM to light up or blink the MIL,
and store DTC and Freeze Frame data, even in the 1st trip, as shown below.
×: Applicable —: Not applicable
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Emission-related diagnostic information Diagnostic service
Diagnostic Trouble Code (DTC) Service $03 of SAE J1979
Freeze Frame data Service $02 of SAE J1979
System Readiness Test (SRT) code Service $01 of SAE J1979
1st Trip Diagnostic Trouble Code (1st Trip DTC) Service $07 of SAE J1979
1st Trip Freeze Frame data
Test values and Test limits Service $06 of SAE J1979
Calibration ID Service $09 of SAE J1979
DTC 1st trip DTCFreeze Frame
data1st trip Freeze
Frame dataSRT status SRT code Test value
CONSULT-III××××××—
GST×××—×××
ECM×× *— —×——
ItemsMIL DTC 1st trip DTC
1st trip 2nd trip
1st trip
displaying2nd trip
displaying1st trip
displaying2nd trip
display-
ing BlinkingLighting
upBlinkingLighting
up
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0306 is being detected×———— —×—
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0306 is being detected——×——×——
One trip detection diagnoses
(Refer to EC-48, "
EMISSION-
RELATED DIAGNOSTIC INFOR-
MATION ITEMS" .)—×——×———
Except above — — —×—××—

EC-48
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 November2007 350Z
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands the
driver to repair the malfunction.
Emission-related Diagnostic InformationNBS00031
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
×: Applicable —: Not applicable Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
Items
(CONSULT-III screen terms)DTC*
1
SRT codeTest value/
Te s t l i m i t
(GST only)TripMIL lighting
upReference
page CONSULT-III
GST*
2ECM*3
CAN COMM CIRCUIT U1000
1000*5—— 1×EC-151
CAN COMM CIRCUIT U1001
1001*5—— 2 —EC-151
CONTROL UNIT(CAN) U1010 1010 — —1 (A/T)× (A/T)
EC-1542 (M/T) — (M/T)
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000—— —
Flashing*
7EC-63
INT/V TIM CONT-B1 P0011 0011 — — 2×EC-156
EXH/V TIM CONT-B1 P0014 0014 — — 2×EC-160
INT/V TIM CONT-B2 P0021 0021 — — 2×EC-156
EXH/V TIM CONT-B2 P0024 0024 — — 2×EC-160
A/F SEN1 HTR (B1) P0031 0031 —×2×EC-165
A/F SEN1 HTR (B1) P0032 0032 —×2×EC-165
HO2S2 HTR (B1) P0037 0037 —×2×EC-173
HO2S2 HTR (B1) P0038 0038 —×2×EC-173
A/F SEN1 HTR (B2) P0051 0051 —×2×EC-165
A/F SEN1 HTR (B2) P0052 0052 —×2×EC-165
HO2S2 HTR (B2) P0057 0057 —×2×EC-173
HO2S2 HTR (B2) P0058 0058 —×2×EC-173
INT/V TIM V/CIR-B1 P0075 0075 — — 2×EC-183
EX V/T MGT/RTDR-B1 P0078 0078 — — 2×EC-190
INT/V TIM V/CIR-B2 P0081 0081 — — 2×EC-183
EX V/T MGT/RTDR-B2 P0084 0084 — — 2×EC-190
MAF SEN/CIRCUIT-B1 P0101 0101 — — 2×EC-197
MAF SEN/CIRCUIT-B1 P0102 0102 — — 1×EC-208
MAF SEN/CIRCUIT-B1 P0103 0103 — — 1×EC-208
MAF SEN/CIRCUIT-B2 P010B 010B — — 2×EC-197
MAF SEN/CIRCUIT-B2 P010C 010C — — 1×EC-208
MAF SEN/CIRCUIT-B2 P010D 010D — — 1×EC-208
IAT SEN/CIRCUIT-B1 P0112 0112 — — 2×EC-218
IAT SEN/CIRCUIT-B1 P0113 0113 — — 2×EC-218
ECT SEN/CIRC P0117 0117 — — 1×EC-223
ECT SEN/CIRC P0118 0118 — — 1×EC-223
TP SEN 2/CIRC-B1 P0122 0122 — — 1×EC-229
TP SEN 2/CIRC-B1 P0123 0123 — — 1×EC-229
