DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-337
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1W/RA/F sensor 1 heater
(bank 1)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8V
57 L A/F sensor 1 (bank 1)[Ignition switch: ON]2.2V
61 R A/F sensor 1 (bank 1)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
81
86
89R/B
W/B
G/YFuel injector No. 3
Fuel injector No. 5
Fuel injector No. 1 [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB3538E
PBIB3555E
PBIB3556E

EC-338
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 November2007 350Z

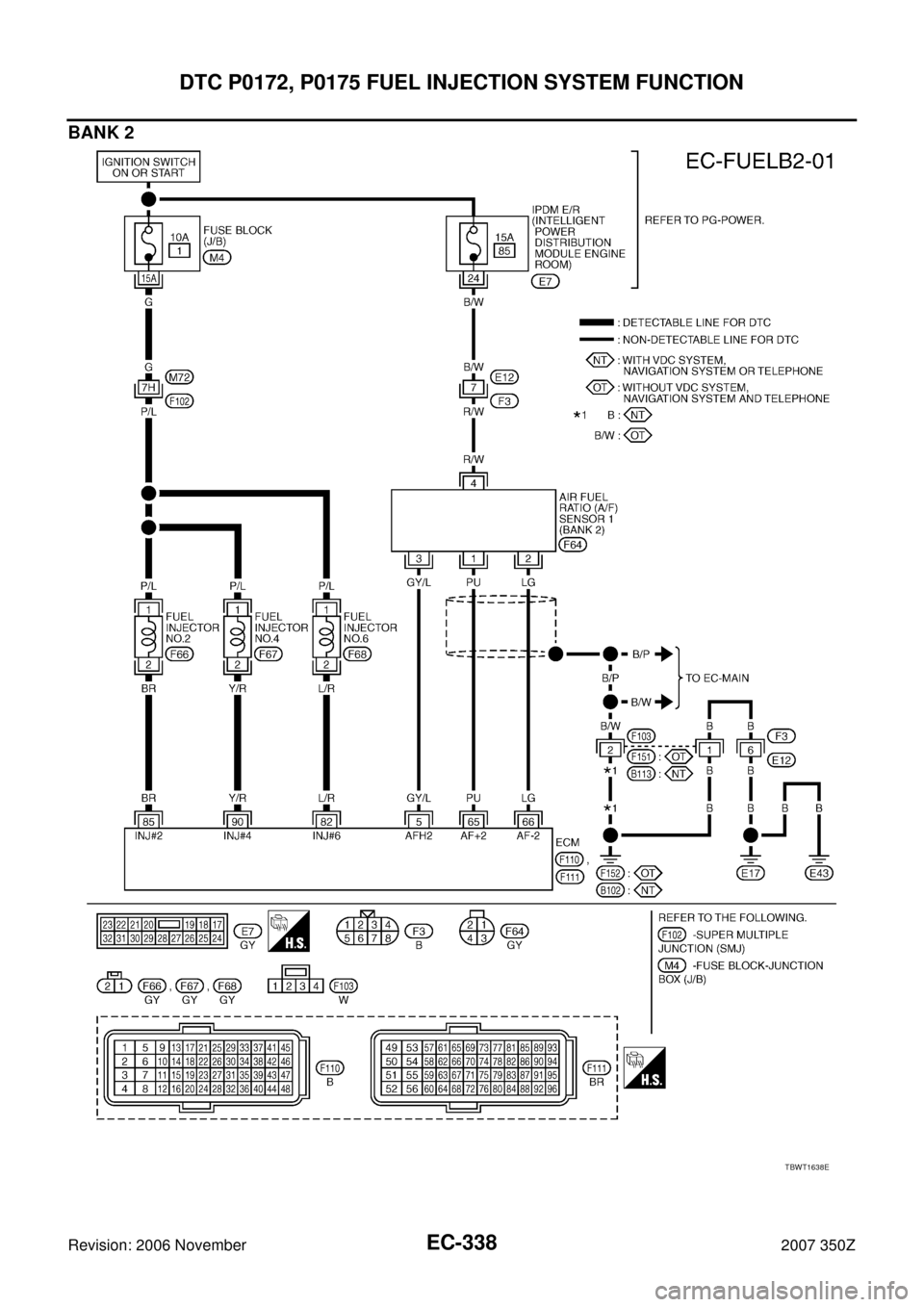

BANK 2
TBWT1638E

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-339
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
5GY/LA/F sensor 1 heater
(bank 2)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8
65 PU A/F sensor 1 (bank 2)[Ignition switch: ON]2.2V
66 LG A/F sensor 1 (bank 2)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
82
85
90L/R
BR
Y/RFuel injector No. 6
Fuel injector No. 2
Fuel injector No. 4[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB3538E
PBIB3555E
PBIB3556E

EC-340
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS00077
1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before three way catalyst 1.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK FOR INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
PBIB1922E

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-341
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect corresponding A/F sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-79, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-80, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
1. A/F sensor 1 harness connector
(bank 1)2. A/F sensor 1 harness connector
(bank 2)
:Vehicle front
Bank 1A/F sensor 1 terminal ECM terminal
157
261
Bank 2165
266
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
157165
261266
Continuity should not exist.
PBIB3516E
At idling: Approximately 350 kPa (3.57 kg/cm2 , 51 psi)

EC-342
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 November2007 350Z
5. DETECT MALFUNCTIONING PART
Check the following.

Fuel pump and circuit (Refer to EC-691, "FUEL PUMP" .)

Fuel pressure regulator (Refer to EC-80, "FUEL PRESSURE CHECK" .)
>> Repair or replace.
6. CHECK MASS AIR FLOW SENSOR
With CONSULT-III
1. Install all removed parts.
2. Start engine and warm it up to normal temperature.
3. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-III.
With GST
1. Install all removed parts.
2. Start engine and warm it up to normal temperature.
3. Check mass air flow sensor signal in Service $01 with GST.
OK or NG
OK >> GO TO 7.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
ground. Refer to EC-197, "
DTC P0101, P010B MAF SENSOR" .
7. CHECK FUNCTION OF FUEL INJECTOR
With CONSULT-III
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT-III
1. Start engine and let it idle.
2. Listen to each fuel injector operating sound.
OK or NG
OK >> GO TO 8.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to
EC-686, "
FUEL INJECTOR" . 2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
Clickng sound should be heard.
PBIB3332E

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-343
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
8. CHECK FUEL INJECTOR
1. Remove fuel injector assembly. Refer to EM-34, "
FUEL INJECTOR AND FUEL TUBE" .
Keep fuel hose and all fuel injectors connected to fuel injector gallery.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Disconnect all fuel injector harness connectors.
4. Disconnect all ignition coil harness connectors.
5. Prepare pans or saucers under each fuel injectors.
6. Crank engine for about 3 seconds.
Make sure fuel does not drip from fuel injector.
OK or NG
OK (Does not drip.)>>GO TO 9.
NG (Drips.)>>Replace the fuel injectors from which fuel is dripping. Always replace O-ring with new one.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

EC-344
DTC P0181 FTT SENSOR
Revision: 2006 November2007 350Z
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS00078
The fuel tank temperature sensor is used to detect the fuel tempera-
ture inside the fuel tank. The sensor modifies a voltage signal from
the ECM. The modified signal returns to the ECM as the fuel temper-
ature input. The sensor uses a thermistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.

*: This data is reference values and is measured between ECM terminal 106 (Fuel
tank temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicNBS00079
DTC Confirmation ProcedureNBS0007A
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Turn ignition switch ON and wait at least 10 seconds.
2. Check 1st trip DTC.
If 1st trip DTC is detected, go to EC-346, "
Diagnostic Procedure" .
If 1st trip DTC is not detected, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-III.
4. Check “COOLAN TEMP/S” value.
If “COOLAN TEMP/S” is less than 60°C (140°F), the result will be OK.
If “COOLAN TEMP/S” is above 60°C (140°F), go to the following step.
5. Cool engine down until “COOLAN TEMP/S” is less than 60°C (140°F).
6. Wait at least 10 seconds.
7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to EC-346, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III” above.
PBIB1665E
Fluid temperature
°C (°F)Voltage*
VResistance
kΩ
20 (68) 3.5 2.3 - 2.7
50 (122) 2.2 0.79 - 0.90
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0181
0181Fuel tank temperature
sensor circuit range/
performanceRationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage sig-
nals from engine coolant temperature sensor
and intake air temperature sensor.

Harness or connectors
(The sensor circuit is open or shorted)

Fuel tank temperature sensor
