EC-8
INDEX FOR DTC
Revision: 2006 November2007 350Z
INDEX FOR DTCPFP:00024
DTC No. IndexNBS00027
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-151, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC U1010 is displayed with other DTC, first perform the trouble diagnosis for DTC U1010.
Refer to EC-154, "
DTC U1010 CAN COMMUNICATION" .
DTC*1
Items
(CONSULT-III screen terms)Reference page
CONSULT-III
GST*
2ECM*3
U1000
1000*4CAN COMM CIRCUITEC-151
U1001
1001*4CAN COMM CIRCUITEC-151
U1010 1010 CONTROL UNIT(CAN)EC-154
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.—
P0011 0011 INT/V TIM CONT-B1EC-156
P0014 0014 EXH/V TIM CONT-B1EC-160
P0021 0021 INT/V TIM CONT-B2EC-156
P0024 0024 EXH/V TIM CONT-B2EC-160
P0031 0031 A/F SEN1 HTR (B1)EC-165
P0032 0032 A/F SEN1 HTR (B1)EC-165
P0037 0037 HO2S2 HTR (B1)EC-173
P0038 0038 HO2S2 HTR (B1)EC-173
P0051 0051 A/F SEN1 HTR (B2)EC-165
P0052 0052 A/F SEN1 HTR (B2)EC-165
P0057 0057 HO2S2 HTR (B2)EC-173
P0058 0058 HO2S2 HTR (B2)EC-173
P0075 0075 INT/V TIM V/CIR-B1EC-183
P0078 0078 EX V/T MGT/RTDR-B1EC-190
P0081 0081 INT/V TIM V/CIR-B2EC-183
P0084 0084 EX V/T MGT/RTDR-B2EC-190
P0101 0101 MAF SEN/CIRCUIT-B1EC-197
P0102 0102 MAF SEN/CIRCUIT-B1EC-208
P0103 0103 MAF SEN/CIRCUIT-B1EC-208
P010B 010B MAF SEN/CIRCUIT-B2EC-197
P010C 010C MAF SEN/CIRCUIT-B2EC-208
P010D 010D MAF SEN/CIRCUIT-B2EC-208
P0112 0112 IAT SEN/CIRCUIT-B1EC-218
P0113 0113 IAT SEN/CIRCUIT-B1EC-218
P0117 0117 ECT SEN/CIRCEC-223
P0118 0118 ECT SEN/CIRCEC-223
P0122 0122 TP SEN 2/CIRC-B1EC-229
P0123 0123 TP SEN 2/CIRC-B1EC-229
P0125 0125 ECT SENSOREC-239
P0127 0127 IAT SENSOR-B1EC-243
INDEX FOR DTC
EC-13
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Alphabetical IndexNBS00028
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-151, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC U1010 is displayed with other DTC, first perform the diagnosis for DTC U1010.
Refer to EC-154, "
DTC U1010 CAN COMMUNICATION" .
Items
(CONSULT-III screen terms)DTC*
1
Reference page
CONSULT-III
GST*
2ECM*3
A/F SEN1 HTR (B1) P0031 0031EC-165
A/F SEN1 HTR (B1) P0032 0032EC-165
A/F SEN1 HTR (B2) P0051 0051EC-165
A/F SEN1 HTR (B2) P0052 0052EC-165
A/F SENSOR1 (B1) P0130 0130EC-248
A/F SENSOR1 (B1) P0131 0131EC-257
A/F SENSOR1 (B1) P0132 0132EC-266
A/F SENSOR1 (B1) P0133 0133EC-275
A/F SENSOR1 (B1) P2A00 2A00EC-659
A/F SENSOR1 (B2) P0150 0150EC-248
A/F SENSOR1 (B2) P0151 0151EC-257
A/F SENSOR1 (B2) P0152 0152EC-266
A/F SENSOR1 (B2) P0153 0153EC-275
A/F SENSOR1 (B2) P2A03 2A03EC-659
A/T 1ST GR FNCTN P0731 0731AT- 11 5
A/T 2ND GR FNCTN P0732 0732AT- 11 7
A/T 3RD GR FNCTN P0733 0733AT- 11 9
A/T 4TH GR FNCTN P0734 0734AT- 1 2 1
A/T 5TH GR FNCTN P0735 0735AT- 1 2 3
A/T INTERLOCK P1730 1730AT- 1 4 1
A/T TCC S/V FNCTN P0744 0744AT- 1 2 7
APP SEN 1/CIRC P2122 2122EC-633
APP SEN 1/CIRC P2123 2123EC-633
APP SEN 2/CIRC P2127 2127EC-641
APP SEN 2/CIRC P2128 2128EC-641
APP SENSOR P2138 2138EC-650
ASCD BRAKE SW P1572 1572EC-610
ASCD SW P1564 1564EC-602
ASCD VHL SPD SEN P1574 1574EC-625
ATF TEMP SEN/CIRC P0710 0710AT- 1 3 4
BRAKE SW/CIRCUIT P1805 1805EC-628
CAN COMM CIRCUIT U1000
1000*4EC-151
CAN COMM CIRCUIT U1001
1001*4EC-151
CKP SEN/CIRCUIT P0335 0335EC-386
CLOSED LOOP-B1 P1148 1148EC-540
CLOSED LOOP-B2 P1168 1168EC-540
CMP SEN/CIRC-B1 P0340 0340EC-394
EC-20
PRECAUTIONS
Revision: 2006 November2007 350Z
Keep engine control system harness at least 10 cm (4 in) away from adjacent harness, to prevent
engine control system malfunctions due to receiving external noise, degraded operation of ICs,
etc.
Keep engine control system parts and harness dry.
Before replacing ECM, perform ECM Terminals and Refer-
ence Value inspection and make sure ECM functions prop-
erly. Refer to EC-103, "
ECM Terminals and Reference Value"
.
Handle mass air flow sensor carefully to avoid damage.
Do not clean mass air flow sensor with any type of deter-
gent.
Do not disassemble electric throttle control actuator.
Even a slight leak in the air intake system can cause seri-
ous incidents.
Do not shock or jar the camshaft position sensor (PHASE),
crankshaft position sensor (POS).
After performing each TROUBLE DIAGNOSIS, perform DTC
Confirmation Procedure or Overall Function Check.
The DTC should not be displayed in the DTC Confirmation
Procedure if the repair is completed. The Overall Function
Check should be a good result if the repair is completed.
When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.
MEF040D
SEF217U
SEF348N
EC-38
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 November2007 350Z
WITH CONSULT-III

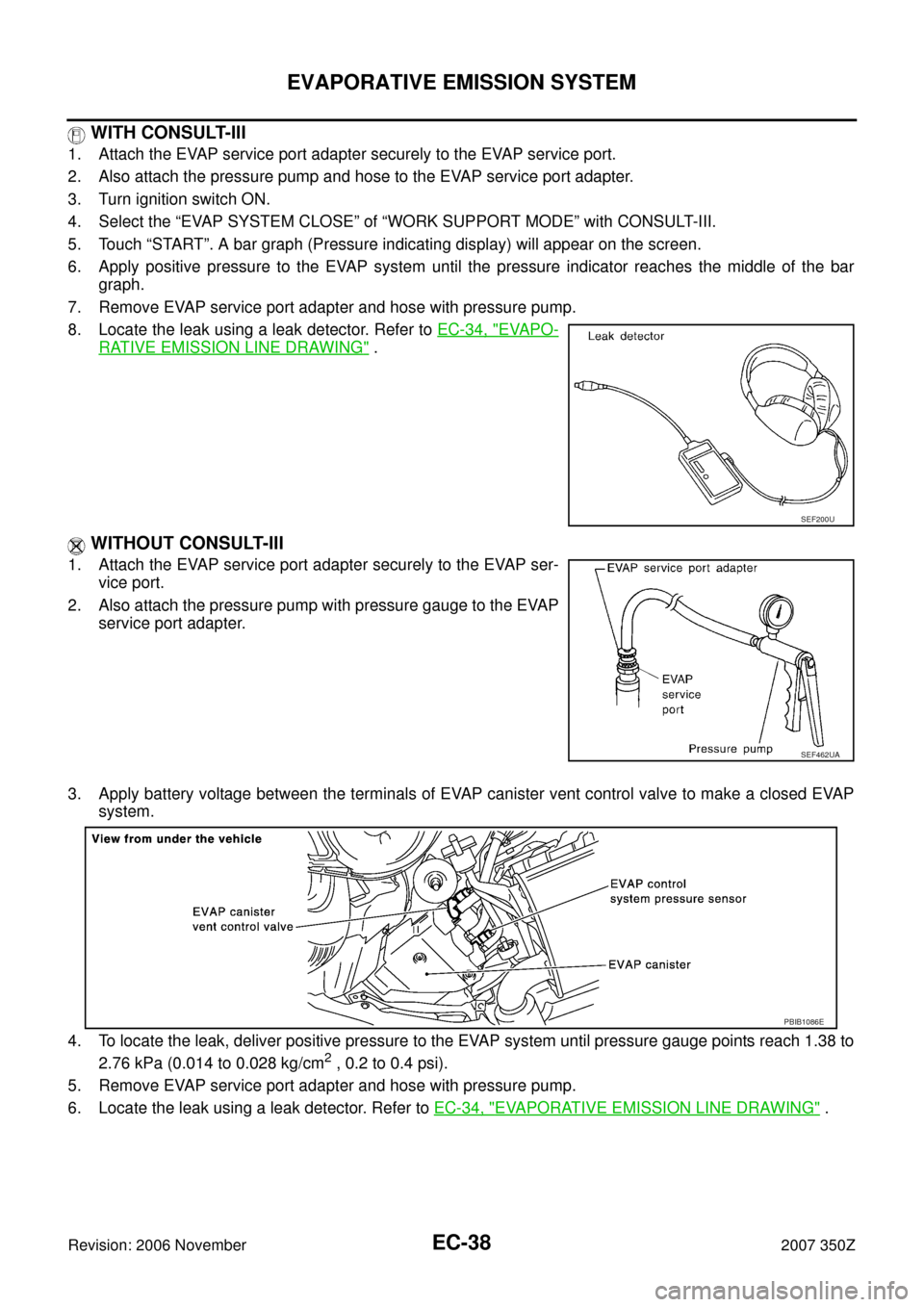

1. Attach the EVAP service port adapter securely to the EVAP service port.
2. Also attach the pressure pump and hose to the EVAP service port adapter.
3. Turn ignition switch ON.
4. Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT MODE” with CONSULT-III.
5. Touch “START”. A bar graph (Pressure indicating display) will appear on the screen.
6. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar
graph.
7. Remove EVAP service port adapter and hose with pressure pump.
8. Locate the leak using a leak detector. Refer to EC-34, "
EVAPO-
RATIVE EMISSION LINE DRAWING" .
WITHOUT CONSULT-III
1. Attach the EVAP service port adapter securely to the EVAP ser-
vice port.
2. Also attach the pressure pump with pressure gauge to the EVAP
service port adapter.
3. Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP
system.
4. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to
2.76 kPa (0.014 to 0.028 kg/cm
2 , 0.2 to 0.4 psi).
5. Remove EVAP service port adapter and hose with pressure pump.
6. Locate the leak using a leak detector. Refer to EC-34, "
EVAPORATIVE EMISSION LINE DRAWING" .
SEF200U
SEF462UA
PBIB1086E
EC-46
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 November2007 350Z
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:25386
DescriptionNBS0002Y
If the security indicator lights up with the ignition switch in the ON position or “NATS MALFUNC-
TION” is displayed on “SELF-DIAG RESULTS” screen, perform self-diagnostic results mode with
CONSULT-III using NATS program card. Refer to BL-150, "
NVIS (NISSAN VEHICLE IMMOBILIZER
SYSTEM-NATS)" .
Confirm no self-diagnostic results of NVIS (NATS) is displayed before touching “ERASE” in
“SELF-DIAG RESULTS” mode with CONSULT-III.
When replacing ECM, initialization of NVIS (NATS) system and registration of all NVIS (NATS) igni-
tion key IDs must be carried out with CONSULT-III using NATS program card.
Therefore, be sure to receive all keys from vehicle owner. Regarding the procedures of NVIS
(NATS) initialization and all NVIS (NATS) ignition key ID registration, refer to CONSULT-III Opera-
tion Manual, IVIS/NVIS.
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-47
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionNBS0002Z
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected
in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode.
(Refer to EC-89, "
Fail-safe Chart" .)
Two Trip Detection LogicNBS00030
When a malfunction is detected for the 1st time, 1st trip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MIL will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MIL lights up. The MIL lights up at the same time when the DTC is stored. <2nd
trip> The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation. Specific on board diagnostic items will cause the ECM to light up or blink the MIL,
and store DTC and Freeze Frame data, even in the 1st trip, as shown below.
×: Applicable —: Not applicable
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Emission-related diagnostic information Diagnostic service
Diagnostic Trouble Code (DTC) Service $03 of SAE J1979
Freeze Frame data Service $02 of SAE J1979
System Readiness Test (SRT) code Service $01 of SAE J1979
1st Trip Diagnostic Trouble Code (1st Trip DTC) Service $07 of SAE J1979
1st Trip Freeze Frame data
Test values and Test limits Service $06 of SAE J1979
Calibration ID Service $09 of SAE J1979
DTC 1st trip DTCFreeze Frame
data1st trip Freeze
Frame dataSRT status SRT code Test value
CONSULT-III××××××—
GST×××—×××
ECM×× *— —×——
ItemsMIL DTC 1st trip DTC
1st trip 2nd trip
1st trip
displaying2nd trip
displaying1st trip
displaying2nd trip
display-
ing BlinkingLighting
upBlinkingLighting
up
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0306 is being detected×———— —×—
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0306 is being detected——×——×——
One trip detection diagnoses
(Refer to EC-48, "
EMISSION-
RELATED DIAGNOSTIC INFOR-
MATION ITEMS" .)—×——×———
Except above — — —×—××—
EC-52
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 November2007 350Z
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: SRT code will not be set if the self-diagnostic result is NG.
*5: The troubleshooting for this DTC needs CONSULT-III.
*6: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates.
*7: When the ECM is in the mode of displaying SRT status, MIL may flash. For the details, refer to EC-56, "
How to Display SRT Status" .
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DTC number) is displayed for the latest self-diagnostic
results obtained. If the ECM memory was cleared previously, and the 1st trip DTC did not reoccur, the 1st trip
DTC will not be displayed.
If a malfunction is detected during the 1st trip, the 1st trip DTC is stored in the ECM memory. The MIL will not
light up (two trip detection logic). If the same malfunction is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are stored in the ECM memory and the MIL lights up. In other words,
the DTC is stored in the ECM memory and the MIL lights up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
trips, only the 1st trip DTC will continue to be stored. For malfunctions that blink or light up the MIL during the
1st trip, the DTC and 1st trip DTC are stored in the ECM memory.
Procedures for clearing the DTC and the 1st trip DTC from the ECM memory are described in EC-61, "
HOW
TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .
For malfunctions in which 1st trip DTCs are displayed, refer to EC-48, "
EMISSION-RELATED DIAGNOSTIC
INFORMATION ITEMS" . These items are required by legal regulations to continuously monitor the system/
component. In addition, the items monitored non-continuously are also displayed on CONSULT-III.
1st trip DTC is specified in Service $07 of SAE J1979. 1st trip DTC detection occurs without lighting up the MIL
and therefore does not warn the driver of a malfunction. However, 1st trip DTC detection will not prevent the
vehicle from being tested, for example during Inspection/Maintenance (I/M) tests.
When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame
data as specified in Work Flow procedure Step 2, refer to EC-82, "
WORK FLOW" . Then perform DTC Confir-
mation Procedure or Overall Function Check to try to duplicate the malfunction. If the malfunction is dupli-
cated, the item requires repair.
How to Read DTC and 1st Trip DTC
DTC and 1st trip DTC can be read by the following methods.
With CONSULT-III
With GST
CONSULT-III or GST (Generic Scan Tool) Examples: P0340, P0850, P1148, etc.
These DTCs are prescribed by SAE J2012.
(CONSULT-III also displays the malfunctioning component or system.)
No Tools
The number of blinks of the MIL in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC.
Example: 0340, 0850, 1148, etc.
These DTCs are controlled by NISSAN.
1st trip DTC No. is the same as DTC No.
Output of a DTC indicates a malfunction. However, GST or the Diagnostic Test Mode II do not indi-
cate whether the malfunction is still occurring or has occurred in the past and has returned to nor-
mal. CONSULT-III can identify malfunction status as shown below. Therefore, using CONSULT-III (if
available) is recommended.
A sample of CONSULT-III display for DTC and 1st trip DTC is shown below. DTC or 1st trip DTC of a malfunc-
tion is displayed in “SELF-DIAGNOSTIC RESULTS” mode of CONSULT-III. Time data indicates how many
times the vehicle was driven after the last detection of a DTC.
APP SENSOR P2138 2138 — — 1×EC-650
A/F SENSOR1 (B1) P2A00 2A00 —×2×EC-659
A/F SENSOR1 (B2) P2A03 2A03 —×2×EC-659
Items
(CONSULT-III screen terms)DTC*
1
SRT codeTest value/
Te s t l i m i t
(GST only)TripMIL lighting
upReference
page CONSULT-III
GST*
2ECM*3
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-53
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
If the DTC is being detected currently, the time data will be [0].
If a 1st trip DTC is stored in the ECM, the time data will be [1t].
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA
The ECM records the driving conditions such as fuel system status, calculated load value, engine coolant tem-
perature, short term fuel trim, long term fuel trim, engine speed, vehicle speed, absolute throttle position, base
fuel schedule and intake air temperature at the moment a malfunction is detected.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.
The data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-III or
GST. The 1st trip freeze frame data can only be displayed on the CONSULT-III screen, not on the GST. For
details, see EC-119, "
Freeze Frame Data and 1st Trip Freeze Frame Data" .
Only one set of freeze frame data (either 1st trip freeze frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
For example, the EGR malfunction (Priority: 2) was detected and the freeze frame data was stored in the 2nd
trip. After that when the misfire (Priority: 1) is detected in another trip, the freeze frame data will be updated
from the EGR malfunction to the misfire. The 1st trip freeze frame data is updated each time a different mal-
function is detected. There is no priority for 1st trip freeze frame data. However, once freeze frame data is
stored in the ECM memory, 1st trip freeze data is no longer stored (because only one freeze frame data or 1st
trip freeze frame data can be stored in the ECM). If freeze frame data is stored in the ECM memory and freeze
frame data with the same priority occurs later, the first (original) freeze frame data remains unchanged in the
ECM memory.
Both 1st trip freeze frame data and freeze frame data (along with the DTCs) are cleared when the ECM mem-
ory is erased. Procedures for clearing the ECM memory are described in EC-61, "
HOW TO ERASE EMIS-
SION-RELATED DIAGNOSTIC INFORMATION" .
SYSTEM READINESS TEST (SRT) CODE
System Readiness Test (SRT) code is specified in Service $01 of SAE J1979.
As part of an enhanced emissions test for Inspection & Maintenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has completed self-diagnosis of major emission systems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspection due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system. Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indicates “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT indicates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:
If MIL is ON during the state emissions inspection, the vehicle is also returned to the customer untested even
though the SRT indicates “CMPLT” for all test items. Therefore, it is important to check SRT (“CMPLT”) and
DTC (No DTCs) before the inspection.
SRT Item
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
Priority Items
1Freeze frame data Misfire — DTC: P0300 - P0306
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175
2 Except the above items (Includes A/T related items)
3 1st trip freeze frame data
