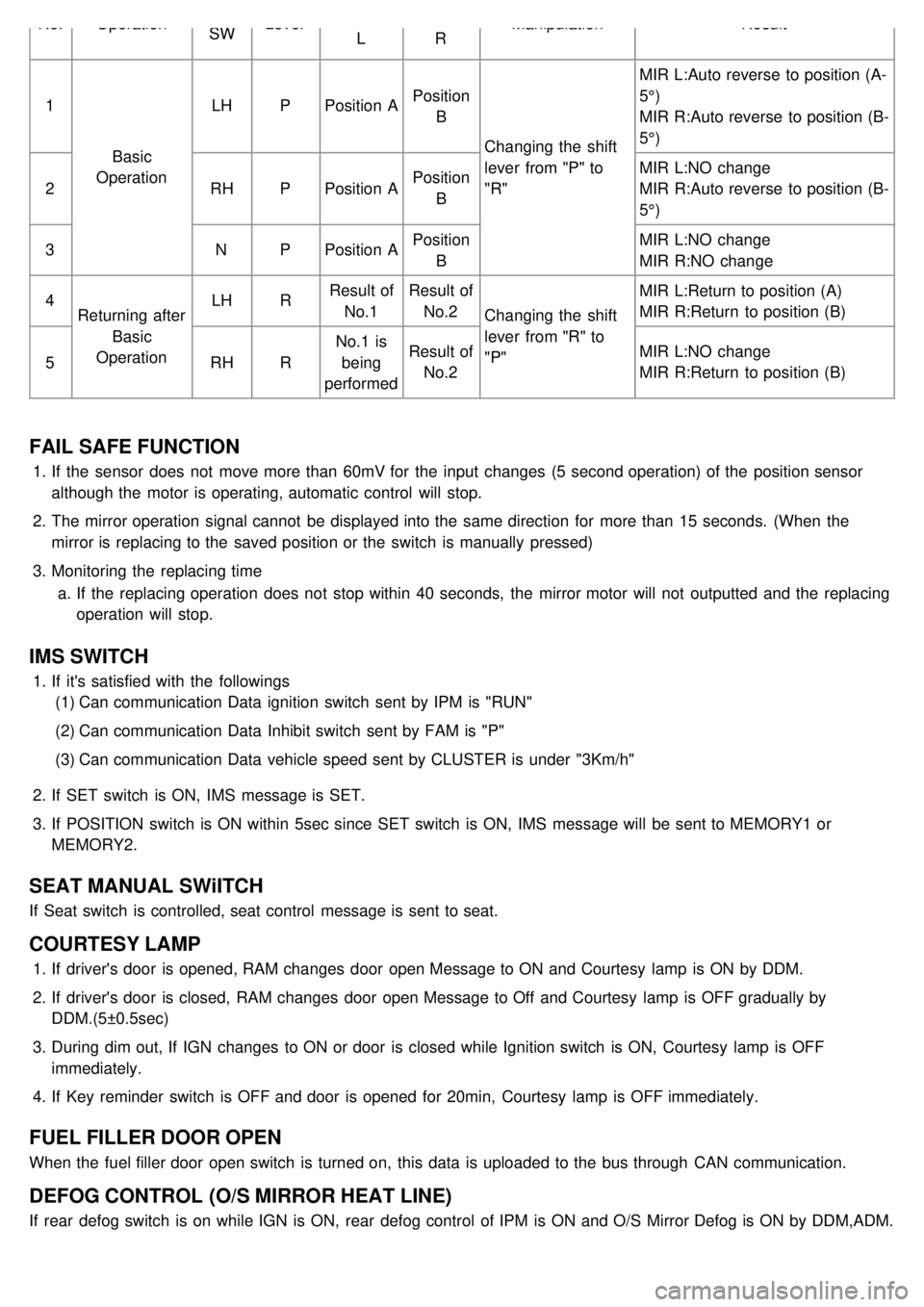

2007 KIA CARNIVAL sensor

No.Operation
SWLever
LRManipulation
Result
1 Basic
Operation LH
PPosition A Position
B
Changing the shift
lever from "P" to
"R" MIR L:Auto reverse to position (A-
5°)
MIR R:Auto reverse to position (B-
5°)
2 RHPPosition A Position
B MIR L:NO change
MIR R:Auto reverse to position (B-
5°)
3 NPPosition A Position
B MIR L:NO change
MIR R:NO change
4 Returning after
Basic
Operation LH
RResult of
No.1 Result of
No.2 Changing the shift
lever from "R" to
"P" MIR L:Return to position (A)
MIR R:Return to position (B)
5 RHRNo.1 is
being
performed Result of
No.2 MIR L:NO change
MIR R:Return to position (B)
FAIL SAFE FUNCTION
1.
If the sensor does not move more than 60mV for the input changes (5 second operation) of the position sensor
although the motor is operating, automatic control will stop.
2. The mirror operation signal cannot be displayed into the same direction for more than 15 seconds. (When the
mirror is replacing to the saved position or the switch is manually pressed)
3. Monitoring the replacing time
a. If the replacing operation does not stop within 40 seconds, the mirror motor will not outputted and the replacing
operation will stop.
IMS SWITCH
1.If it's satisfied with the followings
(1) Can communication Data ignition switch sent by IPM is "RUN"
(2) Can communication Data Inhibit switch sent by FAM is "P"
(3) Can communication Data vehicle speed sent by CLUSTER is under "3Km/h"
2. If SET switch is ON, IMS message is SET.
3. If POSITION switch is ON within 5sec since SET switch is ON, IMS message will be sent to MEMORY1 or
MEMORY2.
SEAT MANUAL SWiITCH
If Seat switch is controlled, seat control message is sent to seat.
COURTESY LAMP
1.If driver's door is opened, RAM changes door open Message to ON and Courtesy lamp is ON by DDM.
2. If driver's door is closed, RAM changes door open Message to Off and Courtesy lamp is OFF gradually by
DDM.(5±0.5sec)
3. During dim out, If IGN changes to ON or door is closed while Ignition switch is ON, Courtesy lamp is OFF
immediately.
4. If Key reminder switch is OFF and door is opened for 20min, Courtesy lamp is OFF immediately.
FUEL FILLER DOOR OPEN
When the fuel filler door open switch is turned on, this data is uploaded to the bus through CAN communication.
DEFOG CONTROL (O/S MIRROR HEAT LINE)
If rear defog switch is on while IGN is ON, rear defog control of IPM is ON and O/S Mirror Defog is ON by DDM,ADM.

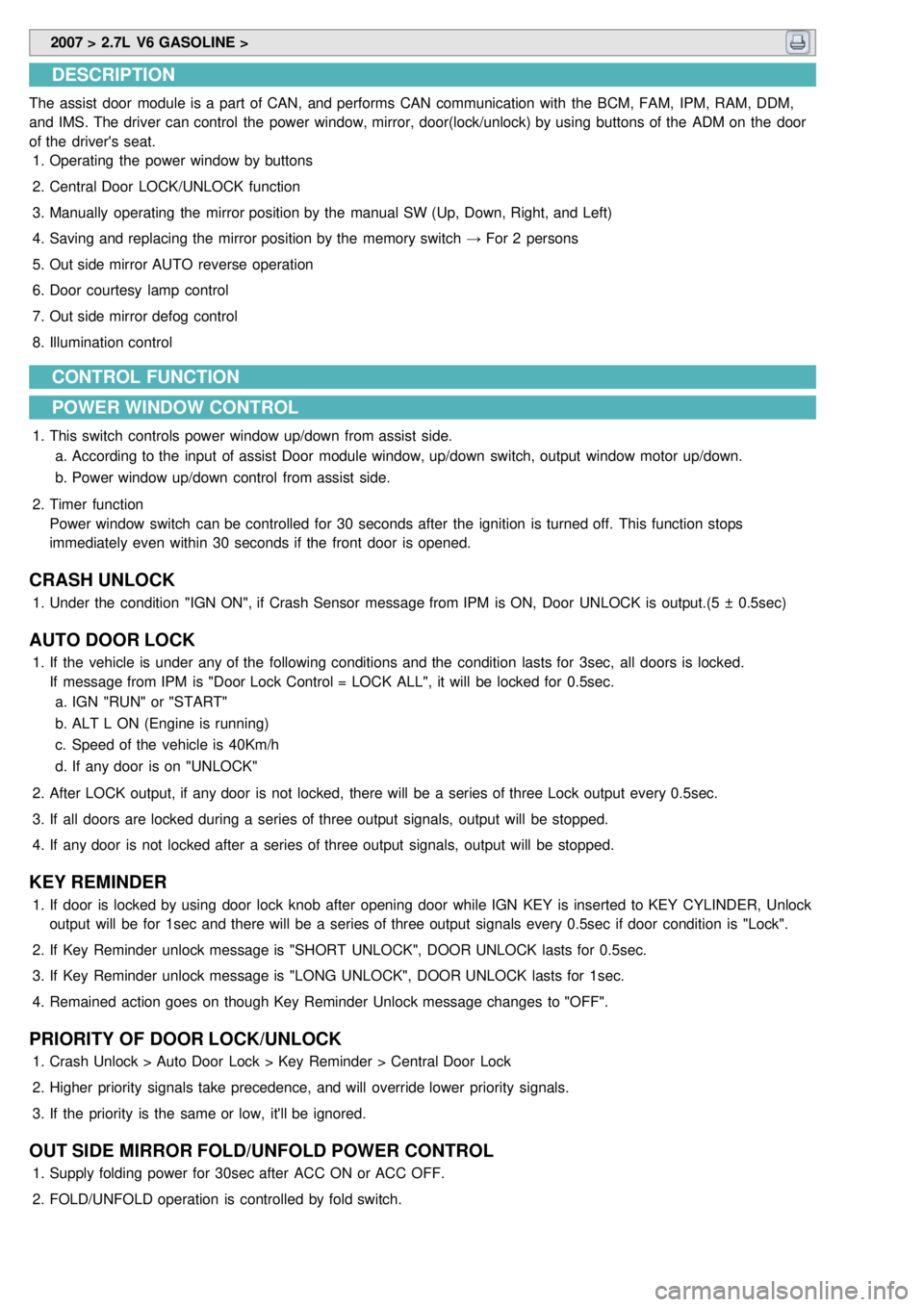

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
The assist door module is a part of CAN, and performs CAN communication with the BCM, FAM, IPM, RAM, DDM,
and IMS. The driver can control the power window, mirror, door(lock/unlock) by using buttons of the ADM on the door
of the driver's seat.
1. Operating the power window by buttons
2. Central Door LOCK/UNLOCK function
3. Manually operating the mirror position by the manual SW (Up, Down, Right, and Left)
4. Saving and replacing the mirror position by the memory switch → For 2 persons
5. Out side mirror AUTO reverse operation
6. Door courtesy lamp control
7. Out side mirror defog control
8. Illumination control
CONTROL FUNCTION
POWER WINDOW CONTROL
1.This switch controls power window up/down from assist side.
a. According to the input of assist Door module window, up/down switch, output window motor up/down.
b. Power window up/down control from assist side.
2. Timer function
Power window switch can be controlled for 30 seconds after the ignition is turned off. This function stops
immediately even within 30 seconds if the front door is opened.
CRASH UNLOCK
1.Under the condition "IGN ON", if Crash Sensor message from IPM is ON, Door UNLOCK is output.(5 ± 0.5sec)
AUTO DOOR LOCK
1.If the vehicle is under any of the following conditions and the condition lasts for 3sec, all doors is locked.
If message from IPM is "Door Lock Control = LOCK ALL", it will be locked for 0.5sec.
a. IGN "RUN" or "START"
b. ALT L ON (Engine is running)
c. Speed of the vehicle is 40Km/h
d. If any door is on "UNLOCK"
2. After LOCK output, if any door is not locked, there will be a series of three Lock output every 0.5sec.
3. If all doors are locked during a series of three output signals, output will be stopped.
4. If any door is not locked after a series of three output signals, output will be stopped.
KEY REMINDER
1.If door is locked by using door lock knob after opening door while IGN KEY is inserted to KEY CYLINDER, Unlock
output will be for 1sec and there will be a series of three output signals every 0.5sec if door condition is "Lock".
2. If Key Reminder unlock message is "SHORT UNLOCK", DOOR UNLOCK lasts for 0.5sec.
3. If Key Reminder unlock message is "LONG UNLOCK", DOOR UNLOCK lasts for 1sec.
4. Remained action goes on though Key Reminder Unlock message changes to "OFF".
PRIORITY OF DOOR LOCK/UNLOCK
1.Crash Unlock > Auto Door Lock > Key Reminder > Central Door Lock
2. Higher priority signals take precedence, and will override lower priority signals.
3. If the priority is the same or low, it'll be ignored.
OUT SIDE MIRROR FOLD/UNFOLD POWER CONTROL
1.Supply folding power for 30sec after ACC ON or ACC OFF.
2. FOLD/UNFOLD operation is controlled by fold switch.

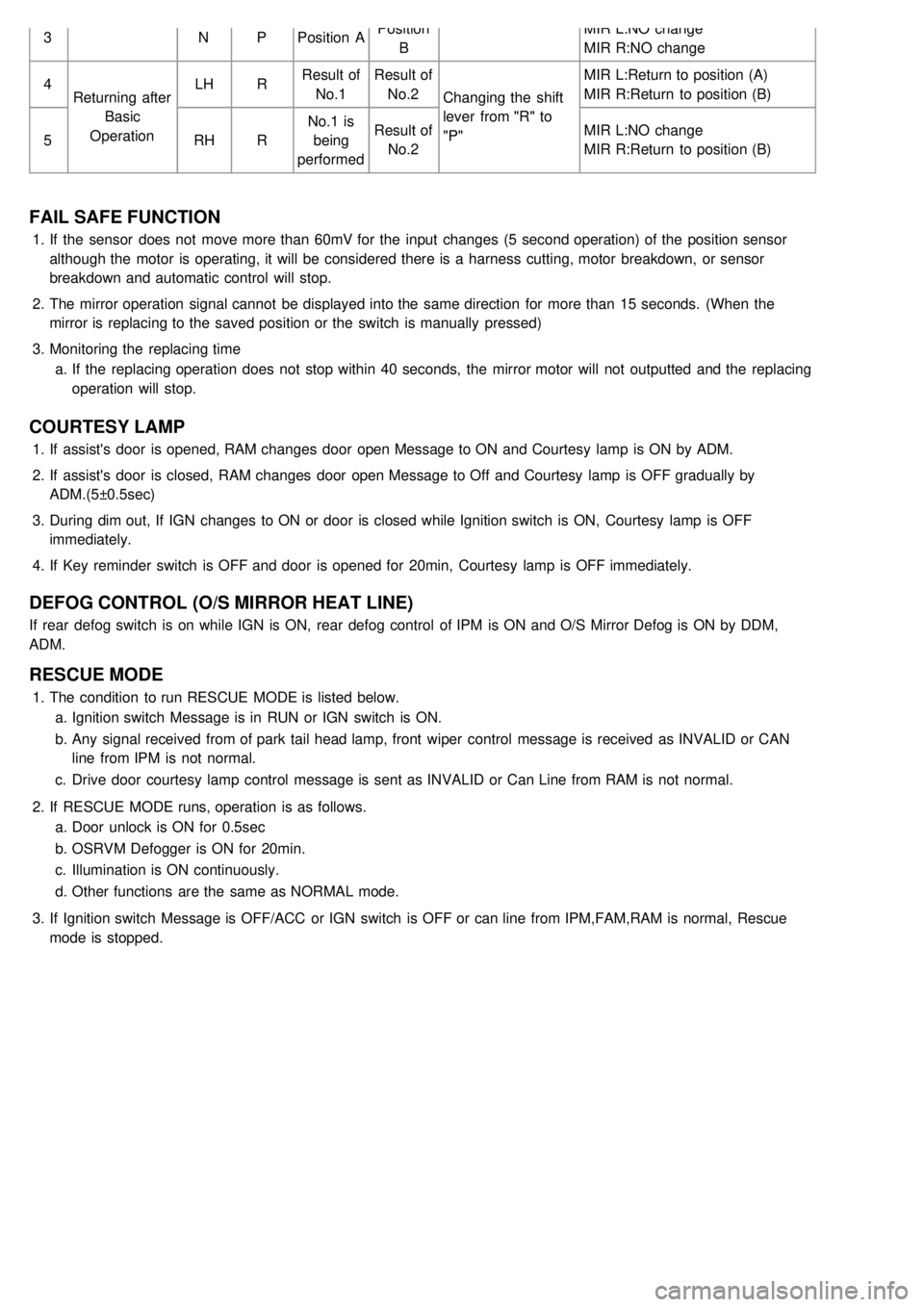

3NPPosition A Position
B MIR L:NO change
MIR R:NO change
4 Returning after
Basic
Operation LH
RResult of
No.1 Result of
No.2 Changing the shift
lever from "R" to
"P" MIR L:Return to position (A)
MIR R:Return to position (B)
5 RHRNo.1 is
being
performed Result of
No.2 MIR L:NO change
MIR R:Return to position (B)
FAIL SAFE FUNCTION
1.
If the sensor does not move more than 60mV for the input changes (5 second operation) of the position sensor
although the motor is operating, it will be considered there is a harness cutting, motor breakdown, or sensor
breakdown and automatic control will stop.
2. The mirror operation signal cannot be displayed into the same direction for more than 15 seconds. (When the
mirror is replacing to the saved position or the switch is manually pressed)
3. Monitoring the replacing time
a. If the replacing operation does not stop within 40 seconds, the mirror motor will not outputted and the replacing
operation will stop.
COURTESY LAMP
1.If assist's door is opened, RAM changes door open Message to ON and Courtesy lamp is ON by ADM.
2. If assist's door is closed, RAM changes door open Message to Off and Courtesy lamp is OFF gradually by
ADM.(5±0.5sec)
3. During dim out, If IGN changes to ON or door is closed while Ignition switch is ON, Courtesy lamp is OFF
immediately.
4. If Key reminder switch is OFF and door is opened for 20min, Courtesy lamp is OFF immediately.
DEFOG CONTROL (O/S MIRROR HEAT LINE)
If rear defog switch is on while IGN is ON, rear defog control of IPM is ON and O/S Mirror Defog is ON by DDM,
ADM.
RESCUE MODE
1.The condition to run RESCUE MODE is listed below.
a. Ignition switch Message is in RUN or IGN switch is ON.
b. Any signal received from of park tail head lamp, front wiper control message is received as INVALID or CAN
line from IPM is not normal.
c. Drive door courtesy lamp control message is sent as INVALID or Can Line from RAM is not normal.
2. If RESCUE MODE runs, operation is as follows.
a. Door unlock is ON for 0.5sec
b. OSRVM Defogger is ON for 20min.
c. Illumination is ON continuously.
d. Other functions are the same as NORMAL mode.
3. If Ignition switch Message is OFF/ACC or IGN switch is OFF or can line from IPM,FAM,RAM is normal, Rescue
mode is stopped.
