416 Practical hintsWhat to do if …Vehicle status messages in the multifunction display
Warning and malfunction messages
appear in the multifunction display located
in the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(page 173) displays both cleared and
uncleared messages.
High-priority messages appear in the
multifunction display in red color.Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 158) or
buttonj,k,ÿ, orè on the
multifunction steering wheel.
Other messages of high priority and mes-
sages of less immediate priority can be
cleared from the multifunction display
using the reset button (page 158) or
buttonj,k,ÿ, orè on the
multifunction steering wheel. They are
then stored in the vehicle status message
memory (
page 173). Remember that
clearing a message will only make the mes-
sage disappear. Clearing a message will
not correct the condition that caused the
message to appear.
Warning!
G
All categories of messages contain
important information which should be
taken note of and, where a malfunction is
indicated, addressed as soon as possible at
an authorized Mercedes-Benz Light Truck
Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
Contact the nearest authorized
Mercedes-Benz Light Truck Center.

417 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may
appear in the multifunction display.
For your convenience the messages are
divided into two sections:

Text messages (
page 418)


Symbol messages (
page 429)
iSwitching on the ignition causes all
instrument cluster lamps (except high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) as well as the multifunction dis-
play to come on. Make sure the lamps
and multifunction display are in work-
ing order before starting your journey.

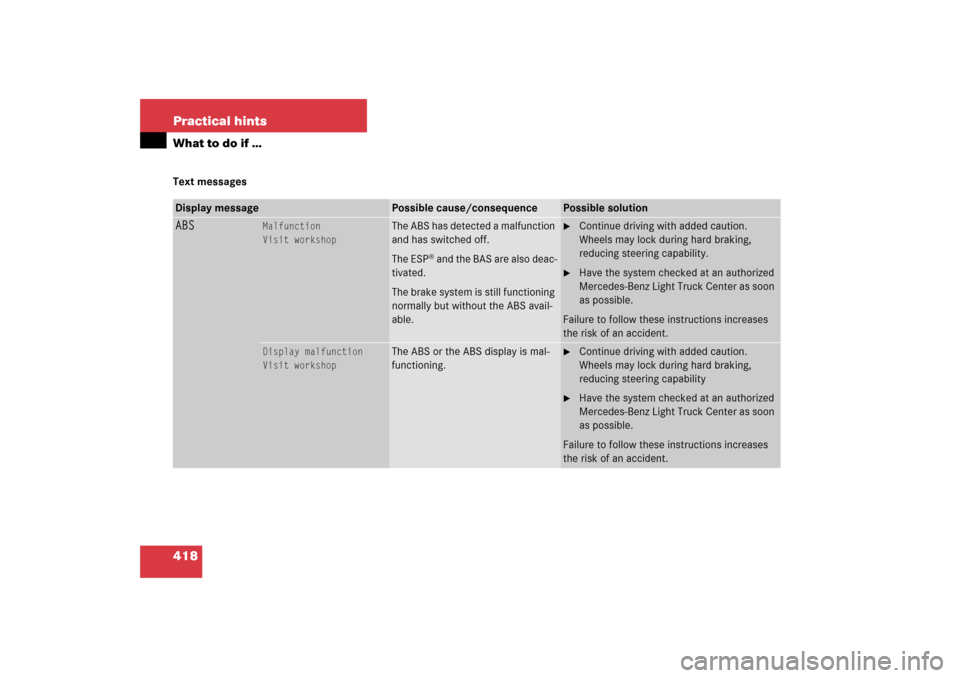

418 Practical hintsWhat to do if …Text messagesDisplay message
Possible cause/consequence
Possible solution
ABS
Malfunction
Visit workshop
The ABS has detected a malfunction
and has switched off.
The ESP
® and the BAS are also deac-
tivated.
The brake system is still functioning
normally but without the ABS avail-
able.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
Failure to follow these instructions increases
the risk of an accident.
Display malfunction
Visit workshop
The ABS or the ABS display is mal-
functioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability

Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
Failure to follow these instructions increases
the risk of an accident.

419 Practical hints
What to do if …
Display message
Possible cause/consequence
Possible solution
ABS
unavailable
See Operator’s Manual
The ABS was deactivated because of
insufficient power supply. The charg-
ing voltage has fallen below 10 volts.
The brake system is still functioning
normally but without the ABS
available.

Switch off electrical consumers that are
currently not needed, e.g. seat heating*.

If necessary, have the generator
(alternator) and the battery checked.
When the voltage is above this value again, the
ABS is operational again and the message in
the multifunction display should disappear.
Cruise
control
Drive to workshop
Cruise control is malfunctioning.

Have cruise control checked by an
authorized Mercedes-Benz Light Truck
Center.
ESP
unavailable
See Operator’s Manual
In addition, the yellow ESP
® warning
lampv comes on.
The ESP
® is deactivated because of
a malfunction or interrupted power
supply.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Light
Truck Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.

420 Practical hintsWhat to do if …Display message
Possible cause/consequence
Possible solution
ESP
unavailable
See Operator’s Manual
If the yellow ESP
® warning
lampv flashes while driving and
this message appears, the electron-
ic traction system has switched off
to prevent overheating of the drive
wheel brakes.
As soon as the brakes have cooled off, the
electronic traction system switches on again.
The message in the multifunction display disap-
pears and the ESP
® warning lampv goes
out.
The self-diagnosis has not yet been
completed yet.
The display will clear after driving a short
distance at a vehicle speed of above
12 mph (20 km/h).
Malfunction
Visit workshop
In addition, the yellow ESP
® warning
lampv comes on.
The ESP
® has detected a malfunc-
tion and switched off.
The ABS may still be operational.

Continue driving with added caution.

Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
Failure to follow these instructions increases
the risk of an accident.
Display malfunction
Visit workshop
In addition, the yellow ESP
® warning
lampv comes on.
The ESP
® or the ESP
® display is
malfunctioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Light
Truck Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.

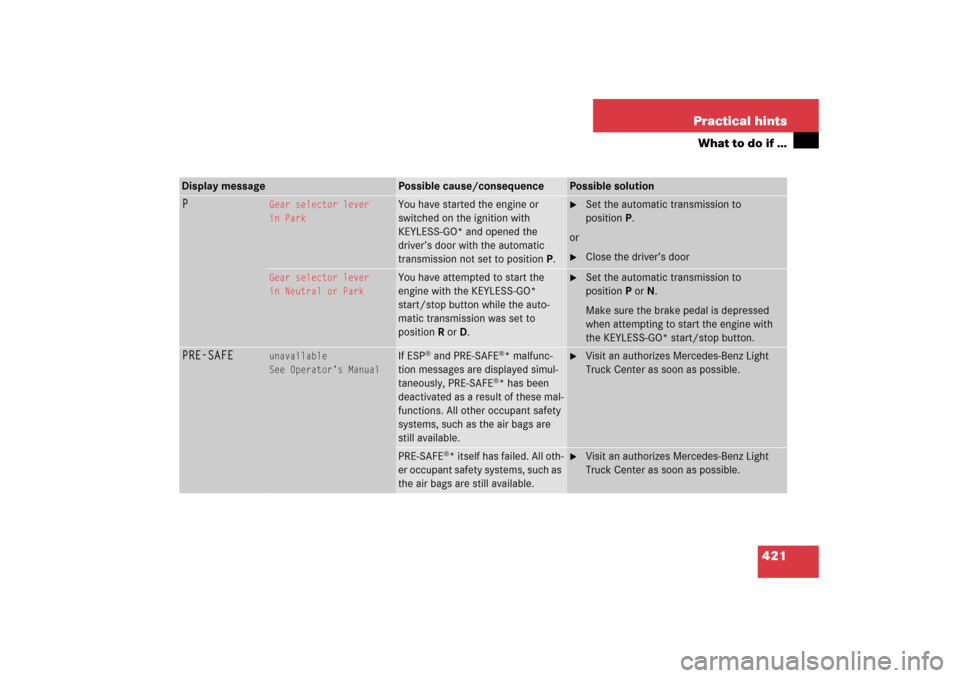

421 Practical hints
What to do if …
Display message
Possible cause/consequence
Possible solution
P
Gear selector lever
in Park
You have started the engine or
switched on the ignition with
KEYLESS-GO* and opened the
driver’s door with the automatic
transmission not set to positionP.

Set the automatic transmission to
positionP.
or

Close the driver’s door
Gear selector lever
in Neutral or Park
You have attempted to start the
engine with the KEYLESS-GO*
start/stop button while the auto-
matic transmission was set to
positionR orD.

Set the automatic transmission to
positionP orN.
Make sure the brake pedal is depressed
when attempting to start the engine with
the KEYLESS-GO* start/stop button.
PRE-SAFE
unavailable
See Operator’s Manual
If ESP
® and PRE-SAFE
®* malfunc-
tion messages are displayed simul-
taneously, PRE-SAFE®* has been
deactivated as a result of these mal-
functions. All other occupant safety
systems, such as the air bags are
still available.

Visit an authorizes Mercedes-Benz Light
Truck Center as soon as possible.
PRE-SAFE
®* itself has failed. All oth-
er occupant safety systems, such as
the air bags are still available.

Visit an authorizes Mercedes-Benz Light
Truck Center as soon as possible.

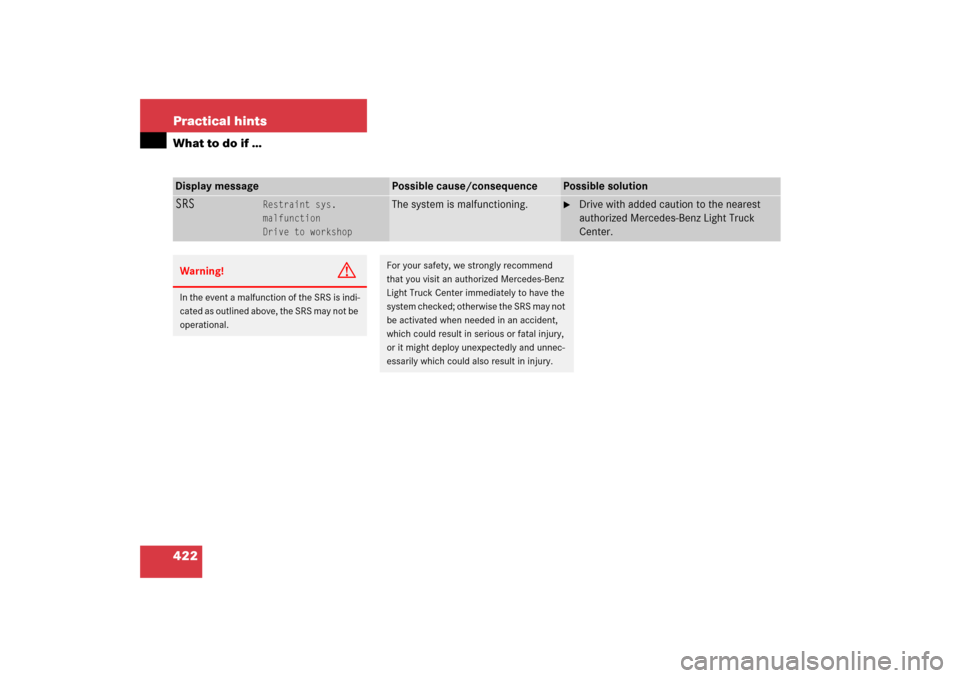

422 Practical hintsWhat to do if …Display message
Possible cause/consequence
Possible solution
SRS
Restraint sys.
malfunction
Drive to workshop
The system is malfunctioning.

Drive with added caution to the nearest
authorized Mercedes-Benz Light Truck
Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Light Truck Center immediately to have the
system checked; otherwise the SRS may not
be activated when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.

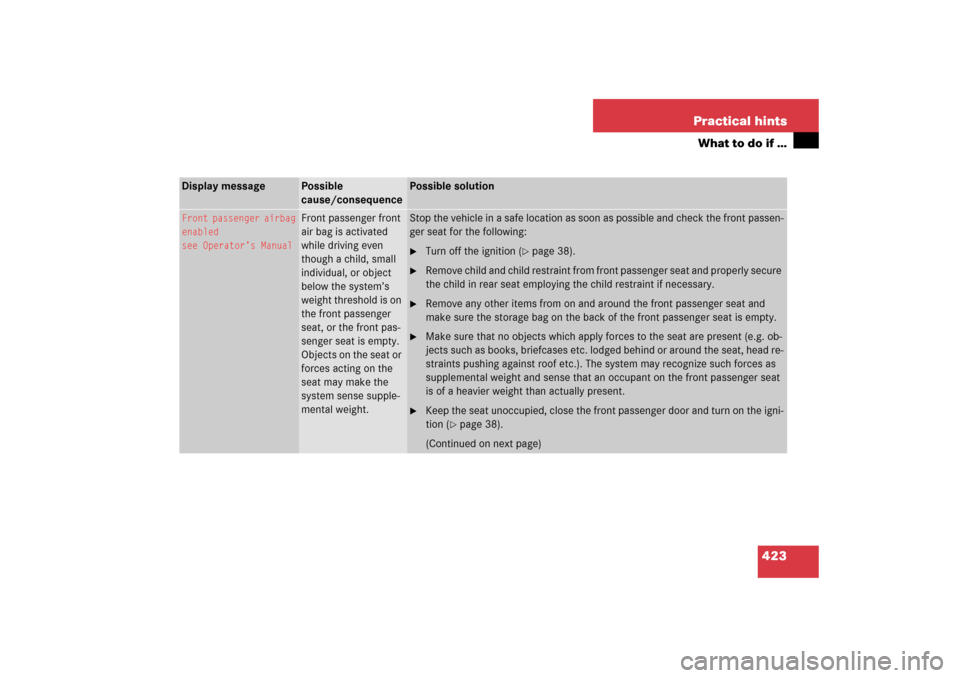

423 Practical hints
What to do if …
Display message
Possible
cause/consequence
Possible solution
Front passenger airbag
enabled
see Operator’s Manual
Front passenger front
air bag is activated
while driving even
though a child, small
individual, or object
below the system’s
weight threshold is on
the front passenger
seat, or the front pas-
senger seat is empty.
Objects on the seat or
forces acting on the
seat may make the
system sense supple-
mental weight.
Stop the vehicle in a safe location as soon as possible and check the front passen-
ger seat for the following:
Turn off the ignition (
page 38).

Remove child and child restraint from front passenger seat and properly secure
the child in rear seat employing the child restraint if necessary.

Remove any other items from on and around the front passenger seat and
make sure the storage bag on the back of the front passenger seat is empty.

Make sure that no objects which apply forces to the seat are present (e.g. ob-
jects such as books, briefcases etc. lodged behind or around the seat, head re-
straints pushing against roof etc.). The system may recognize such forces as
supplemental weight and sense that an occupant on the front passenger seat
is of a heavier weight than actually present.

Keep the seat unoccupied, close the front passenger door and turn on the igni-
tion (
page 38).
(Continued on next page)
