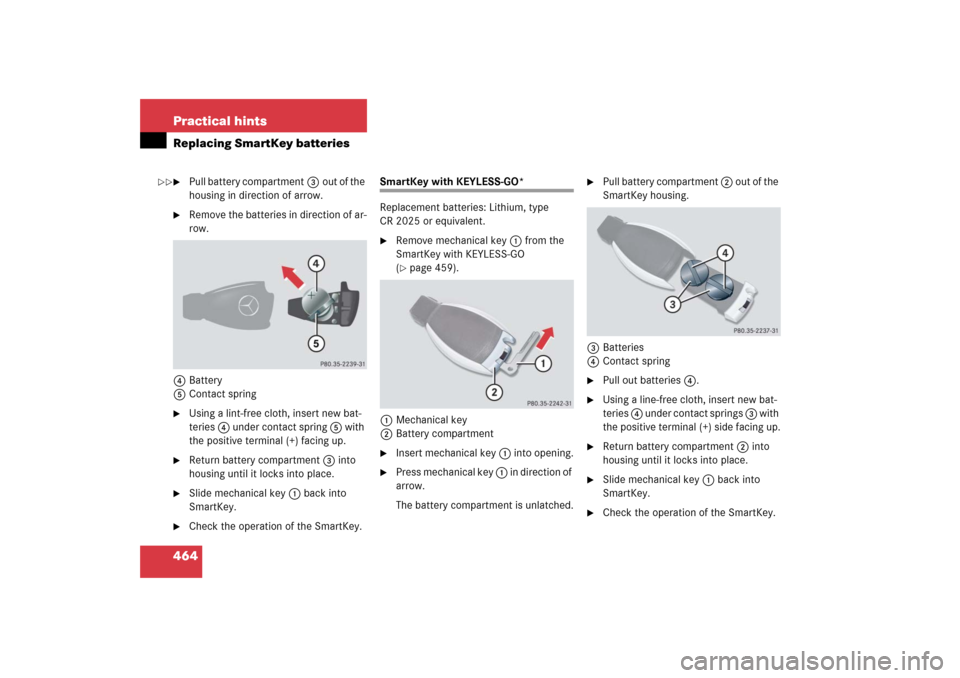

464 Practical hintsReplacing SmartKey batteries
Pull battery compartment3out of the
housing in direction of arrow.

Remove the batteries in direction of ar-
row.
4Battery
5Contact spring

Using a lint-free cloth, insert new bat-
teries 4 under contact spring 5 with
the positive terminal (+) facing up.

Return battery compartment 3 into
housing until it locks into place.

Slide mechanical key 1 back into
SmartKey.

Check the operation of the SmartKey.
SmartKey with KEYLESS-GO*
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove mechanical key1 from the
SmartKey with KEYLESS-GO
(page 459).
1Mechanical key
2Battery compartment

Insert mechanical key 1 into opening.

Press mechanical key 1 in direction of
arrow.
The battery compartment is unlatched.

Pull battery compartment 2 out of the
SmartKey housing.
3Batteries
4Contact spring

Pull out batteries4.

Using a line-free cloth, insert new bat-
teries 4 under contact springs 3 with
the positive terminal (+) side facing up.

Return battery compartment 2 into
housing until it locks into place.

Slide mechanical key 1 back into
SmartKey.

Check the operation of the SmartKey.


465 Practical hints
Replacing bulbs
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Light Truck Center for
headlamp adjustment.
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.
iBackup bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps


Brake lamps


Parking lamps


Tail lamps
Read and observe messages in the
multifunction display (
page 442).

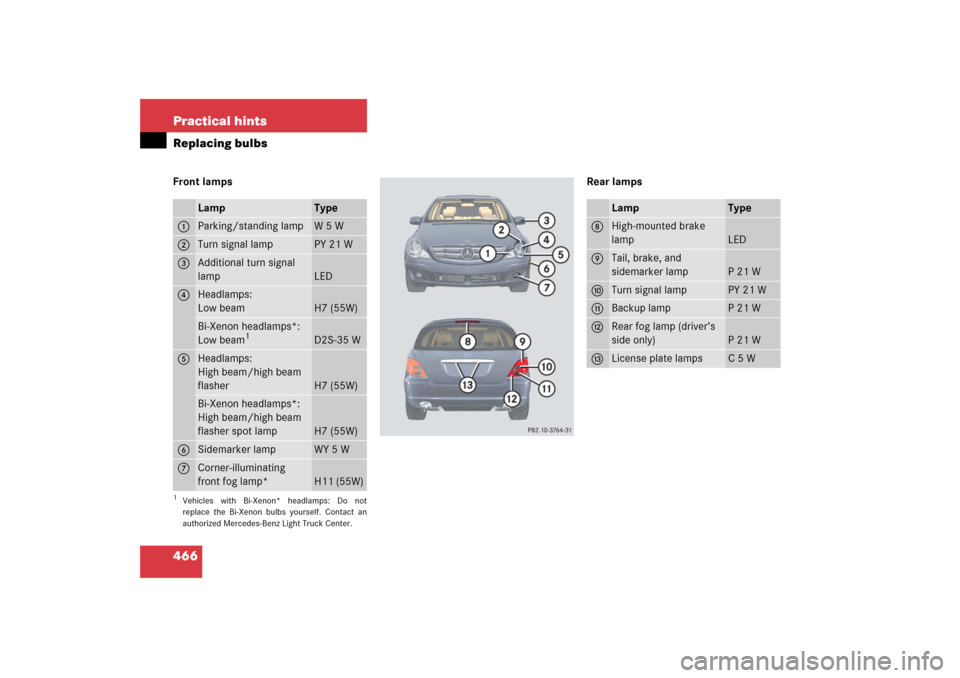

466 Practical hintsReplacing bulbsFront lamps Rear lamps
Lamp
Type
1
Parking/standing lamp
W 5 W
2
Turn signal lamp
PY 21 W
3
Additional turn signal
lamp
LED
4
Headlamps:
Low beam
H7 (55W)
Bi-Xenon headlamps*:
Low beam
1
1Vehicles with Bi-Xenon* headlamps: Do not
replace the Bi-Xenon bulbs yourself. Contact an
authorized Mercedes-Benz Light Truck Center.
D2S-35 W
5
Headlamps:
High beam/high beam
flasher
H7 (55W)
Bi-Xenon headlamps*:
High beam/high beam
flasher spot lamp
H7 (55W)
6
Sidemarker lamp
WY 5 W
7
Corner-illuminating
front fog lamp*
H11 (55W)
Lamp
Type
8
High-mounted brake
lamp
LED
9
Tail, brake, and
sidemarker lamp
P 21 W
a
Turn signal lamp
PY 21 W
b
Backup lamp
P 21 W
c
Rear fog lamp (driver’s
side only)
P 21 W
d
License plate lamps
C 5 W

467 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.


Switch the lights off before changing a
bulb to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Light Truck Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Light Truck Center:


the additional turn signal lamps in the
exterior rear view mirrors


the high mounted brake lamp


the Bi-Xenon* low beam lamps


the Bi-Xenon high beam flasher spot-
light*


the front sidemarker lamps

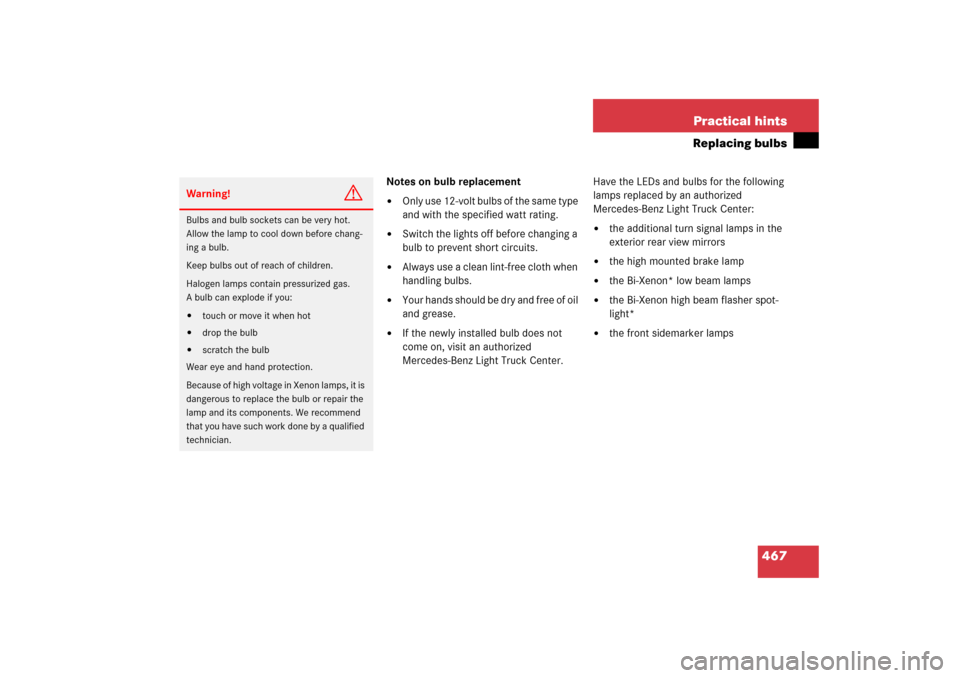

Warning!
G
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before chang-
ing a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

468 Practical hintsReplacing bulbsReplacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 147).

Open the hood (
page 345).

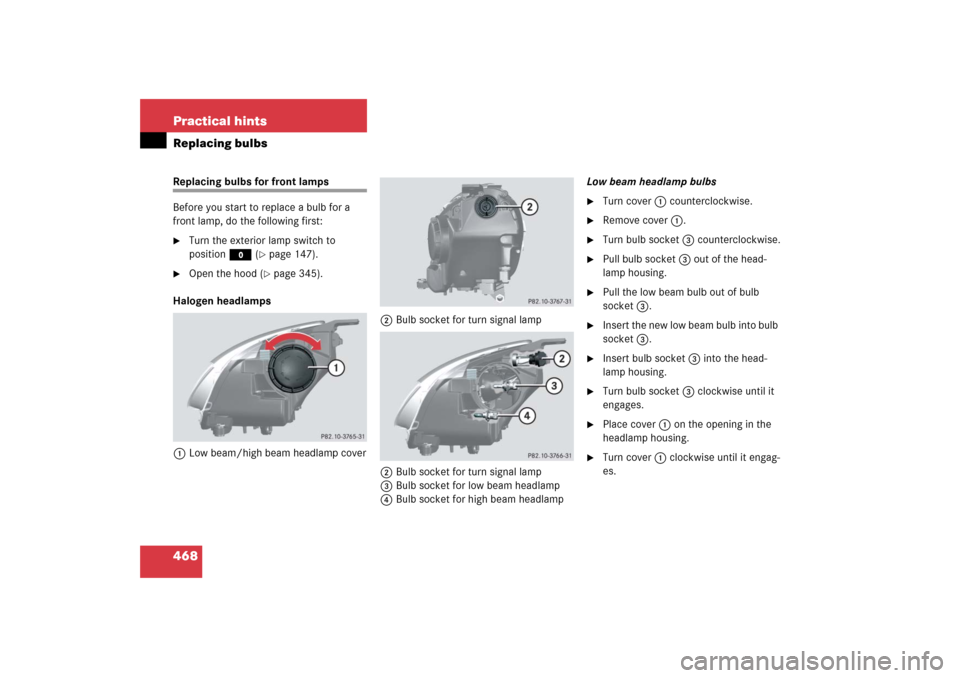

Halogen headlamps
1Low beam/high beam headlamp cover2Bulb socket for turn signal lamp
2Bulb socket for turn signal lamp
3Bulb socket for low beam headlamp
4Bulb socket for high beam headlampLow beam headlamp bulbs

Turn cover 1 counterclockwise.

Remove cover 1.

Turn bulb socket 3 counterclockwise.

Pull bulb socket 3 out of the head-
lamp housing.

Pull the low beam bulb out of bulb
socket 3.

Insert the new low beam bulb into bulb
socket 3.

Insert bulb socket 3 into the head-
lamp housing.

Turn bulb socket 3 clockwise until it
engages.

Place cover 1 on the opening in the
headlamp housing.

Turn cover 1 clockwise until it engag-
es.

469 Practical hints
Replacing bulbs
High beam headlamp bulbs
Turn cover 1 counterclockwise.

Remove cover 1.

Turn bulb socket 4 counterclockwise.

Pull bulb socket 4 out of the head-
lamp housing.

Pull the high beam bulb out of bulb
socket 4.

Insert the new high beam bulb into bulb
socket 4.

Insert bulb socket 4 into the head-
lamp housing.

Turn bulb socket 4 clockwise until it
engages.

Place cover 1 on the opening in the
headlamp housing.

Turn cover 1 clockwise until it engag-
es.Front turn signal lamp bulbs

Pull bulb socket 2 out of the head-
lamp housing.

Pull the turn signal bulb out of bulb
socket 2.

Insert the new turn signal bulb into bulb
socket 2.

Insert bulb socket 2 into the head-

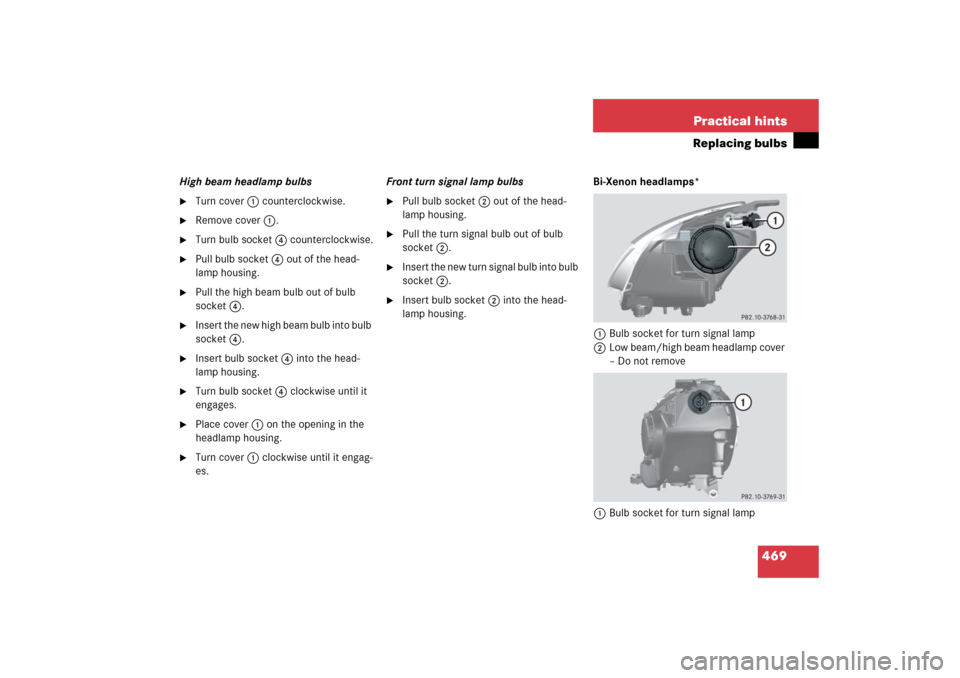

lamp housing.Bi-Xenon headlamps*
1Bulb socket for turn signal lamp
2Low beam/high beam headlamp cover
– Do not remove
1Bulb socket for turn signal lamp

470 Practical hintsReplacing bulbsLow beam and high beam flasher spot
bulbsFront turn signal lamp bulbs

Pull bulb socket 1 out of the head-
lamp housing.

Pull the turn signal bulb out of bulb
socket 1.

Insert the new turn signal bulb into bulb
socket 1.

Insert bulb socket 1 into the head-

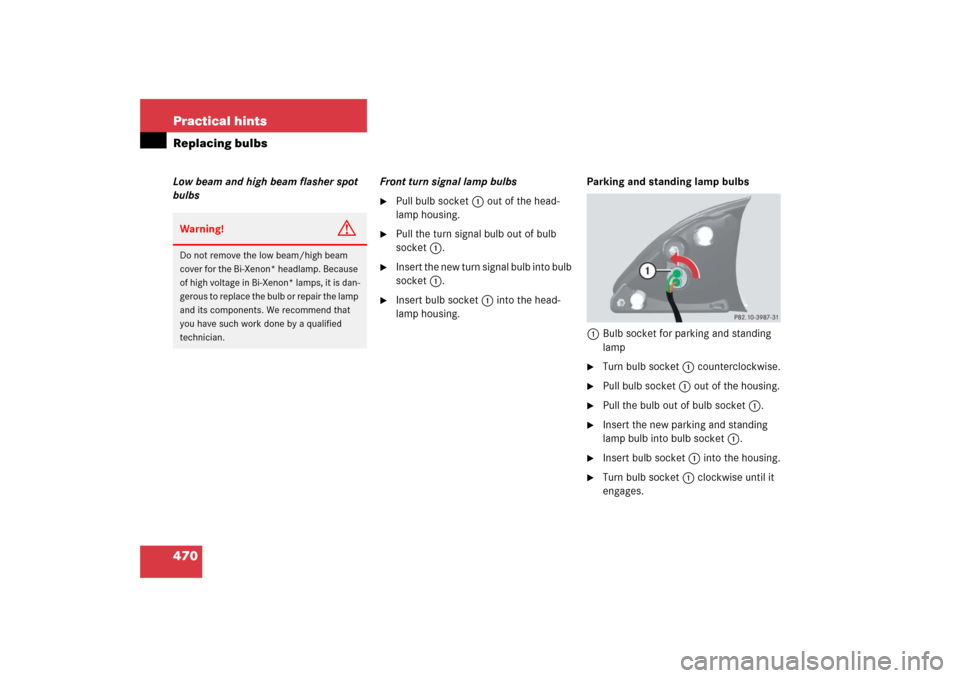

lamp housing.Parking and standing lamp bulbs
1Bulb socket for parking and standing
lamp

Turn bulb socket 1 counterclockwise.

Pull bulb socket 1 out of the housing.

Pull the bulb out of bulb socket 1.

Insert the new parking and standing
lamp bulb into bulb socket 1.

Insert bulb socket 1 into the housing.

Turn bulb socket 1 clockwise until it
engages.
Warning!
G
Do not remove the low beam/high beam
cover for the Bi-Xenon* headlamp. Because
of high voltage in Bi-Xenon* lamps, it is dan-
gerous to replace the bulb or repair the lamp
and its components. We recommend that
you have such work done by a qualified
technician.

471 Practical hints
Replacing bulbs

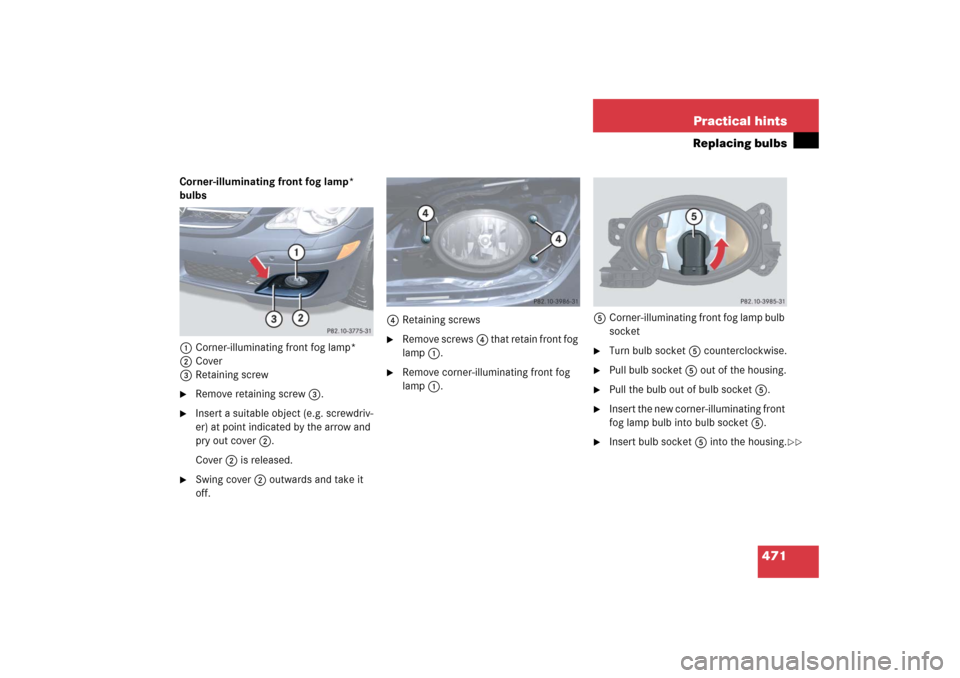

Corner-illuminating front fog lamp*
bulbs
1Corner-illuminating front fog lamp*
2Cover
3Retaining screw
Remove retaining screw3.

Insert a suitable object (e.g. screwdriv-
er) at point indicated by the arrow and
pry out cover 2.
Cover 2 is released.

Swing cover 2 outwards and take it
off.4Retaining screws

Remove screws4 that retain front fog
lamp 1.

Remove corner-illuminating front fog
lamp 1.5Corner-illuminating front fog lamp bulb
socket

Turn bulb socket 5 counterclockwise.

Pull bulb socket 5 out of the housing.

Pull the bulb out of bulb socket 5.

Insert the new corner-illuminating front
fog lamp bulb into bulb socket 5.

Insert bulb socket 5 into the housing.
