2006 MERCEDES-BENZ R350 Owner's Manual

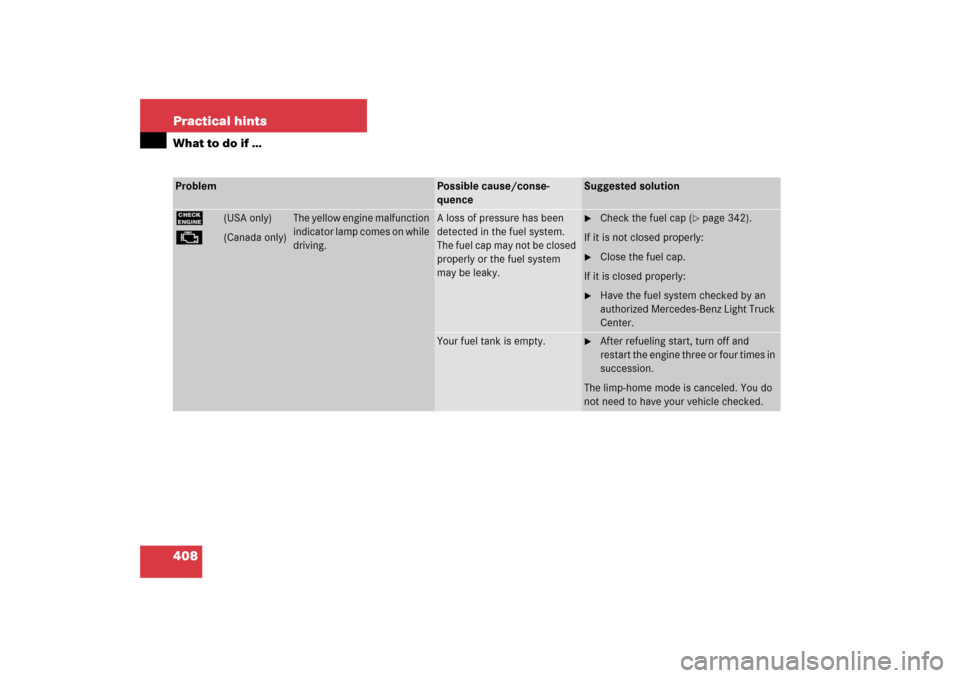

408 Practical hintsWhat to do if …Problem
Possible cause/conse-
quence
Suggested solution
?
(USA only)
±
(Canada only)
The yellow engine malfunction
indicator lamp comes on while
driving.
A loss of pressure has been
detected in the fuel system.
The fuel cap may not be closed
properly or the fuel system
may be leaky.

Check the fuel cap (
page 342).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an
authorized Mercedes-Benz Light Truck
Center.
Your fuel tank is empty.

After refueling start, turn off and
restart the engine three or four times in
succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.

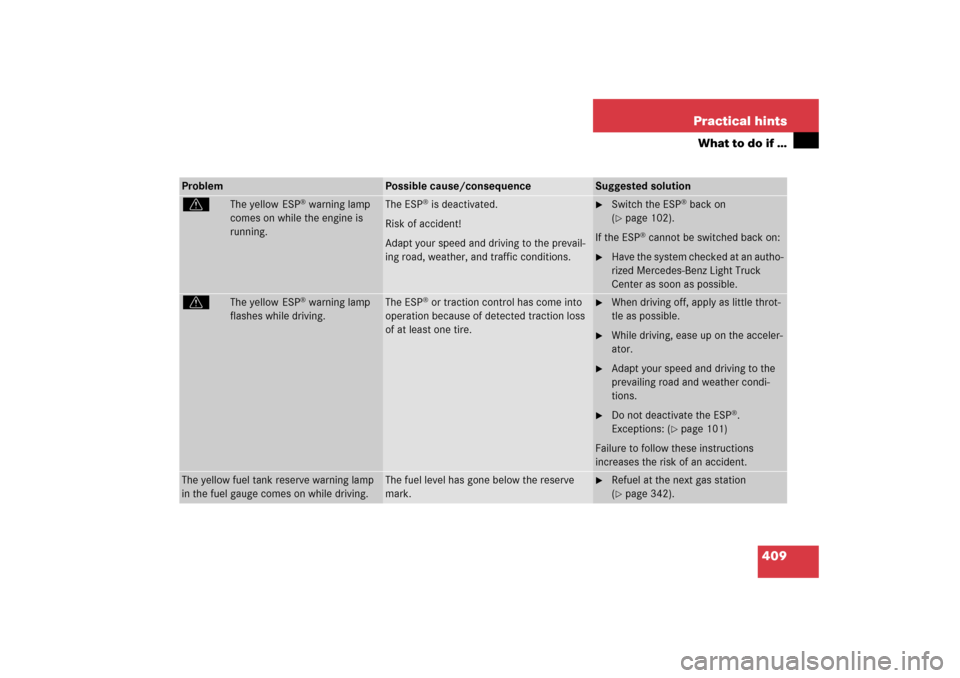

409 Practical hints
What to do if …
Problem
Possible cause/consequence
Suggested solution
v
The yellow ESP
® warning lamp
comes on while the engine is
running.
The ESP
® is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.

Switch the ESP
® back on
(
page 102).
If the ESP
® cannot be switched back on:

Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
v
The yellow ESP
® warning lamp
flashes while driving.
The ESP
® or traction control has come into
operation because of detected traction loss
of at least one tire.

When driving off, apply as little throt-
tle as possible.

While driving, ease up on the acceler-
ator.

Adapt your speed and driving to the
prevailing road and weather condi-
tions.

Do not deactivate the ESP
®.
Exceptions: (
page 101)
Failure to follow these instructions
increases the risk of an accident.
The yellow fuel tank reserve warning lamp
in the fuel gauge comes on while driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station
(page 342).

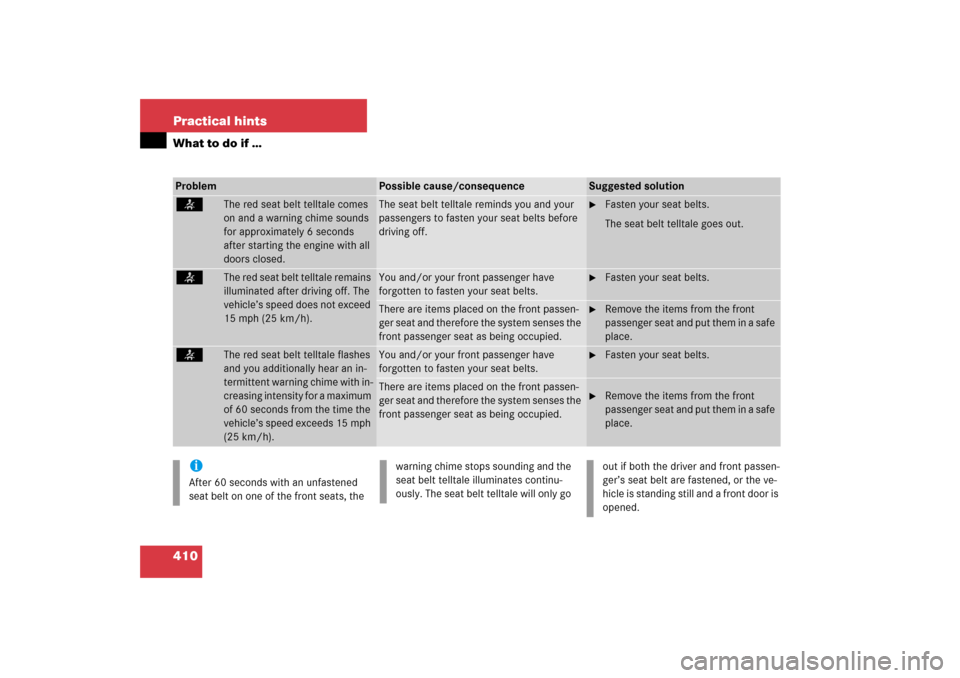

410 Practical hintsWhat to do if …Problem
Possible cause/consequence
Suggested solution
<
The red seat belt telltale comes
on and a warning chime sounds
for approximately 6 seconds
after starting the engine with all
doors closed.
The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.

Fasten your seat belts.
The seat belt telltale goes out.
<
The red seat belt telltale remains
illuminated after driving off. The
vehicle’s speed does not exceed
15 mph (25 km/h).
You and/or your front passenger have
forgotten to fasten your seat belts.

Fasten your seat belts.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.

Remove the items from the front
passenger seat and put them in a safe
place.
<
The red seat belt telltale flashes
and you additionally hear an in-
termittent warning chime with in-
creasing intensity for a maximum
of 60 seconds from the time the
vehicle’s speed exceeds 15 mph
(25 km/h).
You and/or your front passenger have
forgotten to fasten your seat belts.

Fasten your seat belts.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.

Remove the items from the front
passenger seat and put them in a safe
place.
iAfter 60 seconds with an unfastened
seat belt on one of the front seats, the
warning chime stops sounding and the
seat belt telltale illuminates continu-
ously. The seat belt telltale will only go
out if both the driver and front passen-
ger’s seat belt are fastened, or the ve-
hicle is standing still and a front door is
opened.

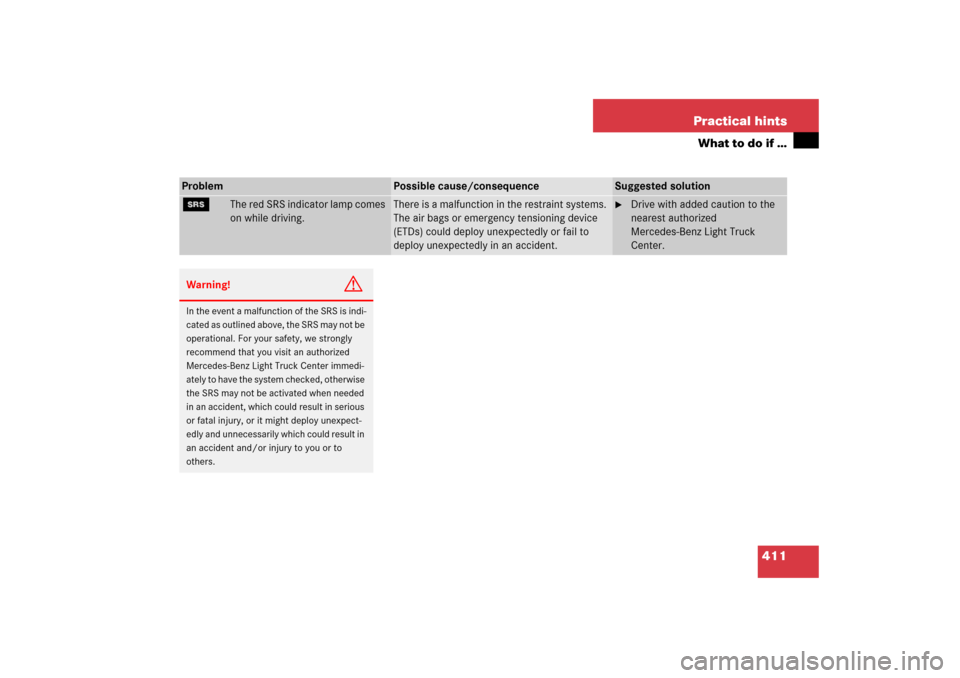

411 Practical hints
What to do if …
Problem
Possible cause/consequence
Suggested solution
1
The red SRS indicator lamp comes
on while driving.
There is a malfunction in the restraint systems.
The air bags or emergency tensioning device
(ETDs) could deploy unexpectedly or fail to
deploy unexpectedly in an accident.

Drive with added caution to the
nearest authorized
Mercedes-Benz Light Truck
Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Light Truck Center immedi-
ately to have the system checked, otherwise
the SRS may not be activated when needed
in an accident, which could result in serious
or fatal injury, or it might deploy unexpect-
edly and unnecessarily which could result in
an accident and/or injury to you or to
others.

412 Practical hintsWhat to do if …Problem
Possible cause/consequence
Suggested solution
H
Combination low tire pres-
sure/TPMS malfunction telltale
for the TPMS or Advanced
TPMS* illuminates continuous-
ly.
The TPMS or Advanced TPMS* detects a
loss of pressure in at least one tire.

Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers. Observe the traffic situation
around you.

Read and observe messages in the
multifunction display.
If the tire inflation pressure in the respec-
tive tire(s) has (have) been corrected, the
combination low tire pressure/TPMS mal-
function telltale goes out after few minutes
driving.
H
Combination low tire pres-
sure/TPMS malfunction telltale
for the TPMS or Advanced
TPMS* flashes 60 seconds and
then stays illuminated.
There is a malfunction in the TPMS or
Advanced TPMS*.

Read and observe messages in the
multifunction display.

Have the TPMS or Advanced TPMS*
checked by an authorized
Mercedes-Benz Light Truck Center.
After the malfunction has been remedied,
the combination low tire pressure/TPMS
malfunction telltale goes out after few
minutes driving.

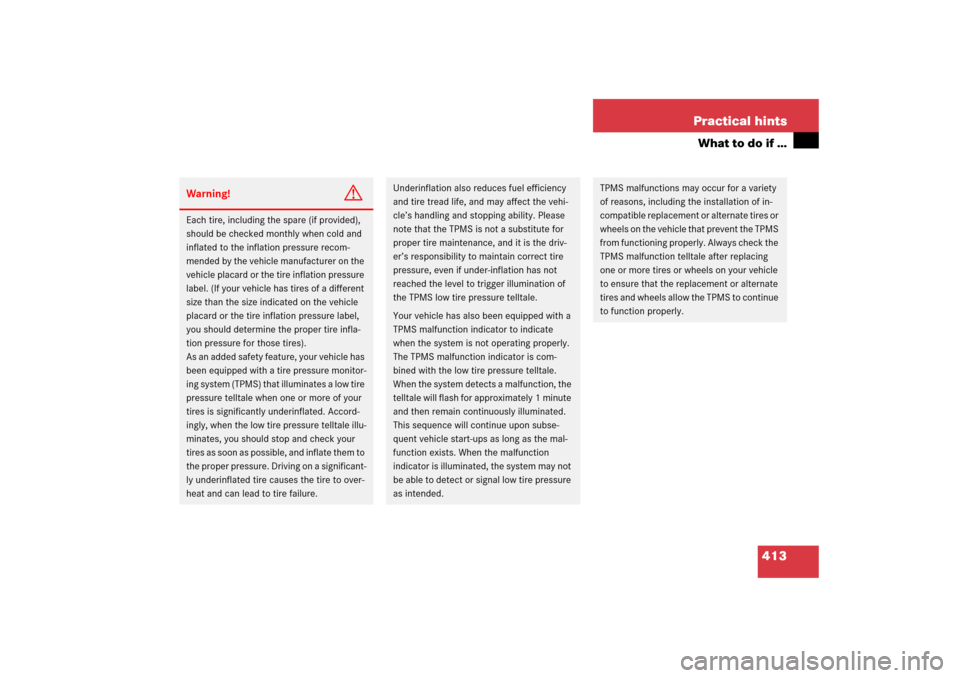

413 Practical hints
What to do if …
Warning!
G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or the tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or the tire inflation pressure label,
you should determine the proper tire infla-
tion pressure for those tires).
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significant-
ly underinflated tire causes the tire to over-
heat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately 1 minute
and then remain continuously illuminated.
This sequence will continue upon subse-
quent vehicle start-ups as long as the mal-
function exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of in-
compatible replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.

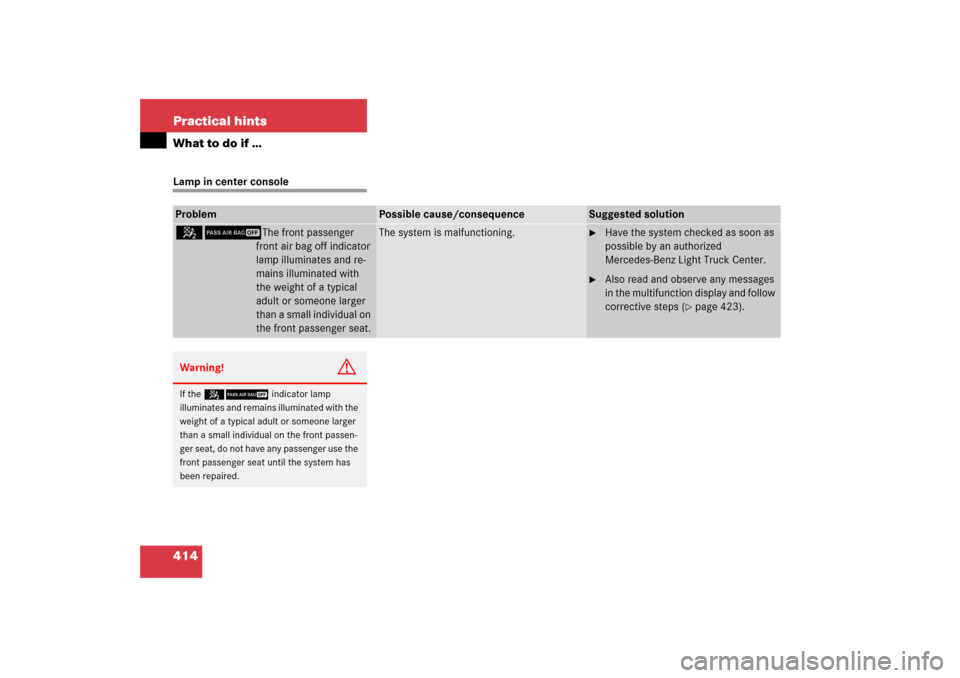

414 Practical hintsWhat to do if …Lamp in center consoleProblem
Possible cause/consequence
Suggested solution
59
The front passenger
front air bag off indicator
lamp illuminates and re-
mains illuminated with
the weight of a typical
adult or someone larger
than a small individual on
the front passenger seat.
The system is malfunctioning.

Have the system checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.

Also read and observe any messages
in the multifunction display and follow
corrective steps (
page 423).
Warning!
G
If the59indicator lamp
illuminates and remains illuminated with the
weight of a typical adult or someone larger
than a small individual on the front passen-
ger seat, do not have any passenger use the
front passenger seat until the system has
been repaired.

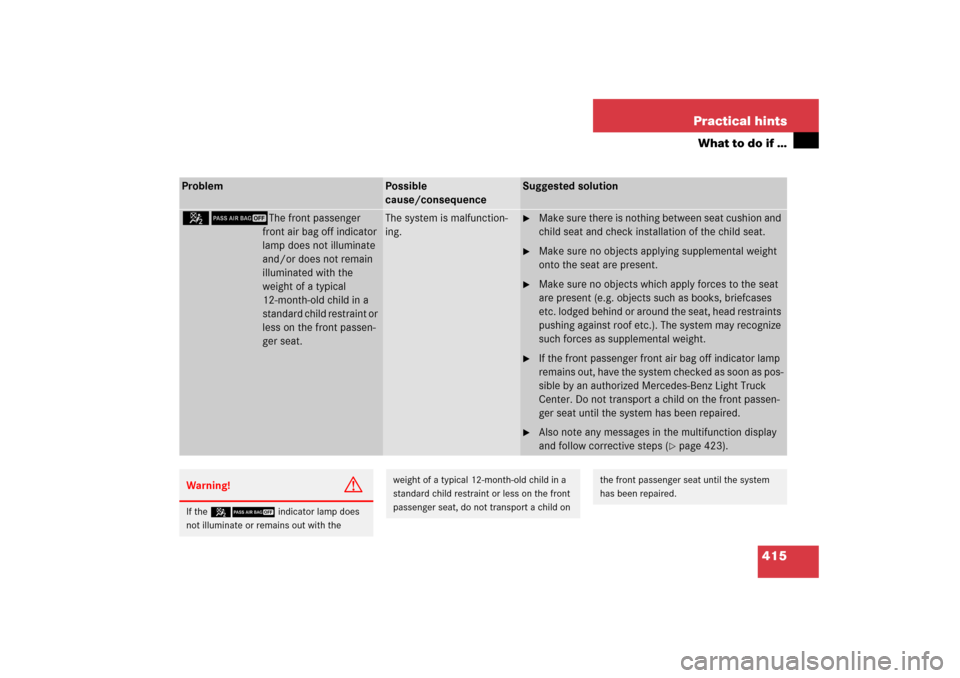

415 Practical hints
What to do if …
Problem
Possible
cause/consequence
Suggested solution
59
The front passenger
front air bag off indicator
lamp does not illuminate
and/or does not remain
illuminated with the
weight of a typical
12-month-old child in a
standard child restraint or
less on the front passen-
ger seat.
The system is malfunction-
ing.

Make sure there is nothing between seat cushion and
child seat and check installation of the child seat.

Make sure no objects applying supplemental weight
onto the seat are present.

Make sure no objects which apply forces to the seat
are present (e.g. objects such as books, briefcases
etc. lodged behind or around the seat, head restraints
pushing against roof etc.). The system may recognize
such forces as supplemental weight.

If the front passenger front air bag off indicator lamp
remains out, have the system checked as soon as pos-
sible by an authorized Mercedes-Benz Light Truck
Center. Do not transport a child on the front passen-
ger seat until the system has been repaired.

Also note any messages in the multifunction display
and follow corrective steps (
page 423).
Warning!
G
If the59indicator lamp does
not illuminate or remains out with the
weight of a typical 12-month-old child in a
standard child restraint or less on the front
passenger seat, do not transport a child on
the front passenger seat until the system
has been repaired.
