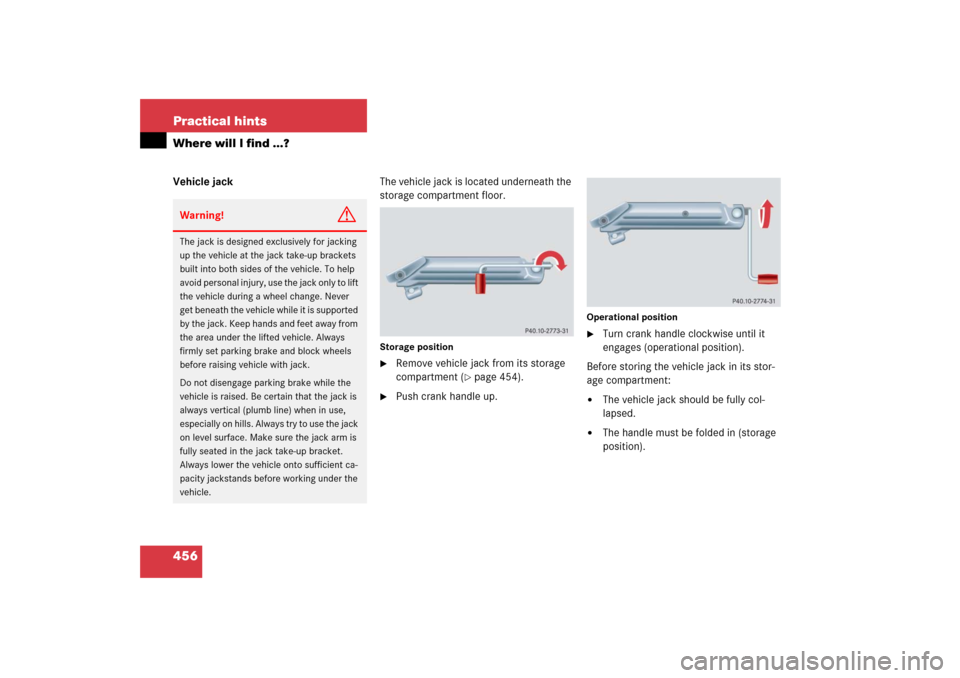

456 Practical hintsWhere will I find ...?Vehicle jackThe vehicle jack is located underneath the
storage compartment floor.
Storage position
Remove vehicle jack from its storage
compartment (
page 454).

Push crank handle up.
Operational position
Turn crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its stor-
age compartment:


The vehicle jack should be fully col-
lapsed.


The handle must be folded in (storage
position).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

457 Practical hints
Where will I find ...?
Setting up the collapsible wheel chock
The collapsible wheel chock serves to ad-
ditionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of base plate3.
Spare wheel
Your vehicle is equipped with a spare
wheel with collapsible tire. The spare
wheel is located underneath the cargo
compartment floor.Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a spare wheel
mounted.
The spare wheel should only be used tempo-
rarily, and should be replaced with a regular
road wheel as quickly as possible.

458 Practical hintsWhere will I find ...?In case of a flat tire, you may temporarily
use the spare wheel when observing the
following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km / h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate the vehicle with more
than one spare wheel mounted.Removing the spare wheel
1Spare wheel
2Retaining screw
3Vehicle tool kit storage well casing

Remove the jack from the vehicle tool
kit (
page 455).

Loosen retaining screw 2 by turning it
counterclockwise.

Remove vehicle tool kit storage well
casing 3.

Remove spare wheel 1.
iFor information on how to mount the
spare wheel, see “Mounting the spare
wheel” (
page 479).

459 Practical hints
Unlocking / locking in an emergency
Unlocking / locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or KEYLESS-GO*, open the driv-
er’s door using the mechanical key.
Removing the mechanical key
SmartKey1Mechanical key locking tab
2Mechanical key
SmartKey with KEYLESS-GO*1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.

Slide mechanical key2 out of the
housing.
iUnlocking the driver’s door with the
mechanical key will trigger the
anti-theft alarm system.
To cancel the alarm:

Press buttonŒ or‹on the
SmartKey.


Insert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*:

Grasp an outside door handle.
The SmartKey with KEYLESS-GO
must be within 3 ft (1 m) of the ve-
hicle.


Press the KEYLESS-GO start / stop
button (
page 40).
The SmartKey with KEYLESS-GO
must be inside the vehicle.

460 Practical hintsUnlocking / locking in an emergencyUnlocking the driver’s door
1Unlocking
2Mechanical key
Insert mechanical key 2 into the
driver’s door lock until it stops.

Turn mechanical key 2 counterclock-
wise to position1 and hold it there.

Pull the door handle until the locking
knob moves up.
The driver’s door is unlocked.

Pull the door handle once more to open
the driver’s door.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey or KEYLESS-GO*, lock the vehi-
cle carrying out the following steps.
Close the front passenger door, the
rear right door and the tailgate.

Open the driver’s door and the rear left
door.

Press the central locking switch on the
driver’s door (
page 131).
The locking knobs of the front passen-
ger door and the rear doors move
down.
If the vehicle battery is disconnected or
drained:

Press down the locking knobs of
the front passenger door and the
rear doors manually.

Exit the vehicle.

Close the driver’s door.

Enter the vehicle through the rear left
door.

Press down the locking knob of the
driver’s door.

Exit the vehicle.

Close the rear left door.
The vehicle is locked.!To prevent inadvertent lockout, make
sure to have the SmartKey or SmartKey
with KEYLESS-GO* with you before
proceeding with the next step. The next
step will lock the vehicle.

461 Practical hints
Unlocking / locking in an emergency
Fuel filler flap
Open the tailgate (
page 122).
The fuel filler flap release is located behind
a cover in the right side trim panel of the
cargo compartment.
1Lock
2Cover

Insert a suitable object such as a coin
into the slot of lock1.

Turn lock1 counterclockwise by 90°
in direction of arrow.

Remove cover2.
3Fuel filler flap release

Pull red fuel filler flap release 3 in di-
rection of arrow.
The fuel filler flap is unlocked.

Open the fuel filler flap (
page 342).
iThe fuel filler flap release may differ,
depending on production date. If your
vehicle is not equipped with the fuel
filler flap release as illustrated, pulling a
red fabric cord instead unlocks the fuel
filler flap.

462 Practical hintsOpening / closing in an emergencyPower tilt/sliding sunroof*
You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.
The tilt/sliding sunroof drive is located
behind a cover on the overhead control
panel.
1Cover
Remove the SmartKey from the starter
switch.Vehicles with KEYLESS-GO*:

Turn off the engine by pressing the
KEYLESS-GO start/stop button
(page 66).

Open the driver’s door (this puts
the starter switch to position0,
same as with the SmartKey re-
moved from starter switch). The
driver’s door can then be closed
again.

Press on cover1 at the position indi-
cated by the arrow.

Take off cover 1.
2Crank

Take crank 2 out of the Operator’s
Manual pouch.

Insert crank2 into hole.

Turn crank2 clockwise to

slide sunroof closed


raise sunroof at the rear

Turn crank2 counterclockwise to

slide sunroof open


lower sunroof at the rear
iTurn crank2 slowly and smoothly.
The tilt/sliding sunroof must be syn-
chronized if it has been operated man-
ually (
page 258).
iThe panorama roof with power
tilt/sliding panel* cannot be operated
as described. Contact an authorized
Mercedes-Benz Light Truck Center.

463 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
SmartKey
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove mechanical key1 from the
SmartKey (
page 459).
1Mechanical key
2Slide
3Battery compartment

Insert mechanical key 1 in side open-
ing in direction of arrow.

Using mechanical key 1, push gray
slide 2 to unlatch battery compart-
ment 3.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen replacing batteries, make sure
they are clean and free of lint.iWhen replacing batteries, always
replace both batteries. The required re-
placement batteries are available at
any Mercedes-Benz Light Truck Center.
