496 Practical hintsJump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
using the jump-start contacts in the en-
gine compartment (
page 497).


Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a more powerful battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure the jumper cables
are not on or near pulleys, fans or other
parts that move when the engine is
started or running.

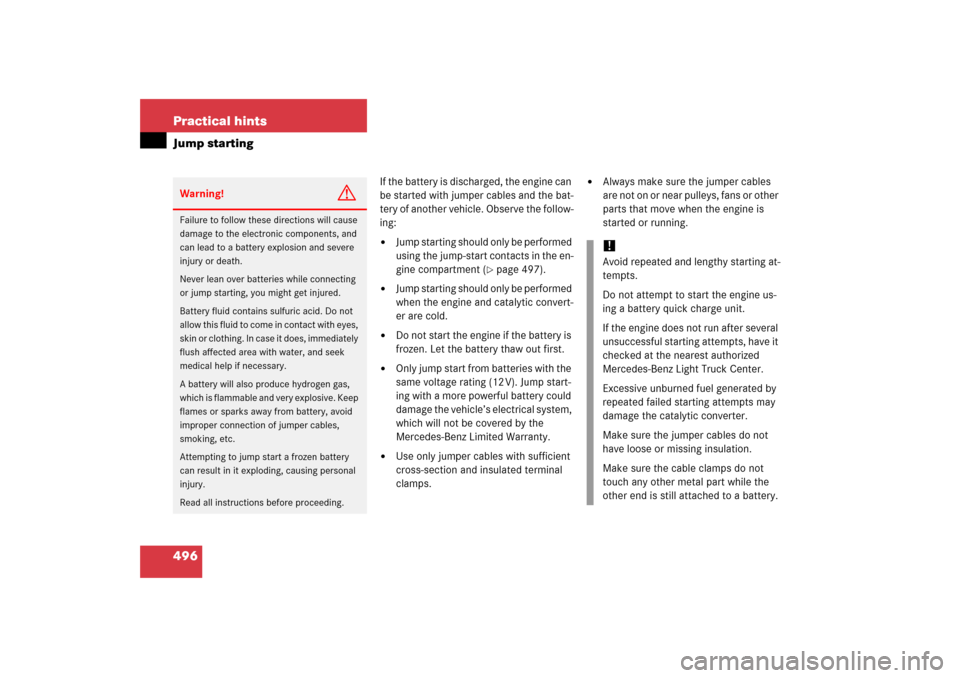

Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine us-
ing a battery quick charge unit.
If the engine does not run after several
unsuccessful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Light Truck Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

497 Practical hints
Jump starting

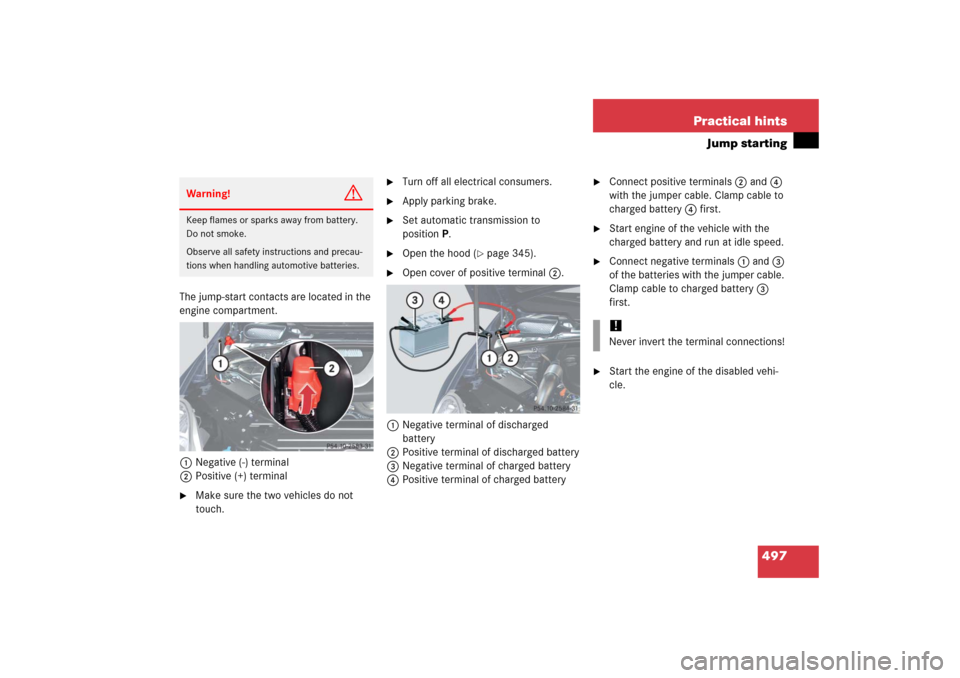

The jump-start contacts are located in the
engine compartment.
1Negative (-) terminal
2Positive (+) terminal
Make sure the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Set automatic transmission to
positionP.

Open the hood (
page 345).

Open cover of positive terminal 2.
1Negative terminal of discharged
battery
2Positive terminal of discharged battery
3Negative terminal of charged battery
4Positive terminal of charged battery

Connect positive terminals2 and 4
with the jumper cable. Clamp cable to
charged battery 4 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals1 and 3
of the batteries with the jumper cable.
Clamp cable to charged battery 3
first.

Start the engine of the disabled vehi-
cle.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries.
!Never invert the terminal connections!

498 Practical hintsJump startingYou can now turn on the electrical con-
sumers. Do not turn on the lights under
any circumstances.
Remove the jumper cables first from
negative terminals1 and 3 and then
from the positive terminals2 and 4.
You can now turn on the lights.

Have the battery checked at the near-
est authorized Mercedes-Benz Light
Truck Center.!Do not tow-start the vehicle.

499 Practical hints
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground only so far as necessary to have
the vehicle moved to a safe location where
the recommended towing methods can be
employed.
!Use flatbed or wheel lift/dolly equip-
ment, with the SmartKey in starter
switch turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts. Use the towing eyes.
Switch off the ESP
® (page 101),
tow-away alarm (
page 107) and the
automatic central locking
(
page 130).
Do not tow-start the vehicle.
!Do not tow with one axle raised. Doing
so could damage the transfer case,
which is not covered by the
Mercedes-Benz Limited Warranty.
All wheels must be on or off the ground.
Observe instructions for towing the ve-
hicles with all wheels on the ground.
!When towing the vehicle with all wheels
on the ground, the automatic transmis-
sion must be in positionN and the
SmartKey must be in starter switch
position2.
When towing the vehicle with all wheels
on the ground, the vehicle may be
towed only for distances up to 30 miles
(50 km) and at a speed not to exceed
30 mph (50 km / h).
If the vehicle is towed with the front
axle raised (observe instructions re-
garding flexible drive shaft), the engine
must be shut off (SmartKey in starter
switch position1). Otherwise, the
4-ETS may become engaged which may
cause loss of towing control.

500 Practical hintsTowing the vehicle
!
To be certain to avoid additional dam-
age to the vehicle powertrain, however
you should observe the following:

With damage to the front axle

raise front axle


remove flexible drive shaft be-
tween rear axle and transfer
case


With damage to the rear axle

raise rear axle


tow vehicle with wheel lift or
dolly placed under front wheels


With damage to the transfer case

remove flexible drive shaft to
the drive axles
Always install new self-locking nuts
when reinstalling flexible drive shaft.
Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the power
supply or in the vehicle’s electrical sys-
tem
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle. Adapt your driving accordingly.iTo signal turns while being towed with
hazard warning flasher in use, turn the
SmartKey in starter switch to
position2 and activate combination
switch for left or right turn signal in
usual manner – only the selected turn
signal will operate.
Upon canceling the turn signal, the
hazard warning flasher will operate
again.

501 Practical hints
Towing the vehicle
Installing towing eye bolts
The front towing eye is located behind a
cover on the passenger side below the
front bumper.
1Towing eye cover
iThe vehicle cannot be started via
tow-start.iIf the battery is disconnected or dis-
charged, the automatic transmission
will remain locked in positionP and the
SmartKey will not turn in the starter
switch. For more information, see “Bat-
tery” (
page 487) and “Jump starting”
(
page 496).
!When towing the vehicle with all wheels
on the ground, note the following:
With the automatic central locking
activated and the ignition in position2
(page 38), the vehicle doors lock if
the left front wheel is turning at a speed
of approx. 9 mph (15 km / h) or above.
To prevent the vehicle doors from
locking, deactivate the automatic
central locking (
page 130).
Switch off the tow-away alarm
(
page 107).
Towing of the vehicle should only be
done using the towing eye. Never
attach tow cable, tow rope or tow rod
to vehicle chassis, frame or suspension
parts.

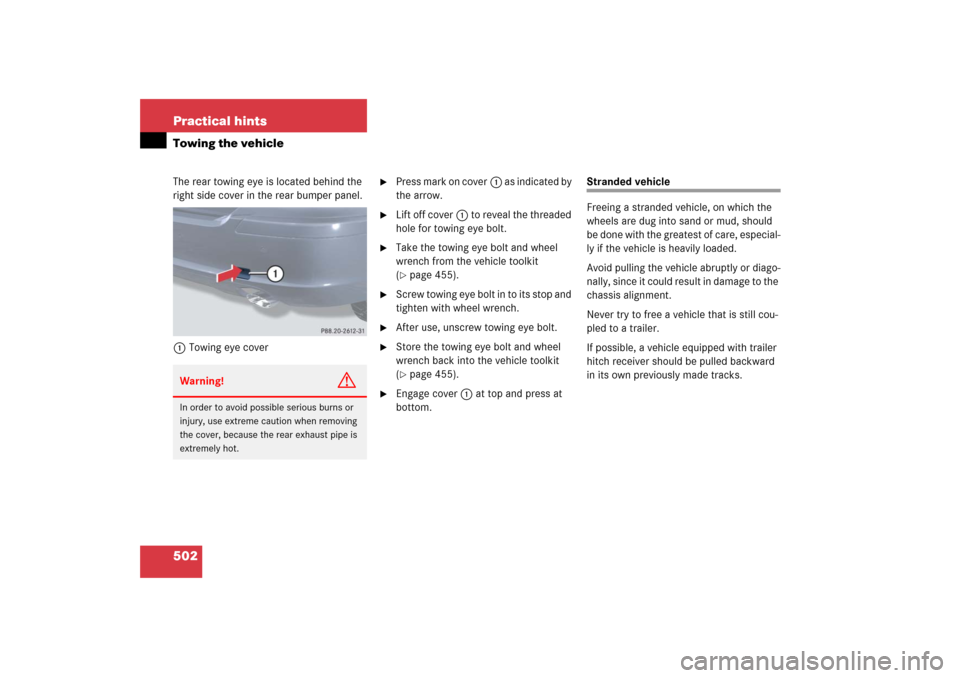

502 Practical hintsTowing the vehicleThe rear towing eye is located behind the
right side cover in the rear bumper panel.
1Towing eye cover

Press mark on cover1 as indicated by
the arrow.

Lift off cover1 to reveal the threaded
hole for towing eye bolt.

Take the towing eye bolt and wheel
wrench from the vehicle toolkit
(page 455).

Screw towing eye bolt in to its stop and
tighten with wheel wrench.

After use, unscrew towing eye bolt.

Store the towing eye bolt and wheel
wrench back into the vehicle toolkit
(page 455).

Engage cover1 at top and press at
bottom.
Stranded vehicle
Freeing a stranded vehicle, on which the
wheels are dug into sand or mud, should
be done with the greatest of care, especial-
ly if the vehicle is heavily loaded.
Avoid pulling the vehicle abruptly or diago-
nally, since it could result in damage to the
chassis alignment.
Never try to free a vehicle that is still cou-
pled to a trailer.
If possible, a vehicle equipped with trailer
hitch receiver should be pulled backward
in its own previously made tracks.
Warning!
G
In order to avoid possible serious burns or
injury, use extreme caution when removing
the cover, because the rear exhaust pipe is
extremely hot.

503 Practical hintsFuses
Fuses
The electrical fuses in your vehicle serve to
stop the supply of electricity to a device
that is malfunctioning. This helps to
prevent damage to the other vehicle
electronics. If a fuse is blown, the compo-
nents and systems secured by that fuse
will stop operating.
The following aids are available to help you
change fuses. They are included with the
vehicle tool kit (
page 455):


Fuse chart
The fuse chart explains the fuse alloca-
tion and fuse amperages.


Spare fuses


Fuse extractor
Warning!
G
Only use fuses approved for Mercedes-Benz
with the specified amperage for the system
in question. Otherwise, a short circuit could
result and cause a fire.
!Only install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage
rating. Otherwise, electrical parts or
systems could be damaged.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Light Truck Center.
