2006 MERCEDES-BENZ R350 Owner's Manual

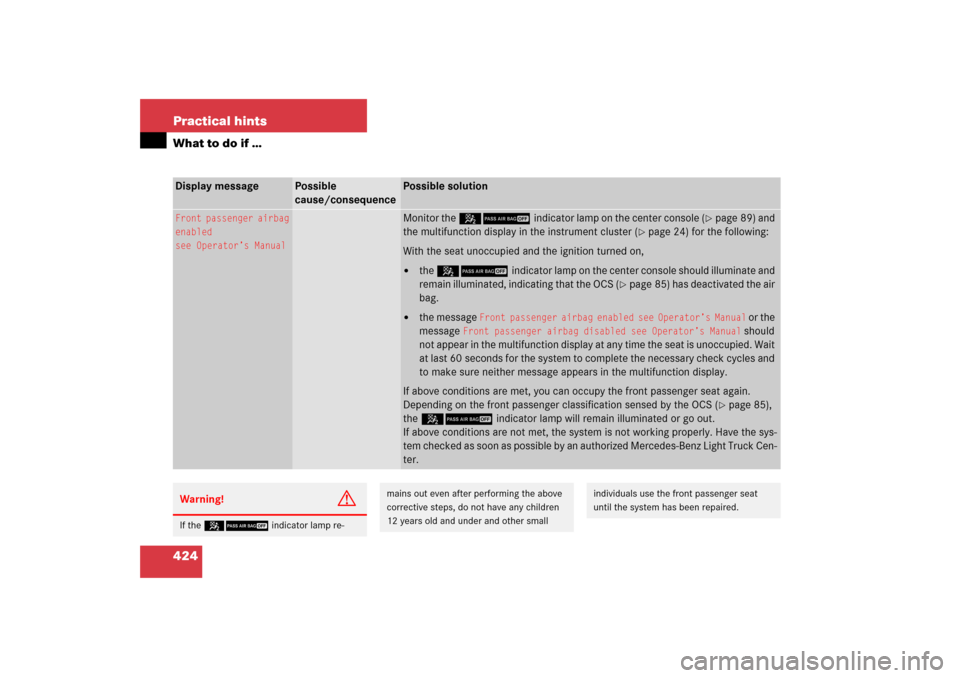

424 Practical hintsWhat to do if …Display message
Possible
cause/consequence
Possible solution
Front passenger airbag
enabled
see Operator’s Manual
Monitor the 59indicator lamp on the center console (
page 89) and
the multifunction display in the instrument cluster (
page 24) for the following:
With the seat unoccupied and the ignition turned on,


the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 85) has deactivated the air
bag.


the message
Front passenger airbag enabled see Operator’s Manual
or the
message
Front passenger airbag disabled see Operator’s Manual
should
not appear in the multifunction display at any time the seat is unoccupied. Wait
at last 60 seconds for the system to complete the necessary check cycles and
to make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 85),
the 59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the sys-
tem checked as soon as possible by an authorized Mercedes-Benz Light Truck Cen-
ter.
Warning!
G
If the 59indicator lamp re-
mains out even after performing the above
corrective steps, do not have any children
12 years old and under and other small
individuals use the front passenger seat
until the system has been repaired.

425 Practical hints
What to do if …
Display message
Possible
cause/consequence
Possible solution
Front passenger airbag
disabled
see Operator’s Manual
Front passenger front
air bag is deactivated
while driving even
though an adult or
someone larger than a
small individual is oc-
cupying the front pas-
senger seat. Forces
acting on the seat may
make the system
sense a decrease in
weight.
Stop the vehicle in a safe location as soon as possible and check the front passen-
ger seat for the following:
Turn off the ignition (
page 38).

Have the front passenger vacate the seat and exit the vehicle.

Adjust the seat in a height position (
page 43).

Make sure that no objects which apply forces to the seat are present (e.g. ob-
jects such as books, briefcases etc. lodged underneath, behind or around the
seat). Such forces may cause the system to sense that an occupant of a lesser
weight than actually present is on the front passenger seat.

Keep the seat unoccupied, close the front passenger door and switch on the
ignition (
page 38).
(Continued on next page)

426 Practical hintsWhat to do if …Display message
Possible
cause/consequence
Possible solution
Front passenger airbag
disabled
see Operator’s Manual
Monitor the 59indicator lamp on the center console (
page 89) and
the multifunction display in the instrument cluster (
page 24) for the following:
With the seat unoccupied and the ignition turned on,


the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 85) has deactivated the air
bag.


the message
Front passenger airbag enabled see Operator’s Manual
or the
message
Front passenger airbag disabled see Operator’s Manual
should
not appear in the multifunction display at any time the seat is unoccupied. Wait
at last 60 seconds for the system to complete the necessary check cycles and
to make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 85),
the 59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the sys-
tem checked as soon as possible by an authorized Mercedes-Benz Light Truck Cen-
ter.
Warning!
G
If the 59indicator lamp re-
mains out even after performing the above
corrective steps, do not have any children
12 years old and under and other small
individuals use the front passenger seat
until the system has been repaired.

427 Practical hints
What to do if …
Display message
Possible cause/consequence
Possible solution
Check tires
Then reactivate
Run Flat Indicator
There was a warning message about
a loss in the tire inflation pressure
and the Run Flat Indicator has not
been reactivated yet.

Make sure that the correct tire inflation pressure is set
for each tire.

Then reactivate the Run Flat Indicator.
Run Flat Indicator
inactive
Run Flat Indicator is malfunctioning.

Have the Run Flat Indicator checked by an authorized
Mercedes-Benz Light Truck Center.
Run Flat Indicator
unavailable
The Run Flat Indicator has been
switched off due to an error.

Have the Run Flat Indicator checked by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure
Check tires
The Run Flat Indicator indicates that
the pressure is too low in one or more
tires.

Carefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers. Observe the traffic sit-
uation around you.

Check and adjust tire inflation pressure as required
(page 365).

If necessary, change the wheel (
page 478).

Reactivate the Run Flat Indicator after adjusting the tire
inflation pressure values (
page 365).

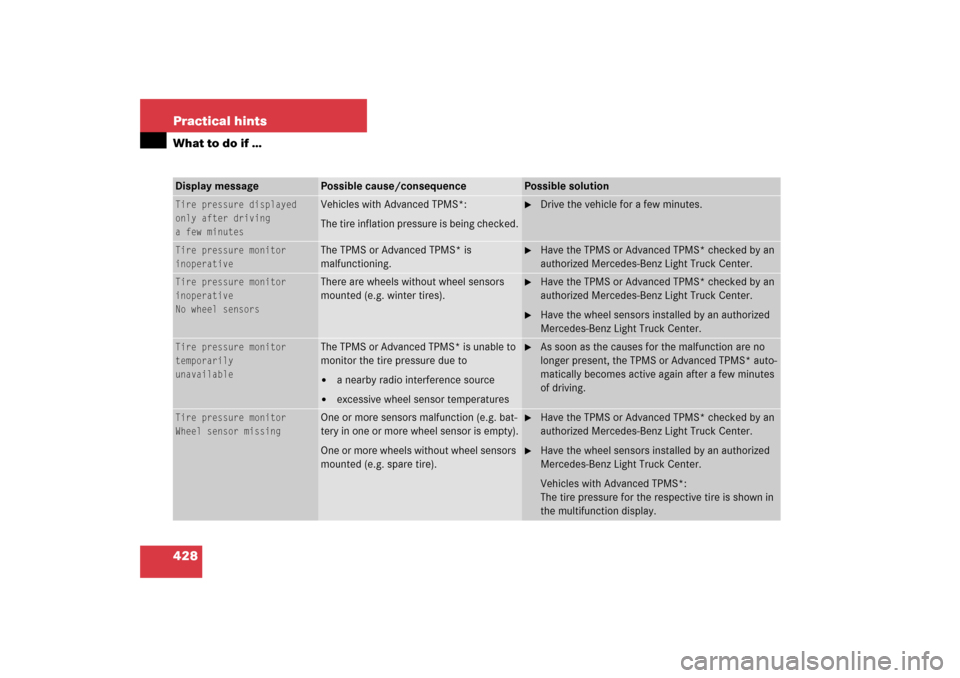

428 Practical hintsWhat to do if …Display message
Possible cause/consequence
Possible solution
Tire pressure displayed
only after driving
a few minutes
Vehicles with Advanced TPMS*:
The tire inflation pressure is being checked.

Drive the vehicle for a few minutes.
Tire pressure monitor
inoperative
The TPMS or Advanced TPMS* is
malfunctioning.

Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Tire pressure monitor
inoperative
No wheel sensors
There are wheels without wheel sensors
mounted (e.g. winter tires).

Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.

Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure monitor
temporarily
unavailable
The TPMS or Advanced TPMS* is unable to
monitor the tire pressure due to

a nearby radio interference source


excessive wheel sensor temperatures

As soon as the causes for the malfunction are no
longer present, the TPMS or Advanced TPMS* auto-
matically becomes active again after a few minutes
of driving.
Tire pressure monitor
Wheel sensor missing
One or more sensors malfunction (e.g. bat-
tery in one or more wheel sensor is empty).
One or more wheels without wheel sensors
mounted (e.g. spare tire).

Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.

Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Vehicles with Advanced TPMS*:
The tire pressure for the respective tire is shown in
the multifunction display.

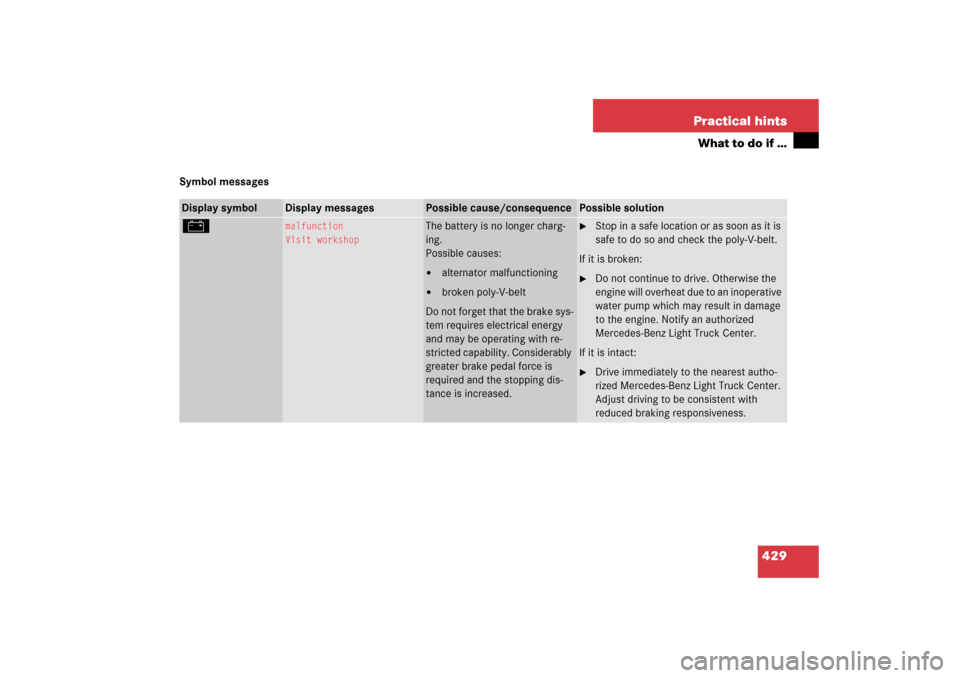

429 Practical hints
What to do if …
Symbol messagesDisplay symbol
Display messages
Possible cause/consequence
Possible solution
#
malfunction
Visit workshop
The battery is no longer charg-
ing.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake sys-
tem requires electrical energy
and may be operating with re-
stricted capability. Considerably
greater brake pedal force is
required and the stopping dis-
tance is increased.

Stop in a safe location or as soon as it is
safe to do so and check the poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Notify an authorized
Mercedes-Benz Light Truck Center.
If it is intact:

Drive immediately to the nearest autho-
rized Mercedes-Benz Light Truck Center.
Adjust driving to be consistent with
reduced braking responsiveness.

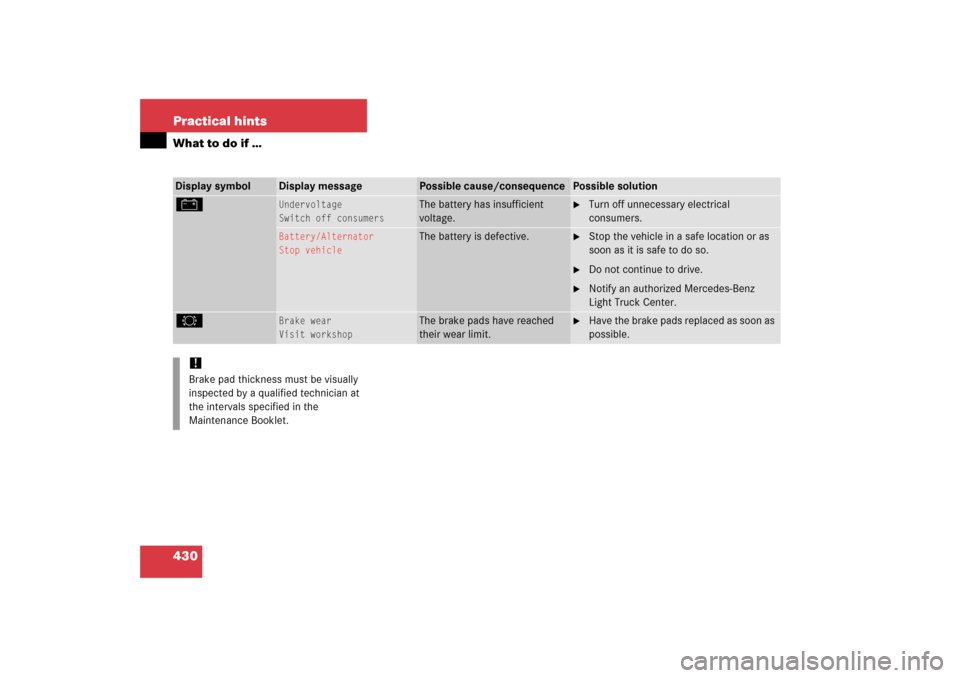

430 Practical hintsWhat to do if …Display symbol
Display message
Possible cause/consequence
Possible solution
#
Undervoltage
Switch off consumers
The battery has insufficient
voltage.

Turn off unnecessary electrical
consumers.
Battery/Alternator
Stop vehicle
The battery is defective.

Stop the vehicle in a safe location or as
soon as it is safe to do so.

Do not continue to drive.

Notify an authorized Mercedes-Benz
Light Truck Center.
2
Brake wear
Visit workshop
The brake pads have reached
their wear limit.

Have the brake pads replaced as soon as
possible.
!Brake pad thickness must be visually
inspected by a qualified technician at
the intervals specified in the
Maintenance Booklet.

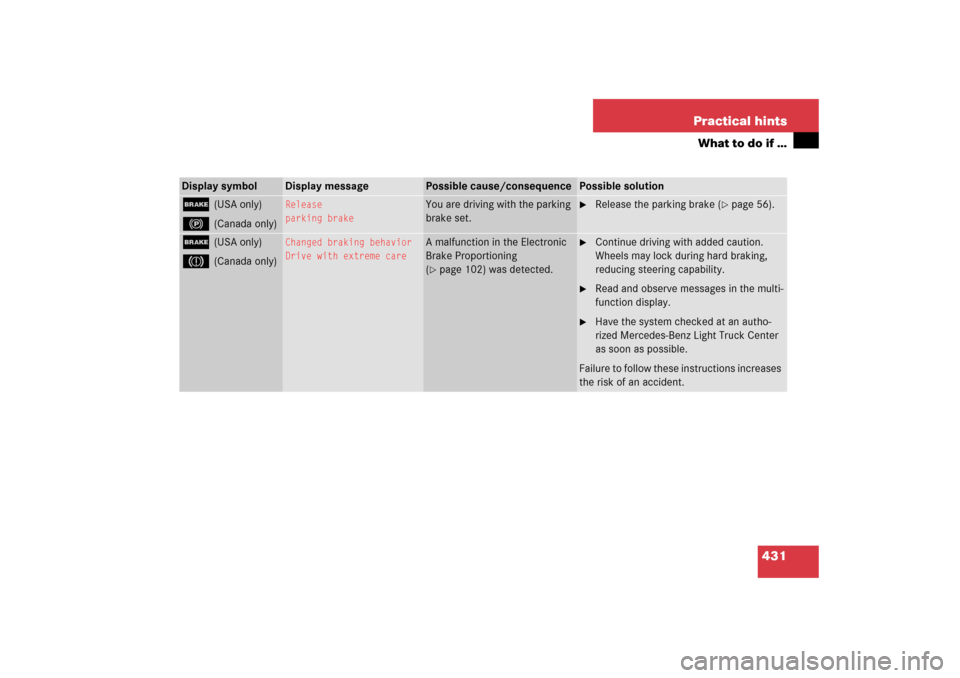

431 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
;
(USA only)
!
(Canada only)
Release
parking brake
You are driving with the parking
brake set.

Release the parking brake (
page 56).
;
(USA only)
3
(Canada only)
Changed braking behavior
Drive with extreme care
A malfunction in the Electronic
Brake Proportioning
(page 102) was detected.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the multi-
function display.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Center
as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
