2006 MERCEDES-BENZ R350 Owner's Manual

224 Controls in detailClimate controlWindshield fogged on the outside
Switch the windshield wipers on
(page 59).

Press button 0(
page 218).
The indicator lamp on the button
comes on.The climate control switches automatically
to the following functions:


maximum blower speed and heating
power


air flows onto the windshield and the
front side windows (side air vents must
be open)


the air conditioning compressor
switches on at outside temperatures
above approximately 41°F (5°C) for
air-drying
If the automatic air distribution is switched
off:

Press air distribution button 9 or a
(page 218).
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
iKeep this setting selected only until the
windshield is clear again.
Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 226) is activated, or
press button0.

225 Controls in detail
Climate control
Activating
Press button: (
page 218).
The indicator lamp on the button
comes on.
iThe air recirculation mode is activated
automatically at high outside tempera-
tures.
The indicator lamp on button: is
not lit when the air recirculation mode
is switched on automatically.
A quantity of outside air is added after
approximately 30 minutes.
If you have turned off the air condition-
ing (
page 226) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.
Warning!
G
Never operate the windows and tilt/sliding
sunroof* or tilt/sliding panel* if there is the
possibility of anyone being harmed by the
opening or closing procedure.
In case the procedure causes potential dan-
ger:
Vehicles with or without tilt/sliding sun-
roof*: The closing of the windows can be im-
mediately halted by pressing or pulling the
respective window switch. The closing of the
tilt/sliding sunroof* can be immediately
halted by moving the switch for the tilt/slid-
ing sunroof* in any direction.
The closing of the windows and the
tilt/sliding sunroof* can be reversed by
again pressing and holding the:button.
Vehicles with panorama roof*: The closing
of the windows and tilt/sliding panel* can
be immediately halted by releasing
the:button.
iIf you press and hold button:, the
windows and the tilt/sliding sunroof*
or tilt/sliding panel* will close.iTo cool the interior as fast as possible,
the climate control automatically
switches to air recirculation. The indi-
cator lamp on button: is not lit
when the air recirculation mode has
been switched on automatically.

226 Controls in detailClimate controlDeactivating
Press button:.
The indicator lamp on the button goes
out.
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
In addition, the air conditioning dehumidi-
fies the interior air at outside temperatures
above 41°F (5° C) and helps prevent
window fogging.
iThe air recirculation mode is
deactivated automatically

after 5 minutes if the outside
temperature is below
approximately 41°F (5°C)


after 5 minutes if the air condition-
ing and air-drying is turned off


after 30 minutes if the outside
temperature is above
approximately 41°F (5°C)
iPress and hold button:for approx-
imately 2 seconds. The windows,
and/or the tilt/sliding sunroof*, (or
tilt/sliding panel*) will return to their
previous position. You can release
button:once the opening proce-
dure has begun. The windows and/or
the tilt/sliding sunroof* (or tilt/sliding
panel*) continue opening until they
have reached their previous position.
A window or the tilt/sliding sunroof*
(or tilt/sliding panel*) will only return
to its previous position if it has not
been moved to another position using
the respective window switch or
tilt/sliding sunroof* (or tilt/sliding
panel*) switch after it was closed with
button:.
A window or the tilt/sliding sunroof (or
tilt/sliding panel*) that was moved will
remain in its current position if
button:is used to re-open the re-
maining windows or tilt sliding sun-
roof* (or tilt/sliding panel*).
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.Warning!
G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.

227 Controls in detail
Climate control
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.
Press button9 (
page 218).
The indicator lamp on the button goes
out.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

Press button9 (
page 218) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
!If the air conditioning cannot be turned
on again, this indicates that the air con-
ditioning is losing refrigerant. The com-
pressor has turned off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Light Truck Center.
iHow long the system will provide heat-
ing depends on

the coolant temperature


the battery voltage
Regardless of the temperature and air
volume set on the climate control
panel, an interior temperature is aimed
at by 72°F (22°C) and the blower runs
on low speed to protect the vehicle bat-
tery.

228 Controls in detailClimate controlActivating
Switch off the ignition (
page 38).

Press button9 (
page 218).
The indicator lamp on button comes
on.
Deactivating

Press button9 (
page 218) again.
The indicator lamp on the button goes
out.
Rear climate controlRear climate control panel
Activating rear climate control
Press buttonU.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.
iThe residual heat is automatically
turned off:

when the ignition is switched on


after about 30 minutes


if the coolant temperature is too
low


if the battery voltage drops
1
Rear climate control on
(automatic mode)
2
Air distribution (directs air through
the center air vents)
3
Rear air conditioning off
4
Air distribution (directs air through
the footwells and side air vents)
5
Right rear center air vent, adjustable
6
Left rear center air vent, adjustableiThe climate control must be switched
on (
page 220).

229 Controls in detail
Climate control
Deactivating rear climate control
Press button´.
The indicator lamp on the button goes
out.
The cooling function switches off after
a short delay.Adjusting air distribution
Use the air distribution controls2 or4
to adjust the air distribution for the rear
passenger compartment.
The symbols on the controls represent the
following functions:
Adjusting manually

Press the desired air distribution
control2 or4.
The indicator lamp in the Ubutton
goes out.Adjusting automatically

Press buttonU.
The indicator lamp in the button comes
on. The air distribution is adjusted au-
tomatically.
Adjusting air volume
The air volume for the rear zone corre-
sponds to the air volume settings for the
front passenger side. You can switch off
the air supply for the rear zone.
You can switch off the supplied amount of
air volume.

Press button´.
iThe temperature is adjusted according
to the settings for the front passenger
side made on the front climate control
panel (
page 222).
iSwitch off the rear automatic climate
control for improved cooling or heating
output in the front passenger compart-
ment.
You can also switch off the rear auto-
matic climate control from the front
passenger compartment (
page 220).
Symbol
Function
Z
Directs air to the center air
vents
Y
Directs air to the footwells and
the side air vents

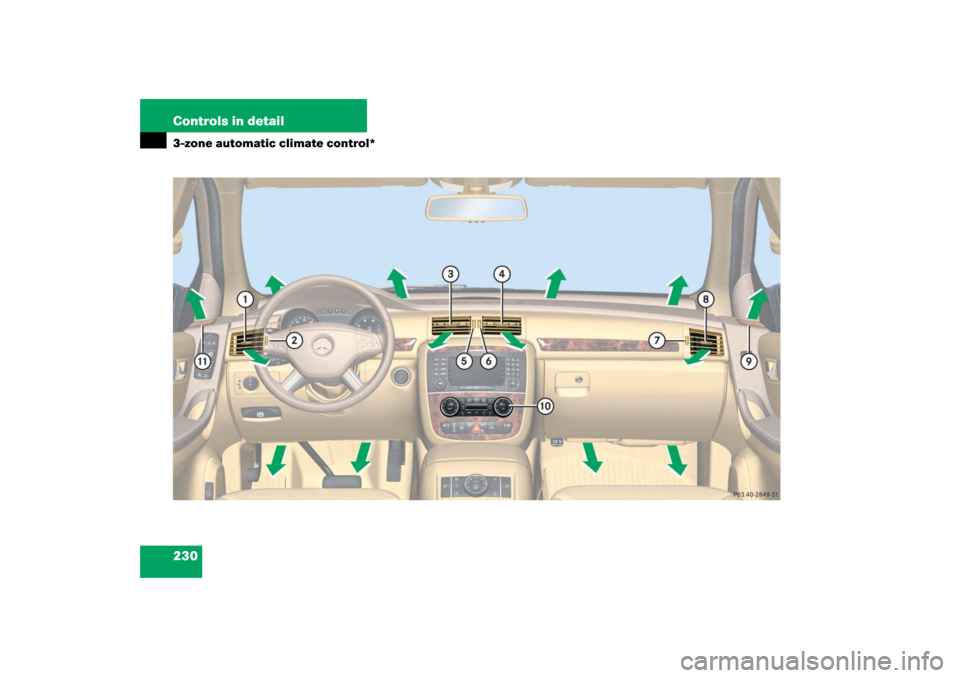

230 Controls in detail3-zone automatic climate control*

231 Controls in detail
3-zone automatic climate control*
1
Side air vent, adjustable
2
Thumbwheel for air volume control
for left side air vent
3
Left center air vent, adjustable
4
Right center air vent, adjustable
5
Thumbwheel for air volume control
for left center air vent
6
Thumbwheel for air volume control
for right center air vent
7
Thumbwheel for air volume control
for right side air vent
8
Side air vent, adjustable
9
Front passenger door air vent, fixed
a
Climate control panel
b
Driver’s door air vent, fixed
iFor draft-free ventilation, move the
sliders for the center air vents3
and4 to the middle position.
