88 Safety and SecurityOccupant safety

If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
59 indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the 59 indicator lamp not
illuminate or go out while the restraint is
installed, please check installation. Peri-
odically check the 59 indi-
cator lamp while driving to make sure
the 59 indicator lamp is il-
luminated. If the 59 indica-
tor lamp goes out or remains out, do not
transport a child on the front passenger
seat until the system has been repaired.
A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
air bag may or may not be activated
(page 85).
iDeployment of the driver front air bag
does not mean that the front passenger
front air bag also should have de-
ployed.
The Occupant Classification System
(page 85) may have determined:


that the seat was empty or occu-
pied by the weight up to or less than
that of a typical 12-month-old child
seated in a standard child restraint
– both instances where the system
suppresses deployment of the front
passenger front air bag even
though the impact met the criteria
and was of sufficient severity to de-
ploy the driver front air bag


that the seat was occupied by a
small individual (such as a young
teenager or a small adult) or a child
weighing more than the weight of a
typical 12-month-old child in a stan-
dard child restraint – instances
where the system may suppress
deployment of the front passenger
front air bag even though the
impact met the criteria and was of
sufficient severity to deploy the
driver front air bag

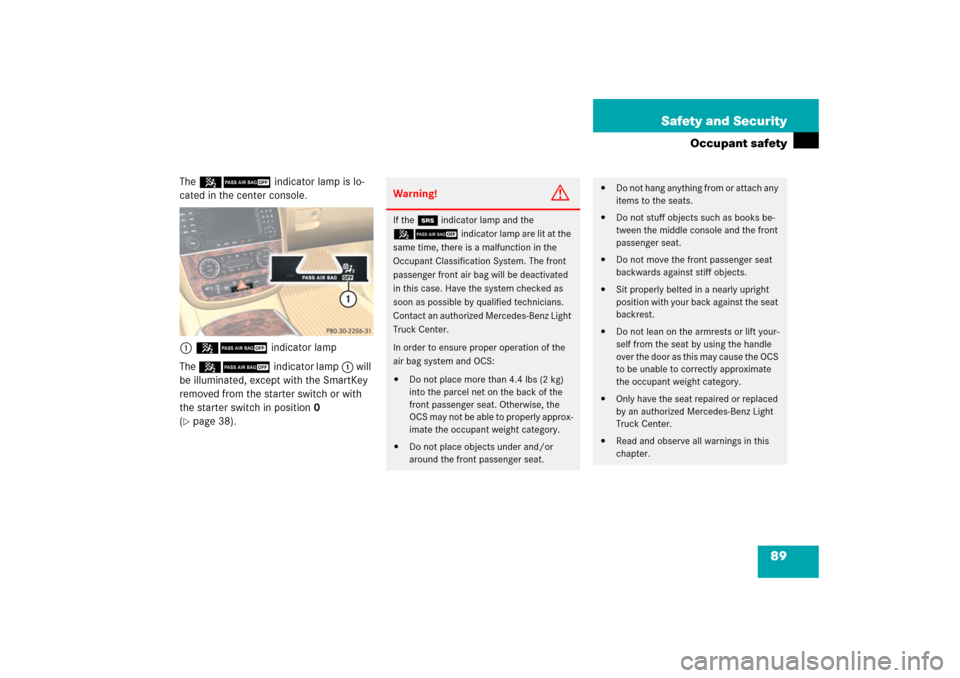

89 Safety and Security
Occupant safety
The 59indicator lamp is lo-
cated in the center console.
159 indicator lamp
The 59indicator lamp1 will
be illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0
(page 38).
Warning!
G
If the 1indicator lamp and the
59indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case. Have the system checked as
soon as possible by qualified technicians.
Contact an authorized Mercedes-Benz Light
Truck Center.
In order to ensure proper operation of the
air bag system and OCS:

Do not place more than 4.4 lbs (2 kg)
into the parcel net on the back of the
front passenger seat. Otherwise, the
OCS may not be able to properly approx-
imate the occupant weight category.


Do not place objects under and/or
around the front passenger seat.


Do not hang anything from or attach any
items to the seats.


Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.


Do not move the front passenger seat
backwards against stiff objects.


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.


Only have the seat repaired or replaced
by an authorized Mercedes-Benz Light
Truck Center.


Read and observe all warnings in this
chapter.

90 Safety and SecurityOccupant safetySelf-test Occupant Classification Sys-
tem
After turning the SmartKey in the starter
switch to position1or2or pressing the
KEYLESS-GO* start / stop button once or
twice, the59indicator lamp
(page 89) located in the center console
illuminates. If an adult occupant is properly
sitting on the front passenger seat and the
system senses the occupant as being an
adult, the59indicator lamp
will illuminate and go out after approxi-
mately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the59indicator lamp
will illuminate and not go out.For more information, see the “Practical
hints” section (
page 414).Installation of infant and child restraint
system
This vehicle is equipped with tether an-
chorages for a top tether strap at each of
the rear seat backrests.

Remove anchorage ring cover 1 from
seat backrest of the seat on which a
child seat is to be installed.
1Anchorage ring cover
Warning!
G
If the 59 indicator lamp should
not illuminate, the system is not functioning.
You must see an authorized Mercedes-Benz
Light Truck Center before seating any child
on the front passenger seat.Warning!
G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.

91 Safety and Security
Occupant safety
2Anchorage rings
3Hook
Guide top tether strap between head
restraint and top of seat backrest.
Head restraint must be installed and
positioned such that the top tether
strap can pass freely between the head
restraint and top of seat backrest.

Make sure the tether strap is not twist-
ed.
2Anchorage ring
3Hook

Securely fasten hook3, which is part
of the tether strap, to anchorage
ring2.
iWhen installing a child seat and top
tether on a rear seat if a cargo compart-
ment cover blind* or a partition net* is
in place behind that rear seat, make
sure the top tether strap is positioned
between the seat backrest and the
cargo compartment cover blind* or
partition net* in order for the child seat
to be properly secured.
Warning!
G
When installing a child seat on a third-row
seat, do not fasten hook 3 to the strap be-
low anchorage ring 2. Otherwise, the child
seat will not be securely fastened. A child’s
risk of serious or fatal injuries is significantly
increased if the child seat is not properly se-
cured in the vehicle.iFor safety, make sure the hook has at-
tached to the ring beyond the safety
catch, as illustrated.


92 Safety and SecurityOccupant safetyOnce the top tether anchorage hook is
attached, the child restraint itself can be
secured. Tighten the top tether strap
according to the child restraint manufac-
turer’s instructions.Child seat anchors – LATCH type
This vehicle is equipped with two LATCH
(L
ower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the rear seats) for
the installation of a LATCH child seat with
matching mounting fittings.
The LATCH anchors on the second-row
seats are covered with an upholstery
blend.
1Anchors second-row seats
2Indicates the position of the anchors

Remove anchorage ring covers 1 from
seat on which a child seat is to be in-
stalled.
3Anchorage ring covers, third-row seats
Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the expanded cargo area is not
in use. Check for secure locking by pushing
and pulling on the backrest.


93 Safety and Security
Occupant safety
4Anchors third-row seats
Install a LATCH type child seat accord-
ing to the manufacturer’s instructions.
Blocking of rear door window operation
With the override switch you can disable
the rear side window switches in the rear
door panels.
iNon-LATCH type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.
Warning!
G
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children from 41 lbs until they reach a
height where a lap / shoulder belt fits prop-
erly without a booster.
Install child seat according to manufactu-
rer’s instructions.
The child seat must be firmly attached in the
right and left side anchors 1.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to the child.
Damaged or impact damaged child seats or
child seat mounting fittings must be re-
placed.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

94 Safety and SecurityOccupant safetyThe override switch is located on the
driver’s door control panel.
1Override switch
For more information on power windows,
see “Power windows” (
page 248).Disabling

Press override switch1 until it engag-
es.
The switch engages in the recessed po-
sition.
The rear door windows can no longer
be operated using the switches located
in the rear doors.Enabling

Press override switch1 once more.
The switch disengages from its re-
cessed position back to its original po-
sition.
The rear door windows can again be
operated using the switches located in
the rear doors.
iOperating the rear door windows using
the switches located on the door con-
trol panel of the driver’s door is still
possible.

95 Safety and Security
Panic alarm
Panic alarm
An audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.
SmartKey1Âbutton
SmartKey with KEYLESS-GO*1Âbutton
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
