2006 LAND ROVER FRELANDER 2 charging

Publi s hed: 11-May-2011

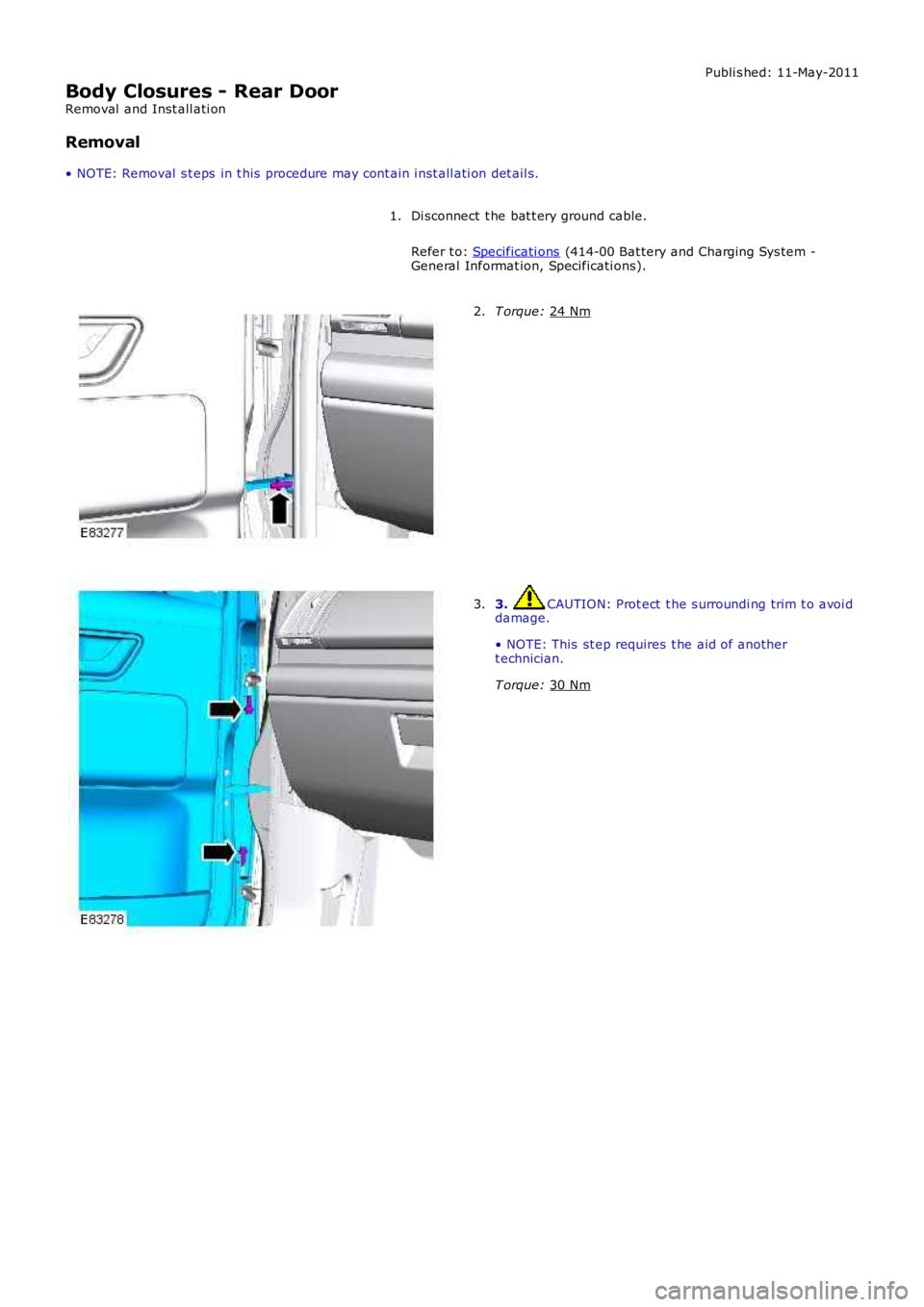

Body Closures - Rear Door
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1. T orque:
24 Nm 2.
3. CAUTION: Prot ect t he s urroundi ng trim t o avoi d
damage.
• NOTE: This st ep requires t he aid of another
t echnician.
T orque: 30 Nm 3.

Publi s hed: 11-May-2011
Interior Trim and Ornamentation - Rear Door Trim Panel
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
2.
Remove t he rear door t rim panel.3.

Inst all t he grab handle cover.5.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
6.

Publi s hed: 11-May-2011
Rear View Mirrors - Exterior Mirror
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Lower the wi ndow glas s .
1.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
2.
Remove t he front door t ri m panel.
Refer t o: Front Door Trim Panel (501-05 Int eri or Trim and
Ornament ati on, Removal and Ins tal lat ion).
3. Remove the front door frame t ri m.
4.
T orque: 10 Nm 5.
Installation
To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011
Seating - Front Seat Backrest Cover
Removal and Inst all ati on
Removal
• W ARNINGS:
To avoid accidental depl oyment , t he res traint s cont rol module backup power s upply mus t be deplet ed. W ait at leas tone mi nut e after dis connecti ng the bat tery ground cabl e(s ) before commenci ng any repair or adjus tment t o t hes uppl ement al res traint s yst em (SRS), or any component(s ) adjacent t o t he SRS s ens ors. Fail ure t o follow thes eins t ructi ons may res ult i n pers onal i njury.
Al ways wear s afet y glas s es when working on an air bag equipped vehi cl e and when handl ing an ai r bag module.Failure t o fol low this ins truct ion may res ult i n pers onal i njury.
To minimize t he pos s ibi lit y of premat ure depl oyment , do not us e radio key code s avers when working on thes uppl ement al res traint s yst em. Failure t o fol low this ins truct ion may res ult i n personal i njury.
To minimize t he pos s ibi lit y of i njury i n t he event of premat ure depl oyment , al ways carry a li ve air bag module wit ht he bag and trim cover point ed away from t he body. Fail ure t o follow thi s ins t ructi on may res ult i n pers onal injury.
To minimize t he pos s ibi lit y of premat ure depl oyment , live ai r bag modules mus t only be pl aced on work bencheswhich have been ground bonded and wit h t he trim cover facing up. Fail ure t o follow thes e i ns t ructi ons may res ult i npers onal i njury.
Never probe t he elect rical connect ors of air bag modules or any ot her s upplemental res t rai nt s ys tem component.Failure t o fol low this ins truct ion may res ult i n pers onal i njury.
Paint ing over the driver air bag module trim cover or ins trument panel coul d lead to det eriorat ion of t he t ri m coverand air bags. Do not for any reas on att empt to pai nt dis col ored or damaged air bag module trim covers or i nst rumentpanel . Ins tal l a new component . Fai lure to foll ow t his i nst ruct ion may res ul t in pers onal injury.
Make s ure that s ufficient ti me has el aps ed aft er dis connecti ng the bat tery ground cabl e(s ), before commencing workon t he s uppl ement al res traint s ys t em (SRS). Fail ure t o fol low thes e ins t ructi ons may res ult i n pers onal i njury.
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,Des cript ion and Operat ion).
2.
Remove t he front safet y belt buckle.
Refer t o: Front Safety Bel t Buckle (501-20A Safet y Belt Sys tem,Removal and Ins tall ati on).
3.

Publi s hed: 11-May-2011
Seating - Front Seat Backrest Heater Mat
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he front seat backres t cover.
Refer t o: Front Seat Backres t Cover (501-10 Seat ing, Removal andInst all at ion).
2.
3.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011
Seating - Lumbar Assembly
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Make t he SRS s ys t em s afe.
Refer t o: Supplement al Res t raint Sys tem (SRS) Depowering andRepowering (501-20, General Procedures ).
2.
Remove t he front seat backres t cover.
Refer t o: Front Seat Backres t Cover (501-10 Seat ing, Removal andInst all at ion).
3.
Remove t he front seat backres t pad.4.
5.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011
Glass, Frames and Mechanisms - Front Door Window Regulator and Motor
Removal and Inst all ati on
Special T ool(s) 501-114
Releas e Lever, Door Glas s
Removal
• NOTE: If pos s ible, l ower t he wi ndow glas s by approximat el y one t hird of it s travel .
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Remove t he front door s peaker.
Refer t o: Front Door Speaker (415-01 Informat ion and Ent ert ainment
Syst em, Removal and Ins tall ati on).
2. Carefully remove t he outer wais t s eal.
3. Releas e t he door wi ndow glas s from the wi ndow li ft
mechani s m. Rais e t he glas s and s ecure it t o t he t op of
t he door frame.
Speci al Tool (s ): 501-114 4.
