2006 LAND ROVER FRELANDER 2 charging

Inst all both A-pil lar upper t ri m panels .
Refer t o: A-Pil lar Tri m Panel (501-05 Int erior Trim andOrnament ati on, Removal and Ins tal lat ion).
26.
Inst all both front door ass embl ies .
Refer t o: Front Door (501-03 Body Clos ures , Removal andInst all at ion).
27.
Recharge the A/C sys tem.
Refer t o: Air Condi ti oning (A/C) Sys tem Recovery, Evacuati on andCharging (412-00 Cl imat e Control Sys t em - General Informat ion,General Procedures).
28.
Inst all t he winds hield wiper motor.
Refer t o: W i nds hield W i per Mot or (501-16 W ipers and W as hers ,Removal and Ins tall ati on).
29.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
30.
Check and top-up the coolant.31.

Publi s hed: 11-May-2011
Instrument Panel and Console - Instrument PanelI6 3.2L Petrol
Removal and Inst all ati on
Removal
Make t he SRS s ys t em s afe.
Refer t o: Supplement al Res t raint Sys tem (SRS) Depowering and
Repowering (501-20, General Procedures ).
1.
Remove t he winds hield wiper motor.
Refer t o: W i nds hield W i per Mot or (501-16 W ipers and W as hers ,
Removal and Ins tall ati on).
2.
Evacuate the A/C s ys tem.
Refer t o: Air Condi ti oning (A/C) Sys tem Recovery, Evacuati on and Charging (412-00 Cl imat e Control Sys t em - General Informat ion,
General Procedures).
3.
Remove both front door ass embl ies .
Refer t o: Front Door (501-03 Body Clos ures , Removal and
Inst all at ion).
4.
Remove both A-pil lar upper t ri m panels .
Refer t o: A-Pil lar Tri m Panel (501-05 Int erior Trim and
Ornament ati on, Removal and Ins tal lat ion).
5. Remove t he A-pi llar center t rim panels .
6.

Inst all both A-pil lar upper t ri m panels .
Refer t o: A-Pil lar Tri m Panel (501-05 Int erior Trim and
Ornament ati on, Removal and Ins tal lat ion).
26.
Inst all both front door ass embl ies .
Refer t o: Front Door (501-03 Body Clos ures , Removal and
Inst all at ion).
27.
Recharge the A/C sys tem.
Refer t o: Air Condi ti oning (A/C) Sys tem Recovery, Evacuati on and Charging (412-00 Cl imat e Control Sys t em - General Informat ion,
General Procedures).
28.
Inst all t he winds hield wiper motor.
Refer t o: W i nds hield W i per Mot or (501-16 W ipers and W as hers ,
Removal and Ins tall ati on).
29.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
30.
Check and top-up the coolant.
31.

Inst all both A-pil lar upper t ri m panels .
Refer t o: A-Pil lar Tri m Panel (501-05 Int erior Trim andOrnament ati on, Removal and Ins tal lat ion).
44.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
45.
Return t he s teeri ng col umn t o i ts original posi ti on.46.

Publi s hed: 11-May-2011

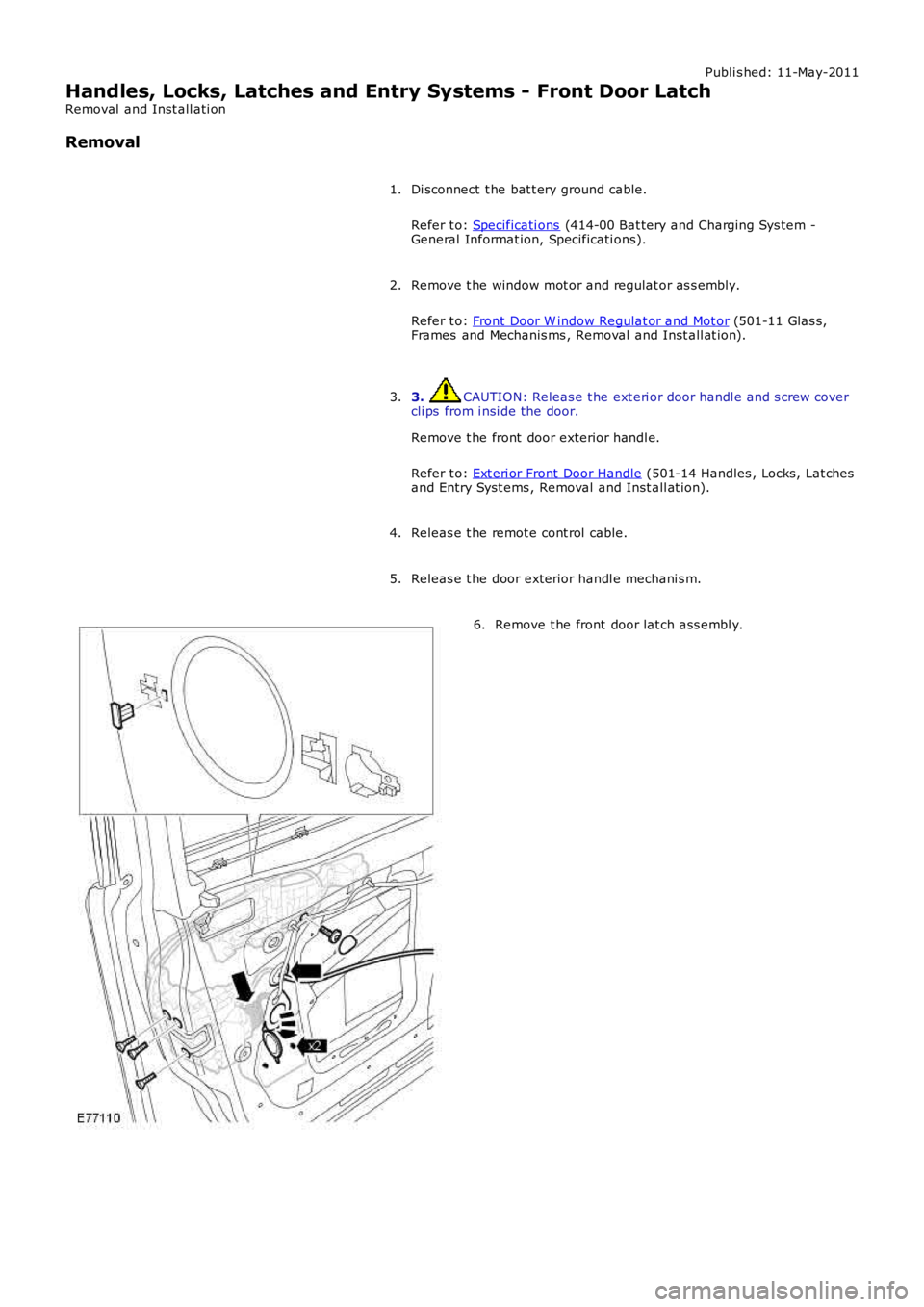

Handles, Locks, Latches and Entry Systems - Front Door Latch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he window mot or and regulat or as s embly.
Refer t o: Front Door W indow Regulat or and Mot or (501-11 Glas s,Frames and Mechanis ms , Removal and Inst all at ion).
2.
3. CAUTION: Releas e t he ext eri or door handl e and s crew covercli ps from i nsi de the door.
Remove t he front door exterior handl e.
Refer t o: Ext eri or Front Door Handle (501-14 Handles , Locks, Lat chesand Entry Syst ems , Removal and Inst all at ion).
3.
Releas e t he remot e cont rol cable.4.
Releas e t he door exterior handl e mechani s m.5.
Remove t he front door lat ch ass embl y.6.

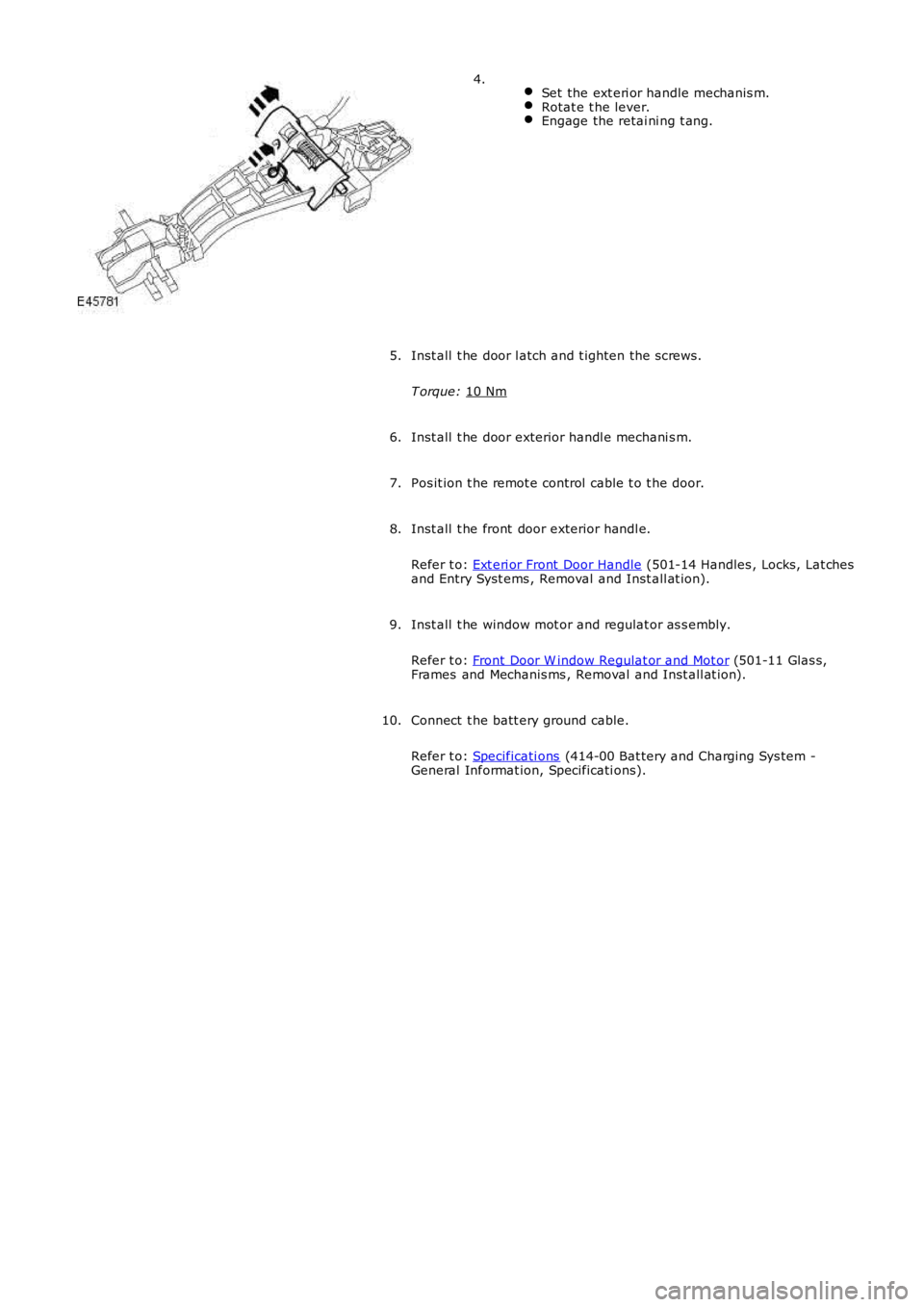

Set the ext eri or handle mechanis m. Rotat e t he lever.
Engage the retai ni ng t ang.4.
Inst all t he door l atch and t ighten the s crews .
T orque: 10 Nm 5.
Inst all t he door exterior handl e mechani s m.
6.
Pos it ion t he remot e control cable t o t he door.
7.
Inst all t he front door exterior handl e.
Refer t o: Ext eri or Front Door Handle (501-14 Handles , Locks, Lat ches
and Entry Syst ems , Removal and Inst all at ion).
8.
Inst all t he window mot or and regulat or as s embly.
Refer t o: Front Door W indow Regulat or and Mot or (501-11 Glas s,
Frames and Mechanis ms , Removal and Inst all at ion).
9.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
10.

Publi s hed: 11-May-2011

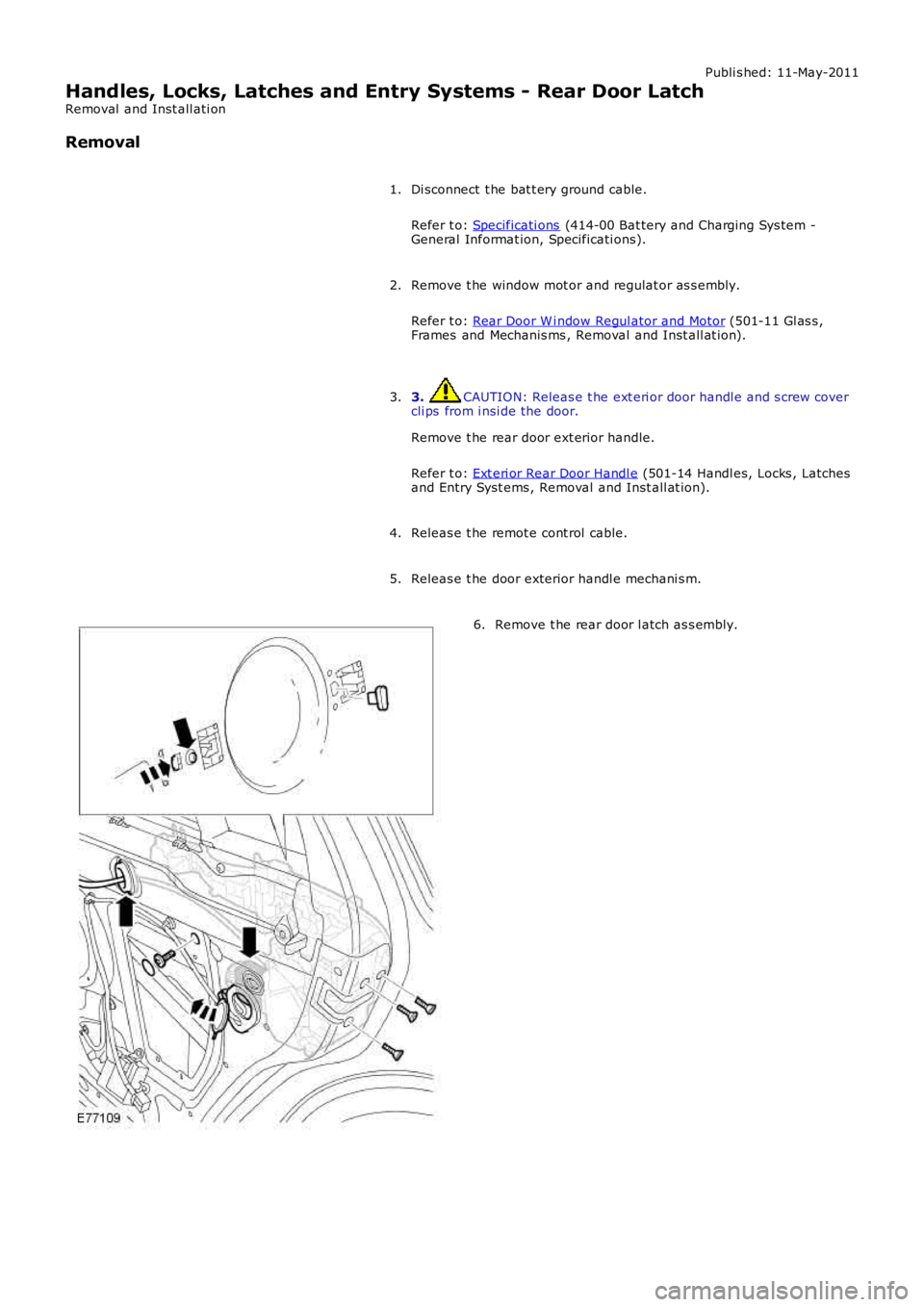

Handles, Locks, Latches and Entry Systems - Rear Door Latch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Remove t he window mot or and regulat or as s embly.
Refer t o: Rear Door W i ndow Regul ator and Motor (501-11 Gl as s ,
Frames and Mechanis ms , Removal and Inst all at ion).
2.
3. CAUTION: Releas e t he ext eri or door handl e and s crew cover
cli ps from i nsi de the door.
Remove t he rear door ext erior handle.
Refer t o: Ext eri or Rear Door Handl e (501-14 Handl es, Locks , Latches
and Entry Syst ems , Removal and Inst all at ion).
3.
Releas e t he remot e cont rol cable.
4.
Releas e t he door exterior handl e mechani s m.
5. Remove t he rear door l atch as s embly.
6.

Refer t o:
Ext eri or Rear Door Handl e (501-14 Handl es, Locks , Latches
and Entry Syst ems , Removal and Inst all at ion).
Inst all t he window mot or and regulat or as s embly.
Refer t o: Rear Door W i ndow Regul ator and Motor (501-11 Gl as s ,
Frames and Mechanis ms , Removal and Inst all at ion).
8.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
9.
