Towing
150
L

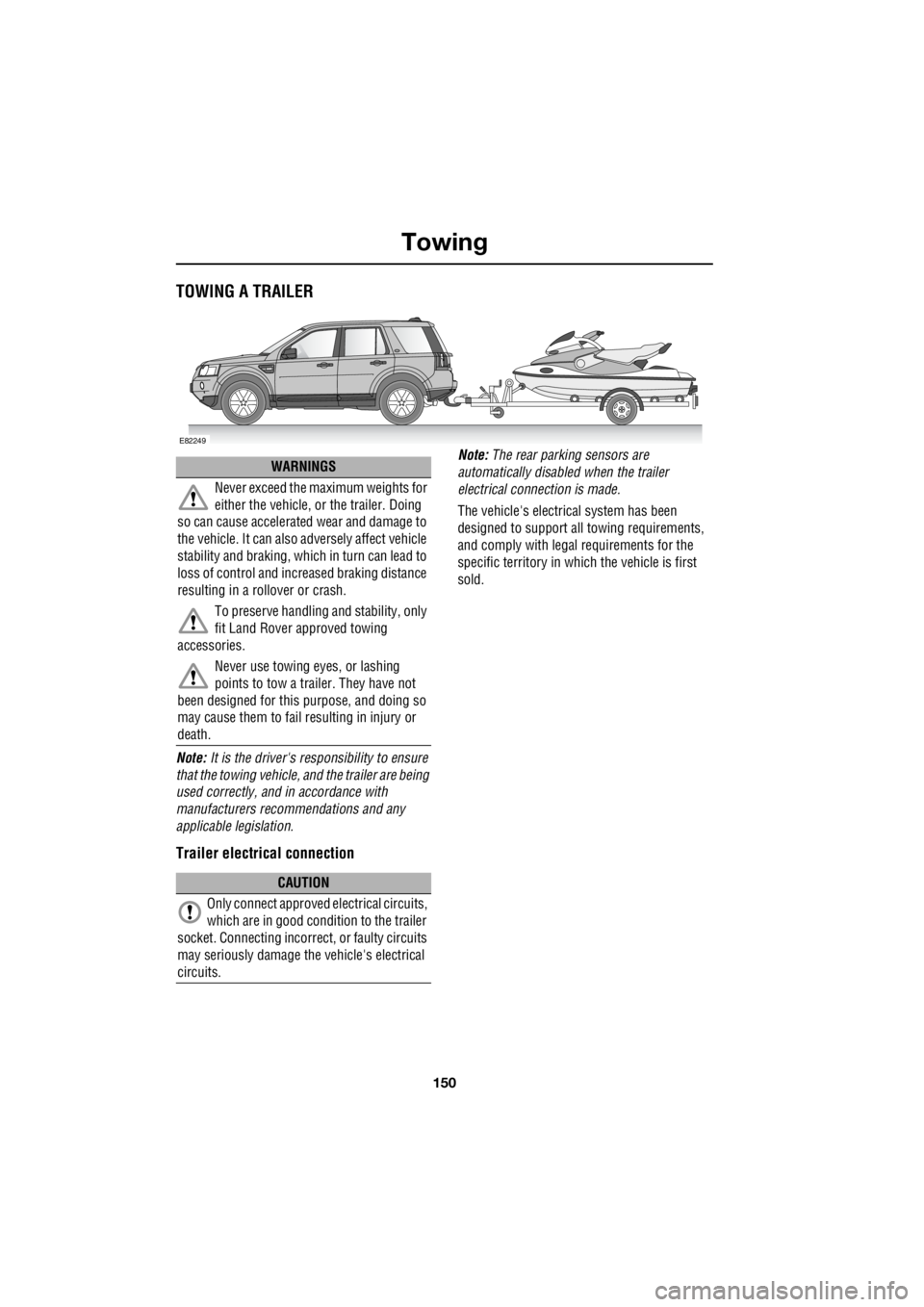

TowingTOWING A TRAILER
Note: It is the driver's re sponsibility to ensure
that the towing vehicle, and the trailer are being
used correctly, and in accordance with
manufacturers recomm endations and any
applicable legislation.
Trailer electrical connection
Note: The rear parking sensors are
automatically disabled when the trailer
electrical conne ction is made.
The vehicle's electrical system has been
designed to support all towing requirements,
and comply with legal requirements for the
specific territory in which the vehicle is first
sold.
E82249
WARNINGS
Never exceed the maximum weights for
either the vehicle, or the trailer. Doing
so can cause accelerate d wear and damage to
the vehicle. It can also adversely affect vehicle
stability and braking, which in turn can lead to
loss of control and incr eased braking distance
resulting in a rollover or crash.
To preserve handling and stability, only
fit Land Rover approved towing
accessories.
Never use towing eyes, or lashing
points to tow a trailer. They have not
been designed for this purpose, and doing so
may cause them to fail resulting in injury or
death.
CAUTION
Only connect approved electrical circuits,
which are in good condition to the trailer
socket. Connecting incorrect , or faulty circuits
may seriously damage the vehicle's electrical
circuits.

Fuses
200
L
Fuse number Rating (Amps) Fuse co lour Circuits protected
F1 5 tan Rain sensor
F2 10 red SRS
F3 5 tan ABS
F4 5 tan Instrument pack - Accelerator pedal - Light
Switch Module
F5 - - -
F6 15 blue Audio unit
F7 7.5 brown Steering wheel controls
F8 5 tan Instrument pack
F9 15 blue Headlamp main beam
F10 15 blue Sunroof
F11 7.5 brown Reverse lights and interior mirror dip
F12 - - -
F13 15 blue Front fog lamps
F14 15 blue Screen wash
F15 - - -
F16 - - -
F17 7.5 brown Interior lighting
F18 - - -
F19 5 tan Electric seat adjustment
F20 15 blue Rear wiper
F21 5 tan Alarm
F22 20 yellow Fuel pump
F23 20 yellow Steering column lock
F24 - - -
F25 10 red Tailgate - Fuel filler flap
F26 5 tan Diagnostic socket and alarm
F27 5 tan Start button and climate control
F28 5 tan Brake lights

Index
275
R
Preset buttons . . . . . . . . . . . . . . . . . . . . . 238 Recalling a preset channel . . . . . . . . . 239
Scrolling through presets . . . . . . . . . . 239
Storing channels as presets . . . . . . . . 238
Principle of operation Airbag deployment effects . . . . . . . . . . 61
Airbag operation . . . . . . . . . . . . . . . . . . 60
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 59
Before driving off-road . . . . . . . . . . . . 136
Brake pads . . . . . . . . . . . . . . . . . . . . . 123
Deployment and deflation . . . . . . . . . . . 60
Dynamic Stability Control (DSC) . . . . . 140
Gradient release control (GRC) . . . . . . 136
Introduction . . . . . . . . . . . . . . . . . . . . . 58
Roll stability control (RSC) . . . . . . . . . 140
Seat belt checks . . . . . . . . . . . . . . . . . . 55
Seat belt safety . . . . . . . . . . . . . . . . . . . 54
Seat belts . . . . . . . . . . . . . . . . . . . . . . . 54
Wet conditions . . . . . . . . . . . . . . . . . . 123
Priority programme type (PTY) . . . . . . . . 231 PTY search - Premium audio . . . . . . . 232
PTY seek - Standard audio . . . . . . . . . 233
PTY selection - Premium audio . . . . . 231Q
Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Audio system . . . . . . . . . . . . . . . . . . . . . 27
Automatic transmission . . . . . . . . . . . . . 23
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CD autochanger . . . . . . . . . . . . . . . . . . . 30
CD OPERATION . . . . . . . . . . . . . . . . . . . 30
Clock setting . . . . . . . . . . . . . . . . . . . . . 31
Cruise control . . . . . . . . . . . . . . . . . . . . 24
DAB radio. . . . . . . . . . . . . . . . . . . . . . . . 29
Driving position memory . . . . . . . . . . . . 10
Engine starting . . . . . . . . . . . . . . . . . . . . . 8
Exterior lighting . . . . . . . . . . . . . . . . . . . 22
Facia. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Gearshift interlocks . . . . . . . . . . . . . . . . 23
Heating and ventilation. . . . . . . . . . . . . . 14
Hill Descent Control (HDC) . . . . . . . . . . 25
Instrument pack . . . . . . . . . . . . . . . . . . . 19
Manual seat adjustment . . . . . . . . . . . . . 11
Master lock and unlock switches . . . . . . . 9
Overhead console . . . . . . . . . . . . . . . . . 12
Parking aid . . . . . . . . . . . . . . . . . . . . . . . 26
Passenger airbag deactivation . . . . . . . . 13
Power operated seat adjustment . . . . . . 10
Radio operation . . . . . . . . . . . . . . . . . . . 29
Remote control . . . . . . . . . . . . . . . . . . . . 7
Seat belts and Child restraints . . . . . . . . 13
Single CD player. . . . . . . . . . . . . . . . . . . 30
Steering column adjustment . . . . . . . . . 12
Steering column lock . . . . . . . . . . . . . . . 12
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Telephone - Bluetooth system . . . . . . . . 31
Terrain Response system. . . . . . . . . . . . 25
Warning indicators (attention) . . . . . . . . 21
Warning indicators (information) . . . . . . 21
Windows and Door mirrors . . . . . . . . . . 11
Wipers and washers. . . . . . . . . . . . . . . . 22
R
Radio data system (RDS) . . . . . . . . . . . . . 228 Selecting RDS . . . . . . . . . . . . . . . . . . . 228
Radio reception . . . . . . . . . . . . . . . . . . . . 218
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . 87
Operation . . . . . . . . . . . . . . . . . . . . . . . . 88
Rear fog lamps . . . . . . . . . . . . . . . . . . . . . . 73

Index
277
R
Track selection . . . . . . . . . . . . . . . . . . . . 246
Traction control . . . . . . . . . . . . . . . . . . . . 139
Traffic information control . . . . . . . . . . . 226 Traffic Programme (TP) preference . . 227
Transmission Technical specifications . . . . . . . . . . . 122
Transporting the vehicle . . . . . . . . . . . . . 208
Trip computer . . . . . . . . . . . . . . . . . . . . . . 99
Type approvals . . . . . . . . . . . . . . . . . . . . 215
Declarations of conformity . . . . . . . . . 215
Tyre care . . . . . . . . . . . . . . . . . . . . . . . . . 177 Age degradation . . . . . . . . . . . . . . . . . 178
Directional tyres . . . . . . . . . . . . . . . . . 180
Flat spots . . . . . . . . . . . . . . . . . . . . . . 182
Pressure compensation for ambient
temperature changes . . . . . . . . . . . 182
Punctured tyres . . . . . . . . . . . . . . . . . 178
Replacement tyres . . . . . . . . . . . . . . . 179
Tyre checks. . . . . . . . . . . . . . . . . . . . . 179
Tyre pressures . . . . . . . . . . . . . . . . . . 180
Tyre wear . . . . . . . . . . . . . . . . . . . . . . 178
Tyre glossary. . . . . . . . . . . . . . . . . . . . . . 193 Terms used . . . . . . . . . . . . . . . . . . . . . 193
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . 187
Checking the tyre pressure after a repair . . 191
Land Rover tyre repair kit . . . . . . . . . . 189
Land Rover tyre repair kit safety information 188
Using the Land Rover tyre repair kit . . 190
U
Using booster cables. . . . . . . . . . . . . . . . 173 Disconnecting the cables . . . . . . . . . . 173
Using cruise control . . . . . . . . . . . . . . . . 130 Engaging cruise control . . . . . . . . . . . 130
Increasing the cruise speed . . . . . . . . 131
Reducing the cruise speed . . . . . . . . . 130
Suspending cruise control . . . . . . . . . 130
Using HDC. . . . . . . . . . . . . . . . . . . . . . . . 137
HDC operation . . . . . . . . . . . . . . . . . . 137
Selecting HDC . . . . . . . . . . . . . . . . . . . 137
Warning messages . . . . . . . . . . . . . . . 138
Using seat belts during pregnancy . . . . . . 57
Using snow chains . . . . . . . . . . . . . . . . . 192 Using stability control. . . . . . . . . . . . . . . . 141
Deactivating DSC . . . . . . . . . . . . . . . . . 141
DSC . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
DSC system fault . . . . . . . . . . . . . . . . . 141
Reactivating DSC . . . . . . . . . . . . . . . . . 141
Using terrain response . . . . . . . . . . . . . . . 132
Before driving off-road . . . . . . . . . . . . . 132
Driver override options . . . . . . . . . . . . 132
Terrain response messages . . . . . . . . . 134
Terrain Response operation . . . . . . . . . 133
Using the key . . . . . . . . . . . . . . . . . . . . . . . 40
Using the parking aid . . . . . . . . . . . . . . . . 127
Front PDC deactivation. . . . . . . . . . . . . 127
PDC activation . . . . . . . . . . . . . . . . . . . 127
Sensor care . . . . . . . . . . . . . . . . . . . . . 127
System fault . . . . . . . . . . . . . . . . . . . . . 127
Using the remote control . . . . . . . . . . . . . . 41 Approach lighting. . . . . . . . . . . . . . . . . . 42
Emergency alarm . . . . . . . . . . . . . . . . . . 43
Locking . . . . . . . . . . . . . . . . . . . . . . . . . 42
Remote battery . . . . . . . . . . . . . . . . . . . 43
Remote control . . . . . . . . . . . . . . . . . . . 41
Single and double locking . . . . . . . . . . . 42
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . 43
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . 41
Using the telephone . . . . . . . . . . . . . . . . . 261 Ending telephone calls . . . . . . . . . . . . . 263
Making telephone calls. . . . . . . . . . . . . 262
Receiving telephone calls . . . . . . . . . . . 264
Selecting telephone mode . . . . . . . . . . 261
Telephone in-call menu . . . . . . . . . . . . 265
Voice mail . . . . . . . . . . . . . . . . . . . . . . 266
Using traction control . . . . . . . . . . . . . . . . 139
Before driving off-road . . . . . . . . . . . . . 139
Electronic Traction Control (ETC). . . . . 139
Using winter tyres . . . . . . . . . . . . . . . . . . 183
V
Vehicle build date plate . . . . . . . . . . . . . . . 210
Vehicle identification number (VIN) . . . . . 210
Vehicle identification plate . . . . . . . . . . . . 210
Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Volume control . . . . . . . . . . . . . . . . . . . . . 223 Automatic Volume Control (AVC). . . . . 223
Reset volume settings . . . . . . . . . . . . . 223

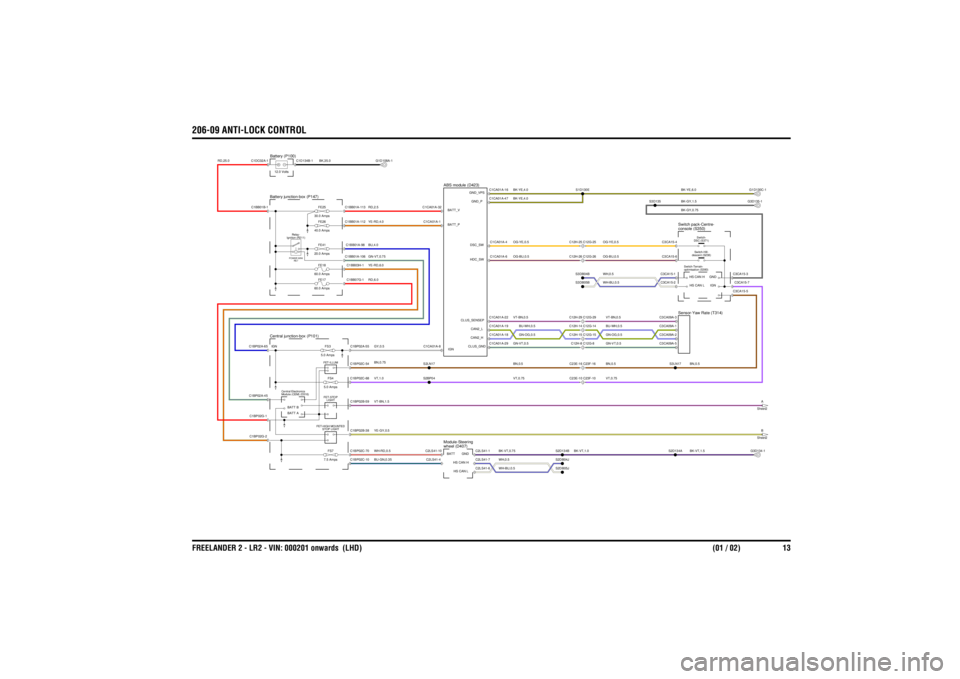

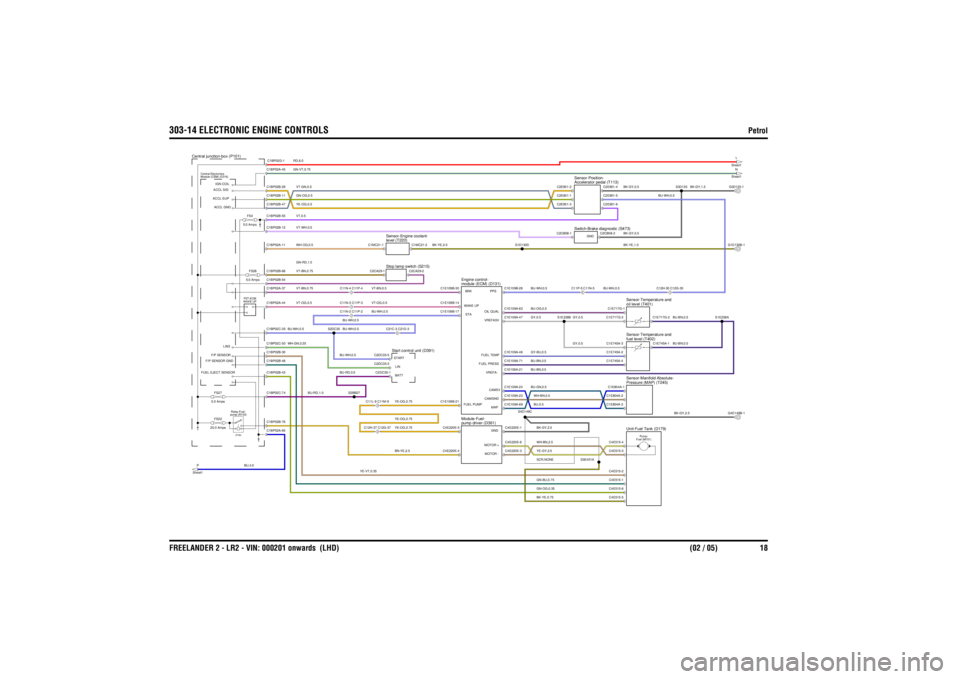

204-04 WHEELS AND TIRES
Tire pressure monitoring system
FREELANDER 2 - LR2 - VIN: 000201 onwards (LHD)(01 / 01) 11
204-04 WHEELS AND TIRES Tire pressure monitoring system
RD,0.5
RD,25.0
RD,0.5BU,4.0GN-VT,0.75RD,6.0
BK,35.0
BK-YE,6.0BK-YE,1.5
BK-YE,0.5
GY-RD,0.5BK-YE,1.5GY-BN,0.5
BK-YE,2.5
BK-VT,0.75BN-WH,0.75BU-BN,0.75YE,0.75VT-BN,0.75GY-VT,0.75BN-GN,0.75BU-OG,0.75BN-YE,0.75
Module (CEM) (D316) Central Electronics
Central junction-box (P101)
Battery junction-box (P147)
Ignition (R211)Relay-RE7
POWER MINIFE33
5.0 AmpsFE17
60.0 Amps
FE41
20.0 Amps
Battery (P100)12.0 Volts
frequency (RF) (T203) Receiver-Radio-
FS21
5.0 Amps
C22C-7 C22D-7
Front-RH (T292) Sensor-Tyre-Front-LH (T291)
Sensor-Tyre-Rear-RH (T294)
Sensor-Tyre-Rear-LH (T293)
Sensor-Tyre-
Initiator-Rear-LH (M284)Initiator-Front-LH (M282)Initiator-Front-RH (M281)Initiator-Rear-RH (M283)
ELECTRONIC GNDIGN RELAYBATT AIGN
C1BB01A-107
C1BB01A-98C1BB01A-92C1BB01A-106C1BB07G-1
C1BB01B-1
S1BB33
C1BP02A-65C1BP02A-45C1BP02G-1
C1D134B-1
C1DC02A-1
G1D108A-1
S2D139B
C1BP02H-15C1BP02H-5
LIN 0
C3PL56-1
LINC3PL56-3
BATT
S2D139A
C3PL56-2
GND
S9D139BG6D139-1
SIG
C1BP02A-33C1BP02A-22C1BP02A-34C1BP02A-21C1BP02A-54
GNDGNDSIG
C1BP02B-4C1BP02B-16C1BP02B-3C1BP02B-15
SIGGNDSIGGND
C1MC40-1C1MC41-2C1MC41-1C1MC40-2C3MC43-2C3MC43-1C3MC42-2C3MC42-1
G1D132B-1

206-09 ANTI-LOCK CONTROLFREELANDER 2 - LR2 - VIN: 000201 onwards (LHD) (01 / 02) 13
206-09 ANTI-LOCK CONTROL
GN-VT,0.75
VT,0.75
YE-RD,6.0RD,6.0VT,1.0WH-RD,0.5BU-GN,0.35VT-BN,1.5YE-GY,0.5
BK-VT,1.0
WH,0.5WH-BU,0.5BK-VT,0.75
VT,0.75
BK-VT,1.5
GY,0.5YE-RD,4.0RD,2.5BN,0.75BU,4.0
BK,35.0
RD,25.0
BK-GY,0.75
WH-BU,0.5WH,0.5
BN,0.5BU-WH,0.5GN-OG,0.5GN-VT,0.5VT-BN,0.5OG-BU,0.5OG-YE,0.5
BN,0.5
BU-WH,0.5GN-OG,0.5BN,0.5GN-VT,0.5VT-BN,0.5OG-BU,0.5OG-YE,0.5
BK-YE,6.0
BK-YE,4.0BK-YE,4.0
BK-GY,1.5
FET-ILLUM
C23E-16 C23F-16
Central junction-box (P101)
FS4
5.0 AmpsFS7
7.5 AmpsLIGHT
FET-STOP
Module (CEM) (D316)
Central Electronics
STOP LIGHT
FET-HIGH MOUNTED
C23E-10 C23F-10
wheel (D407)
Module-Steering
A
Sheet2B
Sheet2
FE26
40.0 AmpsFS3
5.0 AmpsFE25
30.0 Amps
Battery junction-box (P147)
Ignition (R211) Relay-POWER MINI
RE7
FE41
20.0 AmpsFE17
60.0 AmpsFE18
60.0 Amps
Battery (P100)12.0 Volts
ABS module (D423)
C12H-8 C12G-8C12H-15 C12G-15C12H-14 C12G-14C12H-29 C12G-29C12H-25 C12G-25C12H-26 C12G-26
optimisation (S380)
Switch-Terrain-console (S350)
Switch pack-Centre-Sensor-Yaw Rate (T314)
descent (S238) Switch-Hill-DSC (S371) Switch-
C1BP02C-54
S2LN17
S3LN17
C1BP02C-70C1BP02C-10
C1BP02G-2C1BP02G-1C1BP02A-45
BATT BBATT A
C1BP02B-38C1BP02B-59C1BP02C-68
C2LS41-6
HS CAN LC2LS41-1
GNDC2LS41-7
HS CAN H
C2LS41-10 BATTC2LS41-4
S2DB05JS2D134BS2DB04J
S2BP04
S2D134A
G3D134-1
G1D108A-1
C1BP02A-65 IGN
C1BP02A-55C1BB07G-1C1BB01A-106C1BB03H-1C1BB01A-98C1BB01A-112
C1BB01B-1C1DC02A-1
C1BB01A-113
C1D134B-1
S3DB04BS3DB05B
C1CA01A-29
CLUS_GNDC1CA01A-18
CAN2_HC1CA01A-19
CAN2_LC1CA01A-22
CLUS_SENSEP
C1CA01A-8 IGN
C1CA01A-6
HDC_SWC1CA01A-4
DSC_SW
C1CA01A-1 BATT_P
C3CA15-5
C3CA09A-1C3CA09A-2C3CA09A-5C3CA09A-3
HS CAN LHS CAN H
C3CA15-1C3CA15-2C3CA15-6C3CA15-4
C3CA15-3C3CA15-7
GNDIGN
S1D130E
C1CA01A-16
GND_VPSC1CA01A-47
GND_P
C1CA01A-32 BATT_V
S3D135
G3D135-1G1D130C-1

206-09 ANTI-LOCK CONTROLFREELANDER 2 - LR2 - VIN: 000201 onwards (LHD) (02 / 02) 14
BK-GY,2.5BK-BU,2.5BK-GY,0.75
VT-BN,1.5YE-GY,0.5
YE-GY,0.75VT-BN,0.75GY-BN,0.75
BK-GY,6.0
BK-BU,2.5BK-GY,1.5BK-GY,1.5BK-GY,2.5
VT,0.5GY-VT,0.5BN,0.5WH-OG,0.5WH,0.5WH-BU,0.5
WH-BU,0.5
(MANUAL-DIESEL)WH,0.5
(MANUAL-DIESEL)WH,0.5
(AUTO DIESEL)WH-BU,0.5
(AUTO DIESEL)WH,0.5
(PETROL)WH-BU,0.5
(PETROL)
BN-GN,0.5
BN-GN,0.5BU-OG,0.5
BU-OG,0.5YE,0.5VT-WH,0.5
BN,0.5WH-OG,0.5
lamp (A124) RH stop21.0 Watts
Tail lamp unit-RH (A140)
C44N-1 C44M-1
B
Sheet1A
Sheet1
stop lamp (A126)
High mounted21.0 Wattslamp (A125) LH stop21.0 Watts
Tail lamp unit-LH (A139)
C44M-5 C44N-5
C4CA04A-1
C12G-22 C12H-22
Rear-LH (T152)
Wheel speed Sensor-
ABS module (D423)
C12G-23 C12H-23
C4CA04A-2
module (ECM) (D131)
Engine control-module (ECM) (D131)
Engine control-
Front-LH (T150)
Wheel speed Sensor-
C1CA03A-2C1CA03A-1
C4CA06A-1
C12H-27 C12G-27
Rear-RH (T151)
Wheel speed Sensor-
C11P-1 C11N-1C11P-12 C11N-12
C12H-28 C12G-28
C4CA06A-2
Front-RH (T149)
Wheel speed Sensor-
C1CA05A-2C1CA05A-1
C4LS50A-1
C4LS50A-2
C4LS36A-1C4LS35A-1
S4LS44
C4LS35A-5C4LS36A-5
S4D149DS4D149AS4D152C
S4D149B
G4D149-1G4D151B-1
C1CA01A-36
RL_SIG
C1CA01A-43
RR_SIG
C1E109B-54
HS CAN HC1E109B-41
HS CAN LC1E104H-A1
HS CAN L
C1CA01A-37 RL_GND
C1E104H-A2
HS CAN H
C1CA01A-12
HS CAN HC1CA01A-13
HS CAN LC1CA01A-42
RR_GND
C1CA01A-46 FL_GNDC1CA01A-45 FL_SIG
C1CA01A-33
FR_GNDC1CA01A-34
FR_SIG
S1DB04GS1DB05GS1DB05FS1DB04F
S1DB04DS1DB05D

303-14 ELECTRONIC ENGINE CONTROLS
Petrol
FREELANDER 2 - LR2 - VIN: 000201 onwards (LHD) (02 / 05) 18
YE-OG,0.5VT-WH,0.5
BU-WH,0.5VT-OG,0.5
GN-VT,0.75
VT-BN,0.5
VT,0.5VT-GN,0.5GN-OG,0.5RD,6.0
BN-YE,2.5
BK-YE,0.5
GN-BU,0.75
YE-VT,0.35
GN-OG,0.35
YE-OG,0.75YE-OG,0.75
VT-OG,0.5
BU,4.0
BU-RD,1.0
WH-GN,0.35BU-WH,0.5
BU-RD,0.5
YE-OG,0.75
BU-WH,0.5BU-WH,0.5BU-WH,0.5
GN-RD,1.0VT-BN,0.75WH-OG,0.5VT-BN,0.75
SCR,NONEYE-GY,2.5WH-BN,2.5BK-YE,0.75
BK-GY,2.5
WH-BN,0.5BU,0.5
GY,0.5GY,0.5
BU-GN,0.5BU-BN,0.5GY-BU,0.5BU-BN,0.5BU-OG,0.5BK-GY,2.5GY,0.5
BU-BN,0.5BU-BN,0.5
BK-YE,1.0
BU-WH,0.5
BU-WH,0.5
BK-GY,0.5
BU-WH,0.5
BK-GY,0.5
BK-GY,1.5
FS4
5.0 AmpsFS28
5.0 Amps
FS22
20.0 Amps
WAKE UP FET-ECM
C11N-3 C11P-3
Module (CEM) (D316)
Central Electronics
Central junction-box (P101)
FS27
5.0 Amps
P
Sheet1
pump (R103) Relay-Fuel-(PCB)
Start control unit (D391)
C12H-37 C12G-37C11L-9 C11M-9
C11N-2 C11P-2
C21C-3 C21D-3
C11N-4 C11P-4
Stop lamp switch (S215)level (T220)
Sensor-Engine coolant-
oil level (T401)
Sensor-Temperature and
module (ECM) (D131)
Engine control-
Unit-Fuel Tank (D179)
pump driver (D361)
Module-Fuel-
Pressure (MAP) (T245)
Sensor-Manifold Absolute-
Fuel (M151) Pump-
fuel level (T402)
Sensor-Temperature and
Switch-Brake diagnostic (S473)Accelerator pedal (T113)
Sensor-Position-C11P-5 C11N-5
C12H-30 C12G-30
N
Sheet1L
Sheet1
C1E109B-14 WAKE UPC1E109B-30 BRKC1E109B-17 STAC1E109B-21FUEL PUMP
C1BP02A-44C1BP02C-74C1BP02C-50C1BP02A-65C1BP02C-35C1BP02B-43C1BP02B-30C1BP02B-48C1BP02B-76
FUEL EJECT SENSORF/P SENSOR GND
LIN3
F/P SENSOR
S2BB27
S2DC35
C2DC35-1BATTC2DC35-5 STARTC2DC35-3 LIN
C1BP02B-55C1BP02B-12C1BP02A-37C1BP02B-54C1BP02A-11C1BP02A-45C1BP02B-47C1BP02B-11C1BP02B-29C1BP02B-66
ACCL SUPACCL GNDIGN COILACCL SIG
C1BP02G-1
C2CA29-1
C2CA29-2
C1MC21-1
C1MC21-2
C4E515-3
C4E220E-3
MOTOR -
C4E220E-4
S3E401A
C4E515-6C4E515-5C4E515-2C4E515-1
C4E220E-6
MOTOR +C4E220E-1
GNDC1E109A-69
MAPC1E109A-24
CAM5VC1E109A-23
CAMGND
S4D149C
C4E220E-5
C1E109A-21
VREFA-C1E109A-47
VREFA5VC1E109A-63
OIL QUALC1E109A-71
FUEL PRESSC1E109A-46
FUEL TEMP
S1E238B
C4E515-4C1E804A-2C1E804A-3C1E804A-1
G4D149B-1
C1E745A-4C1E745A-2C1E745A-3
C1E745A-1
C1E717G-3C1E717G-1
C1E717G-2
S1E238A
C2CB08-2
GND
C1E109B-26
PPS
S1D130D
C2CB08-1C2E901-2C2E901-3C2E901-1
G1D130B-1
S3D135
C2E901-4C2E901-6C2E901-5
G3D135-1
