Reporting safety defects for
U.S. owners Camper information—

’05 TUNDRA_U (L/O 0408)
487
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

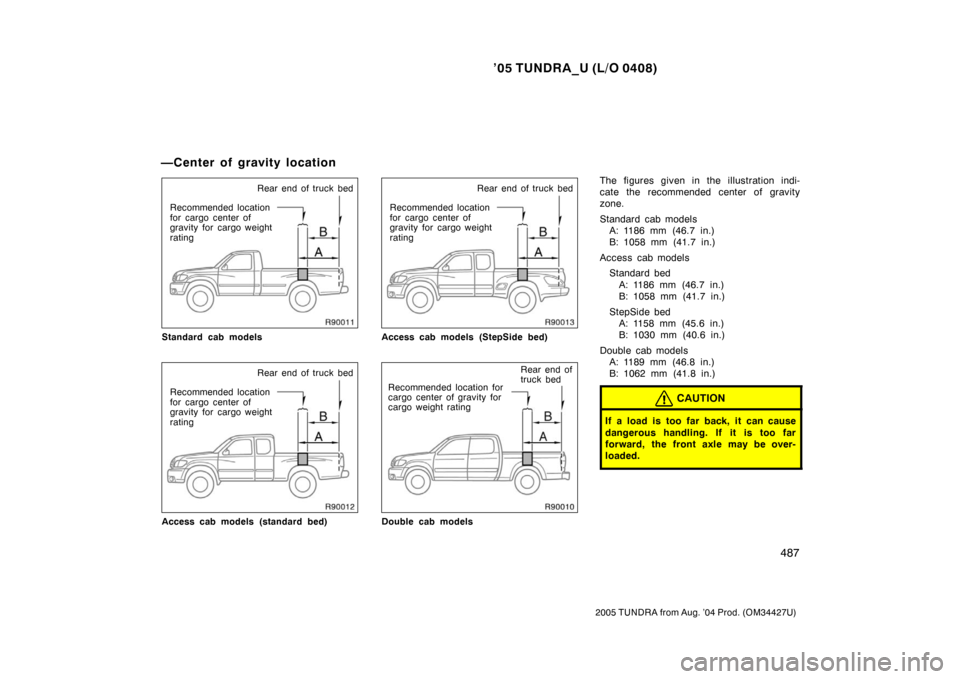

Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Standard cab models
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (standard bed)
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (StepSide bed)
Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of
truck bed
Double cab models
The figures given in the illustration indi-
cate the recommended center of gravity
zone.
Standard cab models A: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
Access cab models Standard bedA: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
StepSide bed A: 1158 mm (45.6 in.)
B: 1030 mm (40.6 in.)
Double cab models A: 1189 mm (46.8 in.)
B: 1062 mm (41.8 in.)
CAUTION
If a load is too far back, it can cause
dangerous handling. If it is too far
forward, the front axle may be over-
loaded.
—Center of gravity location

’05 TUNDRA_U (L/O 0408)
488
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

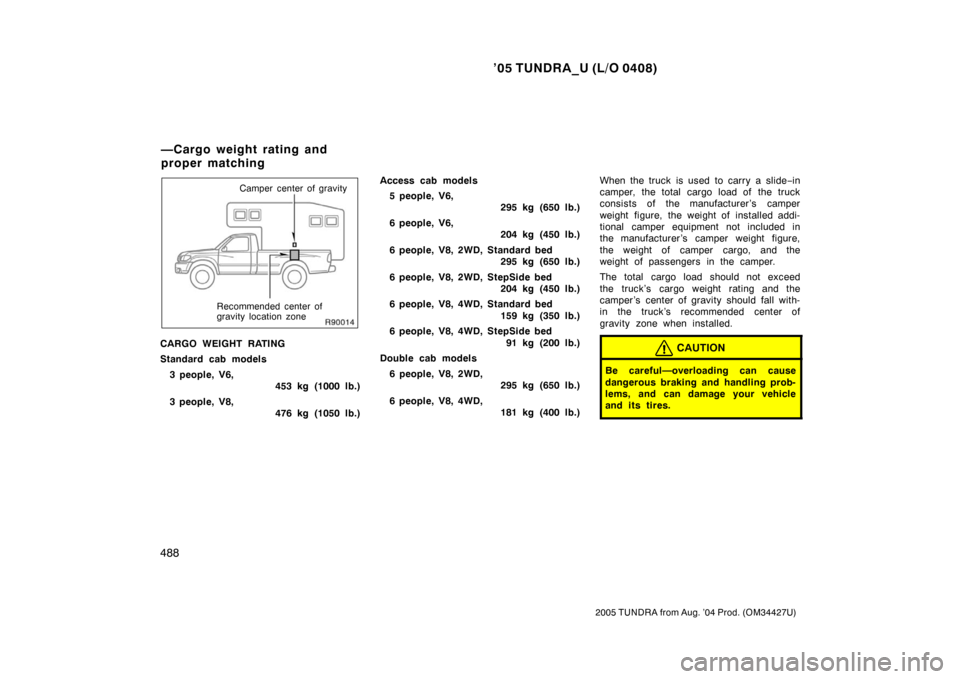

Camper center of gravity
Recommended center of
gravity location zone
CARGO WEIGHT RATING
Standard cab models 3 people, V6, 453 kg (1000 lb.)
3 people, V8, 476 kg (1050 lb.)Access cab models
5 people, V6, 295 kg (650 lb.)
6 people, V6, 204 kg (450 lb.)
6 people, V8, 2WD, Standard bed 295 kg (650 lb.)
6 people, V8, 2WD, StepSide bed 204 kg (450 lb.)
6 people, V8, 4WD, Standard bed 159 kg (350 lb.)
6 people, V8, 4WD, StepSide bed 91 kg (200 lb.)
Double cab models
6 people, V8, 2WD, 295 kg (650 lb.)
6 people, V8, 4WD, 181 kg (400 lb.)When the truck is used to carry a slide
−in
camper, the total cargo load of the truck
consists of the manufacturer ’s camper
weight figure, the weight of installed addi-
tional camper equipment not included in
the manufacturer ’s camper weight figure,
the weight of camper cargo, and the
weight of passengers in the camper.
The total cargo load should not exceed
the truck’s cargo weight rating and the
camper ’s center of gravity should fall with-
in the truck’s recommended center of
gravity zone when installed.CAUTION
Be careful—overloading can cause
dangerous braking and handling prob-
lems, and can damage your vehicle
and its tires.
—Cargo weight rating and
proper matching

’05 TUNDRA_U (L/O 0408)
489
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

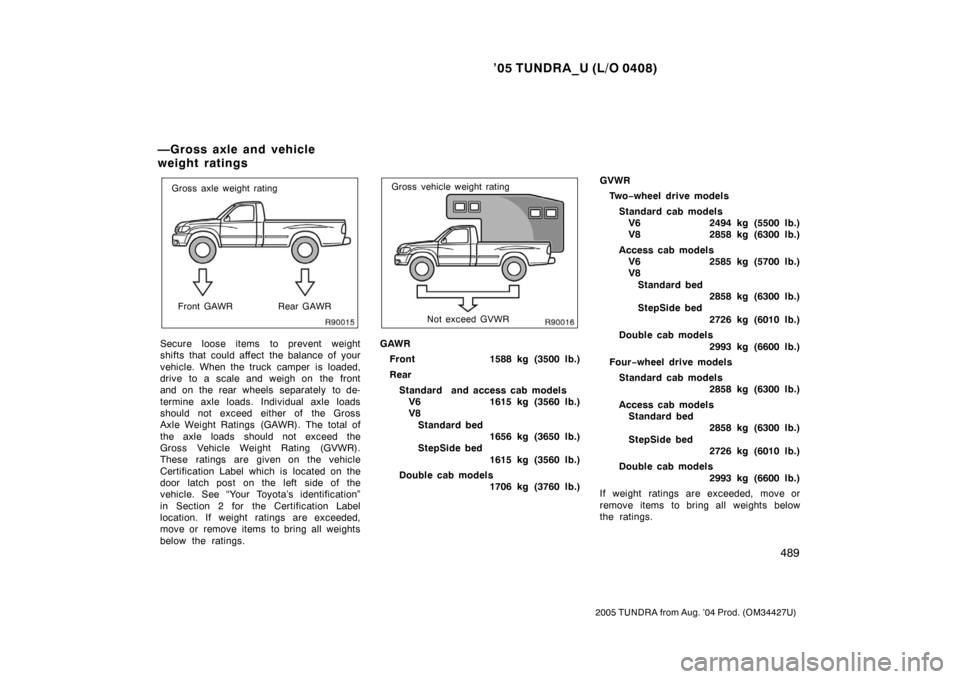

Gross axle weight rating
Front GAWR Rear GAWR
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the truck camper is loaded,
drive to a scale and weigh on the front
and on the rear wheels separately to de-
termine axle loads. Individual axle loads
should not exceed either of the Gross
Axle Weight Ratings (GAWR). The total of
the axle loads should not exceed the
Gross Vehicle Weight Rating (GVWR).
These ratings are given on the vehicle
Certification Label which is located on the
door latch post on the left side of the
vehicle. See “Your Toyota’s identification”
in Section 2 for the Certification Label
location. If weight ratings are exceeded,
move or remove items to bring all weights
below the ratings.
Gross vehicle weight rating
Not exceed GVWR
GAWRFront 1588 kg (3500 lb.)
Rear
Standard and access cab modelsV6 1615 kg (3560 lb.)
V8
Standard bed 1656 kg (3650 lb.)
StepSide bed
1615 kg (3560 lb.)
Double cab models 1706 kg (3760 lb.) GVWR
Tw o −wheel drive models
Standard cab models V6 2494 kg (5500 lb.)
V8 2858 kg (6300 lb.)
Access cab models V6 2585 kg (5700 lb.)
V8
Standard bed 2858 kg (6300 lb.)
StepSide bed
2726 kg (6010 lb.)
Double cab models 2993 kg (6600 lb.)
Four −wheel drive models
Standard cab models 2858 kg (6300 lb.)
Access cab models Standard bed 2858 kg (6300 lb.)
StepSide bed 2726 kg (6010 lb.)
Double cab models 2993 kg (6600 lb.)
If weight ratings are exceeded, move or
remove items to bring all weights below
the ratings.
—Gross axle and vehicle
weight ratings
