2005 TOYOTA TUNDRA Owners Manual

’05 TUNDRA_U (L/O 0408)
326
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

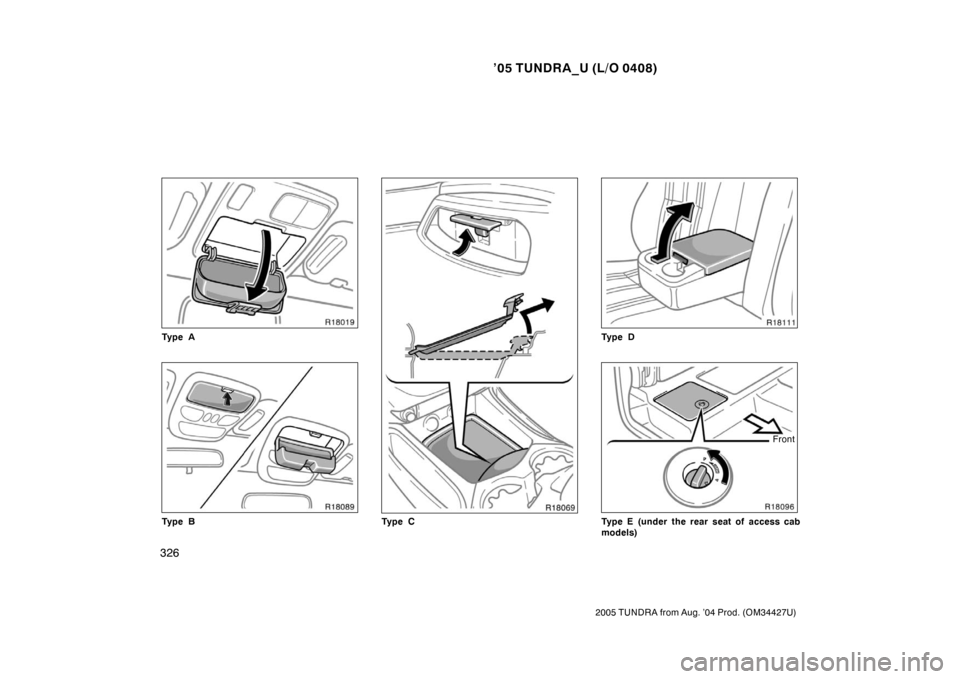

Ty p e A
Ty p e BTy p e C
Ty p e D
Front
Type E (under the rear seat of access cab
models)

’05 TUNDRA_U (L/O 0408)
327
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

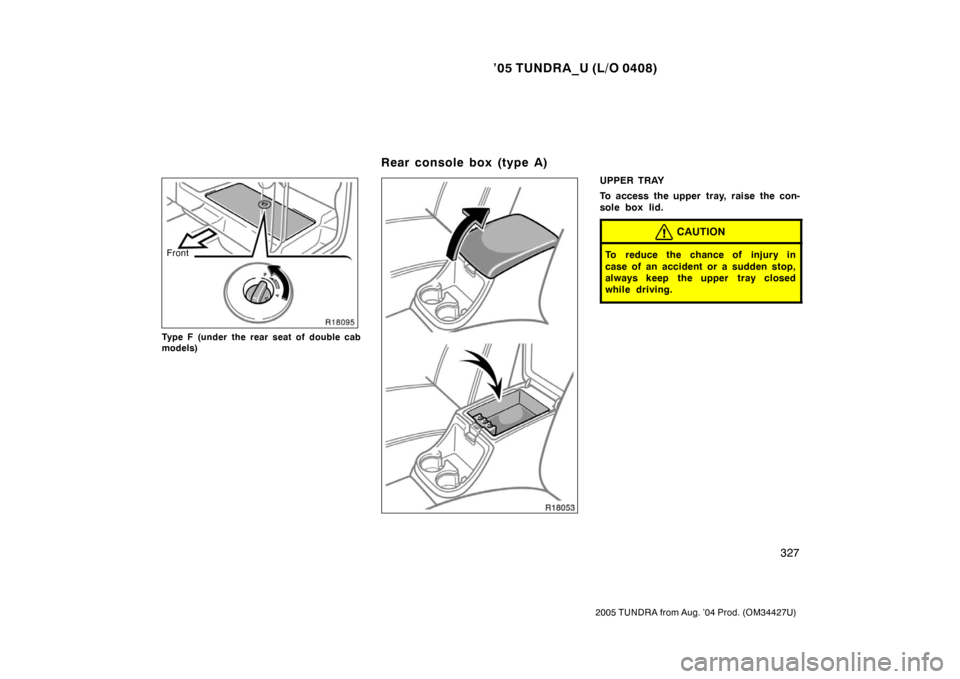

Front
Type F (under the rear seat of double cab
models)
UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
Rear console box (type A)

’05 TUNDRA_U (L/O 0408)
328
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

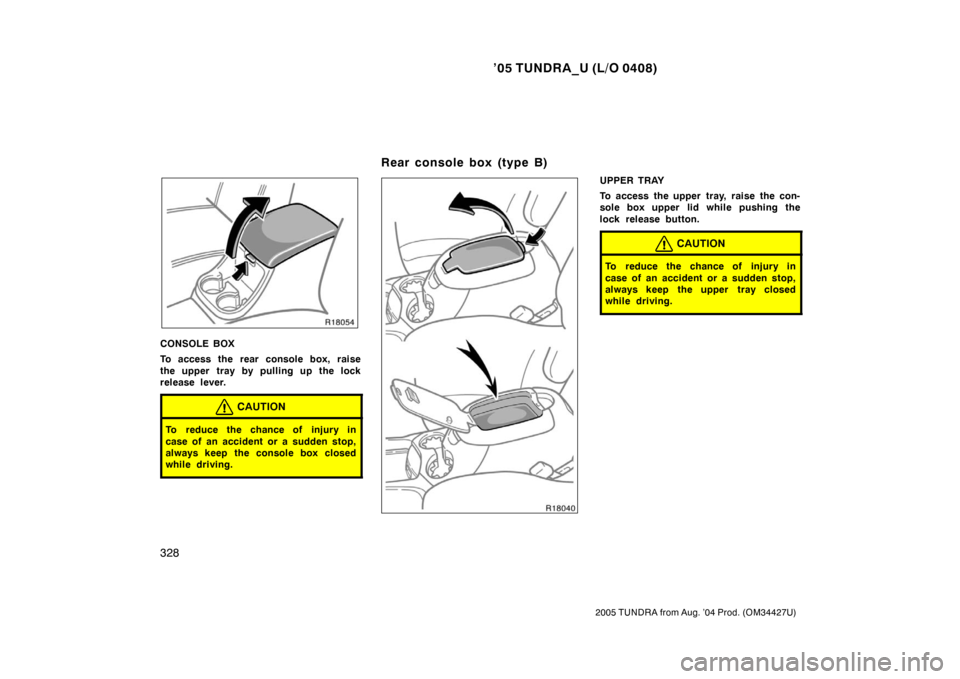

CONSOLE BOX
To access the rear console box, raise
the upper tray by pulling up the lock
release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
UPPER TRAY
To access the upper tray, raise the con-
sole box upper lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
Rear console box (type B)

’05 TUNDRA_U (L/O 0408)
329
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

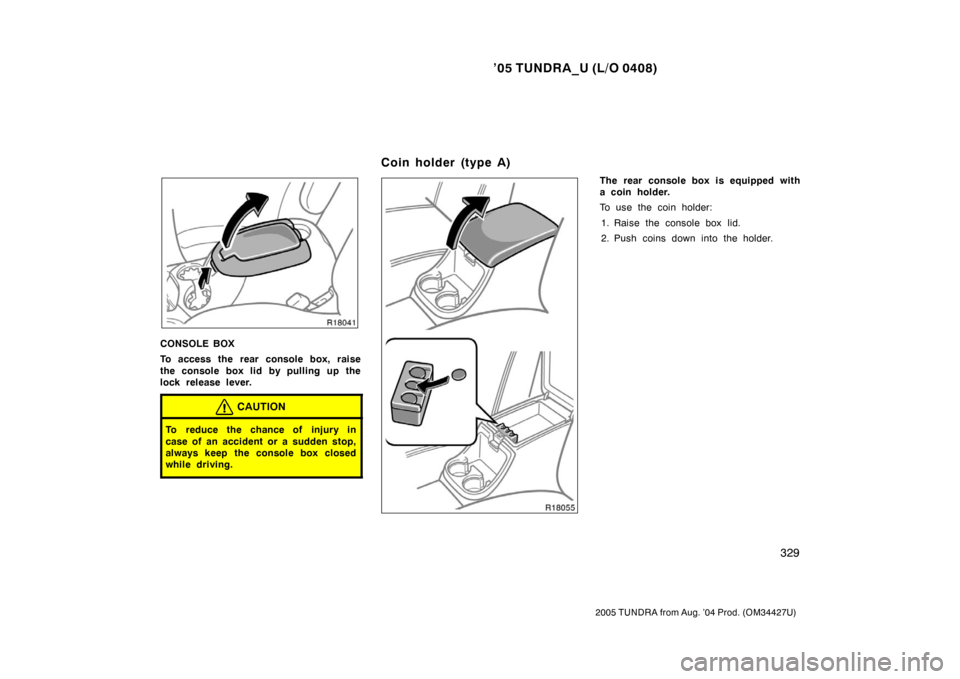

CONSOLE BOX
To access the rear console box, raise
the console box lid by pulling up the
lock release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box lid.
2. Push coins down into the holder.
Coin holder (type A)

’05 TUNDRA_U (L/O 0408)
330
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

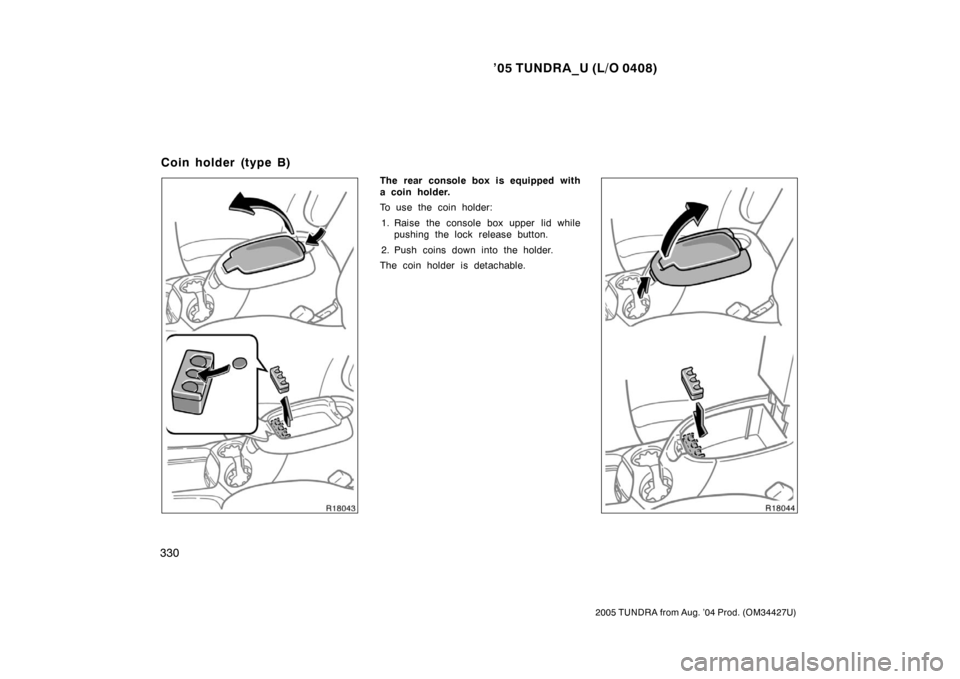

The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box upper lid while pushing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder (type B)

’05 TUNDRA_U (L/O 0408)
331
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

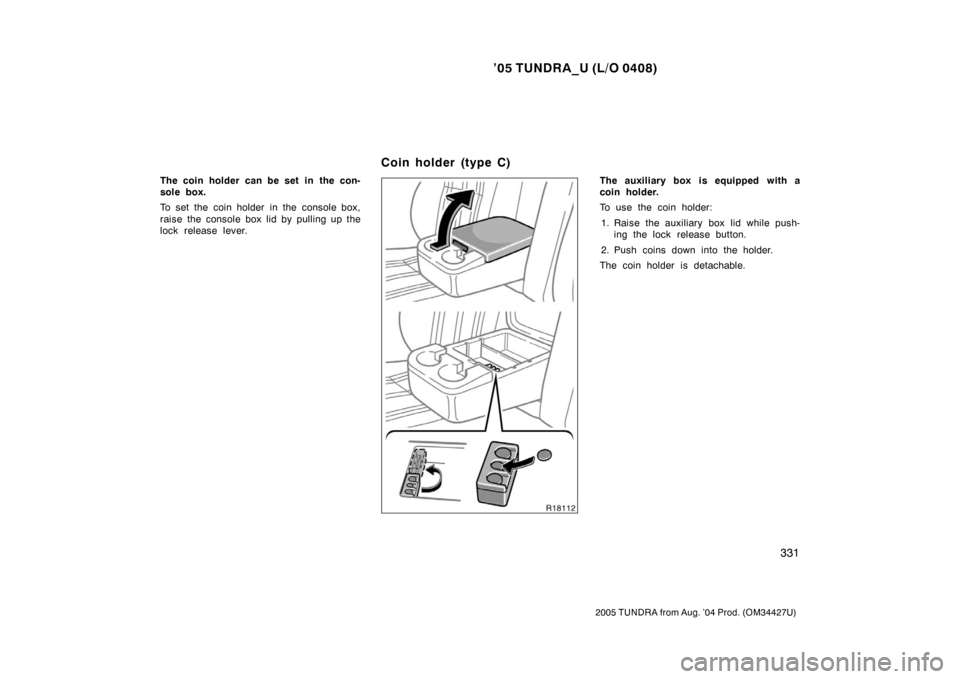

The coin holder can be set in the con-
sole box.
To set the coin holder in the console box,
raise the console box lid by pulling up the
lock release lever.The auxiliary box is equipped with a
coin holder.
To use the coin holder:
1. Raise the auxiliary box lid while push- ing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder (type C)

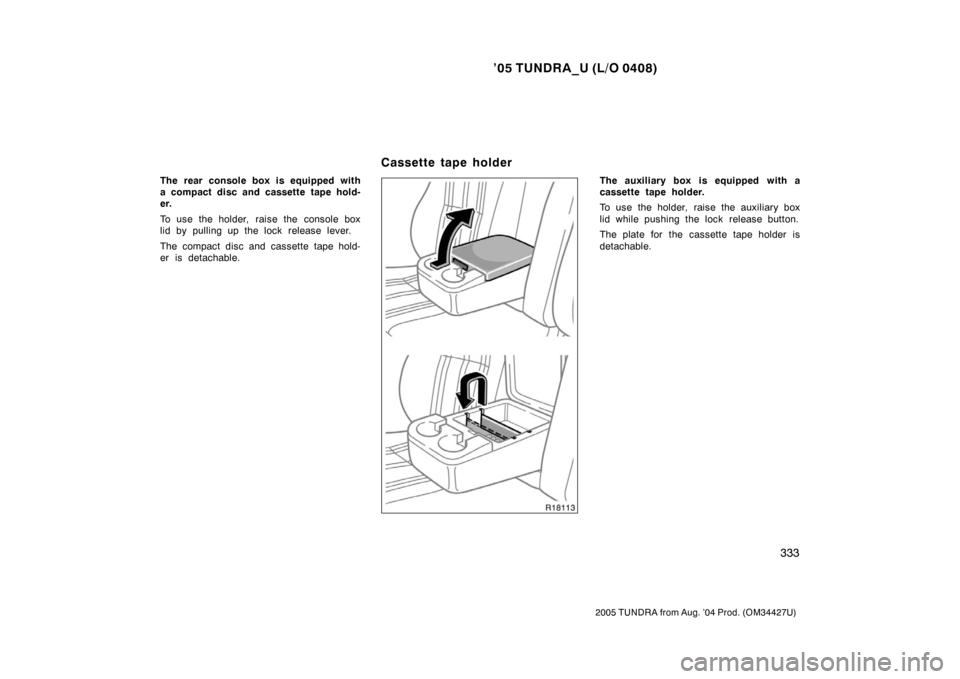

’05 TUNDRA_U (L/O 0408)
332
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
The rear console box is equipped with
compact disc and cassette tape holders.
To use the holders, raise the console box
lid and upper tray by pulling up the lock
release lever.
The plates for the compact disc and cas-
sette tape holders are detachable.
Compact disc and cassette
tape holder (type A) Compact disc and cassette
tape holder (type B)

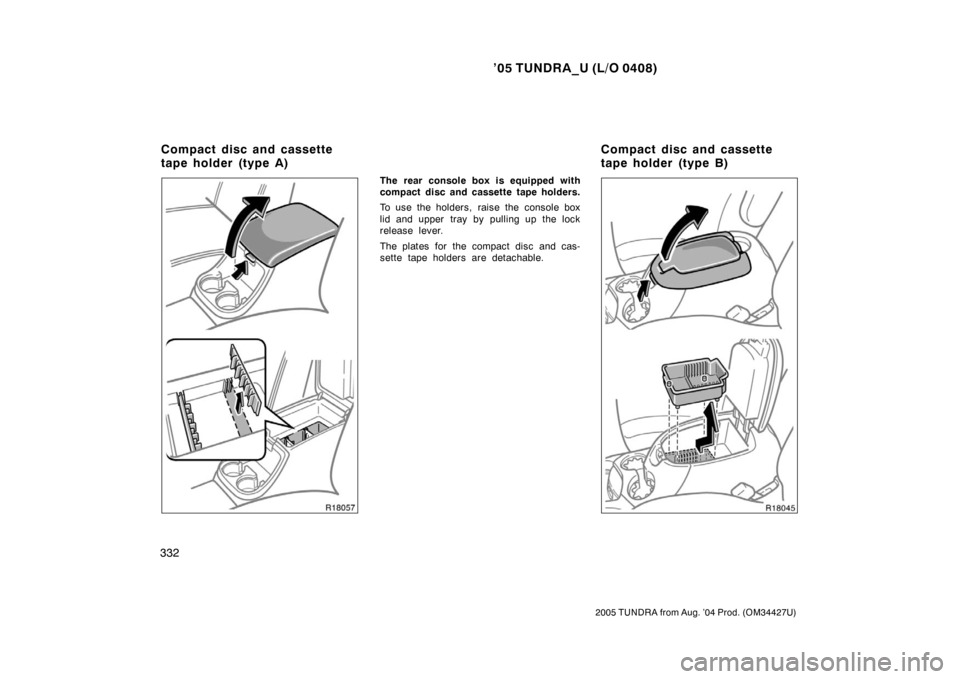

’05 TUNDRA_U (L/O 0408)
333
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
The rear console box is equipped with
a compact disc and cassette tape hold-
er.
To use the holder, raise the console box
lid by pulling up the lock release lever.
The compact disc and cassette tape hold-
er is detachable.The auxiliary box is equipped with a
cassette tape holder.
To use the holder, raise the auxiliary box
lid while pushing the lock release button.
The plate for the cassette tape holder is
detachable.
Cassette tape holder
