2005 TOYOTA TUNDRA Owners Manual

’05 TUNDRA_U (L/O 0408)
462
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

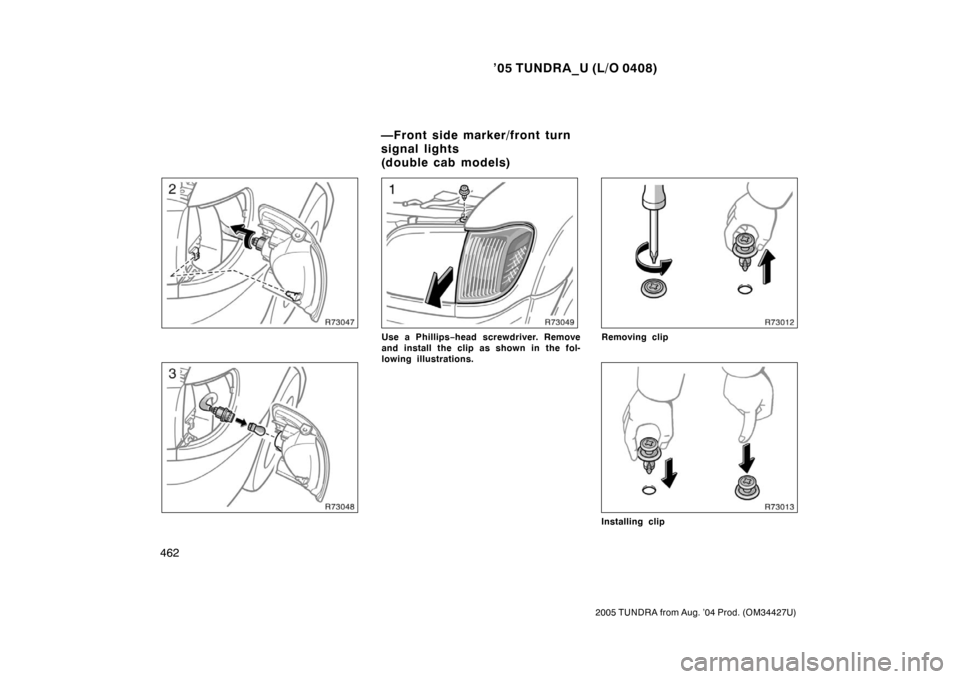

Use a Phillips −head screwdriver. Remove
and install the clip as shown in the fol-
lowing illustrations.Removing clip
Installing clip
—Front side marker/front turn
signal lights
(double cab models)

’05 TUNDRA_U (L/O 0408)
463
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

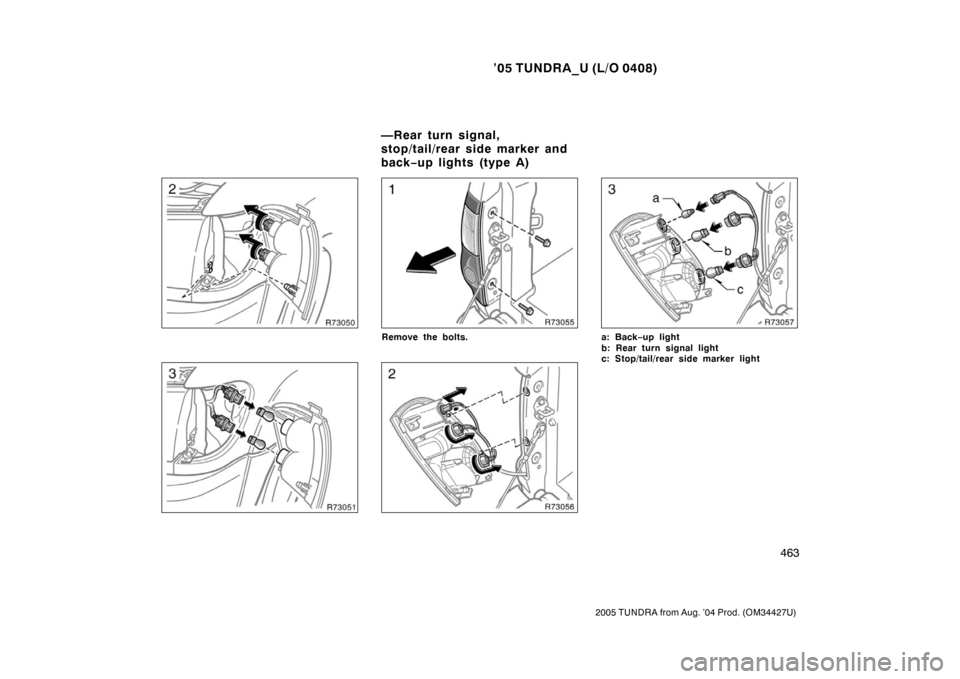

Remove the bolts.a: Back −up light
b: Rear turn signal light
c: Stop/tail/rear side marker light
—Rear turn signal,
stop/tail/rear side marker and
back− up lights (type A)

’05 TUNDRA_U (L/O 0408)
464
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

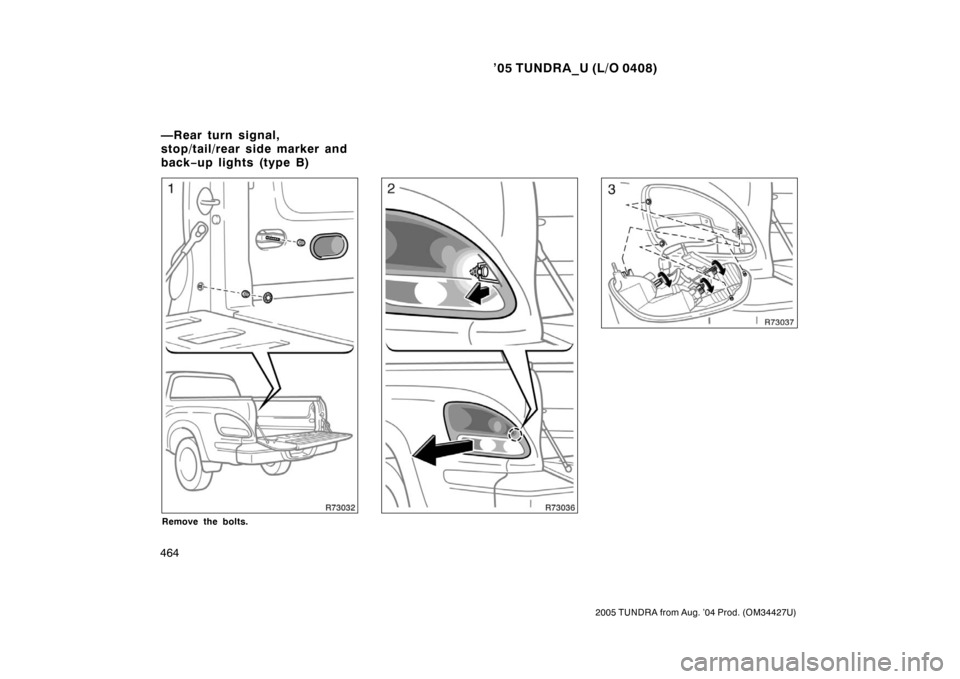

Remove the bolts.
—Rear turn signal,
stop/tail/rear side marker and
back−up lights (type B)

’05 TUNDRA_U (L/O 0408)
465
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

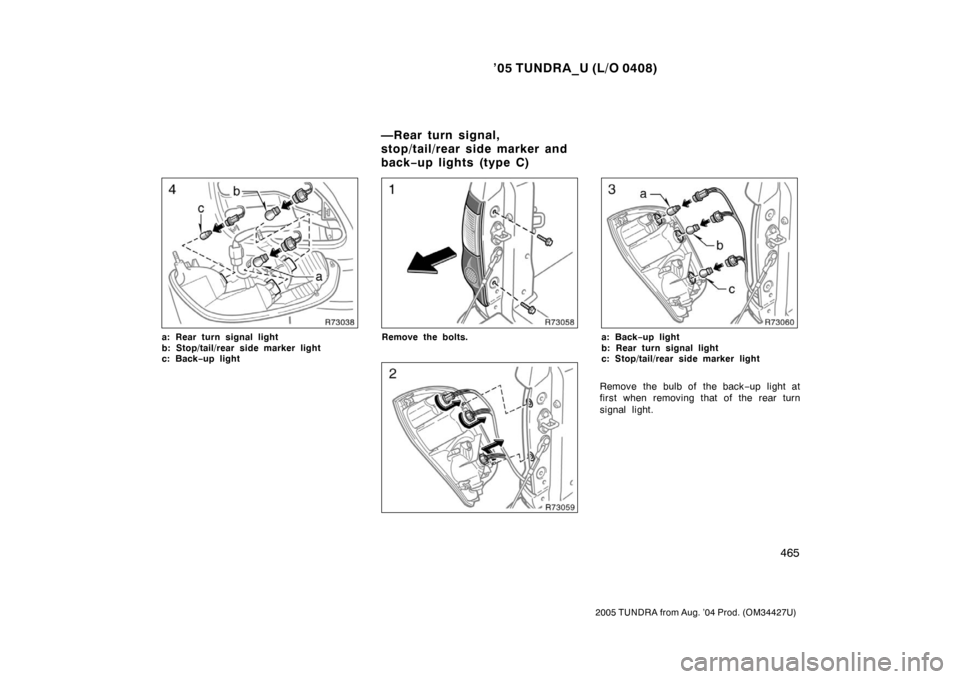

a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Back −up lightRemove the bolts.a: Back −up light
b: Rear turn signal light
c: Stop/tail/rear side marker light
Remove the bulb of the back −up light at
first when removing that of the rear turn
signal light.
—Rear turn signal,
stop/tail/rear side marker and
back− up lights (type C)

’05 TUNDRA_U (L/O 0408)
466
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

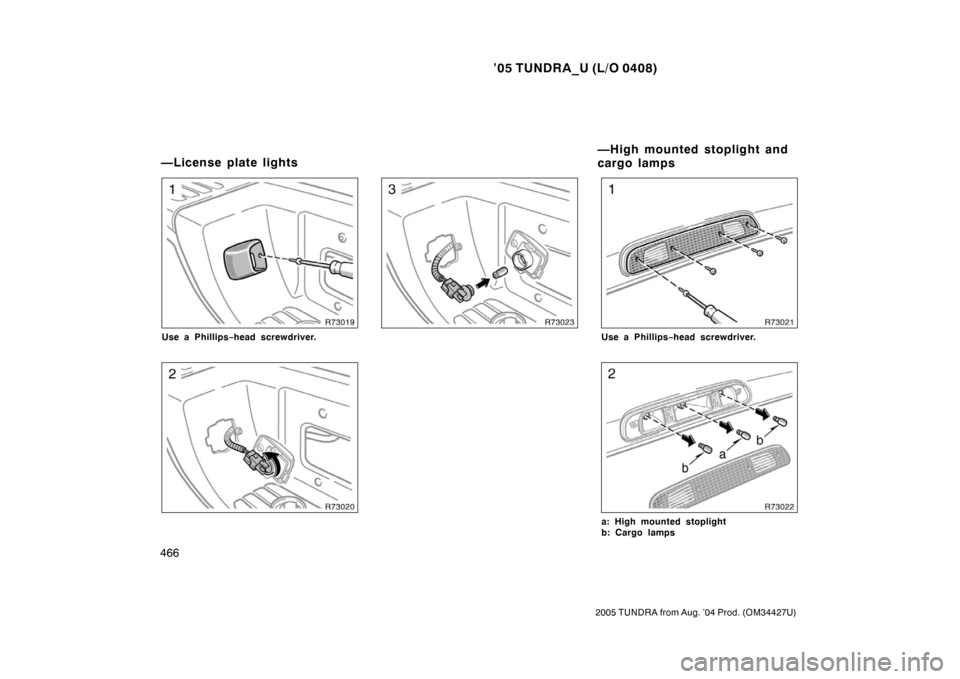

Use a Phillips −head screwdriver.Use a Phillips −head screwdriver.
a: High mounted stoplight
b: Cargo lamps
—License plate lights —High mounted stoplight and
cargo lamps

’05 TUNDRA_U (L/O 0408)
467
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
SPECIFICATIONS
Specifications
Dimensions 468
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Payload 470
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Towing capacity 473
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Engine 474
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 474
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 474
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 478
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 479
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’05 TUNDRA_U (L/O 0408)
468
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Tw o−wheel drive models
mm (in.)
Standard cab modelsAccess cab modelsDouble cab modelsStandard bedStepSide bed
Overall length5525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25845 (230.1)
Overall width1910 (75.2)
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42015 (79.3)2015 (79.3)∗3
2025 (79.7)∗4
Overall height∗51795 (70.7)1790 (70.5)∗6
1800 (70.9)∗7or81790 (70.5)
1880 (74.0)∗6
1890 (74.4)∗7
1895 (74.6)∗8
Wheelbase3260 (128.3)3260 (128.3)3260 (128.3)3570 (140.5)
Front tread1680 (66.1)1680 (66.1)1680 (66.1)1680 (66.1)
Rear tread1648 (64.9)1648 (64.9)1648 (64.9)1710 (67.3)
∗1: With steel bumper∗2: With plastic bumper∗3: With wheel arch moulding∗4: With over fender∗5: Unladen vehicle∗6: With P245/70R16 tires∗7: With P265/70R16 tires∗8: With P265/65R17 tires
Dimensions

’05 TUNDRA_U (L/O 0408)
469
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Four−wheel drive models
mm (in.)
Standard cab modelsAccess cab modelsDouble cab modelsStandard bedStepSide bed
Overall length5525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25845 (230.1)
Overall width1910 (75.2)
1945 (76.6)∗3
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42015 (79.3)2015 (79.3)∗3
2025 (79.7)∗4
Overall height∗51805 (71.1)∗6
1815 (71.5)∗7or81810 (71.3)∗6
1820 (71.7)∗7or81810 (71.3)
1890 (74.4)∗6
1900 (74.8)∗7
1905 (75.0)∗8
Wheelbase3260 (128.3)3260 (128.3)3260 (128.3)3570 (140.5)
Front tread1675 (65.9)1675 (65.9)1675 (65.9)1675 (65.9)
Rear tread1648 (64.9)1648 (64.9)1648 (64.9)1710 (67.3)
∗1: With steel bumper∗2: With plastic bumper∗3: With wheel arch moulding∗4: With over fender∗5: Unladen vehicle∗6: With P245/70R16 tires∗7: With P265/70R16 tires∗8: With P265/65R17 tires
