2005 TOYOTA TUNDRA Owners Manual

’05 TUNDRA_U (L/O 0408)
198
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
If the brake pedal is depressed while the
vehicle stability control system is active,
the brake pedal will become hard at an
earlier position than usual. However, the
brakes will respond to the pedal force if
depressed further.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.Four−wheel drive models only—
Shifting the driving mode into the four −
wheel drive mode automatically turns
the vehicle stability control system off.
At this time, the “VSC OFF” indicator
comes on.
“VSC OFF” indicator light comes on for a
few seconds when the ignition key is
turned to “ON”. It will come on again
when you shift the driving mode into the
four −wheel drive mode.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned to
“ON”.
The indicator light remains on after the
ignition key is turned to “ON”.
The indicator light comes on when the
system is on while driving.

’05 TUNDRA_U (L/O 0408)
199
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Without tachometer
With tachometer
“VSC TRAC” warning light
This light warns that when there is a
problem somewhere in the following.
Vehicle stability control system
Traction control system
“AUTO LSD” system
The light will come on when the ignition
key is turned to “ON”, and will go off after
about a few seconds.
The light may come on for 60 seconds
after the ignition key is turned to “ON”. It
is normal if they go out after a while.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if they
go out after a few seconds.
If the light comes on while driving, the
vehicle stability control system does not
work. However, as the brakes operate nor-
mally when applied, it is no problem to
continue your driving. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “VSC OFF” indicator light will come
on when the “VSC TRAC” warning light
comes on even if the “2WD/4HI” or “4LO”
switch is not pushed.

’05 TUNDRA_U (L/O 0408)
200
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
The tire pressure warning system is de-
signed to provide warning when tire
inflation pressure of one or more of
your tires (including the spare tire) is
low. The low tire pressure warning light
comes on to inform you that low tire
inflation pressure may hamper driving.
Without tachometer
With tachometer
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on or blinks, do the following.
If the warning light comes on:
Stop your vehicle in a safe place as
soon as possible and check that the
inflation pressure of all tires (including
the spare tire) is as specified on the
tire and loading information label. (See
“Checking tire inflation pressure” in
Section 7 −2.) If the warning light comes
on even after tire inflation pressure ad-
justment, you may have a flat tire. If
you have a flat tire, replace it with the
spare tire. For details, see “If you have
a flat tire” in Section 4.
The warning light goes off a few minutes
after air is put into the deflated tire.
This warning light may turn on due to
natural causes such as natural air leaks
or tire pressure changes caused by tem-
perature. In this case, adjusting the tire
pressure will turn off the warning light.
Tire pressure warning
system—

’05 TUNDRA_U (L/O 0408)
201
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:
Depending on the conditions, re-
duce to an appropriate speed as
soon as possible.
Adjust the tire pressure to the spe-
cified level as soon as possible.
Avoid abrupt steering wheel maneu-
vering and braking. Tire deteriora-
tion may reduce steering wheel con-
trol and brake effectiveness. This
may lead to serious injury or death.
The tire pressure warning system
may not activate immediately if sud-
den bursts of air leakage occur.
NOTICE
Do not use liquid sealants for a flat
tire as air pressure sensors will be
damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or authorized tire dealer. The tire
pressure sensors will be affected by
the installation or removal of tires.
 The tire pressure warning system is
not to be used as a substitute for
regular inspections. Be sure to
check the air pressure in the tires
on a regular basis.
 When the tires must be replaced,
replace the grommets for air pres-
sure sensors as well.
If the warning light blinks:
The tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
SYSTEM MALFUNCTION
The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire inflation pres-
sure is low, or it may come on when
the tire inflation pressure is actually
normal.
Electric devices or facilities using simi-
lar radio wave frequencies are nearby.
A radio set to similar frequencies is in
use.
A lot of snow or ice covers the ve-
hicle, in particular, around the wheels
or wheel housings.
The tires are not equipped with an air
pressure sensor.
Snow tires or tire chains are used.
Non −genuine Toyota wheels are used.
The sensor battery is expired.
Radio waves from the air pressure sen-
sor installed on the spare tire cannot
be received.

’05 TUNDRA_U (L/O 0408)
202
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
CAUTION
The use of non −genuine wheels will
cause the air pressure sensors to
transmit the electronic code in dif-
ferent manner, resulting in the sys-
tem failure.
The use of different type of tires
with genuine wheels may also
cause the malfunction of the sys-
tem.
CAUTION
When the tire pressure monitoring
system warning light is lit, one or
more of your tires is significantly un-
der −inflated. You should stop and
check your tires as soon as possible,
and inflate them to the proper pres-
sure as indicated on the vehicle’s tire
information placard. Driving on a sig-
nificantly under −inflated tire causes
the tire to overheat and can lead to
tire failure. Under− inflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ab ility. Each tire,
including the spare, should be
checked monthly when cold and set
to the recommended inflation pres-
sure as specified in the vehicle plac-
ard and owner ’s manual.

’05 TUNDRA_U (L/O 0408)
203
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

’05 TUNDRA_U (L/O 0408)
204
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
When replacing the wheels, be sure to
install air pressure sensors on the
wheels.
There are 3 ways to set up the air pres-
sure sensors:
a. Remove the sensor from the old wheel and install it to the new wheel.
b. Keep the same wheel with air pressure sensor and replace only the tire.
c. Use a new wheel and sensor. In this case, you have to register an ID code
for a new sensor.
CAUTION
Have the tires, wheels or sensors re-
placed and ID codes registered by a
Toyota dealer. If you need sensors,
purchase from a Toyota dealer.

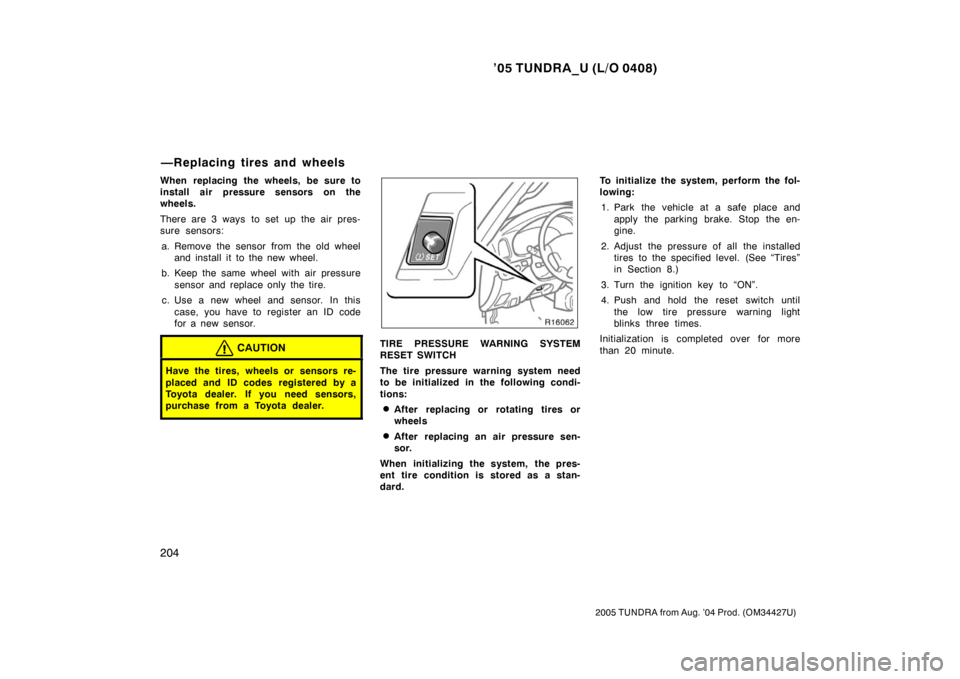

TIRE PRESSURE WARNING SYSTEM
RESET SWITCH
The tire pressure warning system need
to be initialized in the following condi-
tions:
After replacing or rotating tires or
wheels
After replacing an air pressure sen-
sor.
When initializing the system, the pres-
ent tire condition is stored as a stan-
dard. To initialize the system, perform the fol-
lowing:
1. Park the vehicle at a safe place and apply the parking brake. Stop the en-
gine.
2. Adjust the pressure of all the installed tires to the specified level. (See “Tires”
in Section 8.)
3. Turn the ignition key to “ON”.
4. Push and hold the reset switch until the low tire pressure warning light
blinks three times.
Initialization is completed over for more
than 20 minute.
—Replacing tires and wheels

’05 TUNDRA_U (L/O 0408)
205
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

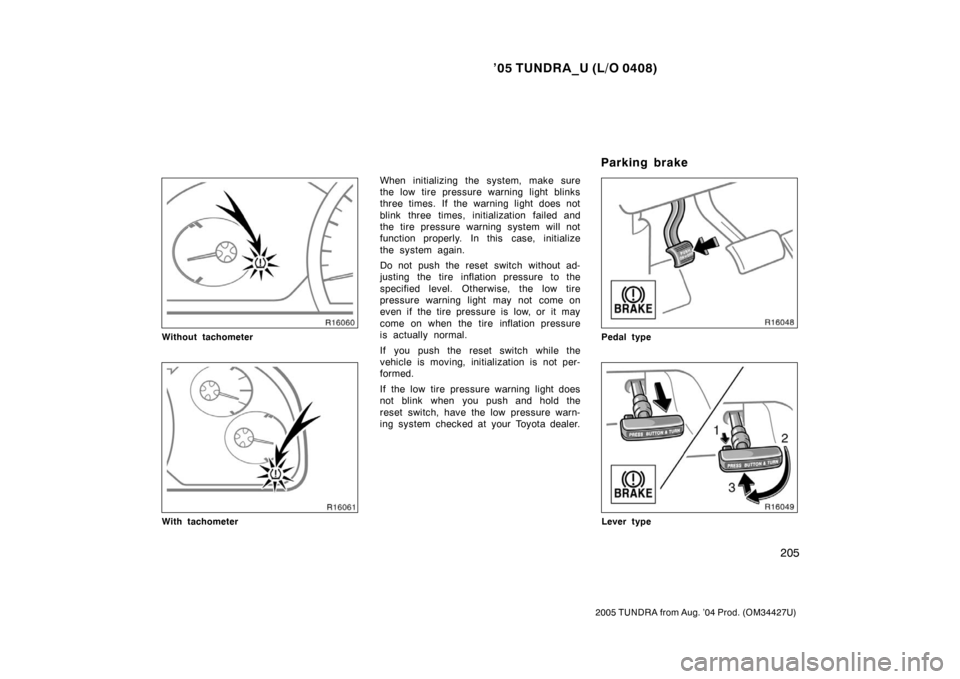

Without tachometer
With tachometer
When initializing the system, make sure
the low tire pressure warning light blinks
three times. If the warning light does not
blink three times, initialization failed and
the tire pressure warning system will not
function properly. In this case, initialize
the system again.
Do not push the reset switch without ad-
justing the tire inflation pressure to the
specified level. Otherwise, the low tire
pressure warning light may not come on
even if the tire pressure is low, or it may
come on when the tire inflation pressure
is actually normal.
If you push the reset switch while the
vehicle is moving, initialization is not per-
formed.
If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
Pedal type
Lever type
Parking brake
